ThyssenKrupp Flow2 Assembly Instruction Manual page 8

Tab 04: Install, adjust and release
Preassembly
CAUTION
Fit the legs and brackets solely to the rail sections. Do not fix them to the stairs yet.
The floor bracket:
1. Insert two hammer-head bolts (1) in the openings in the rail flange (2).
2. Fix the floor bracket (4) to the rail flange with the two hammer-head bolts and two Tensilock
nuts (3).

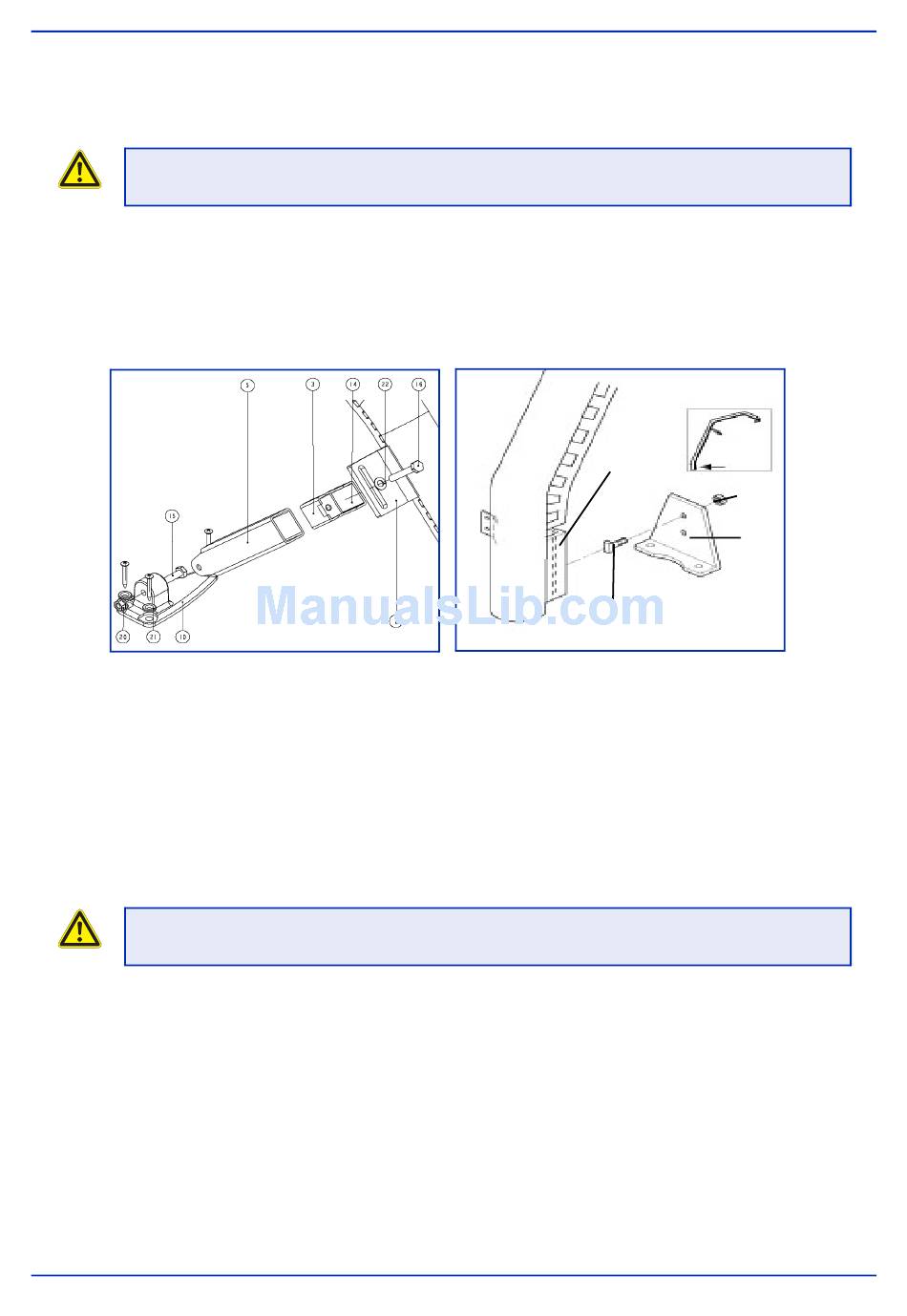

Fig. 2-1 Fitting the tread support on the rail
bracket
The tread brackets:
Possibly prepare the support.
1. Fit the leg (5) to the foot (10). Do this by assembling it with the M10 bolt (15) and locknut (20).
2. Screw the bolt (6) and washer (22) into the wedge (3) in the sleeve (5) with the rail bracket (2)
between at the right height.
CAUTION
Always fit the nut out of sight on the side facing the wall. Fit the bolt on the side facing the
6
Flow2 stairlift
1
www.ThyssenKruppAccessibility.nl
2
1
1
Fig. 2-2 Fitting the floor support on the rail
bracket
2007.03.07
4
3
