Option electric retract gear (not including).
only including oleo struts.
all balsa - ply wood construction.
covered in a heat-shrink film with printed (41 pages)
Page 1

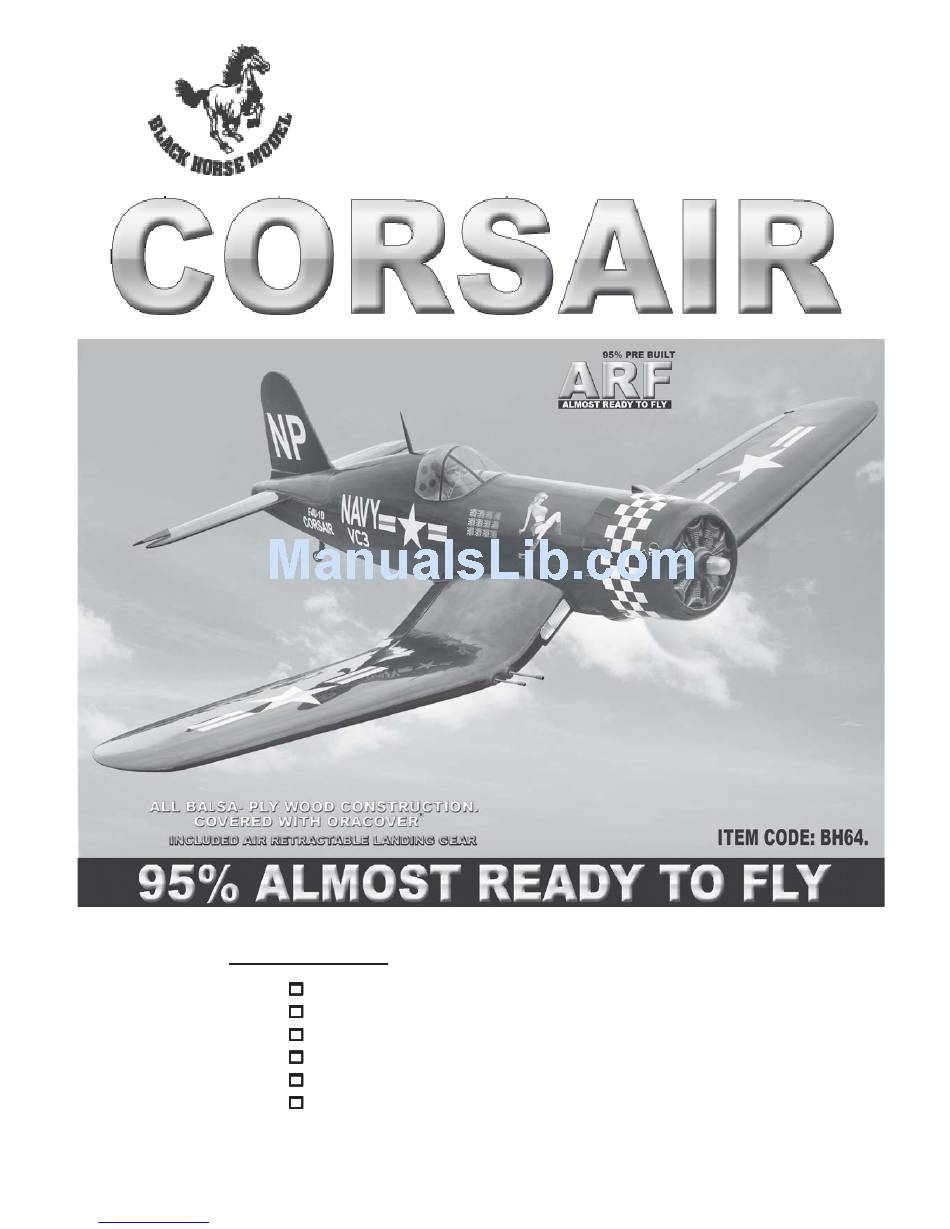

Instruction Manual book SPECIFICATION Wingspan : 2,310 mm 90.94 in. Length 1,750 mm 68.90 in. Weight 8.4 kg 18.48 Lbs. Radio 06 channels. Servo 09 servos. Engine 50-62CC gas. 1/5.3scale Made in Vietnam. Downloaded from www.Manualslib.com manuals search engine...
Page 2
CORSAIR Instruction Manual ITEM CODE: BH64. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your CORSAIR. Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 Caution: this model is not a toy! SAFETY PRECAUTION. If you are a beginner to this type of powered + This is not a toy model, please ask an experienced model flyer + Be sure that no other flyers are using your for help and support.
CORSAIR Instruction Manual ITEM CODE: BH64. C/A glue 1. Fuel tank. 2. Tail gear. 3. Plastic parts for pushrod. C/A glue 4 . Strut sets. 5. Wheels. 6. Air cool plastic parts. 7. Gun set 8. Bag with all of the connectors and t-fittings as a set.
Page 5
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.
Page 6
CORSAIR Instruction Manual ITEM CODE: BH64. 2.INSTALLING THE AILERON CONTROL HORN. 3mm x 40mm. M3 lock nut. Nilon control clasp Aileron control horn Remove covering Downloaded from www.Manualslib.com manuals search engine...
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 Elevator C/A glue. control horn 3.INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. C/A glue. M3 lock nut 100mm 2- INSTALLING THE FLAP SERVO . 2x10mm. C/A glue Downloaded from www.Manualslib.com manuals search engine...
Page 8
CORSAIR Instruction Manual ITEM CODE: BH64. Mark point Mark point Mark point Mark point Mark point Downloaded from www.Manualslib.com manuals search engine...
Page 9
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 Secure Electric Thread wire 2x10mm. Secure INSTALLING THE FLAP CONTROL HORN. Secure Nilon control clasp. INSTALLING THE FLAP SERVO . Thread Downloaded from www.Manualslib.com manuals search engine...
Page 10
CORSAIR Instruction Manual ITEM CODE: BH64. Remove covering Flap Control horn of the flap INSTALLING THE FLAP LINKAGES. Installing the aileron linkages as pictures below. M3 lock nut 65mm Downloaded from www.Manualslib.com manuals search engine...
Page 11
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 Repeat the procedure for the other wing half. INSTALLING AIR RETRACTABLE LANDING GEAR. Downloaded from www.Manualslib.com manuals search engine...
CORSAIR Instruction Manual ITEM CODE: BH64. Secure Secure WING ATTACHMENT. Locate the aluminium wing dihedral brace. *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- erly.
Page 13
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 Top right side Drill a hole 3mm diameter Aileron Flap Bottom 3 x 30mm Top side Secure Remove covering Downloaded from www.Manualslib.com manuals search engine...
CORSAIR Instruction Manual ITEM CODE: BH64. Drill a hole 3mm INSTALLING THE ENGINE MOUNT. diameter See pictures below: Top left side Secure Drill a hole 2mm diameter Top side FUEL TANK. Bottom side INSTALLING THE STOPPER ASSEMBLY 1) The stopper has been pre-assembled at the factory.
Page 15
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 end of the line to the weighted clunk and the Fuel pick- up tube Vent tube other end to the nylon pick up tube in the stop- per. 3) Carefully bend the second nylon tube up at a 45 degree angle (using a cigarette Fuel fill tube lighter).
CORSAIR Instruction Manual ITEM CODE: BH64. INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z” bend should be inserted into the throttle arm of the engine when the engine is fitted onto the engine mount.
Page 17
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 Secure Right side INSTALLING THE THROTTLE PUSHROD 1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
Page 18
CORSAIR Instruction Manual ITEM CODE: BH64. ELEVATOR INSTALLATION. SERVO INSTALLATION. 1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray. 2. Mount the servo to the tray using the mounting screws provided with your radio sys- tem.
Page 19
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 C/A glue C/A glue 1. Draw a center line onto the horizontal stabilizer. Then slide the horizontal into the fuselage. center line C/A glue 2 Using a modeling knife, cut away the covering from the fuselage for the stabilizer and remove it.
Page 20
CORSAIR Instruction Manual ITEM CODE: BH64. Remove covering 3. Mark the shape of the vertical on the left and right sides onto the horizontal stabilizer using a left-tip pen. Mark line Check to mark sure the wing and stabi- lizer are paralell. If they are not, lightly sand the opening in the fuselage for the stabilizer 4.
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 Epoxy glue Remove covering 6. After the epoxy has fully cured, remov the masking tape or T-pins used to hold the stabilizer in place and carefully inspect the glue joints. Use more epoxy to fill in any gaps that were not filled previously and clean up the excess using a paper towel and rubbing alcohol.
CORSAIR Instruction Manual ITEM CODE: BH64. M2 lock nut. ELEVATOR PUSHROD INSTALLATION. Pushrod install as same as method of pushrod wing. See pictures below: Elevator Elevator pushrod pushrod Remove covering Downloaded from www.Manualslib.com manuals search engine...
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 VERTICAL INSTALLATION. 1. Put the rudder into the fuselage as same as picture below. C/A glue 2. Mark the shape of the vertical on the left and right side of the rudder using a felt-tip pen. C/A glue Downloaded from www.Manualslib.com...
Page 24
CORSAIR Instruction Manual ITEM CODE: BH64. 3. Now, remove the rudder and using a modeling knife, carefully cut just inside the Epoxy glue. marked lines and remove the film of the rud- der. Just as you did with the horizontal stabi- lizer, make sure you only press hard enough to cut the film, not the balsa rudder.
Page 34
CORSAIR Instruction Manual ITEM CODE: BH64. C/A glue Mark point Mark line R e m o v e covering Downloaded from www.Manualslib.com manuals search engine...
CORSAIR - INSTRUCTION MANUAL ITEM CODE: BH64 *If possible, first attempt to balance the model by changing the position of the receiver bat- tery and receiver. If you are unable to obtain good balance by doing so, then it will be nec- essary to add weight to the nose or tail to achieve the proper balance point.
CORSAIR Instruction Manual ITEM CODE: BH64. PRE-FLIGHT CHECK. 1) Completely charge your transmitter and receiver batteries before your first day of fly- ing. 2) Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
