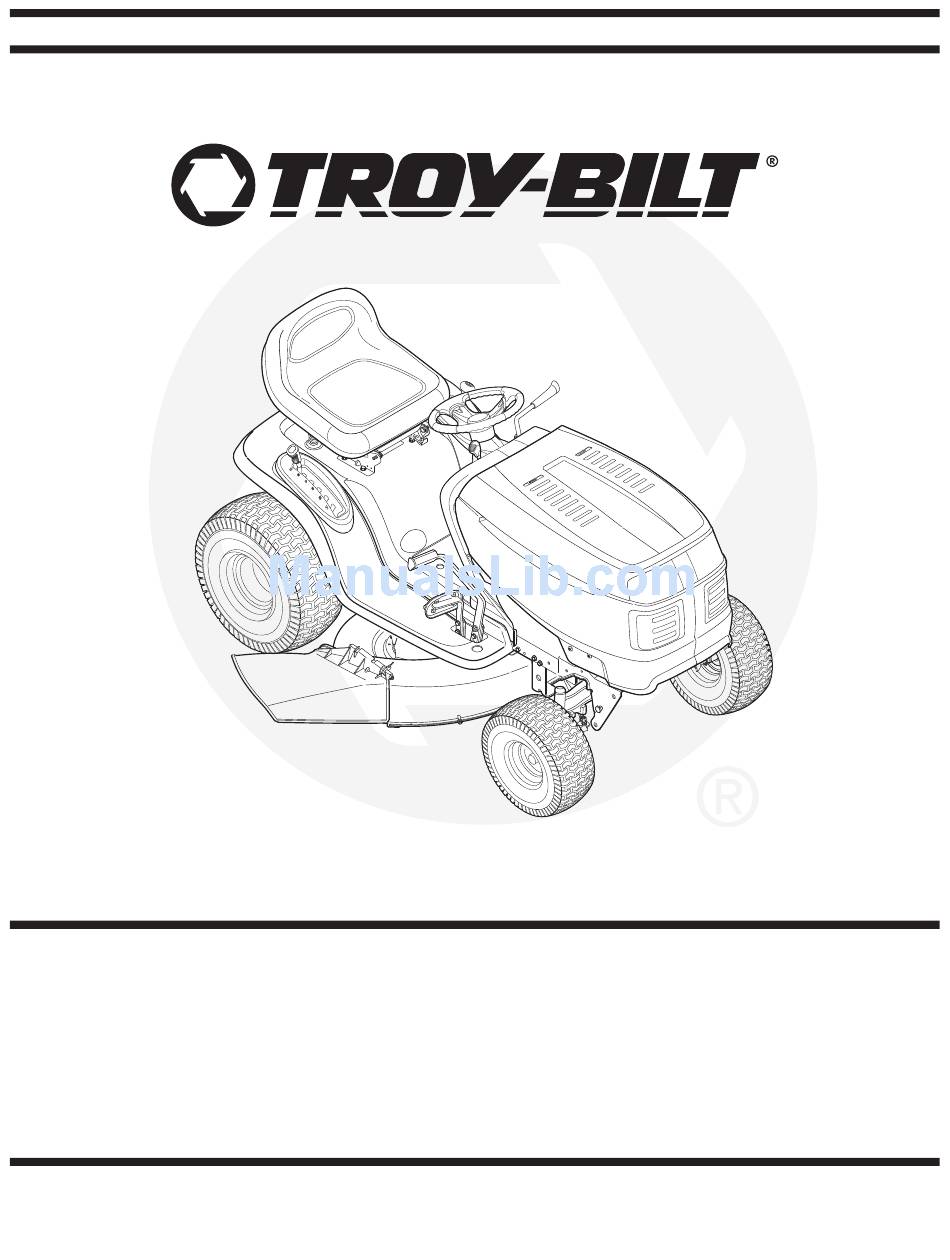

OPERATOR'S MANUAL
Automatic Lawn Tractor — Super Bronco™
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
FORM NO. 770-10490K
PRINTED IN U.S.A
Troy-Bilt LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
11/13/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Super Bronco and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Troy-Bilt Super Bronco

Summary of Contents for Troy-Bilt Super Bronco

  • Page 1 (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. FORM NO. 770-10490K PRINTED IN U.S.A Troy-Bilt LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 11/13/2006...

  • Page 2: Table Of Contents

    You can locate the model plate by looking beneath the seat. Serial Number Model Number This information will be necessary to use the manufacturer’s TROY-BILT LLC web site and/or obtain assistance from the Customer Support P. O. BOX 3 6 1 1 3 1 Department or an authorized service dealer.

  • Page 3: Slope Gauge

    Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower on such slopes. Slope Gauge WARNING Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet).

  • Page 4: Safe Operation Practices

    WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. DANGER: This machine was built to be operated according to the rules for safe operation in this Safe manual.
  • Page 5 General Operation: 14. Watch for traffic when operating near or crossing roadways. This machine is not intended for use on 1. Read, understand, and follow all instructions on the any public roadway. machine and in the manual(s) before attempting to 15.
  • Page 6 Slope Operation: Do Not: 1. Do not turn on slopes unless necessary; then, turn Slopes are a major factor related to loss of control and slowly and gradually downhill, if possible. tip-over accidents which can result in severe injury or 2.
  • Page 7 Service 10. Never attempt to make adjustments or repairs to the machine while the engine is running. 1. Never run an engine indoors or in a poorly ventilated 11. Grass catcher components and the discharge area. Engine exhaust contains carbon monoxide, an cover are subject to wear and damage which could odorless, and deadly gas.

  • Page 8: Setting Up Your Lawn Tractor

    Rubber Boot specifications for various models. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models. Troy-Bilt LLC reserves the right to change product specifications, designs and equipment without notice and without incurring obligation.
  • Page 9 Attaching The Steering Wheel The hardware for attaching the steering wheel has been packed within the steering wheel, beneath the steering wheel cap. Carefully pry off the steering wheel cap and remove the hardware. Setting Up 1. With the wheels of the tractor pointing straight forward, place the steering wheel over the steering Your Lawn shaft.

  • Page 10: Operating Your Lawn Tractor

    Know Your Lawn Tractor Operating Your Lawn Tractor NOTE: Any reference in this manual to the AMPS RIGHT or LEFT side of the tractor is observed from operator’s position. NOTE: Steering wheel not shown for clarity Figure 4-1 PTO (Blade Engage) Lever Cruise Control Button Ammeter Ignition Switch...

  • Page 11: Throttle Control Lever

    Throttle Control Lever Choke The throttle control lever is located on the right side of the Position tractor’s dash panel. This lever controls the speed of the engine and when pushed all the way forward, the choke Fast control also. When set in a given position, the throttle will Position maintain a uniform engine speed.
  • Page 12 PTO (Blade Engage) Lever �� ��� ��� Operating Your Lawn The PTO (Blade Engage) lever is located on the left side of the dashboard next to the steering wheel. Move the Tractor PTO (Blade Engage) lever forward to engage the power to the cutting deck or other (separately available) attach- ments;...

  • Page 13: Safety Interlock Switches

    Push the cruise control Contact an authorized Troy-Bilt Outdoor service dealer. button while traveling forward at a • The safety interlock system prevents the engine Operating desired speed.

  • Page 14: Engaging The Parking Brake

    Engaging the Parking Brake WARNING To engage the parking brake: 1. Fully depress the brake pedal and hold it down with AVOID SERIOUS INJURY OR DEATH your foot while gently pushing the parking brake • GO UP AND DOWN SLOPES, NOT ACROSS. button inward.

  • Page 15: Starting The Engine

    Starting the Engine Driving The Tractor WARNING: Do not operate the tractor if WARNING: Avoid sudden starts, ex-ces- the interlock system is malfunctioning. sive speed and sudden stops. This system was designed for your safety WARNING: Do not leave the seat of the and protection.

  • Page 16: Engaging The Blades

    Setting The Cruise Control Engaging the Blades 1. Place the shift lever in the FORWARD position, Engaging the PTO (Blade Engage) transfers power to the then slowly depress the drive pedal until the desired cutting deck or other (separately available) attachments. speed is achieved.
  • Page 17 Mowing Headlights WARNING: To help avoid blade contact or • The lamps are ON whenever the ignition key is moved a thrown object injury, keep bystanders, out of the STOP position. helpers, children and pets at least 75 feet • The lamps turn OFF when the ignition key is moved to from the machine while it is in operation.

  • Page 18: Adjusting Your Lawn Tractor

    2. Measure the distance from the front of the blade tip to the ground and the rear of the blade tip to the ground. The first measurement taken should be between 1/4” and 3/8” less than the second measurement. Determine the approximate distance necessary for proper adjustment and proceed, if necessary, to the Adjusting next step.

  • Page 19: Seat Adjustment

    Seat Adjustment WARNING: Before operating this machine, make sure the seat adjustment knobs are tight to prevent any movement of the seat while in operation. Adjusting 1. Flip the seat up as shown in Fig. 5-3. Your Lawn 2. Loosen the two seat adjustment knobs located under the seat.

  • Page 20: Maintaining Your Lawn Tractor

    IMPORTANT: Refer to the Engine Operator/Owner Manual packed with your unit for information regarding the quantity and proper weight of motor oil. Air Cleaner Service the pre-cleaner, if so equipped, and cartridge/air cleaner element as instructed in the Engine Operator/ Maintaining Owner Manual packed with your unit.
  • Page 21 NOTE: Refer to page 26 for information regarding this and other separately-available attachments & acces- sories for your tractor. 1. Drive the tractor to a level, clear spot on your lawn, near enough to a water sillcock (spigot) for your garden hose to reach.
  • Page 22 8. Repeat the above steps on the tractor’s right side. If the charger is not automatic, charge for no fewer than eight hours. 9. Move the deck lift lever into the top notch on the right fender to raise deck lift arms up and out of the way. WARNING: Batteries give off an explosive gas while charging.

  • Page 23: Cutting Blades

    Cutting Blades WARNING: Be sure to shut the engine off, remove ignition key, disconnect the spark plug wire(s) and ground against the engine to prevent unintended starting before removing the cutting blade(s) for Maintaining sharpening or replacement. Protect your hands by using heavy gloves or a rag to grasp the cutting blade.
  • Page 24 (i.e. air/impact wrench) in order to change spark plug wire(s) and ground against the tractor’s drive belts. See an authorized Troy-Bilt the engine to prevent unintended starting Service Dealer to have your drive belts replaced or phone before removing the belt(s).
  • Page 25 42-inch Deck Left Hand Engine Pulley Spindle Pulley Right Hand Maintaining Spindle Pulley Your Lawn Tractor Idler Pulleys Figure 6-7...

  • Page 26: Off-Season Storage / Attachments

    Attachments Attachments & Accessories The following attachments and accessories are compatible for Model 60TG Super Bronco Lawn Tractors. See the retailer from which you purchased your tractor, an authorized Troy Bilt Service Dealer or phone 1-866-840-6483 for information regarding price and availability.

  • Page 27: Safety Labels

    �� AV�ID SERI�US I�JURY �� AV�ID SERI�US I�JURY Safety �R DEA�H �R DEA�H • GO UP AND DOWN SLOPES, NOT ACROSS. • GO UP AND DOWN SLOPES, NOT ACROSS. Labels • AVOID SUDDEN TURNS. • AVOID SUDDEN TURNS. • DO NOT OPERATE THE UNIT WHERE IT COULD SLIP •...

  • Page 28: Trouble Shooting

    Problem Cause Remedy Engine fails to start 1. PTO engaged. 1. Place PTO knob (or lever) in disengaged (OFF) position. 2. Connect wire(s) to spark plug(s). 2. Spark plug wire(s) disconnected. 3. Fill tank with clean, fresh gasoline. 3. Fuel tank empty or stale fuel. 4.
  • Page 29 Problem Cause Remedy Engine overheats 1. Engine oil level low. 1. Fill crankcase with proper oil. 2. Air flow restricted. 2. Clean grass clippings and debris from around the engine’s cooling fins and blower housing. Engine hesitates at 1. Spark plug(s) gap too close. 1.

  • Page 30: Replacement Parts

    Discharge Chute Assembly 931-1032B call (866) 840-6483. WARNING: If a safety feature is not functioning properly, do not use the tractor. Contact your authorized Troy-Bilt service dealer or call (866) 840-6483. This Operators Manual covers a range of product specifications for various models.
  • Page 31 CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The California Air Resources Board and MTD Consumer Group Inc are pleased to explain the evaporative emission control system warranty on your 2007 lawn mower. In California, new lawn mower must be designed, built and equipped to meet the State’s stringent anti-smog standards. MTD Consumer Group Inc must warrant the EECS on your lawn mower for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your lawn mower.
  • Page 32 MANUFACTURER’S LIMITED WARRANTY FOR The limited warranty set forth below is given by Troy-Bilt LLC with respect Troy-Bilt does not extend any warranty for products sold or to new merchandise purchased and used in the United States, its posses- exported outside of the United States, its possessions and sions and territories.
