ASSEMBLY INSTRUCTION FOR GIBSON CANOPY BED

IMPORTANT SAFETY INSTRUCTIONS:

 Please read all instructions carefully before assembling.
 For your safety, assembly by two or more adults is strongly recommended.
 Keep instructions for future use.
 Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the
stuctural integrity of the item.

PARTS INCLUDED:

(A) Panel HB
(B) HB Rail
(C) Footboard
(D) Side Rails
(E) Canopy-Short
(F) Canopy-Long
(G) HB Post (Left)
(H) HB Post (Right)
(I) FB Post
(J) Center Beam
(K) Slats
(L) Center Leg

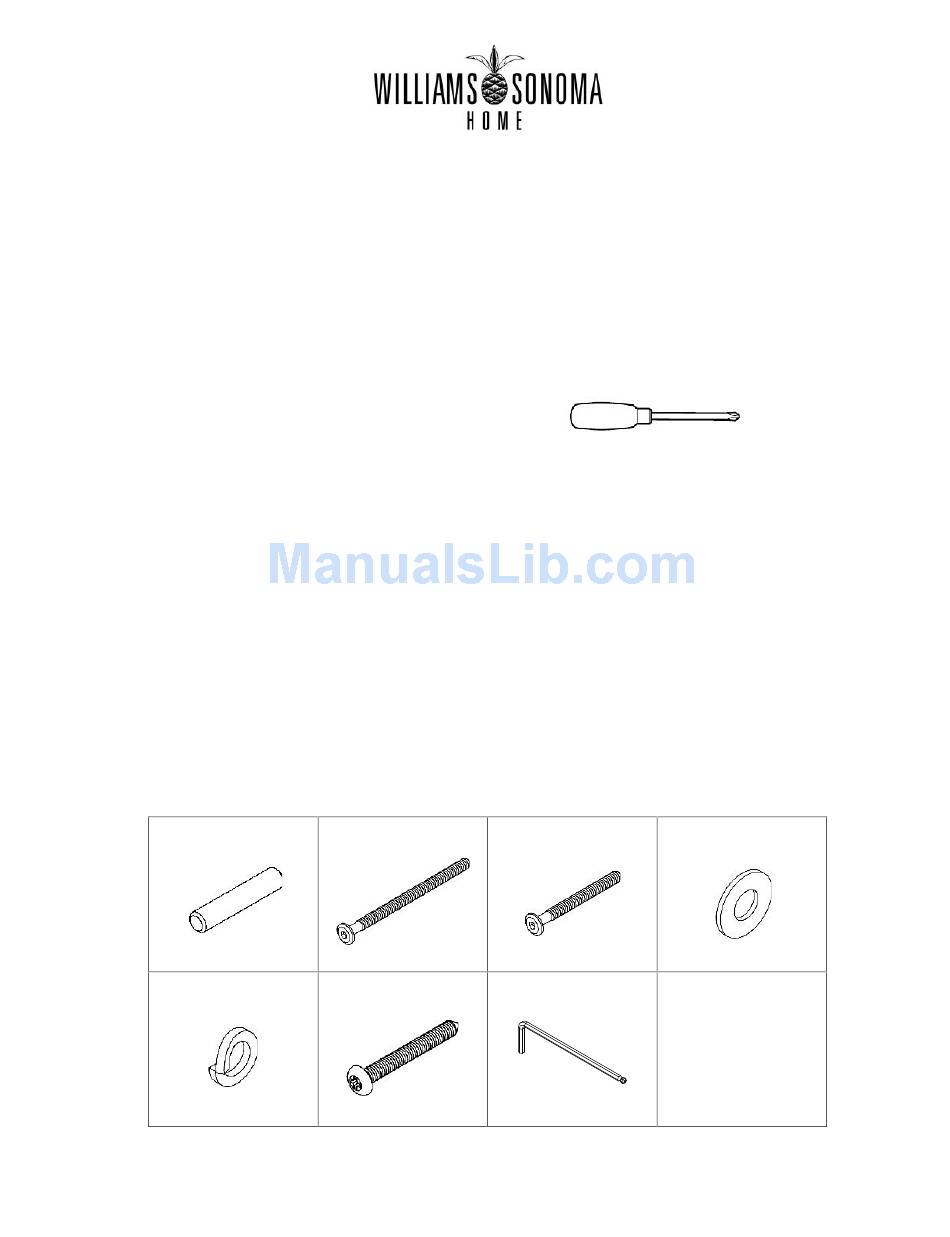

HARDWARE ENCLOSED:

(M)
Dowel
4 pcs
(Q)
Spring Washer
10 pcs
1 pc
1 pc
1 pc
2 pcs
2 pcs
2 pcs
1 pc
1 pc
2 pcs
1 pc
5 pcs
1 pc
(N)
Allen Bolt M6 x 90
Allen Bolt M6 x 60
6 pcs
(R)
Screw PAB 6 x 1½"
10 pcs

TOOLS REQUIRED:

Screw Driver
(O)
Flat Washer
4 pcs
10 pcs
(S)
Allen Key
1 pc
(P)
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GIBSON CANOPY BED and is the answer not in the manual?

Questions and answers

Related Manuals for Williams-Sonoma GIBSON CANOPY BED

Summary of Contents for Williams-Sonoma GIBSON CANOPY BED

  • Page 1 ASSEMBLY INSTRUCTION FOR GIBSON CANOPY BED IMPORTANT SAFETY INSTRUCTIONS:  Please read all instructions carefully before assembling.  For your safety, assembly by two or more adults is strongly recommended.  Keep instructions for future use.  Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the stuctural integrity of the item.
  • Page 2 ASSEMBLY INSTRUCTIONS: 1. Insert the exposed hook on the HB Rail (B) into the corresponding groove on the HB Post-Right (H), push down to tighten as shown (Fig.1b). Insert Dowel (M) into the pre-drilled holes on Right side of Panel HB (A). Insert the dowel on the Panel-HB (A) to the corresponding holes on the HB Post-Right as shown (Fig.1a).
  • Page 3 2. Insert the exposed hooks on the Footboard (C) to the corresponding groove on the FB Post (I), push down to tighten as shown (Fig.2). Fig.2 3. Insert the exposed hooks on the Side rail (D) into the corresponding groove on the HB Post and FB Post, push down to tighten as shown (Fig.3).
  • Page 4 4. Align pre-drilled hole on Canopy-Short (E) and Canopy-Long (F) with the corresponding hole on HB and FB Post, secure with Allen Bolt (O), Spring Washer (Q) and Flat Washer (P) and tighten using Allen Key (S) as shown (Fig.4). Fig.4 5.
  • Page 5 6. Lay the end of Slats (K) to the notch on the cleat mattress support cleat. Secure with Screws (R). Tighten using Screw Driver (not included) as shown (Fig.6) Fig.6 7. Assembly is complete. If the floor is uneven, adjust the recessed levelers found on the bottom of Center Leg. Turn Leveler Counter Clockwise to increase height Turn Leveler Clockwise to decrease...
