Summary of Contents for Williams-Sonoma Mercer Bed Queen

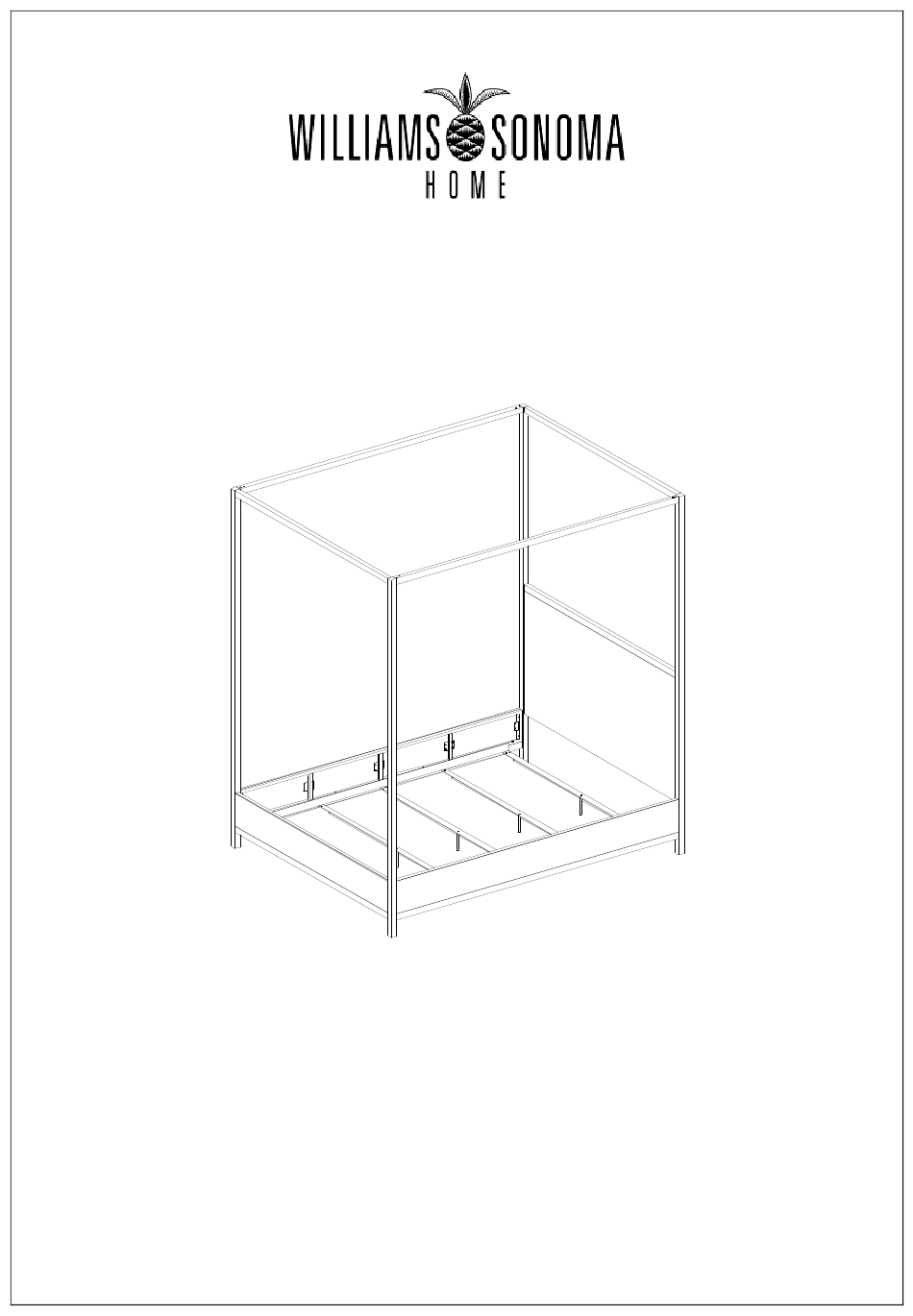

- Page 1 Mercer Bed Queen Date: 30‐Mar‐16 www.williams‐sonoma.com Page 1 of 6 Rev:...
- Page 2 Important Safety Instructions: Please read all instructions carefully before assembling. For your safety, assembly by two or more adults is strongly recommended. Keep instructions for future use. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 Hardware Included: Spring Washer Bolt Flat Washer Bolt Flat head Bolt M6 x32mm M6 x19mm M6 x12mm 31 x 16x 41 x 15 x 10 x 16 x Tools Required: Allen Wrench Open Wrench Assembly Instruction Steps: 1.
- Page 4 2. Attach Post (A) to Short Stretcher (G) and Headboard (D) as shown, secure the Short Stretcher (G) by using Bolt (O), secure the Headboard (D) by using Bolt (K), Spring Washer (J) and Flat Washer (L), and tighten with Allen Wrench (P).
- Page 5 4. Attach Side Rail (E) to the assembly as shown, insert Bolt (K) thru Spring Washer (J) and Flat Washer (L), tighten with Allen Wrench (P). 5. Attach Support Leg (I) to Slat (H) by using Bolt (M), Spring Washer (J) and Flat washer (L), tighten with Allen Wrench (P).
- Page 6 6. Attach the Slat (H) to Side Rail (E) by using Bolt (M), Spring Washer (J), Flat Washer (L) and Nut (N), tighten with Allen Wrench (P) and Open Wrench (Q). Finally fully tighten all bolts with the provided Wrench, assembly is complete! Care Instructions: ...
