Summary of Contents for Williams-Sonoma MORGAN RECT 80 DINING TABLE

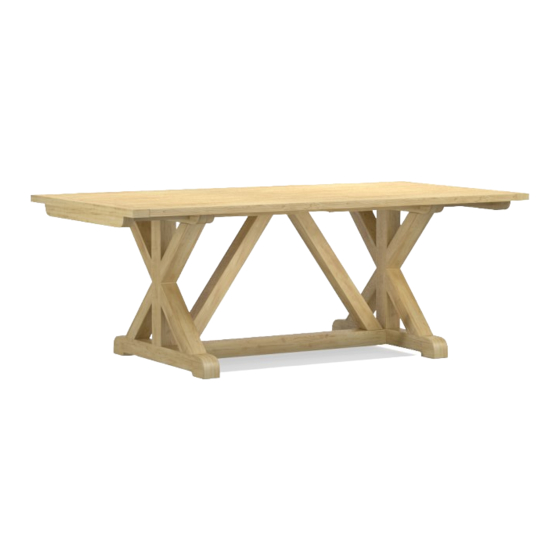

- Page 1 MORGAN RECT 80” DINING TABLE Date: 02‐Apr‐15 www.williams‐sonoma.com Page 1 of 6 Rev:...
- Page 2 Important Safety Instructions: Please read all instructions carefully before assembling. For your safety, assembly by two or more adults is strongly recommended. Keep instructions for future use. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 (J) Thumb screw with washer Assembly Instruction Steps: 1. Attached the stretcher (D) to leg (C) by inserting the exposed dowel on the stretcher into pre-drilled holes on the leg. 2. Secure by fitting (H) flat washer (E), spring washer (F) and Allen bolt (G) using Allen key (I). ...
- Page 4 5. Slowly place the top (A) on the assembled legs & stretcher (C&D) by aligning the pre-drilled holes on the bottom side of top with exposed wood dowel on top of legs. 6. Secure the top (A) by flat washer (E), spring washer (F) and Allen bolt (G) using Allen key (I) as shown. ...
- Page 5 10. Push the two end rails in to close the top 11. Secure the runners with 4 thumb screws with washer (J) by turning counter clockwise from the underside of the table top, as seen in the illustration below. Note: Thumb Screws will need to go through the runner and insert into the nut which is pre-assembled on the underside of top.
- Page 6 which corner does not touch the ground correctly. With two people follow these steps: Carefully elevate the item slightly to provide access to the levelers attached to the bottom. Turn the levelers until adequate contact will be made with the floor. Gently set down the piece and check stability.
