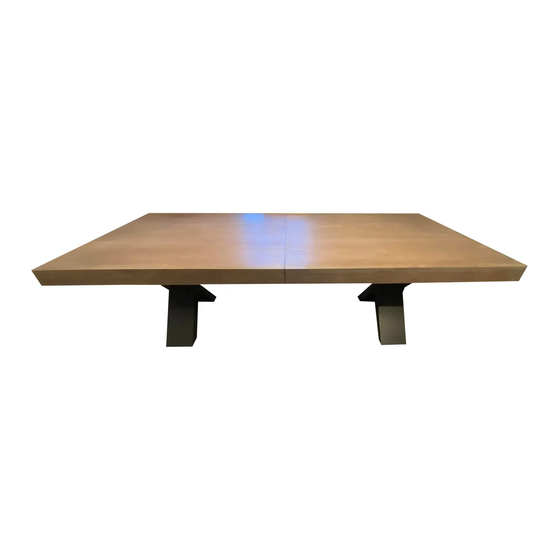

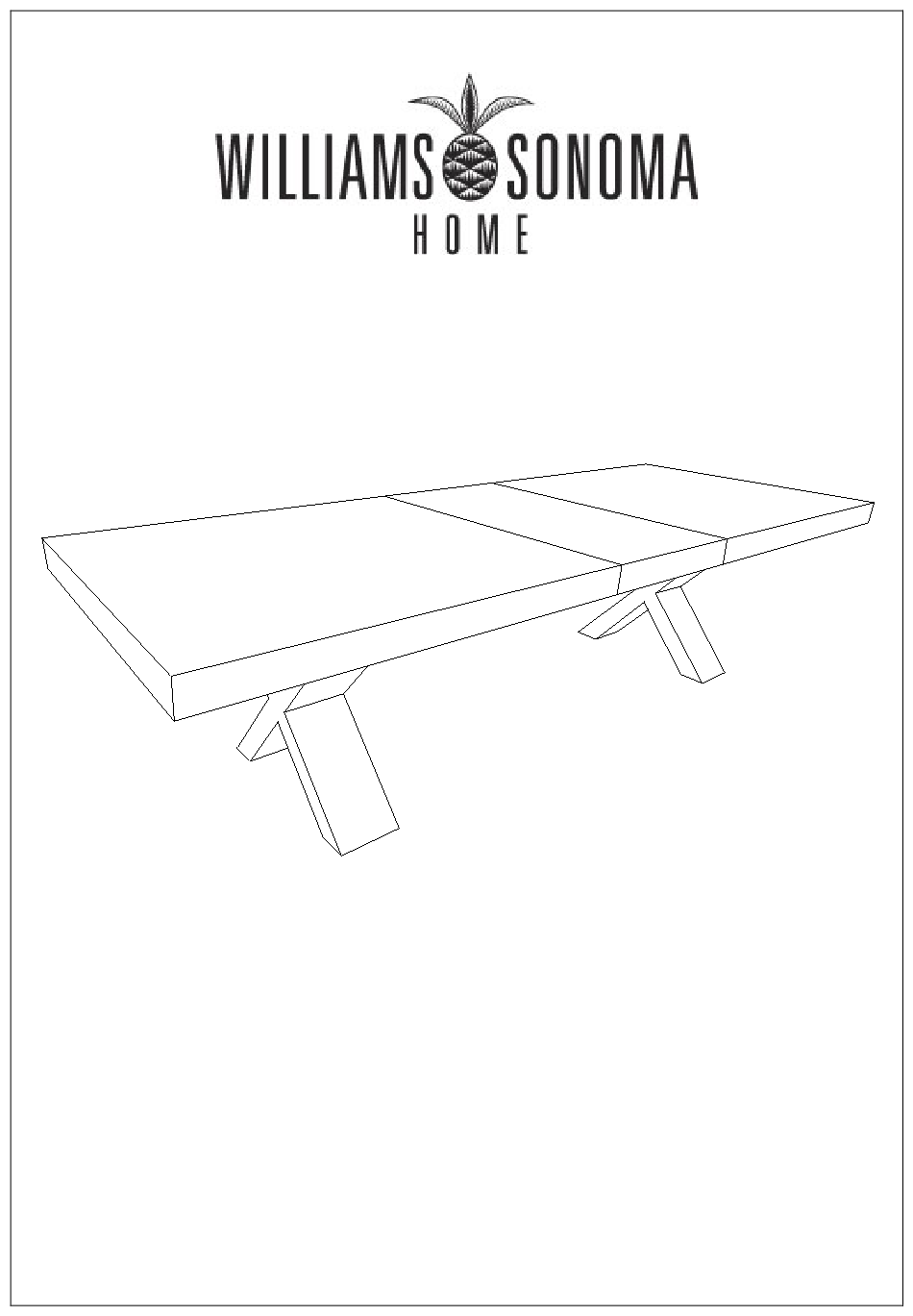

- Page 1 NAVARRO Ext. Dining Table Date: 15-Sept-17 Page 1 of 5 Rev:...
- Page 2 Important Safety Instructions: • Please read all instructions carefully before assembling. • For your safety, assembly by two or more adults is strongly recommended. • Keep instructions for future use. • Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 Assembly Instruction Steps: 1. Carefully turn the Table Top (A) upside down on a carpet or scratch-free surface. 2. Un-assemble Legs (C) from Particle Board by taking out the Bolts using Allen Wrench. (See Fig. 1). Fig.1 3. Attach one Leg (C) to Table Top (A) using Bolts (D), Spring Washers (E) and Flat Washers (F). Tighten with Allen Wrench (See Fig.
- Page 4 To insert or remove the extension leaf: Unlock the swivels located on the underside of the Table Top. Grip Table at each end, pull apart (A) to open and take out the Leaf (B) from storage by pulling it by its handle (See Fig.
- Page 5 Adjusting Levelers: Due to an uneven floor the furniture may not sit level due causing it to wobbles. If the piece wobbles, determine which corner does not touch the ground correctly. With two people follow these steps: 1. Carefully lift the item slightly to provide access to the levelers attached to the bottom. (See Fig. 2). 2.
