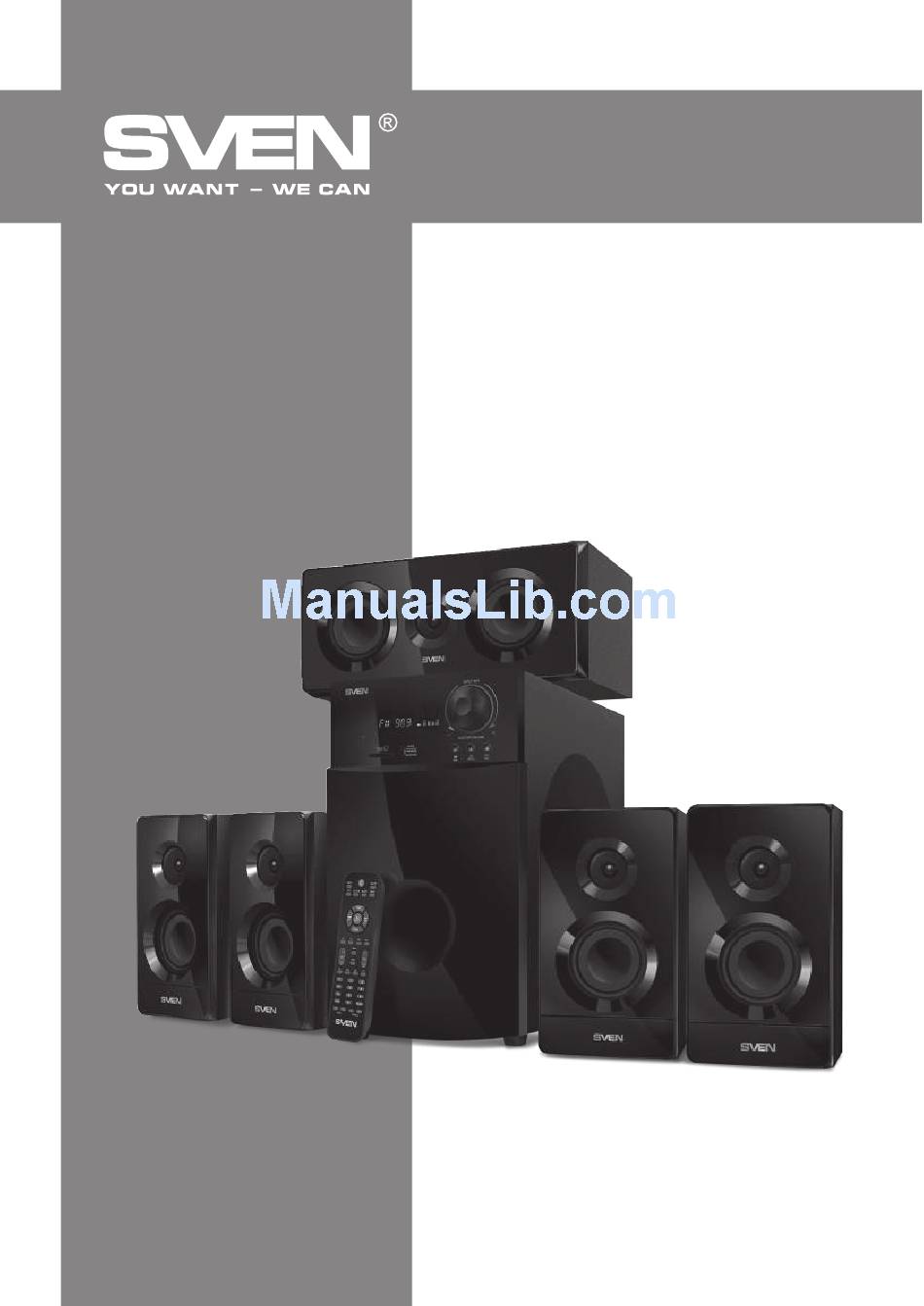

- Page 1 5.1 Active Home Theater Speaker System With Bluetooth OPERATION MANUAL HT-210 www.sven.fi...
- Page 2 Operation Manual HT-210 Congratulations on your purchase of the Sven speaker system! COPYRIGHT © 2016. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders.
- Page 3 • Do not clean the HTSS with chemicals, use dry soft cloth only. 4. TECHNICAL DESCRIPTION HT-210 5.1 Home Theater Speaker System (HTSS) is designed for creating a home theater. The multichannel 5.1 amplifier built into the subwoofer enables to connect the HTSS to virtually any audio source.
- Page 4 Operation Manual HT-210 • Built-in player for audio files from external storage devices INPUT • Wireless signal transmission via Bluetooth • Optical and coaxial inputs AUTO SLEEP • Remote control • Wall mountable satellites • Wooden (MDF) subwoofer and VOLUME...
- Page 5 5.1 Active Home Theater Speaker System With Bluetooth j COAXIAL INPUT: coaxial input jacks k FM ANT: FM antenna input jack l PC: PC input jacks m AUX: line input jacks n DVD: DVD input jacks o ON/OFF: power switch p AUDIO OUTPUT: satellite output terminals q Power cord Remote control...
- Page 6 Operation Manual Operation Manual MS-2050 HT-210 Installing RC batteries • Open the battery compartment on the back of the remote control. • Insert the included AAA batteries. • Close the battery compartment. Notes: • Use the RC at an angle no more than 30° at a distance of no more than 7 meters.
- Page 7 5.1 Active Home Theater Speaker System With Bluetooth • For more accurate perception, the tweeters should be at the listener’s ear level. • Do not locate the speakers in niches. Such placement can affect the sound badly, especially in the lows. •...
- Page 8 Note. In buildings with weak FM signal use an outdoor FM antenna. Preparations HT-210 speaker system can be connected to virtually any audio source: DVD/CD/MP3 player, PC sound card, etc. (see connection diagram, Fig. 7). Caution! Before making any connections, make sure the MSS is off and unplugged.
- Page 9 5.1 Active Home Theater Speaker System With Bluetooth DVD player 2RCA to 2RCA signal cables OPTICAL INPUT Coaxial cable COAXIAL INPUT Fig. 7. Connection to audio sources Switching on • Сonnect the power cord o to the mains outlet. • Switch on the HTSS power supply with the POWER ON/OFF switch on the subwoofer rear panel. •...
- Page 10 Operation Manual Operation Manual MS-2050 HT-210 2.1/5.1 Mode • For 5.1 mode emulation from 2.1 mode use the PRO j button on the RC. LED indicator NORMAL/ PROLOGIC will illuminate. Player Mode • To enter the Player mode press the volume control knob INPUT h on the subwoofer front panel or INPUT a button on the remote control.
- Page 11 “BLU” mode will be shown on the display. • It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). “HT-210” message will be displayed on the screen which it should be connected to*.
- Page 12 Operation Manual Operation Manual MS-2050 HT-210 6. TROUBLESHOOTING Problem Cause Solution The HTSS does The HTSS isn’t connected to a mains outlet. Check the connection. not turn on. The power switch is off. Turn on the switch. Volume level is set at minimum value.
- Page 13 282 × 120 × 105 12.4 Weight, kg Notes: Technical specifications given in this table are supplemental information and cannot give • occasion to claims. Technical specifications and package contents are subject to change without notice due • to the improvement of SVEN production.
- Page 14 Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
