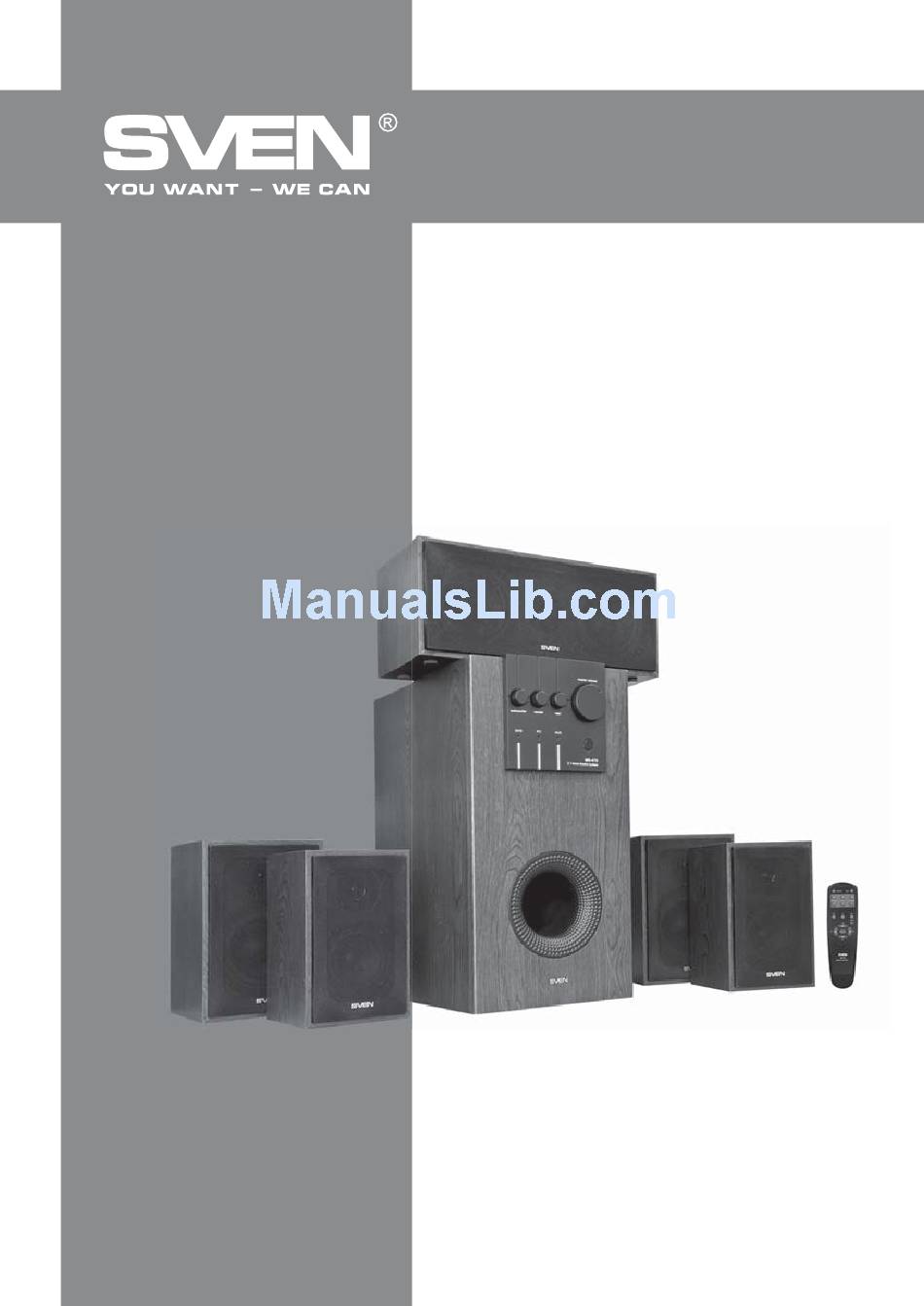

- Page 1 Home Theatre Speaker System 5.1 OPERATION MANUAL HT-470 www.sven.fi...
-
Page 2: Remote Control
HT-470 Operation Manual Congratulations on your purchase of the Sven speaker system! Please read this operation manual before using the unit and retain this operation manual in safe place for future reference. COPYRIGHT © 2011. SVEN Company Ltd. Version 1.0 (V 1.0). -
Page 3: Safety Precautions
System 5.1 1. DESCRIPTION HT-470 Home Theatre Speaker System 5.1 (HTSS) is designed for playing music and sounding games, movies etc., as well as being used as radio tuner. Due to built-in amplifier speaker system can be connected to any audio source. Remote control is included. - Page 4 HT-470 Operation Manual 4. SPECIAL FEATURES • Built-in transformer power supply • Analog 5.1 input, two stereo AV inputs for connection to various audio devices • Individual general volume control, subwoofer volume control and timbre control • Electronic switch audio inputs •...
-
Page 5: Description Of Subwoofer Design
Home Theatre Speaker System 5.1 6. DESCRIPTION OF SUBWOOFER DESIGN a Subwoofer: Subwoofer volume control knob b Center: Central channel volume control knob c Rear: Rear channel volume control knob d Master volume: Volume control knob e DVD: LED DVD (5.1) on f PC: PC input LED g AUX: AUX input LED h DVD: DVD (5.1) input LED... -
Page 6: Installation
HT-470 Operation Manual 7. REMOTE CONTROL a STANDBY: STANDBY button b MUTE: MUTE button c FRONT+/–: Front channel volume control buttons d CEN+/–: Center channel volume control buttons e REAR+/–: Rear channel volume control buttons f DVD: DVD input button... - Page 7 Connecting to audio source HT-470 Home Theatre Speaker System 5.1 (HTSS) can be attached to virtually any audio source (see connection diagram, fig. 5). • Before connecting, make sure that the device is unplugged. • To connect the speakers to VCD/DVD/VHS-player or TV use the stereo signal cables 2RCA to 2RCA (included).
- Page 8 HT-470 Operation Manual Signal cables Adapter 2RCA to mini-jack 2RCA to 2RCA CD-player DVD-player Power cord 5.1-channel sound card Signal cables 2RCA to mini-jack Fig. 5. Audio source connection diagram...
- Page 9 Home Theatre Speaker System 5.1 8. OPERATION GUIDE Switching On • To switch on subwoofer, plug power cord (p, fig. 2) of subwoofer into the mains outlet. Adjust Master volume control knob (d, fig. 1) on the front panel of subwoofer to its minimum by turning it counterclockwise as far as it would go, and then shift POWER switch (o, fig.
-
Page 10: Troubleshooting
HT-470 Operation Manual 10. TROUBLE SHOOTING Problem Cause Solution HTSS does not HTSS is not connected to the mains outlet. Check the connection. turn on. Power switch is off. Turn on the switch. Volume level is set at minimum value. -
Page 11: Technical Specification
119 × 198 × 133 rear satellite Weight, kg Notes: • Technical specification given in this table is supplemental information and can not give occasion to claims. • Technical specification is subject to change without notice due to improvement of SVEN production. - Page 12 Зберігати в сухому місці. Виготовлено під контролем «Свен Скандинавія Лімітед», 48310, Фінляндія, Котка, Котолахдентіє, 15. Зроблено в Китаї. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310. Made in China. HT-470 ® Registered Trademark of Oy SVEN...
