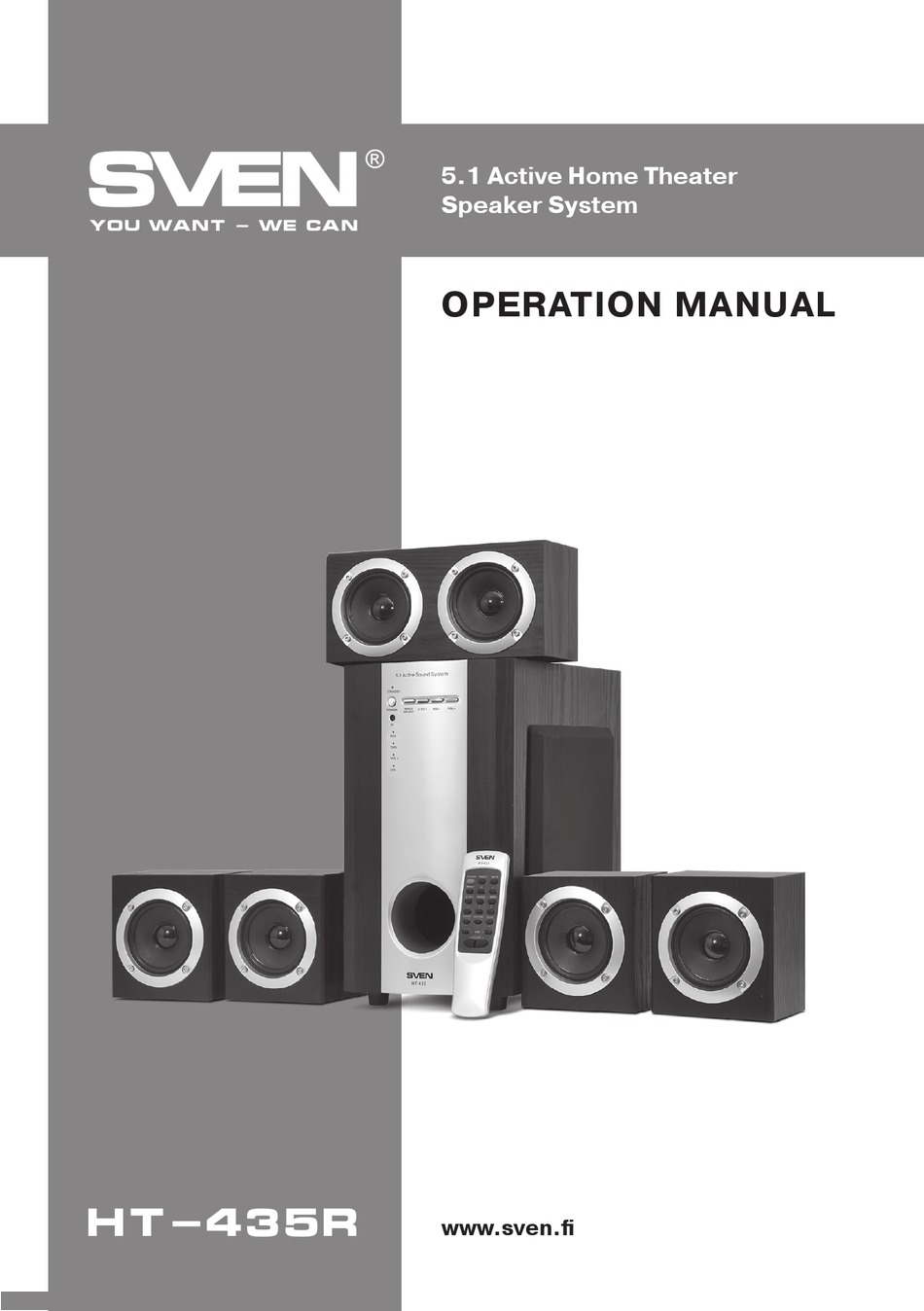

- Page 1 5.1 Active Home Theater 5.1 Active Home Theater Speaker System Speaker System you want - we can OPERATION MANUAL HT-435R www.sven.fi...
-
Page 2: Table Of Contents
HT-435R Operation Manual Congratulations on your purchase of the Sven speaker system! COPYRIGHT © 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders. -
Page 3: Package Contents
The list of authorized service centers is available on www.sven.fi • Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power amplifier or the ground, for it causes damage to the power amplifier output stage. - Page 4 HT-435R Operation Manual Description of the front panel a STANDBY: STANDBY LED b POWER: on/off button c IR: IR WINDOW d AUX: AUX mode LED e DVD: DVD mode LED f VOL-/VOL+: speaker volume LED g INPUT SELECT: input selector button to DVD/AUX-system h 2.1/5.1: mode select button...
-
Page 5: Preparation And Operation
5.1 Active Home Theater Speaker System you want - we can Remote control a POWER: POWER button b RESET: return to default settings c MUTE: sound off/on button d INPUT: audio input selection button e 2.1/5.1: 2.1/5.1 mode selection button f TREBLE+/-: treble level control buttons g BASS+/-: bass level control buttons h FRONT +/-: front channel volume control buttons... - Page 6 HT-435R Operation Manual Fig. 5. Placement of the speakers Connections illustration • To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections. • Connect the Subwoofer, the Center, the Front and the Surround Speakers (sww Fig. 6).
- Page 7 5.1 Active Home Theater Speaker System you want - we can Sound source installation diagram FRONT REAR AUDIO Sound card, CENTER\SUB CD-player, AUDIO MP3-player 5.1-channel sound card DVD-player Fig. 7. Sound source installation diagram Operation e (ON position) on the subwoofer rear panel (Fig. 2). The device •...
-
Page 8: Troubleshooting
95 × 220 × 110 Weight, kg Notes. The above specifications are only for reference. Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production. Durability — 5 years. Technical support is on www.sven.fi. - Page 9 Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
