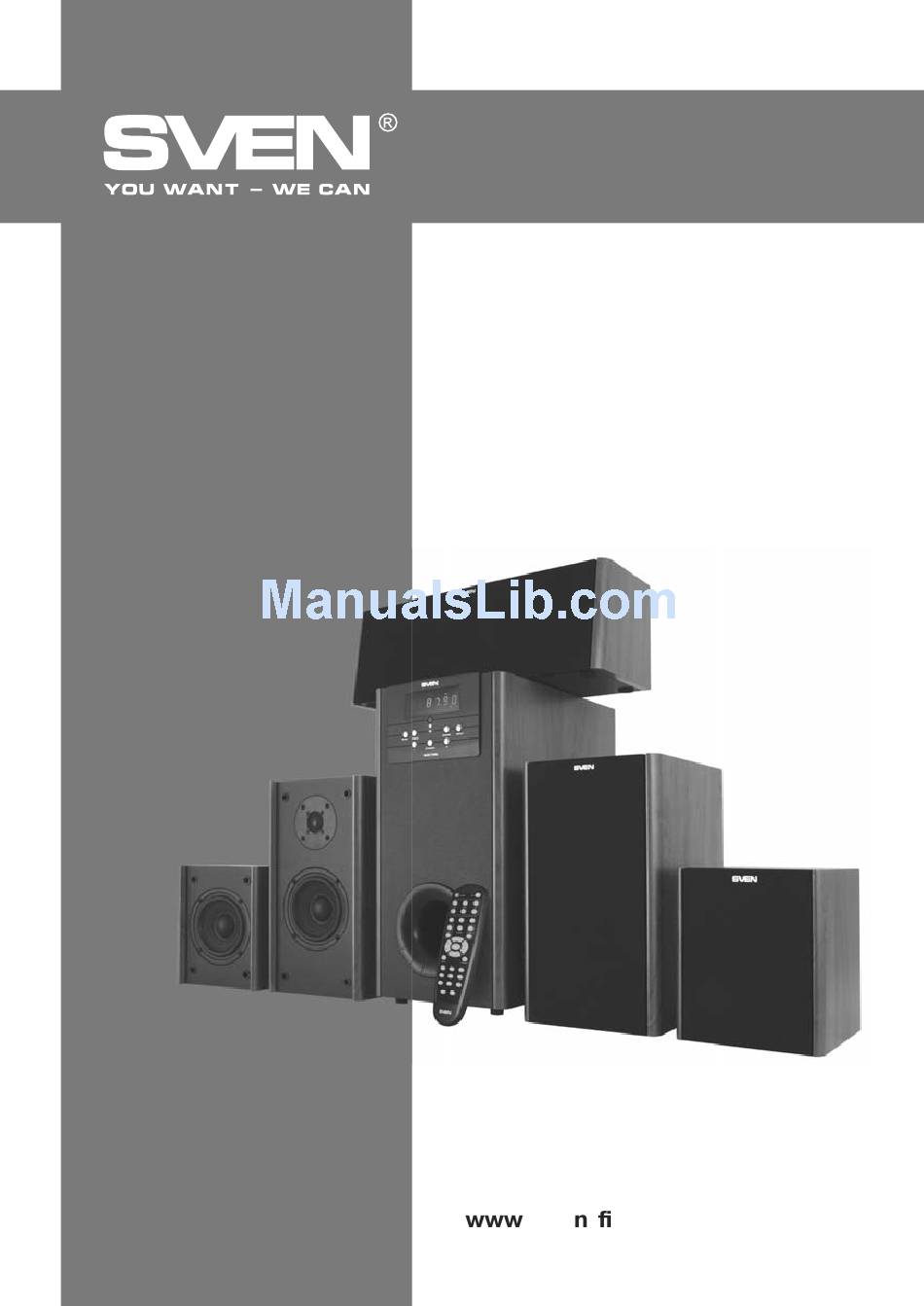

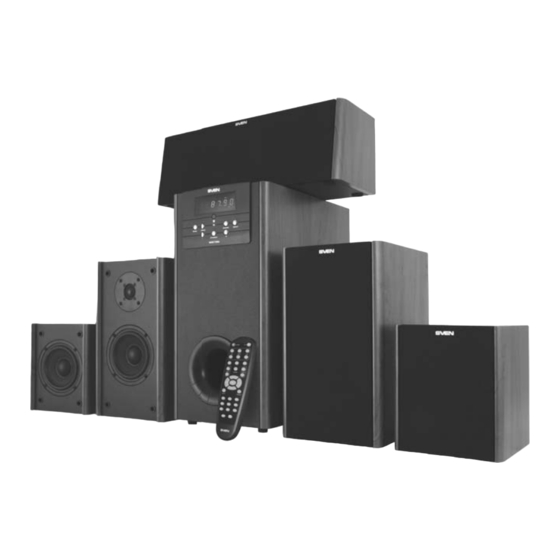

- Page 1 5.1 Active Home Theater Speaker System OPERATION MANUAL IHOO T100U .sve .
- Page 2 IHOO T100U Operation Manual Operation Manual Congratulations on your purchase of the Sven speaker system! COPYRIGHT © 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders.
-
Page 3: Speaker System
The list of authorized service centers is available on www.sven. . • Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power ampli er or the ground, for it causes damage to the power ampli er output stage. - Page 4 IHOO T100U Operation Manual • Remote control • Complete power switch-o and StandBy mode • Magnetic shielding • Wooden (MDF) subwoofer and satellite cabinets HTSS design a LED display b IR: IR remote control receiver c Power LED d BASS: bass level control button e TREBLE: treble level control button f –: volume/timbre down button...
- Page 5 5.1 Active Home Theater Speaker System Subwoofer rear panel a FM ANT: FM antenna input jack FM ANT b AUX R/L: line stereo input c DVD(5.1CH) F.R./F.L.: right/left front channel input d DVD(5.1CH) S.R./S.L.: right/left rear channel input e DVD(5.1CH) C: center channel input f DVD(5.1CH) S.W.: subwoofer input g FRONT RIGHT: front right speaker input h FR.
- Page 6 IHOO T100U Operation Manual Remote control a STANDBY: HTSS on/o button b INPUT: input switch button (STEREO, 5.1, TUNER, USB/SD) c SOUND: sound mode selection button (STEREO, PROLOGIC 5.1 emulation) d CEN +/–: center channel volume up/down e MEM: memorize selected radio frequency f VOL +/–: master volume up/down...
- Page 7 5.1 Active Home Theater Speaker System 5. PREPARATION AND OPERATION Speaker placement • To achieve optimum sound, it’s recommended that you place the speakers according to Fig. 5. The center and front speakers should be located along an imaginary circle with the distance between the listener and the center channel speaker as a radius, and the listener’s head as the center.
- Page 8 IHOO T100U Operation Manual Connecting speakers to the subwoofer • Connect the speakers to the subwoofer as shown in Fig. 6 using the included audio cables. Mind that the red (+) terminals of the speakers should be connected to the red terminals of the subwoofer +), while black (–) terminals of the speakers should be connected to the black terminals of the...
- Page 9 FM antenna with 5 or more elements. Preparations IHOO T100U speaker system can be connected to virtually any audio source: DVD/CD/MP3 player, PC sound card, etc. (see connection diagram, Fig. 7). Caution! Before making any connections, make sure the MSS is off and unplugged.
- Page 10 IHOO T100U Operation Manual Switching on • Adjust the volume level to the minimum and connect the power cord m to the mains outlet. • Switch on the HTSS power supply with the POWER ON/OFF switch (l, ON position) on the subwoofer rear panel.
- Page 11 5.1 Active Home Theater Speaker System Manual radio station search • To select the necessary frequency, press the TUN+/– o buttons short (frequency range 87.5 – 108 MHz with a tuning step of 50 kHz). Then press the MEM t button on the RC to memorize the selected radio frequency.
- Page 12 IHOO T100U Operation Manual 7. TECHNICAL SPECIFICATIONS Parameter, measurement unit Value Output power (RMS), W 150 (50 + 5 × 20) subwoofer satellites 5 × 20 Frequency response, Hz subwoofer 40 – 125 satellites 125 – 22 000 Frequency bands: USW, MHz (50 kHz step) 87.0 –...
- Page 13 , 427447. « », 48310, , 15. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China. ® Registered Trademark of Oy SVEN...
