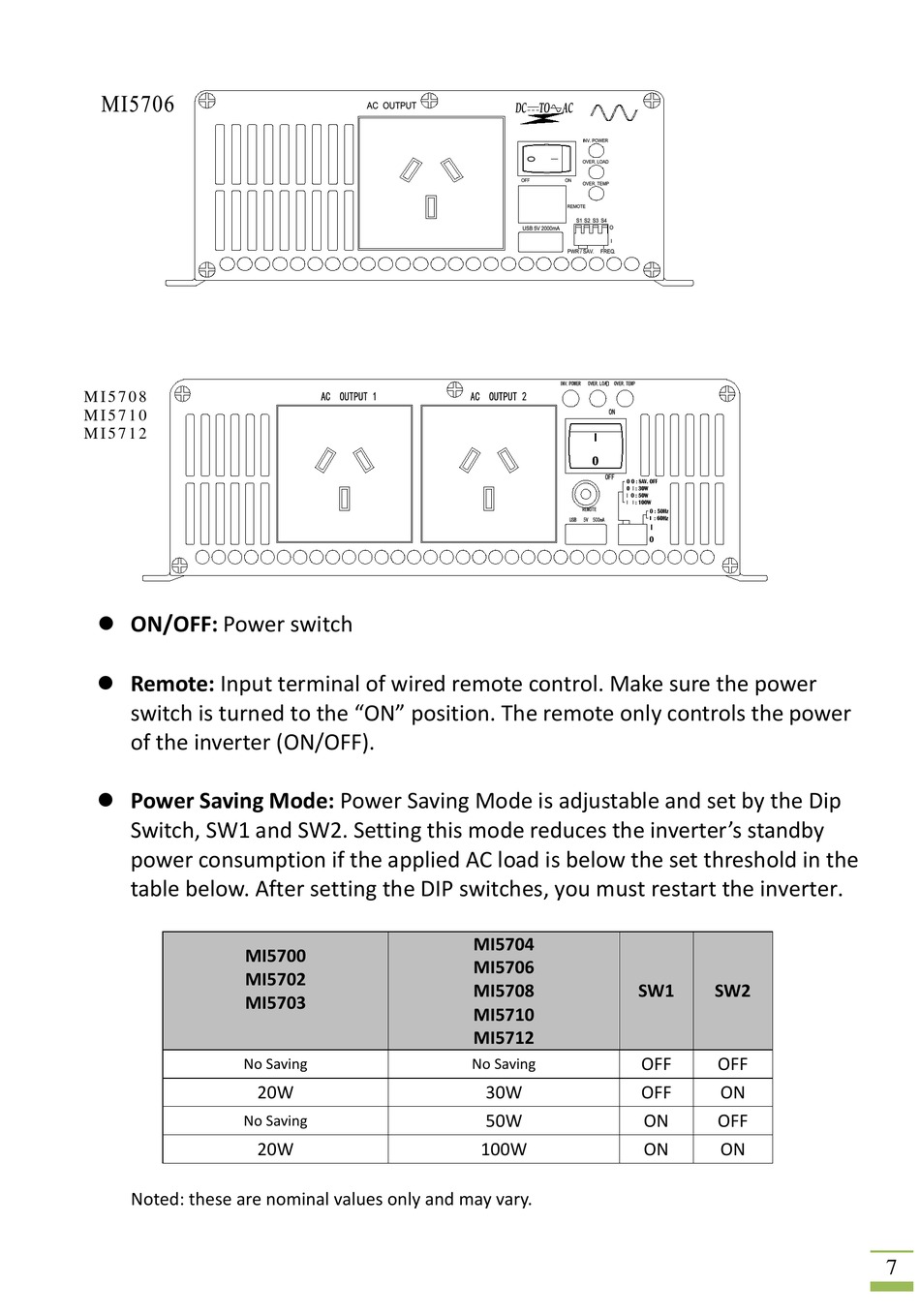

PowerTech MI5700 User Manual page 8

M I 5 7 0 8
M I 5 7 1 0
M I 5 7 1 2
 ON/OFF: Power switch
 Remote: Input terminal of wired remote control. Make sure the power
switch is turned to the "ON" position. The remote only controls the power
of the inverter (ON/OFF).
 Power Saving Mode: Power Saving Mode is adjustable and set by the Dip
Switch, SW1 and SW2. Setting this mode reduces the inverter's standby
power consumption if the applied AC load is below the set threshold in the
table below. After setting the DIP switches, you must restart the inverter.
MI5700
MI5702
MI5703
No Saving
No Saving
Noted: these are nominal values only and may vary.
20W
20W
MI5704
MI5706
MI5708 SW1
MI5710
MI5712
OFF
No Saving
30W OFF
50W ON
100W ON
SW2
OFF
ON
OFF
ON
7
