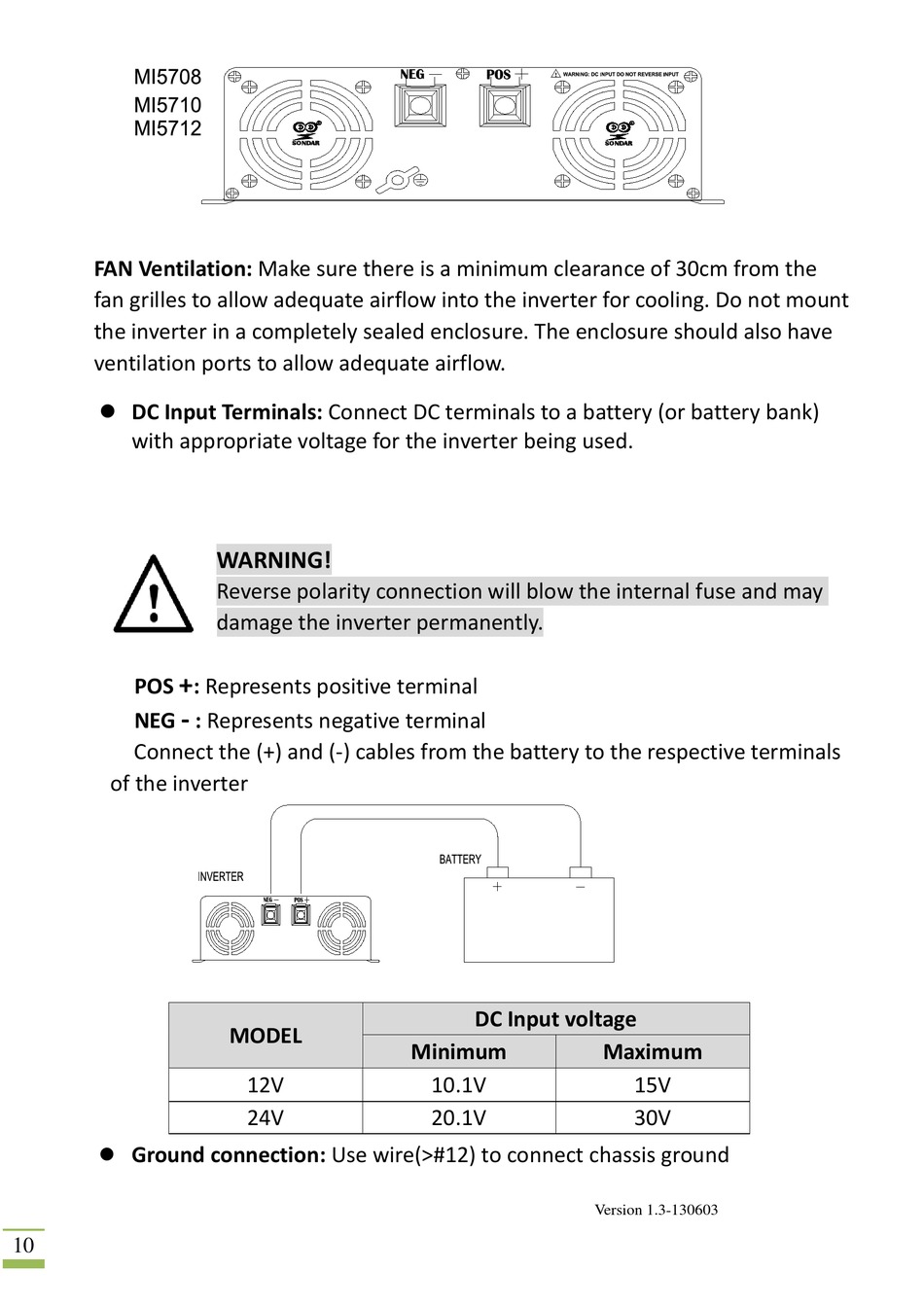

FAN Ventilation: Make sure there is a minimum clearance of 30cm from the
fan grilles to allow adequate airflow into the inverter for cooling. Do not mount
the inverter in a completely sealed enclosure. The enclosure should also have
ventilation ports to allow adequate airflow.
 DC Input Terminals: Connect DC terminals to a battery (or battery bank)
with appropriate voltage for the inverter being used.
+
POS
-
NEG
Connect the (+) and (-) cables from the battery to the respective terminals
of the inverter
Ground connection: Use wire(>#12) to connect chassis ground

10
R
SONDAR
WARNING!
Reverse polarity connection will blow the internal fuse and may
damage the inverter permanently.
: Represents positive terminal
: Represents negative terminal
MODEL
12V
24V
DC Input voltage
Minimum
10.1V
20.1V
R
SONDAR
Maximum
15V
30V
