Summary of Contents for PowerTech MI5740

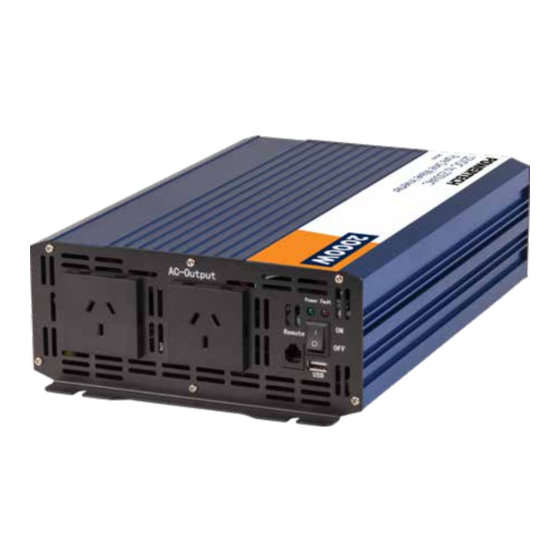

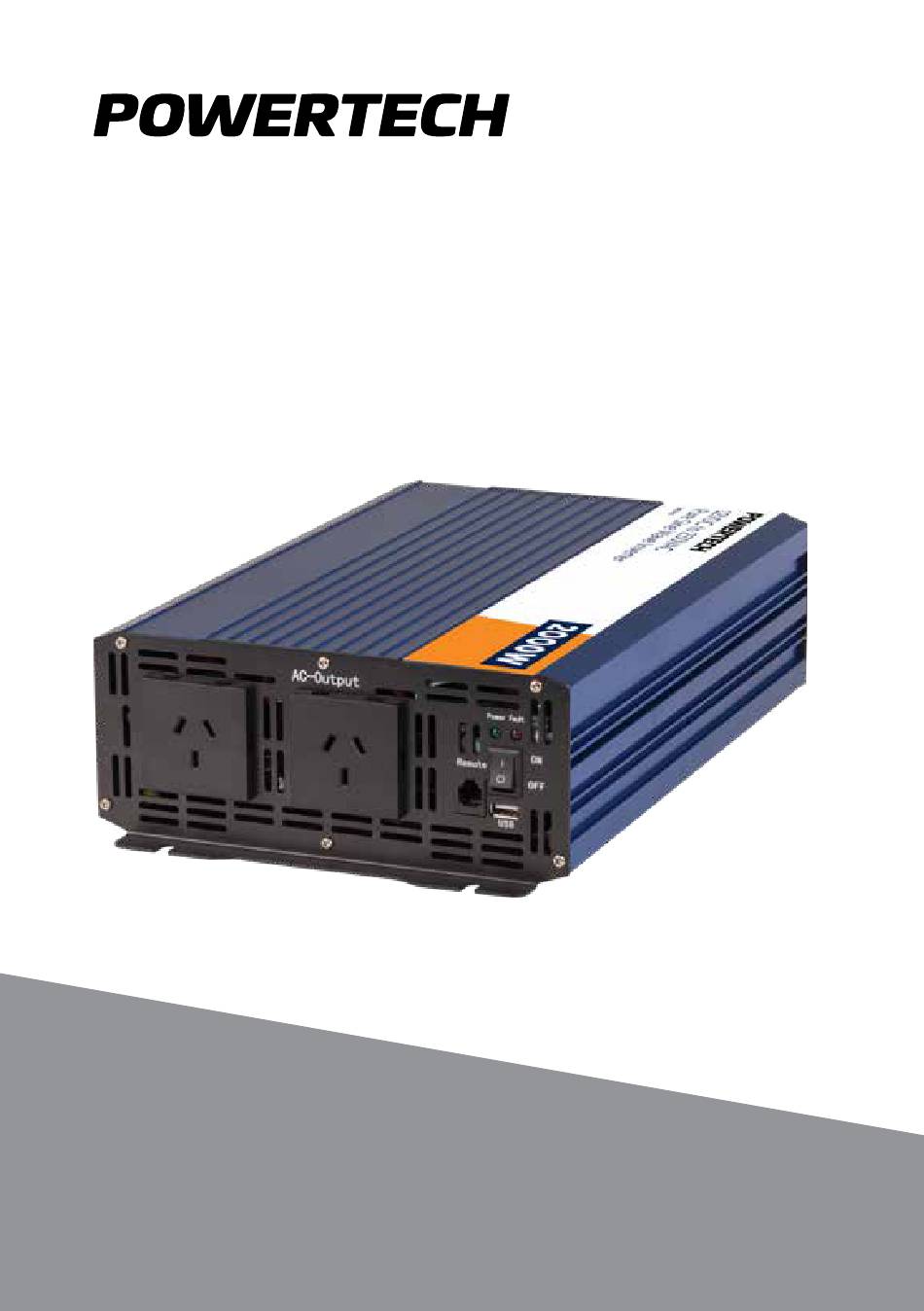

- Page 1 MI5740 2000W 12VDC to 230VAC Pure Sine Wave Inverter Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ..............3 Before First Use....................4 Box Contents ......................4 Product Diagram ....................4 Inverter Information ..................5 Using the Remote Control ................6 Troubleshooting ....................6 Specifications ..................... 7 Warranty Information ..................8... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION • Please read and understand this manual before installing and using this inverter. • Do not connect to equipment that exceeds the inverter’s specified power rating • Permanent damage may occur that will not be covered by the warranty. •... -
Page 4: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Please pay close attention to the section entitled Warnings &... -
Page 5: Inverter Information
INVERTER INFORMATION Types of Inverters There are 2 types of inverters available for use in consumer applications. These are: Pure Modified Pure Sine Wave Inverters The name “pure sine wave” inverter comes from the wave form of its output, as shown in the above diagram. This is identical to or replicates as closely as possible the normal AC mains. -
Page 6: Using The Remote Control
USING THE REMOTE CONTROL WARNING: The power switch on the Inverter must be set to “Off” (no lights showing) before the remote switch can operate. • Make sure the inverter’s on-board switch is set to “Off” (No lights showing) • Plug the white remote cable into the “Telephone” type socket on the front panel of the inverter. -
Page 7: Specifications
SPECIFICATIONS Continuous Power 2000W Input Surge Power 4000W Max Constant Power Start 2400W for 10 seconds Output Wave Form Pure Sine Wave (THD<3%) Output Frdeuency 50Hz+/-3Hz Voltage 230VAC Input Voltage 12VDC Output Voltage Range 10V-15V Low Voltage Alarm 10.5V+/-0.5V Low Voltage Shut Down 10V+/-0.5V Over Voltage Shut Down 15V+/-0.5V... -
Page 8: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
