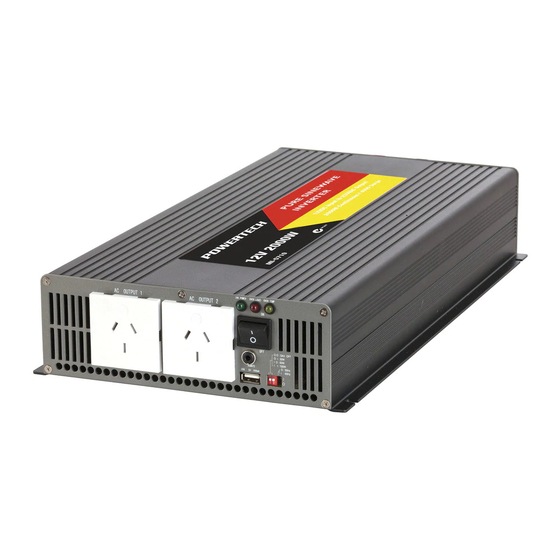

- Page 1 Pure Sine Wave DC TO AC Power Inverter User’s Manual Version 1.3-130603...
-
Page 2: Table Of Contents
Contents 1. Specifications …………………………………………………………..2 2. Important Safety Guidelines and Instructions……………….……3~4 3. Features…………………………………………..………………..…..4 4. Applications and Descriptions……………………..………..……..…..5 5. Introduction and Operation ……………………………..…..….6~14 6. Mechanical Drawings…………………………………….….…..15~18 7. Trouble Shooting……………………………………….......19 8. Maintenance……………………………………………..…….....19 9. Warranty………………………………………………..………....20... -
Page 3: Specifications
Specifications: MODEL: MI5700 MI5702 MI5703 MI5704 MI5706 MI5708 MI5710 MI5712 Continuous output 180W 360W 800W 1100W 1500W 2000W Surge 360W 720W 1600W 2200W 3000W 4000W Voltage AC230V OUTPUT Frequency 50Hz Waveform Pure Sine Wave(THD<3%) Regulation (Typ.) Vrms <±3% USB Output (Typ.) DC 5V ±... -
Page 4: Important Safety Guidelines And Instructions
WARNING! Before using the inverter, read and save the safety instructions carefully. Important Safety Guidelines and Instructions To avoid danger of electric shocks, fire, injury when using electrical equipment, please read this manual carefully before installing and starting up. This instruction manual should be carried with the device and stored in a safe place. -
Page 5: Features
2-2. Precautions When Working and Operating with Batteries Never smoke or produce sparks or flame in the vicinity of the battery or the engine. If battery acid contacts skin or clothes, you shall wash it out with soap and water immediately. -
Page 6: Applications And Descriptions
4. Applications and Descriptions Compared to a commercial grade Modified Sine Wave Power Inverter, the output of Pure Sine Wave inverters are more suitable for sensitive electronic equipments. Pure Sine Wave Inverters produce power which is identical to, and in most cases better than the power from the public utility power grid system. -
Page 7: Introduction And Operation
5. Introduction & Operation Please read the instructions carefully before you install and operate the inverter. This power inverter series is one of the most advanced and high-quality types available. To get the most optimum power from the inverter, it must be installed and used properly. - Page 8 Switch, SW1 and SW2. Setting this mode reduces the inverter’s standby power consumption if the applied AC load is below the set threshold in the table below. After setting the DIP switches, you must restart the inverter. MI5704 MI5700 MI5706 MI5702 MI5708...
- Page 9 USB 5V 500MA: To provide DC output 5V 500mA. AC OUTPUT SOCKET: AC OUTPUT SOCKET 1 , SOCKET 2 : Connect your 230VAC appliances here, ensuring the loads are within the power rating of the inverter. LED Indicators: INV.POWER: Power on, normal operation.
-
Page 10: Rear Panel Operations
5-3. Rear Panel Operations SONDAR SONDAR SONDAR SONDAR... - Page 11 SONDAR SONDAR FAN Ventilation: Make sure there is a minimum clearance of 30cm from the fan grilles to allow adequate airflow into the inverter for cooling. Do not mount the inverter in a completely sealed enclosure. The enclosure should also have ventilation ports to allow adequate airflow.
- Page 12 Shut-down 15.1V 14.5V 10.6V 12.5V 30.1V 21.2V Over Temperature Protection: 65℃ 56℃ Shut-down Restart Over Load Protection: Model 1 min. Shut-down 5 sec. Shut-down MI5700 190W 220W MI5702 380W 430W MI5703 380W 430W MI5704 820W 950W MI5706 1250W 1320W MI5708...
- Page 13 5-5. Buzzer Alarm Fault Status: Fault Type： Sound Signal Sound Symbol “BEEP” two times slowly Low Battery Alarm，Stage 1 Low Battery Protection “BEEP” two times fast - - - - - - - - - - “BEEP” two times fast ―...
- Page 14 5-6. Installation: The power inverter should be installed in an environment that meets the following requirements. Dry --- Do not allow water to drip on or enter into the inverter. Cool --- Ambient air temperature should be between 0℃ and 40℃, the cooler the better.
- Page 15 low-input voltage warnings and shutdowns. This is due to the DC voltage drop in the cables from the battery to the inverter. The longer and narrower the cables, the greater the voltage drops. WARNING! DC wiring terminations. Ensure all the DC connections and terminations are secure and tight.
-
Page 16: Mechanical Drawings
6. Mechanical Drawings I N V. PO W ER / O VER . O VER . LO AD TEM P... - Page 17 Version 1.3-130603...
- Page 19 Version 1.3-130603...
-
Page 20: Trouble Shooting
Trouble Shooting: WARNING! Do not open or disassemble the inverter. Attempting to service the unit yourself may cause the risk of electrical shock or fire. Problems and Possible Cause Solutions Symptoms Does not turn on Battery damaged, or Change battery, check DC cables bad DC cable and terminations connection... -
Page 21: Warranty
9. Warranty Your Powertech pure sine wave inverter comes with a 2 year warranty that commences from the date of purchase, under the following conditions: • That all defects are attributable to material or production defects/errors and not improper use (warranty is void if the unit is improperly used, improperly installed or damaged through negligence) •...
