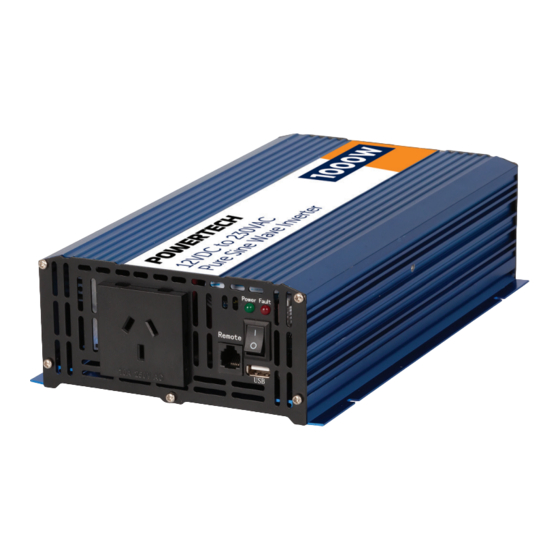

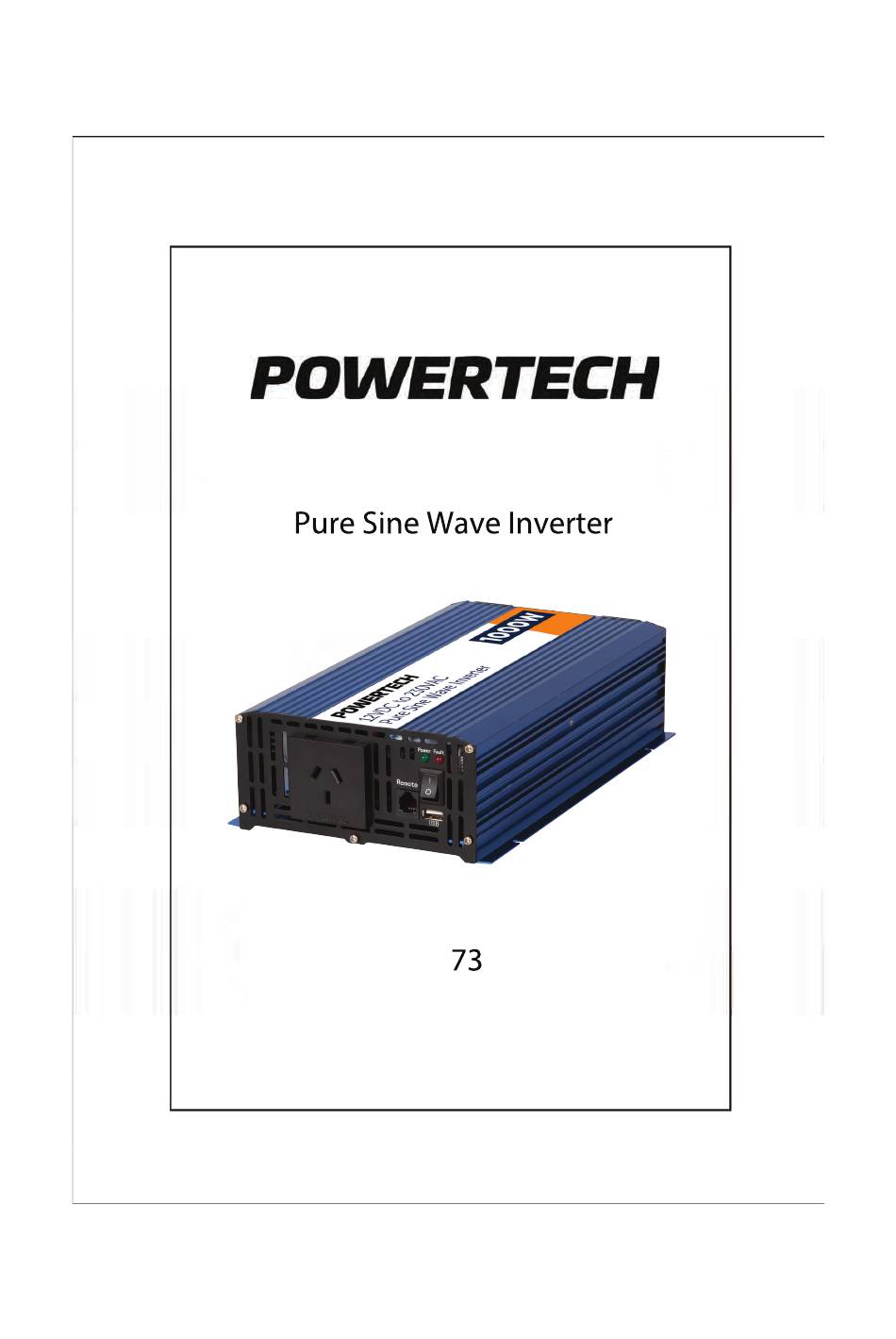

- Page 1 12VDC to 240VAC MI5 6 User Manual...
- Page 2 Please read and understand this manual before installing and using this inverter. DANGER! High voltages inside; do not open the inverter case while power is connected. Do not connect to equipment that exceeds the Permanent damage may occur that will not be covered by the warranty.
- Page 3 There are 2 types of inverters available for use in consumer applications. These are: Pure Sine Wave Inverters: The name "pure sine wave" inverter comes from the wave form of its output, as shown in the above diagram. This is identical to or replicates as closely as possible the normal AC mains.
- Page 4 General Safety Precautions and Installation Tips: • The inverter should not be installed in the enginer compartment, due to possible water/oil/acid contamination, and excessive heat under the bonnet, as well as potential danger from petrol fumes and the spark that an inverter can occassionally produce.
- Page 5 Using the Remote Control: IMPORTANT: The power switch on the Inverter must be set to “Off” (no lights showing) before the remote switch can operate. • Make sure the inverter’s on-board switch is set to “Off” (No lights showing) • Plug the white remote cable into the “Telephone” type socket on the front panel of the inverter.
- Page 6 AC Output Power: 1000W Surge Power: 2000W Output Waveform: Pure Sine Wave (THD < 3%) Output Frequency: 50Hz±0.1% AC Output Voltage: 200~240VAC DC Input Voltage: 12V DC Voltage Range: 10V-15V Low Voltage Alarm: 10.5V± 0.5V Low Voltage Shutdown: 10V±0.5V Over Voltage Shutdown: 15V±0.5V Converting Max.
