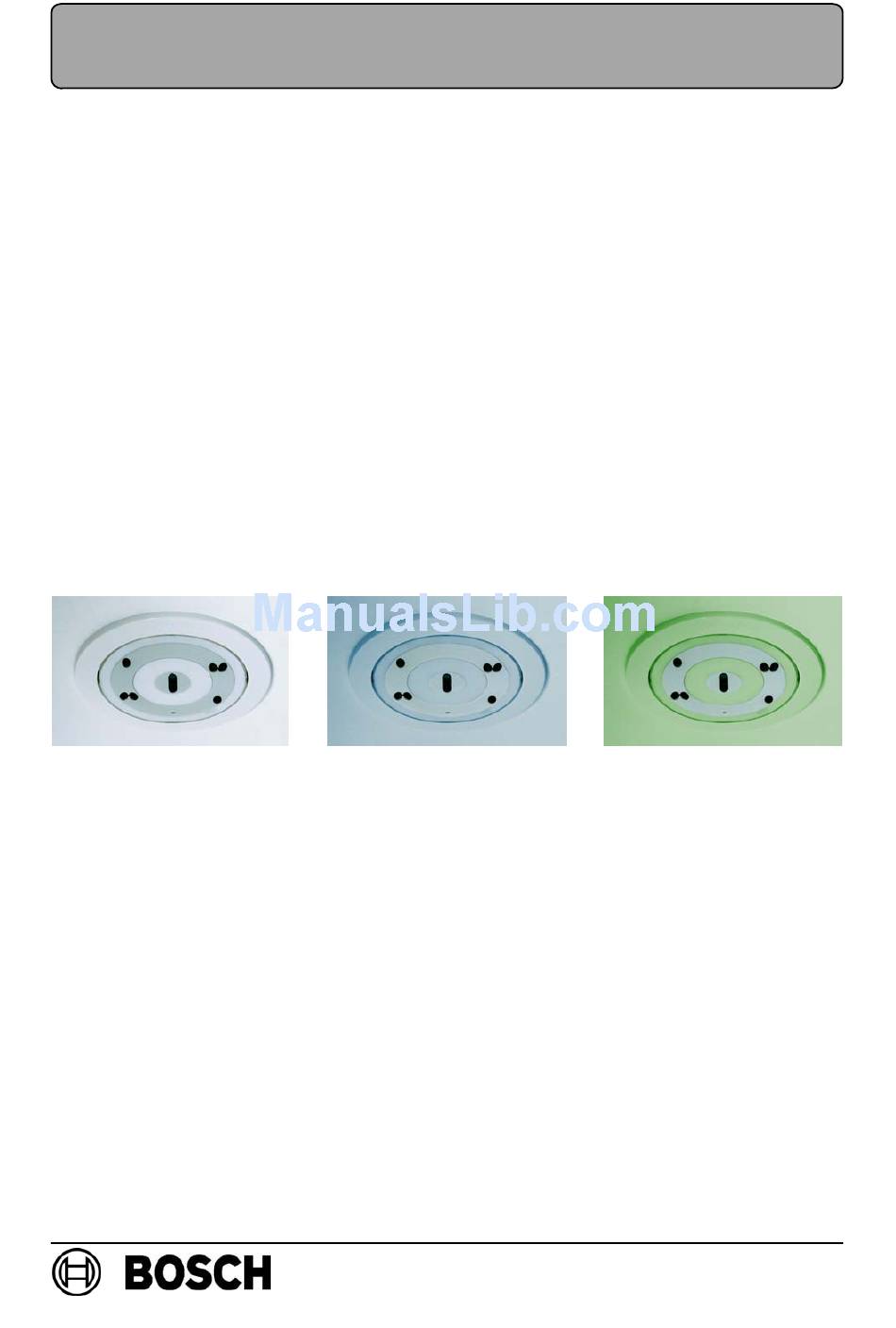

  • Page 1 PRODUCT INFORMATION PI−34.70 en 500 Series LSN Fire Detectors (EU) FAP−O 500 / FAP−O 500−P FAP−OC 500 / FAP−OC 500−P with FAA−500 Components BDL−F.01U.025.876 A5.en / 02.02.2006 Page ST−FIR/PRM1 / zab...
  • Page 3: Table Of Contents

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en Table of Contents Product Description ....... 1.1.
  • Page 4 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en Order Overview ........6.1.
  • Page 5: Product Description

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en « 1. Product Description With their low profile design, flush−mounted installation and possibilities for color ton- ing, the fire detectors in the 500 series open up a new dimension with respect to aes- thetic and functional demands.
  • Page 6 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en In the GB−base versions, integrated jumper elements are provided that preserve the loop function if the detector is removed. All bases have an integrated strain relief for false ceiling cables. The connection terminals are easily accessible.
  • Page 7: System Description

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 1.1. System Description All detectors in the 500 series are equipped with two optical sensors and a pollution sensor. The FAP−OC 500 multisensor detector contains a gas sensor as an additional detection channel.
  • Page 8: Functional Description Of The Sensor Technology

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 1.3. Functional Description of the Sensor Technology Optical sensor (smoke sensor) The optical sensor (Fig. 1., Pos. 1) operates according to the scattered light principle. The LEDs (Fig. 1., Pos. 3) transmit light at a defined angle into the measuring area (Fig.
  • Page 9: Led Operation

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 1.4. LED Operation The two−color LED of the detector indicates the operation and alarm statuses. During the whole life cycle, the sensors are self−monitored and the sensitivity is self− adjusted according to the programmed threshold.
  • Page 10: Performance Features

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 1.5. Performance Features D Fulfills the highest aesthetic demands through the flush−mounting design and the possibility of color toning D Smooth, easily−cleaned detector surface D Quick and easy insertion and exchange of the detector thanks to innovative detector locking mechanism (click and lock principle).
  • Page 11: Planning Notes

    D Maximum number of FAP−500 detectors connectable to the Local SecurityNetwork LSN: − BOSCH LSN fire panels: up to 28 detectors per NVU as loop or stub line − Modular Fire Panel FPA−5000: up to 85 detectors per LSN 0300−Modul.
  • Page 12: Programming

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 3. Programming LSN detectors are programmed according to the required operating mode. Programming is carried out with the programming software using a PC or laptop con- nected to the fire panel. The suitable response sensitivity of the multisensor detector is programmed by speci- fying the operating location (e.g.
  • Page 13 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en In the case of the optical FAP−O 500 detector, the sensitivity of the optical sensors can be set on three levels. Depending on the operating location, the optical sensor of the detector is thus adjusted to the environmental conditions.
  • Page 14: Technical Specifications

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 4. Technical Specifications 4.1. Detector and Trim Ring Detector type FAP−OC 500/FAP−OC 500−P FAP−O 500/FAP−O 500−P Detection principle Combination of scattered light Scattered light measurement and combustion gas measure- ment Special features −...
  • Page 15: Detector Base

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 4.2. Detector Base LSN standard base Base type FAA−500 FAA−500−R (with relay) Special note − For connection to FPA−5000 only Connections Screw terminals for: Screw terminals for: Power supply (0 V, +V) Power supply (0 V, +V) LSN (a−in/out, b−in, b−out) LSN (a−in/out, b−in, b−out)
  • Page 16: Mounting Boxes

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en FAA−500−SPRING Spring for concrete and wooden ceiling (DU=10 pcs.) Dimensions ∅ 31 mm x 32 mm Weight (without / with pack.) Approx. 120 g / 150 g (10 pcs.) 4.3.
  • Page 17: Mounting Notes

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 5. Mounting Notes The 500 series detectors may only be installed with an FAA−500 series detector base in combination with a FAA−500−BB ceiling mount back box or an FAA−500−SB surface mount back box. 5.1.
  • Page 18 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en D Pull the cable through one of the cable bushings. A cable tie around the cable sheath will secure the cable against being pulled out accidentally. D Insert the ceiling mount back box in the false ceiling from below. D A triangular marking (see Fig.
  • Page 19: Detector Base / Detector Base With Relay

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 5.2. Detector Base / Detector Base with Relay The base housings (Fig. 7.: Side view of 146 mm base) are made of white polycarbonate. The screw terminals (for cables with cross sec- tion from 0.3 mm to 3.3 mm ) guarantee a se-...
  • Page 20 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en Connection Terminal Wire Voltage − * black(bk) Voltage + * red (rd) LSN a in/out a1/a2 white (wh) LSN b in yellow (ye) LSN b out yellow (ye) Indicator output Shielding [green (gn)]...
  • Page 21 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en Fig. 10.: Placing the base in the ceiling mount back box Pos. Description Alignment of the marking on the ceil- ing mount back box Long slot for fastening the base Spring Triple guide−groove Single guide−groove...
  • Page 22: Detector And Trim Ring

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 5.3. Detector and Trim Ring . The packaging of the detectors with C−sensor consists of tear−resistant PE−ALU laminated film and must be cut open carefully. . Do not remove the protective film until the detector is ready to be fitted. Inserting the color rings −...
  • Page 23: Built−In Housing For Concrete Ceilings

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 5.4. Built−in Housing for Concrete Ceilings 226 mm 226 mm 75 mm ca. 150 mm 202 mm The FAA−500−CB built−in housing is used for the installation of the detector into con- crete ceilings.
  • Page 24: Surface Mount Back Box

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 5.5. Surface Mount Back Box The surface mount back boxes allow flush and surface cable duct via conduits. The FAA−500−SB−H box has an additional seal for damp rooms. For surface cable duct use the side knockouts .
  • Page 25 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en The base is mounted inside the back box via four fastening points (see Pos. X in Fig. 16.). FAA−500−SB / FAA−500−SB−H: ∅ 150 mm FAA−500−SB 80 mm FAA−500−SB−H 82 mm BDL−F.01U.025.876 A5.en/ 02.02.2006...
  • Page 26: External Detector Alarm Displays

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 5.6. External Detector Alarm Displays If the detector is not directly visible or was mounted in rooms that are inaccessible, an external detector alarm display is used in the corridors or in the access routes to the corresponding section of the building or rooms.
  • Page 27 Permissible wire gauge 0.6 mm − 2.0 mm Weight 45 g Product ID F.01U.522.590 * Non−observance may cause malfunction and damage the LED. In case of BOSCH detectors, limitation occurs via internal resistor. BDL−F.01U.025.876 A5.en/ 02.02.2006 Page 27 ST−FIR/PRM1 / zab...
  • Page 28 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en Mounting notes for the external detector alarm display MPA According to VdS guidelines, the external detector alarm display must be mounted so that the flat side of the prism (Y) shows towards the observer’s line of sight.
  • Page 29 Permissible cable length MPA − detector 3 m Weight 65 g Product ID 2.799.330.669 VdS approval number G 294 052 * Non−observance may cause malfunction and damage the LED. In case of BOSCH detectors, limitation occurs via internal resistor. BDL−F.01U.025.876 A5.en/ 02.02.2006 Page 29 ST−FIR/PRM1 / zab...
  • Page 30: Order Overview

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 6. Order Overview 6.1. Detectors and Trim Ring Product ID Designation 4.998.150.695 FAP−O 500 Optical fire detector LSN, white 4.998.143.522 FAP−OC 500 Multisensor fire detector LSN, optical / chemical, white 4.998.150.697 FAP−O 500−P Optical fire detector LSN, transparent with color toning inserts...
  • Page 31: Detector Bases / Accessories

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 6.2. Detector Bases / Accessories Product ID Designation 4.998.151.297 PE FAA−500 LSN detector base 4.998.151.299 PE FAA−500−R LSN detector base with relay (for connection to FPA−5000 only) 4.998.151.978 PE FAA−500−GB LSN detector base for Great Britain 4.998.151.979 PE FAA−500−R−GB LSN detector base for Great Britain...
  • Page 32: Maintenance And Service

    D Maintenance and inspection work should be carried out regularly and by trained technical personnel. D Bosch Sicherheitssysteme GmbH recommends a functional and visual inspection at least once a year. Detector type Test steps...
  • Page 33: Notes For The Service

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 7.1. Notes for the Service The serial number, contamination level, operating hours and cur- rent analog values can be read out at all configured detectors (BZ 500 LSN, UEZ 2000 LSN, UGM 2020: via WinPara, FPA−5000: via panel display).
  • Page 34: General Notes For Detector Testing

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 7.2. General Notes for Detector Testing FAP−OC 500 detector has an additional sensor for CO detection in case of fire. The CO sensor provides improved response behavior and increased stability against nuisance alarms in critical environmental conditions.
  • Page 35: Inspection Procedure For Fap−Oc 500

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 7.3. Inspection Procedure for FAP−OC 500 1. Alternative D On the central unit, switch the detector zone to be inspected into test mode. This automatically sets the detector into revision operation and readies it for the detector test.
  • Page 36 Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 2. Alternative D The detector can be tested in normal operation if a test device with magnet is used. Make sure that the alarm cannot be passed on to higher−level systems. Programmed activations of the central unit are retained and will be executed.
  • Page 37: Inspection Procedure For Fap−O 500

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 7.4. Inspection Procedure for FAP−O 500 1. Alternative D On the fire panel, switch the detector zone to be inspected to test mode. This automatically sets the detector into revision operation and readies it for the detector test.
  • Page 38: Repair

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 8. Repair In case of a defect, the detector must be replaced. 9. Disposal Packaging Film of the Fire Detectors with C−Sensor The packaging bag of the multisensor detectors with C−sensor consists of tear−resist- ant PE−ALU laminated film and may be disposed of with the household garbage.
  • Page 39: Abbreviations

    Product Information 500 Series LSN Fire Detectors (EU) PI − 34.70 en 11. Abbreviations AcrylonitrileButadieneStyrene a.P. auf Putz (surface−mounted) FACP Fire Alarm Control Panel DIBt Deutsches Institut für Bautechnik (German Institute for Building Technology) Deutsches Institut für Normung e.V. (German Institute for Standardization) Europäische Norm (European standard) Fire Analog Accessory Fire Analog Photo...
  • Page 40 Bosch Sicherheitssysteme GmbH Robert−Koch−Straße 100 D−85521 Ottobrunn, Germany Phone +49 (89) 6290 0 Fax +49 (89) 6290 1039 www.boschsecuritysystems.com info.service@de.bosch.com...
