Wiring diagrams

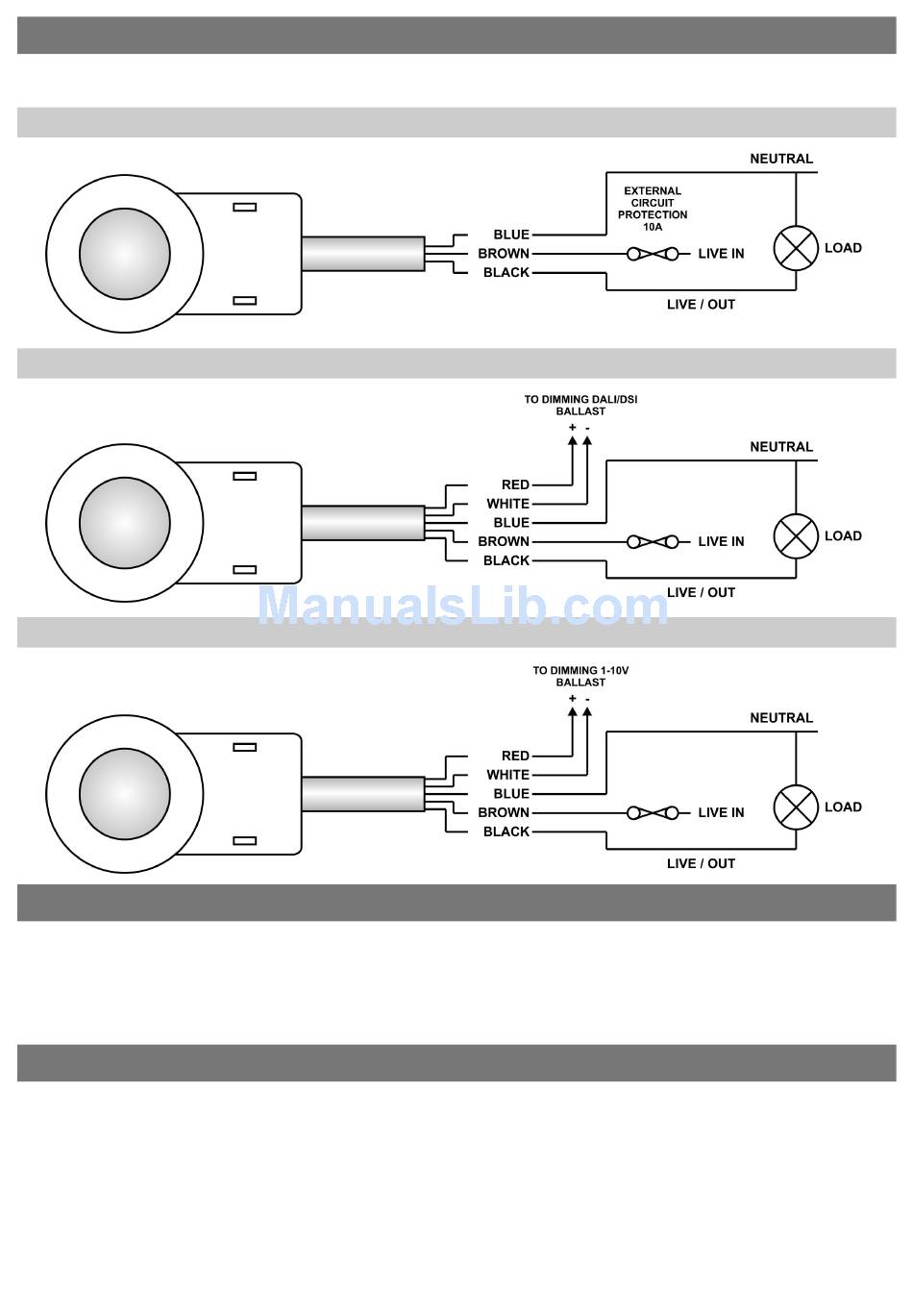

Wire the products as shown in the diagrams.
EBMINT-PRM
EBMINT-DD
EBMINT-AD
Power-up test procedure

When power is applied to the unit, the load will turn on immediately.

Set the timeout to 10 seconds, vacate the room or remain very still and wait for the load to switch off .

Check that the load switches on when movement is detected.

The unit is now ready for programming.

Fault finding

What if the load does not turn ON?

Check that the live supply to the circuit is good.

Check that the load is functioning by bypassing the sensor (e.g. link L and L/ Out).
HINT: The Walk Test LED function can be used to check that the unit is detecting movement in the required area.
What if the load does not turn OFF?

Ensure that the area is left unoccupied for longer than the Time Out Period.

Ensure that the sensor is not adjacent to circulating air, heaters or lamps.

If the unit "false triggers" reduce the sensitivity using the sensitivity settings
