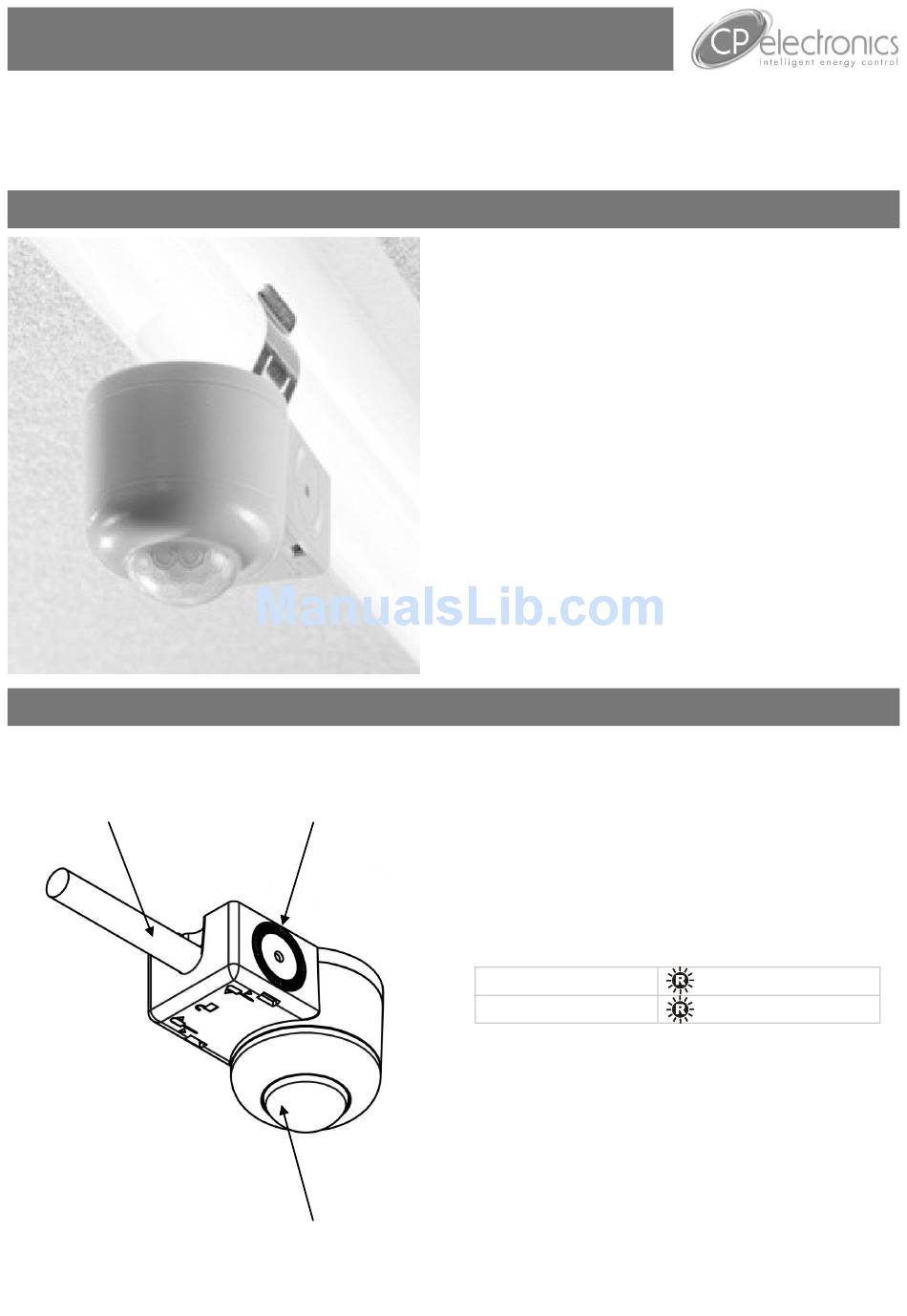

C.P. Electronics EBMINT Product Manual

EBMINT
Integrated PIR detectors
Cable to luminaire control gear Fixing for louvre fitting bracket
PIR lens
which covers...
IR Receiver
Light Level Sensor
Status LED
Product Guide
The EBMINT series of miniature PIR (passive infrared)
presence detectors provide automatic control of lighting
loads with optional manual control using an infrared
handset. It is specifically designed for mounting onto a
lamp or louvre (using the louvre fitting bracket).
Three models are available: premium, direct dim, and
analogue dim all of which will switch incandescent,
fluorescent, compact fluorescent and LED lighting. The
direct dim variant controls DALI or DSI digital dimming
ballasts whilst the analogue dim variant controls 1-10V
dimming ballasts.
The unit detects movement using a PIR sensor and turns
the load on. When an area is no longer occupied the load
will switch off after an adjustable time out period.
All models come pre-wired with a 1m silicon cable.
All functionality is fully programmable using an IR handset.
PIR Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LED
The LED flashes Red to indicate the following:
Walk Test LED active
Valid setting received
Overview
Features
when movement is detected
