C.P. Electronics EBMINT Product Manual page 5

Integrated pir detectors
Table of Contents

Advertisement

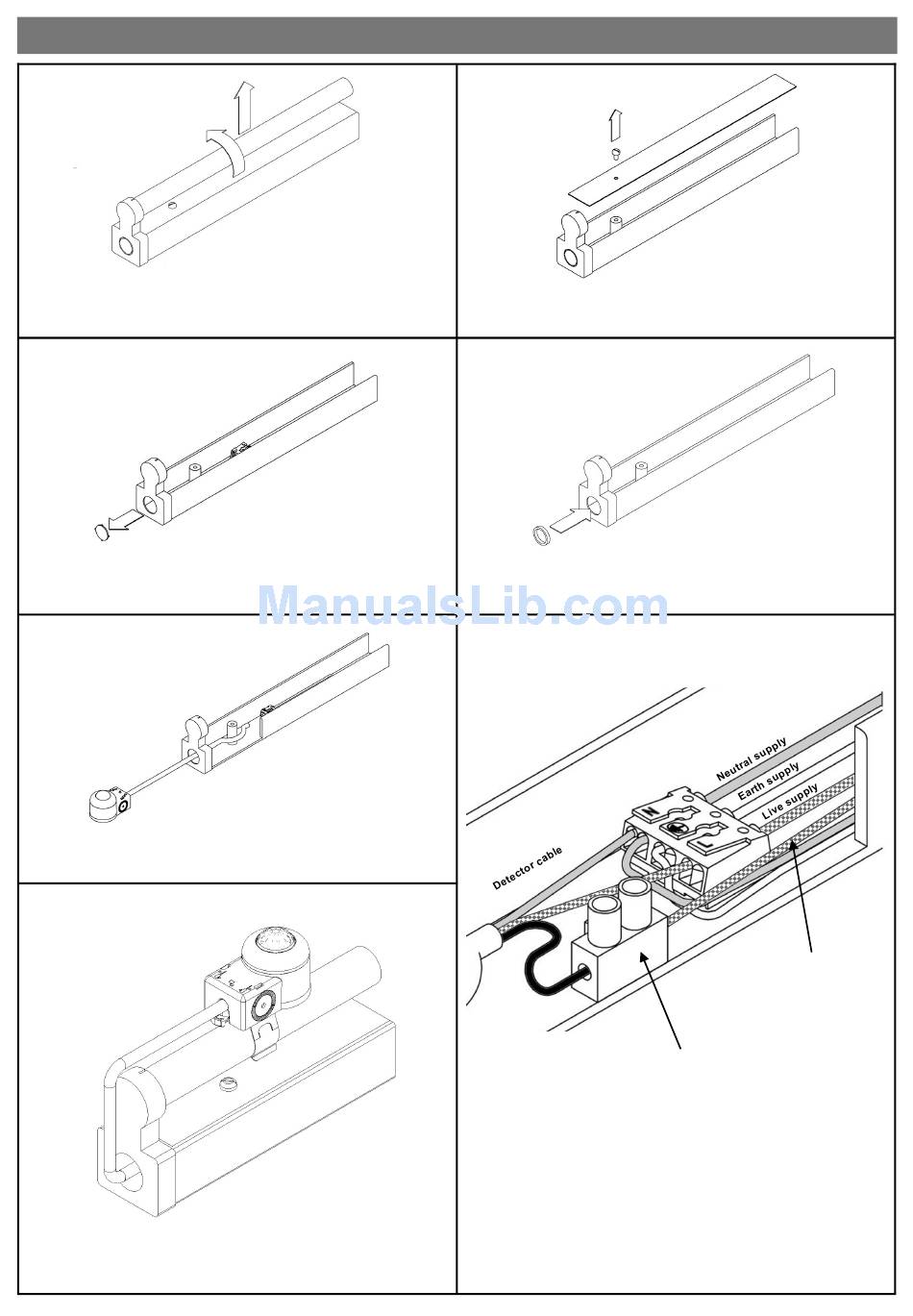

1
 Isolate supply to light fitting
 Remove lamp
3
 Remove Ø20mm knockout or make a Ø20mm
hole in gear tray or luminaire body.
5
 Feed cable through end-cap knockout or between
gear tray and housing of luminaire.
7
 Clip detector to tube.
2
 Remove gear tray cover
4
 Insert supplied Ø20mm grommet into hole.
6
PRM version shown
Supplied terminal block
 Connect the Neutral.
 Disconnect the Live to the ballast.
 Using the supplied terminal block, connect the
Live switched output (Black) from detector to the
Live feed of the ballast.
 Ensure that the detector wired-up according to
wiring diagrams on page 6.
Batten installation
Live feed to ballast
5
