EBDSPIR-PRM, EBDSPIR-PRM-IP
Ceiling PIR presence/absence detector

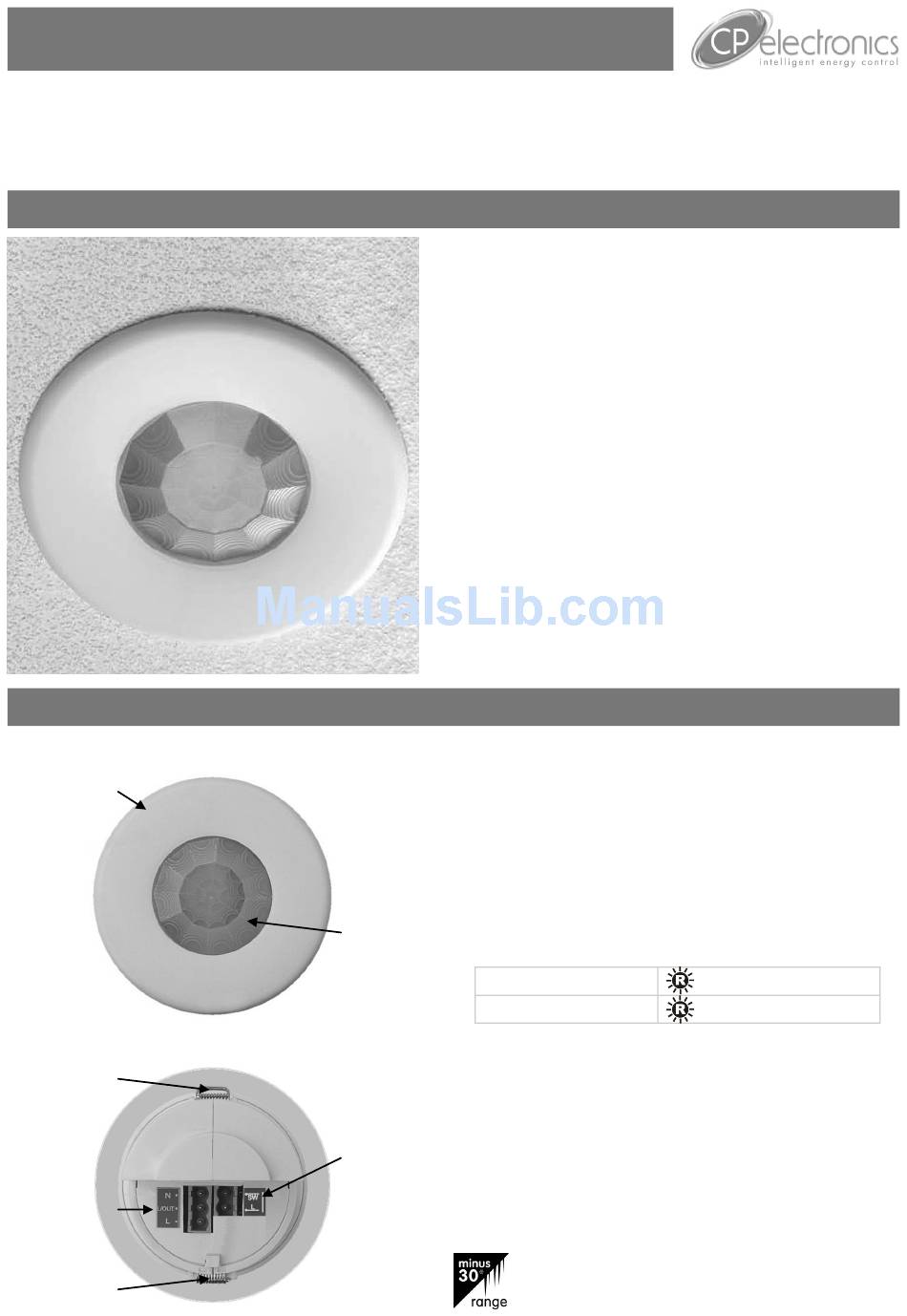

Front features
Mounting Bezel
Back features
Retaining Spring
Power Input
& Switched
Output Connector
Retaining Spring
Product Guide
The EBDSPIR-PRM PIR (passive infrared) presence
detector provides automatic control of lighting loads with
optional manual control.
The output channel comprises a mains voltage relay
capable of simple on/off switching.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
Three variants are available.
EBDSPIR-PRM
EBDSPIR-PRM-IP
EBDSPIR-PRM-IP-LT30 A special order version that can
PIR Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED flashes Red to indicate the following:
PIR Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Switched Output Connector
Used to connect mains power to the unit and to connect a
switched load.
Switch Input Connector
Two input terminals can be used to manually override the
lights on or off.
Switch Input
Connector
Ceiling PIR presence/absence
detector
Ceiling PIR presence/absence
detector sealed to IP55 when
installed flush in a ceiling.
be used down to -30ºC
EBDSPIR-PRM-IP-LT30
A special order version that can be used down to -30ºC
Overview
Features
when movement is detected

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBDSPIR-PRM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for C.P. Electronics EBDSPIR-PRM

Summary of Contents for C.P. Electronics EBDSPIR-PRM

  • Page 1 Ceiling PIR presence/absence detector EBDSPIR-PRM-IP Ceiling PIR presence/absence detector sealed to IP55 when installed flush in a ceiling. EBDSPIR-PRM-IP-LT30 A special order version that can be used down to -30ºC Features PIR Sensor Front features Detects movement within the unit’s detection range, allowing load control in response to changes in occupancy.

  • Page 2: Sensor Functionality

    Detection diagram Area of high sensitivity Area of lower sensitivity Sensor functionality Detection Mode The Detection Mode can be set to behave in Presence or Absence mode:  Presence When movement is detected the load will automatically turn on. When the area is no longer occupied the load will automatically switch off after an adjustable time period.

  • Page 3: Installation

    Installation Choosing a Suitable Location The EBDSPIR-PRM is designed to be ceiling mounted and must satisfy the following criteria:  Avoid positioning the unit where direct sunlight may enter the sensor element.  Do not site the sensor within 1m of any lighting, forced air heating or ventilation.
  • Page 4 Surface fixing, using the optional Surface Mounting Box (part no. DBB). Both methods are illustrated below. Note: EBDSPIR-PRM-IP & LT30 - use the supplied gasket to ensure IP rating (not compatible with Surface Mounting Box part no. DBB). Flush Fixing Hole Ø64mm...

  • Page 5: Basic Programming

    Basic programming The functionality of the EBDSPIR-PRM is controlled by a number of parameters which can be changed or programmed by any of the following devices:  UHS5 Infrared Handset. See below for programmable functions.  UNLCDHS Infrared Handset (with LCD). See user guide for full programming details.

  • Page 6: Advanced Programming

    Advanced programming UHS5 UNLCDHS Parameter Name Default Value Range / Options Description Detector Parameters Walk Test LED On or Off When set to On this causes a red LED to flash on the sensor when it detects   movement. Use this feature to check for adequate sensitivity levels. Once the detector is turned on, this value sets how long the lights will stay on once ...
  • Page 7 This page intentionally left blank...

  • Page 8: Technical Data

    Part number Description Detector EBDSPIR-PRM Ceiling PIR presence detector EBDSPIR-PRM-IP Ceiling PIR presence detector sealed to IP55 EBDSPIR-PRM-IP-LT30 Ceiling PIR presence detector sealed to IP55 -30ºC Accessories Surface mounting box UHS5 Programming IR handset UNLCDHS Universal LCD IR handset IMPORTANT NOTICE!
