Technical Data; Part Numbers - C.P. Electronics EBMINT Product Manual

Technical data

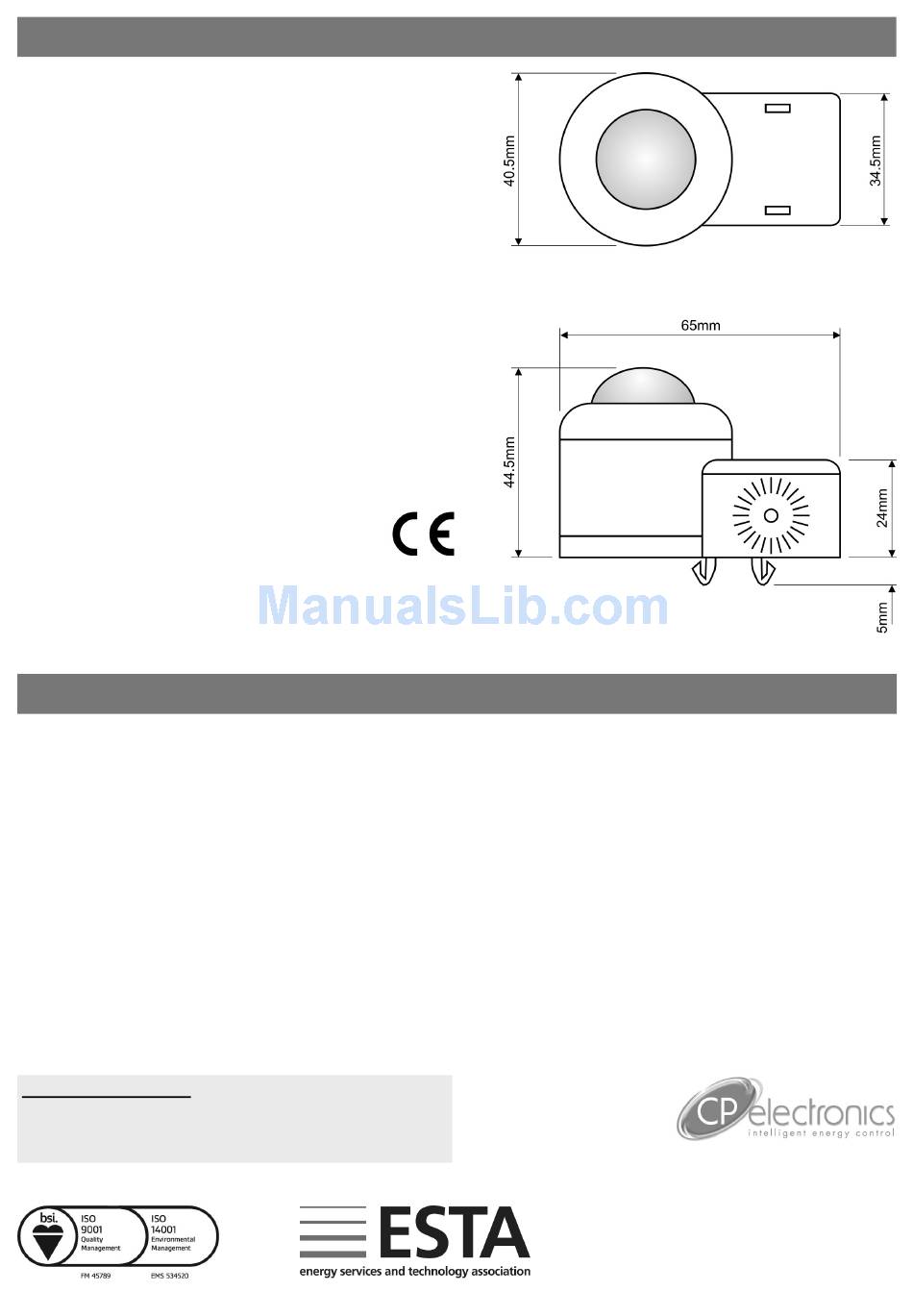

Dimensions
Weight
Supply Voltage
Frequency
Circuit protection
Dimming output
Maximum Switching Load
Number of ballasts
Power consumption
Cable specification
Temperature
Humidity
Material
IP rating
Compliance

Part numbers

Part number
Detectors EBMINT-AD
EBMINT-DD
EBMINT-PRM
Accessories UHS5
UNLCDHS
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in
accordance with the latest edition of the IEE Wiring
Regulations and any applicable Building Regulations.
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
10
See diagrams opposite.
0.10kg
120VAC +/- 10%, 230VAC +/- 10%
50/60Hz
10A
Basic insulation only. Although low voltage,
this is not an SELV output and should be
treated as if mains potential. Use mains
rated wiring.
2 Amps fluorescent and incandescent
lighting.
2 Amps compact fluorescent lighting.
2 Amps low energy lighting.
2 Amps low voltage lighting (switch primary
of transformer).
Switch SON lighting loads via a contactor.
Up to 4 dimming ballasts.
PRM On 307mW, Off 228mW
DD On 357mW, Off 228mW
AD On 344mW, Off 268mW
1m, silicon insulation and sheath.
2
PRM 3 x 0.75mm
2
AD & DD 3 x 0.75mm & 2 x 0.50mm
-10ºC to 50ºC
5 to 95% non-condensing
Flame retardant ABS/PC
Type Class 2
IP40
EMC-2004/108/EC
LVD-2006/95/EC
2
UK patent GB2498572 and international patents applied for
Description
Integrated PIR detector AD 1-10V
Integrated PIR detector DD DALI/DSI
Integrated PIR detector PRM
Programming IR handset
Universal LCD IR handset
C.P. Electronics Ltd
Brent Crescent
London
NW10 7XR
United Kingdom
Tel: + 44 (0) 333 900 0671
Fax: + 44 (0) 333 900 0674
www.cpelectronics.co.uk
enquiry@cpelectronics.co.uk
Ref: #WD676
.
Issue 2
