Summary of Contents for Audiovox ACA450

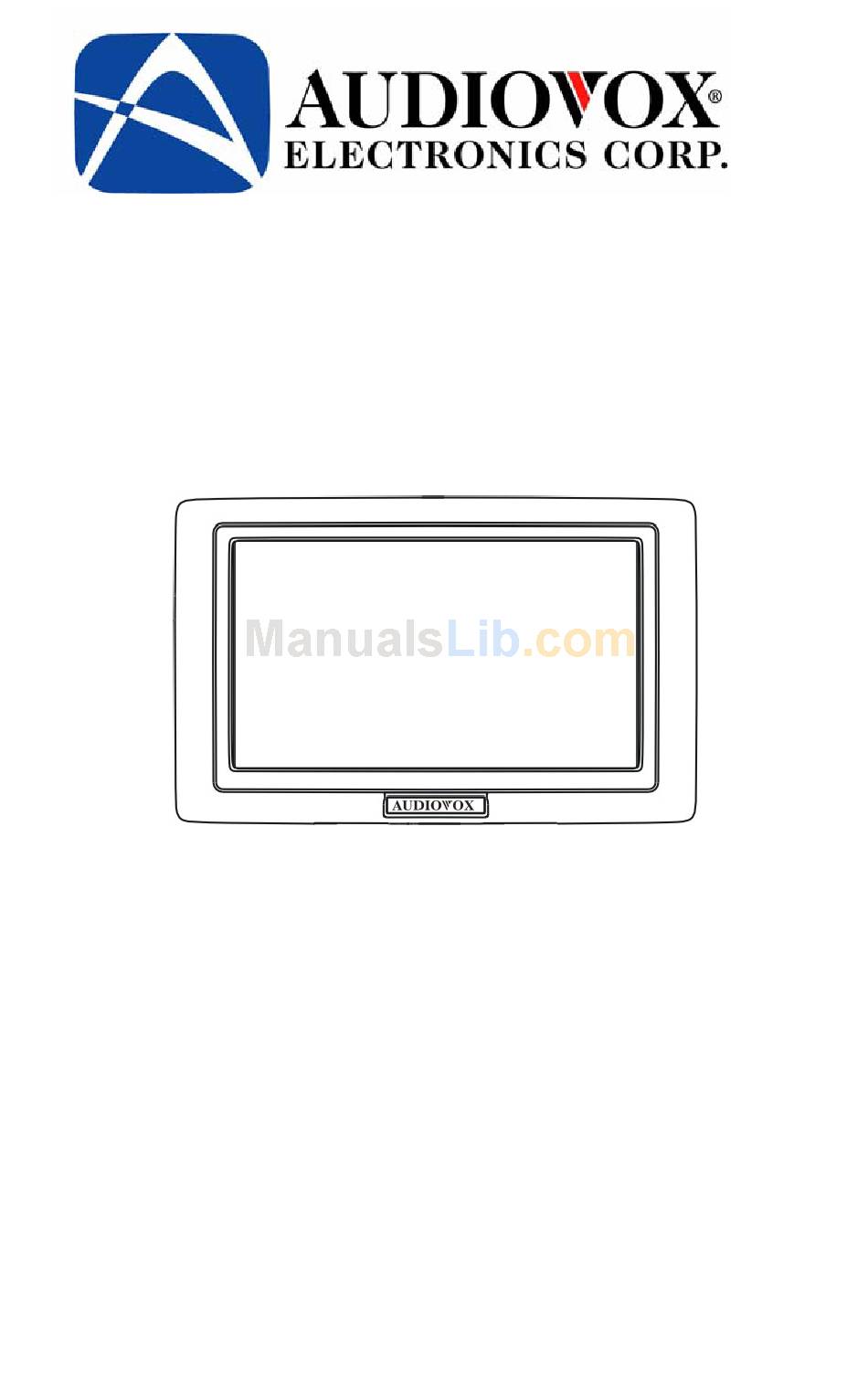

- Page 1 Wireless 4.5” LCD Display System Model: ACA450 Installation/User Manual Features: • 4.5" TFT Color LCD Display • On Screen Display Function • 2.4 GHz Wireless Receiver • Automatically Displays Image when Vehicle is in Reverse...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warnings Product Description Packing List Installation Instructions Controls and Indicators Specifications Maintenance Troubleshooting... -
Page 3: Warnings
2. You are responsible for ensuring that the installation of this product does not void or affect the vehicle manufacturer’s warranty. Audiovox Electronics Corporation or its subsidiaries are not liable in full or in part for improper installation resulting in loss or damage to your property, or for voiding all or part of the vehicle manufacturer’s warranty. -
Page 4: Product Description
Product Description This Wireless Backup Camera/Monitor Package is designed to assist the driver by providing a clear and wide image of the area behind the vehicle whenever the vehicle is shifted into reverse. Never rely solely on this product to ensure the area is clear of children and/or obstructions. Use your monitor and look both ways. -
Page 5: Installation Instructions
Installation Instructions NOTE: Amps Style Mount is an industry standard 4-bolt pattern for assorted style mounts available at many retailers. Use caution when installing bolts, as bolts that are too long will damage the monitor. (1) Installing the Visor Clip (mounting bracket) a) Slide the Visor Clip all the way onto the T-slot on the back of the monitor, as shown in figure 2. - Page 6 (3) Electrical Connections: The monitor can be powered two ways: 1. Plug the cigarette lighter adapter into the vehicle’s cigarette lighter socket, and then insert the 2.5mm plug into the power supply jack on the monitor. 2. Permanently wire the leads to the vehicle. Choose a source that only has power when the vehicle ignition is on.
-
Page 7: Controls And Indicators
Controls and Indicators Figure 2 Back Side of Monitor Figure 2 illustrates the controls and indicators on the back side of the ACA450 Monitor: A: Menu Key-shows on screen displays B: “+” Volume Adjustment Key C: “-” Volume Adjustment Key D: Four Position/Channel Receiver Frequency Switch NOTE: Position switch should be in the #1 position. -
Page 8: Specifications
Specifications General Power Supply Power Consumption Current Draw Operating Temperature Range Display System Screen Brightness Contrast Ratio Backlight Life Resolution Video Format Display Format Wireless Reception System Operating Frequency Selectable Channel Quantity Maintenance DC12V <6W <400 mA 0 to 50 4.5”... -
Page 9: Troubleshooting
Though your monitor requires little care, you will still need to maintain its condition and performance by following the guidelines below. • Keep your system away from excessive moisture, extreme heat or cold. • Keep liquids away from the display. •... - Page 11 © 2007 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788...
