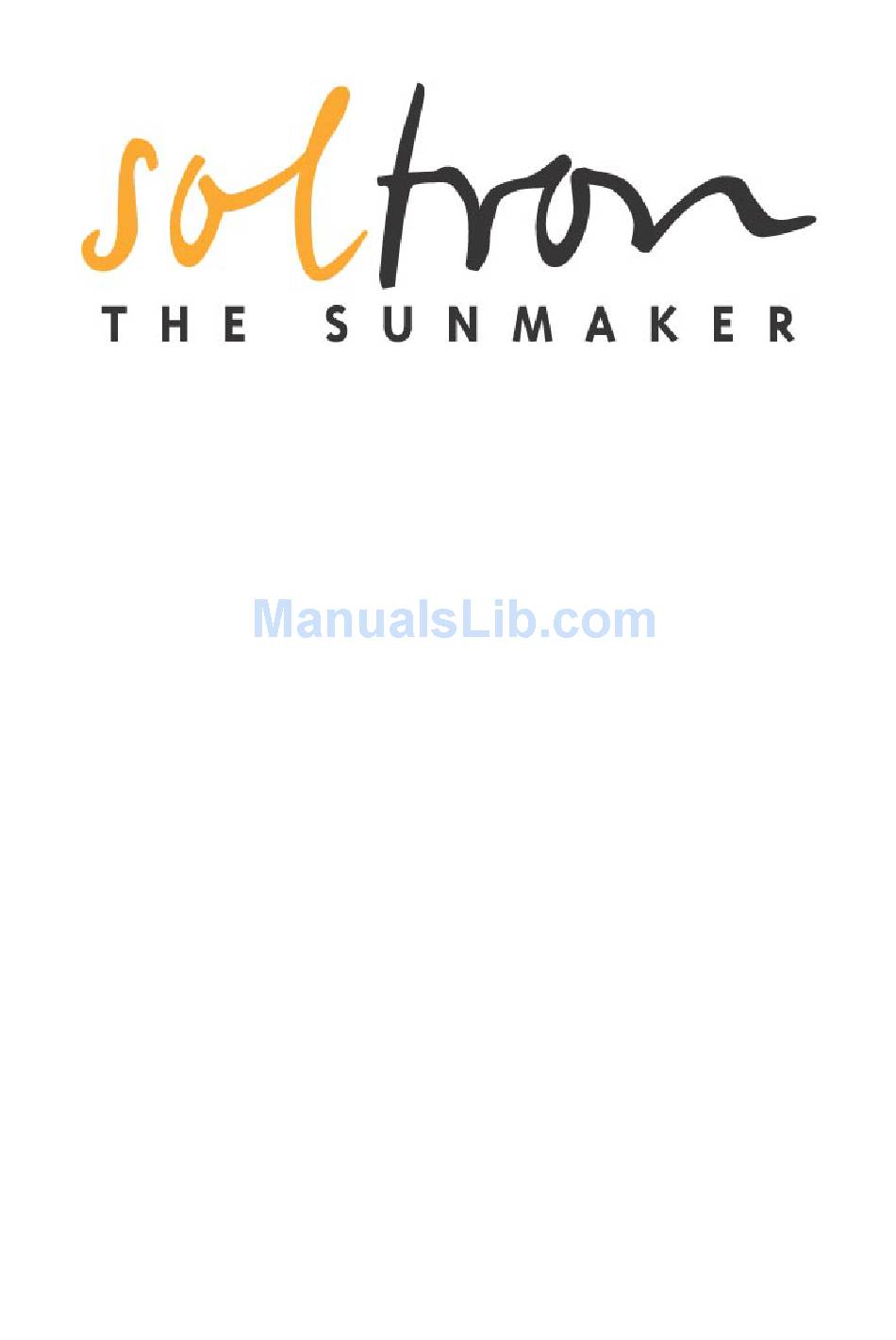

- Page 1 Soltron Space Cab User manual...
- Page 2 Soltron Space Cab - User manual Nome File: USER MANUAL SOL_US021105 Revisione: 02/11/2005...
-
Page 3: Table Of Contents
Soltron Space Cab - User manual INDEX INTRODUCTION ........................ 2 IMPORTANT ..........................2 WARRANTY..........................2 EQUIPMENT DATA ......................3 COMPULSORY PRECAUTIONS ..................5 EXPOSURE SCHEDULE......................5 WARNINGS..........................6 SAFETY RULES ........................7 CLEANING ..........................7 INSTALLATION ......................... 8 PACKAGING ..........................8 CABIN............................ -
Page 4: Introduction
Soltron Space Cab - User manual INTRODUCTION In thanking and congratulating on your choice, with this manual we are illustrating in the simplest possible way the general instructions for use and maintenance of the vertical solarium Soltron Space Cab. IMPORTANT... -
Page 5: Equipment Data
Soltron Space Cab - User manual 2. EQUIPMENT DATA Model Soltron Space Cab Phase 3 + PE (three-phase) 1+PE (single-phase) Voltage supply 220 V ac 220V ac Amperage 34 A 58 A Frequency 60 Hz lamps 48x 180W 2mt Unit dimensions (door closed) 48”... - Page 6 Soltron Space Cab - User manual Accessories Lamps (number of) Cosmedico VHR 9K90 (48) UV protective eyewear Schmerler 2255 dark red (1) (number of) Acrylics are special glass panels for this kind of use, with a high UV transmittance. Despite of superior production technology, sometimes minor spots, air bubbles or micro-fine hairline cracks can occur with use.
-
Page 7: Compulsory Precautions
Soltron Space Cab - User manual 3. COMPULSORY PRECAUTIONS DANGER Ultraviolet radiation. Follow instruction to avoid overexposure. As with natural sunlight overexposure can cause eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer. -
Page 8: Warnings
Soltron Space Cab - User manual WARNINGS Occasionally, persons using the tanning system will experience a slight reddening of the skin - usually in small patches - after the second or third session. This redness is often accompanied by an itching sensation. -
Page 9: Safety Rules
Soltron Space Cab - User manual SAFETY RULES Before turning the appliance on, the salon operator must perfectly know the position and function of all the controls and the characteristics of the equipment. Moreover, the operator must have carefully read and fully understand the content of this manual. -
Page 10: Installation
Soltron Space Cab - User manual 4. INSTALLATION PACKAGING The pacakging for Soltron Space Cab is so composed: 1 pallette 88” X 44” X 37”(high) (2200 x 1100 x 930(high) mm) 1 pallette 48” X 40” X 14”(high) (1200 x 1000 x 360(high) mm) The external boxes are in Vulcan cardboard, this means a high robustness and a high resistance to hits;... -
Page 11: Cabin
Soltron Space Cab - User manual CABIN The ventilation of the room must be adequate. The room will have a possible duct for exhausting hot air produced by the tanning equipment out. For optimum performance of the tanning system it is advisable to comply with the measurements (distances) given below: 20”... -
Page 12: How To Install The Unit
Soltron Space Cab - User manual HOW TO INSTALL THE UNIT Take out from the package the metal brackets. The brackets are numbered too as shown on the right. Each panel of the unit is assigned a number from 1 to 6 (see on the right), so you can see which is the right position of the panel. - Page 13 Soltron Space Cab - User manual Insert the 2 long metal brackets on panel 2, then fix them with screws in bag 1A (see below); Do not attach all at this time. Connect panel5 to panel 2 inserting panel5 into long brackets as shown below, without completely tightening the screws.
- Page 14 Soltron Space Cab - User manual Attach panel 4 to panel 5. Insert 2 screws into the bottom of the panel. M6 nuts should be attached to the screws and not securely fastened at this time. Panel 3 has no brackets on the bottom, it has to be inserted between panel 2 and 4. Carefully place the screws on the bottom of the panels through the access holes in the mounting plate.
- Page 15 Soltron Space Cab - User manual osition the roof over t four panels. Power cables for each panel should pass through the holes provided in the roof. Insert M6 nuts on rear side without tightening them all the way. sert plastic cylinders on the top side of panel 1 and 6 (doors);...
- Page 16 Soltron Space Cab - User manual Insert the door: first insert the bottom side (see picture on the right), then raise the front of the roof and insert the top of the door (remember the cable trough the hole, see picture below).
- Page 17 Soltron Space Cab - User manual Take the external handle and fix it on the left door using screws on bag 4 and aluminium cylinders on bag 5; take care on fixing step by step one all screw, otherwise you can damage the handle.
- Page 18 Soltron Space Cab - User manual Remove the box cover from the side of the roof, and connect power supply to box connectors; Repeat the same operation with the 6-pole connector to external timer if needed; Switch on the unit, check that all lamps, fans and the main ventilator are on.
-
Page 19: Functioning Mode
Soltron Space Cab - User manual 5. FUNCTIONING MODE The purpose of this chapter is to describe how the system works, giving a detailed description of several pages on the display and of several steps during a treatment; it’s also possible to setup some features of the unit. -
Page 20: Programming
Soltron Space Cab - User manual Pressing STOP button the session terminates, and if there’s a cooling time set up the following page will be shown: P O S T S E S S I O N C O O L I N G At the end the program will come back to page 1. - Page 21 Soltron Space Cab - User manual From page 5: 5 M I N U T E S 0 0 2 3 1 press ESC for going back to page 1 < > R E S E S C This value is a minute counter, you can reset this value when you need.
- Page 22 Soltron Space Cab - User manual From page 11: 11 A U D I O S Y S T E M press ESC for going back to page 1 < > E N T E S C Pressing ENT button the following page will appear:...
-
Page 23: Remote Control Connection
Soltron Space Cab - User manual If the remote control function is enabled, the display will appear as the following page: S o l t r o n S T A R T This page will come back after 3 minutes without pressing any button; pressing one of the 4... -
Page 24: Routine And Extraordinary Maintenance
Soltron Space Cab - User manual ROUTINE AND EXTRAORDINARY MAINTENANCE To keep the solarium efficient, carry out the following simple operations: The unit has to be disconnected from power supply before cleaning acrylics or lamps or engaging in the maintenance of the product. -
Page 25: Maintenance Register
Soltron Space Cab - User manual MAINTENANCE REGISTER Model of equipment: Serial No.: Intervention No: Date of intervention: Total hours of operation: Type of intervention: Lamp replacement Starter replacement Other______________________________________________________________________________ Next intervention in________________ hours Stamp signature authorized Notes ____________________________________________ technician... - Page 26 Soltron Space Cab - User manual Model of equipment: Serial No.: Intervention No: Date of intervention: Total hours of operation: Type of intervention: Lamp replacement Starter replacement Other______________________________________________________________________________ Next intervention in________________ hours Stamp signature authorized Notes ____________________________________________ technician ____________________________________________ ____________________________________________ Model of equipment: Serial No.:...
- Page 27 Soltron Space Cab - User manual Model of equipment: Serial No.: Intervention No: Date of intervention: Total hours of operation: Type of intervention: Lamp replacement Starter replacement Other______________________________________________________________________________ Next intervention in________________ hours Stamp signature authorized Notes ____________________________________________ technician ____________________________________________ ____________________________________________ Model of equipment: Serial No.:...
- Page 28 Soltron Space Cab - User manual Model of equipment: Serial No.: Intervention No: Date of intervention: Total hours of operation: Type of intervention: Lamp replacement Starter replacement Other______________________________________________________________________________ Next intervention in________________ hours Stamp signature authorized Notes ____________________________________________ technician ____________________________________________ ____________________________________________ Model of equipment: Serial No.:...
-
Page 29: Notes
Soltron Space Cab - User manual 6. NOTES... - Page 30 Soltron Space Cab - User manual...
