Triton TRPUL Operating And Safety Instructions Manual

Unlimited rebate planer 750w
Hide thumbs Also See for TRPUL:

Advertisement

Quick Links

Download this manual See also: Operating and Safety Instructions Manual

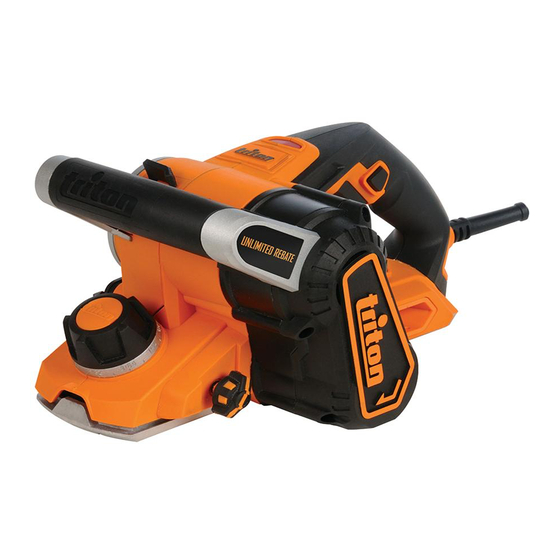

Unlimited Rebate Planer 750W
TRPUL
The TRPUL's patented triple­blade drum delivers an impressive 45,000 cuts per minute for fast material removal and a superior finish to every
project. Traditionally the rebate depth for any planer is restricted by body design, however the TRPUL is designed with the blade drum positioned to
the outermost edge, allowing unrestricted depth rebates right to the edge of the workpiece. In addition, the removable blade drum system allows
fitment of the sanding drum (both included) to convert the planer into a highly efficient sander. With the high mount position of the motor improving
airflow, chip extraction is maximised via the selectable left or right rear dust extraction, ensuring sawdust is directed away from the operator and
workpiece at all times.
2­in­1 Planer/Sander with 3­blade drum and interchangeable sanding drum
17­position depth control dial for precise material removal
Low­vibration auxilary handle for added comfort
Lock­off switch protection from accidental start
Left or right rear dust extraction
Tri­blade planing drum for faster, smoother cuts giving a superior finish with improved
efficiency and faster chip ejection
Parallel fence provides a guide to help control the planing action
Technical Specification
Product Height
Product Length
Product Width
Product Weight
Power
No Load Speed
Sound Pressure LP
Sound Power LW
Blade Type
Cuts Per Minute CPM
Material ­ Primary Construction
Planing Depth
Planing Width
Power On Indicator
Compatible With
165mm
TRP
300mm
TRP
170mm
What's in the Box
3.9kg
750W
15,500rpm
87dB
98dB
3 x Reversible HSS
46,500cpm
Aluminium
0 ­ 3mm
82mm
Yes
SS
Sanding Sleeve for TRPUL Sanding Drum
PB
HSS Planer Blades for TRPUL 3pk
Sanding drum with sanding sleeve
Planing drum (HSS 3 blade) on machine
Wrench and hex spanner
Dust extraction bag and adaptor
Guide fence
TRP
UL
