Installation Instructions
IPD4000E
4-Module IP DSLAM: Internet Protocol Digital Subscriber Line Access Multiplexer
© Copyright 2004 Net to Net Technologies, Inc.
™ The Net to Net Logo is a trademark of Net to Net Technologies, Inc.
Worldwide Headquarters
http://www.NetToNet.com
EMEA Headquarters
Net to Net Technologies
Net to Net Technologies
112 Corporate Drive
Victoria House, 19 Park Way
Portsmouth, NH 03801 USA
Newbury Berkshire RG14 1EE UK
1 (877) 638-2638
44 (0) 1635-570950
support@nettonet.com
support-emea@nettonet.com
IPD4000E Installation Instructions 220-0000097 rev01
Page 1 of 17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Net to Net Technologies 4-Module IP DSLAM IPD4000E
Summary of Contents for Net to Net Technologies 4-Module IP DSLAM IPD4000E
-
Page 1: Installation Instructions

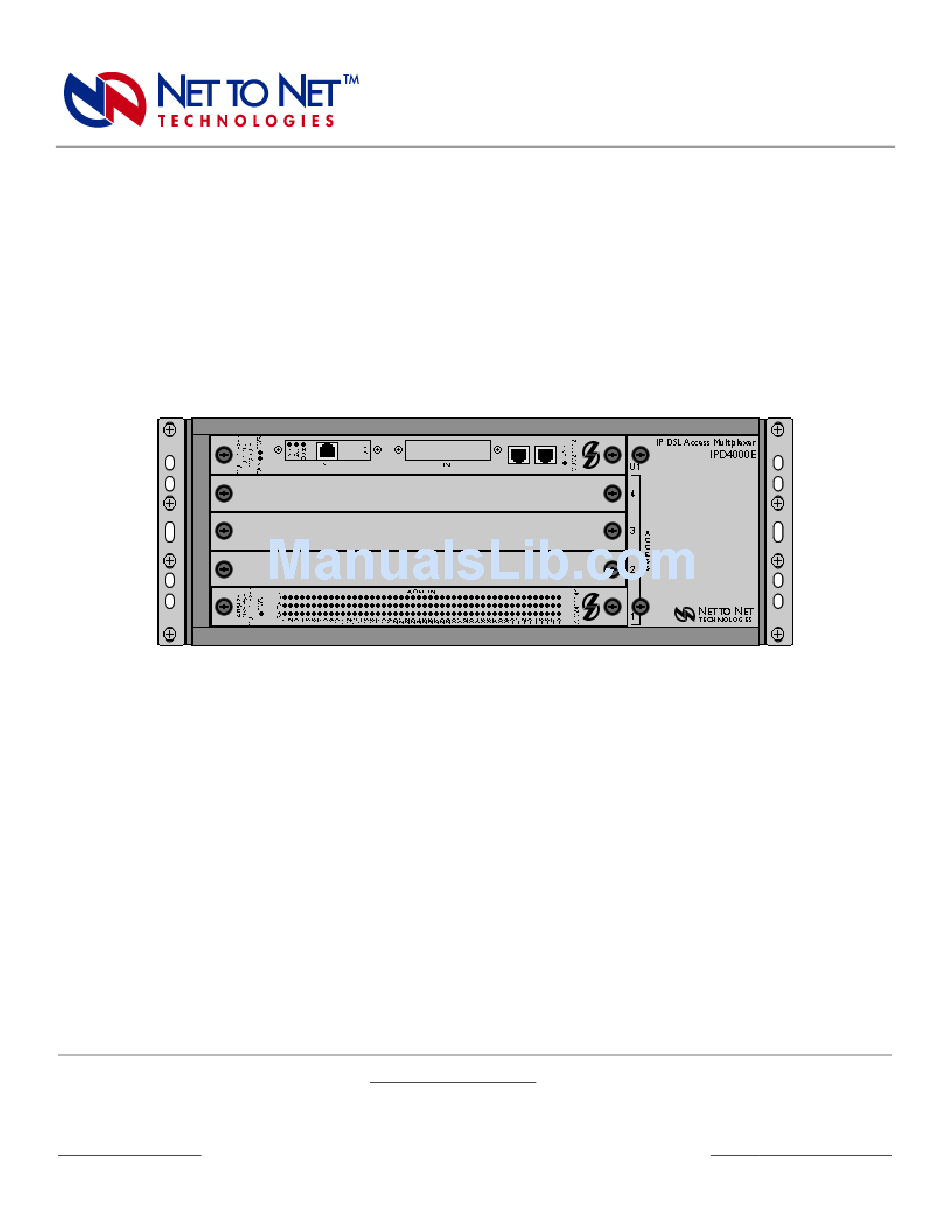

Installation Instructions IPD4000E 4-Module IP DSLAM: Internet Protocol Digital Subscriber Line Access Multiplexer © Copyright 2004 Net to Net Technologies, Inc. ™ The Net to Net Logo is a trademark of Net to Net Technologies, Inc. Worldwide Headquarters http://www.NetToNet.com EMEA Headquarters Net to Net Technologies Net to Net Technologies 112 Corporate Drive... -
Page 2: Table Of Contents
Contents 1.0 INSTALLATION 1.1 Unpack and Inspect the Equipment 1.2 Select a Site for Installation 1.2.1 Tabletop 1.2.2 Rack 1.3 Install Your Management Module 1.3.1 Install an Uplink Module on the Management Module 1.3.2 Identify the Appropriate Slot for Installation 1.3.3 Align the Management Module with the Slot Module Guides 1.3.4 Slide the Management Module Firmly into the Chassis 1.4 Install Your Interface Module(s) -
Page 3: Unpack And Inspect The Equipment
1.0 INSTALLATION AUTION Net to Net Technologies strongly recommends the use of proper electrostatic discharge (ESD) precautions when handling this equipment. 1.1 Unpack and Inspect the Equipment The following components should be included: 1 IPD4000E with 1 fan module and 12 blank plates 4 Rubber Bumper Screws 2 Rack Mount Brackets (either 19"... - Page 4 1.2.2 Rack Using a Phillips Screwdriver, attach the two [2] provided rack mount brackets to the sides of the IPD4000E with eight [8] of the ten [10] provided bracket screws. There are seven position options for the rack brackets; position them as best suited to the space available for your chassis on the rack being utilized.
-
Page 5: Align The Management Module With The Slot Module Guides
1.3 Install Your Management Module A management module provides the functional control for Net to Net Technologies' IPD4000E; the IPD4000E cannot function without one. There are several different models available for purchase: refer to information or contact your Net to Net sales representative to discuss your options. 1.3.1 Install an Uplink Module on the Management Module An uplink module provides the upstream network connection for Net to Net Technologies' IPD4000E;... -
Page 6: Slide The Management Module Firmly Into The Chassis
Slot Module Guides 1.3.4 Slide the Management Module Firmly into the Chassis Tighten the fastening screws on the management module faceplate by turning them clockwise with a Phillips screwdriver. Be careful NOT TO OVER-TIGHTEN the screws. Fastening Screws 1.4 Install Your Interface Module(s) Interface modules provide the subscriber connections for an IPD4000E;... -
Page 7: Align The Interface Module With The Slot Module Guides
AUTION If a blank plate is removed from slot 2-4, it must be replaced with an interface module. DO NOT OPERATE YOUR IPD4000E WITH AN EMPTY MODULE SLOT. 1.4.2 Align the Interface Module with the Slot Module Guides With the interface module PCB facing UP and the interface module model name, and Net to Net logo, on the RIGHT side of the module faceplate (facing towards you), align the left and right edges of the PCB with the slot module guides of the chosen slot on the IPD4000E. -
Page 8: Connect The Ground Wire To A Frame Ground
1.5.1 Establish a Ground Connection AUTION DO NOT operate your IPD40000E without a ground connection. 1.5.1.1 Connect a Ground Wire to the IPD4000E Line up the 2-hole terminal lug of your ground wire with the two holes on the small, unpainted section on the back of your chassis. Secure the terminal lug to the chassis with two #10-32 screws. -
Page 9: Establish A Power Connection
1.5.3 Establish a Power Connection DC POWER SPECIFICATIONS -48V DC 10 Amps maximum Although actual power draw depends upon chassis configuration, a fully loaded chassis averages around 6 Amps. 1.5.3.1 Connect Your Positive Power Lead to the Terminal Block Using a Phillips Screwdriver, remove the upper screw from the chosen terminal block (labeled "+"... -
Page 10: Connect Both Power Leads To A Fuse Panel
DC POWER TERMINAL Ring Terminal AUTION Be sure to attach THE POSITIVE LEAD TO THE POSITIVE TERMINAL and the NEGATIVE LEAD TO THE NEGATIVE TERMINAL as indicated on your IPD4000E terminal block labels. 1.5.3.3 Connect Both Power Leads to a Fuse Panel The negative (-) lead connects to a "Batt"... -
Page 11: Identify The Appropriate Rj21 Connector(S
Uplink Module 1.7 Connect Your Subscriber Lines OTE No configuration is necessary for the interface module(s) installed in your IPD4000E to operate at default settings. However, if you wish to run your subscriber connections at settings other than the factory defaults, Net to Net recommends configuring the interface module(s) prior to connection. -
Page 12: Position The Rj21 Connector
XCEPTION For the TIM1500-24 and EIM2000-24 interface modules, the A connectors provide the subcriber connections for ports 1-12 and the B connectors provide the subscriber connections for ports 13-24. 1.7.2 Detach the Velcro Strap Detach the Velcro Strap from the female RJ21 connector port: lift the Velcro tab from the bottom and pull the strap upward to open, leaving it looped under the right side of the connector frame. -
Page 13: Verify The Connection(S
Tuck the tab at the end of the strap down between the connector frames so that it is out of the way of other connections. Screw the right side of the RJ21 cable connector into the jack screw on the right side of the RJ21 connector frame on the chassis. -
Page 14: Secure The Connecting Cables
http://www.nettonet.com/support/docs connector pinouts, parameter configurations and distance capabilities. 1.8 Secure the Connecting Cables Position all connecting cables such that they will not become a tripping hazard or pull loose from the chassis; secure with cable ties or velcro straps. 2.0 CONFIGURATION AND MANAGEMENT Although no configuration is necessary to run subscriber lines at Net to Net Technologies' default settings, all IPD4000E parameter settings are software selectable via Command Line Interface (CLI), Simple Network Management Protocol (SNMP) and/or Net to Net's Network... -
Page 15: Fan Module
3.0 ADDITIONAL INFORMATION 3.1 Fan Module The IPD4000E fan module is installed vertically to the right of the interface module slots. It comes pre-installed and should not be removed unless it is being replaced. Fan functionality is indicated by a FAN LED on your management module (all models): NO illumination or solid GREEN illumination indicates all fans are currently functioning, solid AMBER illumination indicates one or more of the four fans are no longer functioning. -
Page 16: Us Federal Communications Commission (Fcc
Frequently Asked Questions Net to Net Enterprise MIBs Product Discontinuation Notices Product Documentation Visio Network Diagram Stencils 3.3.2 Technical Support Engineers If you are unable to locate the answers to your questions online, please contact Net to Net Technologies' Technical Support Department directly: CUSTOMER LOCATION Europe, Middle East and Africa United States... -
Page 17: Industry Canada
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
