Installation manual

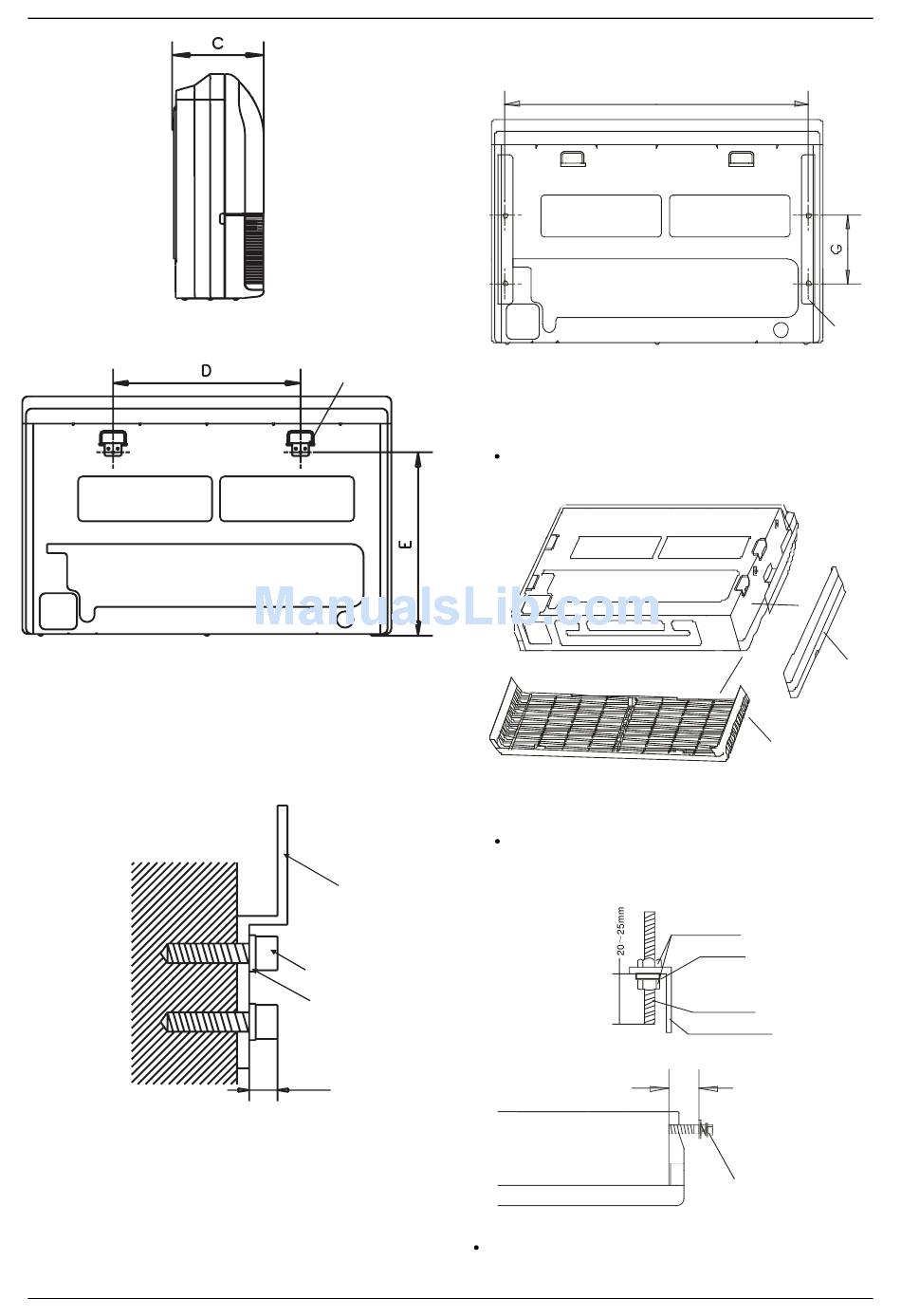

1.Fix the hook with tapping screw onto the wall.(Refer to Fig. 4-8)
2.Hang the indoor unit on the hook.
Fig. 4-6
Hook
Fig. 4-7
Hook
Tapping screw
Washer
<6mm
Fig. 4-8
4
4.3 Ceiling Installation
F
Remove the side board and the grille.(Refer to Fig. 4-10)
(For models 140 and 160, do not remove the grille.)
Locate the hanging arm on the hanging screw bolt.
(Refer to Fig. 4-11)
Prepare the mounting bolts on the unit.( Refer to Fig. 4-12)
INDOOR UNIT
Hang the unit on the hanging arm by sliding backward. Securely
tighten the mounting bolts on both sides.(Refer to Fig. 4-13)
Ceiling Floor
Hanging arm
Fig.4-9
Side board
Grille
Fig. 4-10
Screw nut
Washer
Hanging
screw bolt
Hanging arm
Fig.4-11
8～13mm
Mounting bolt(max.40mm)
Fig. 4-12
