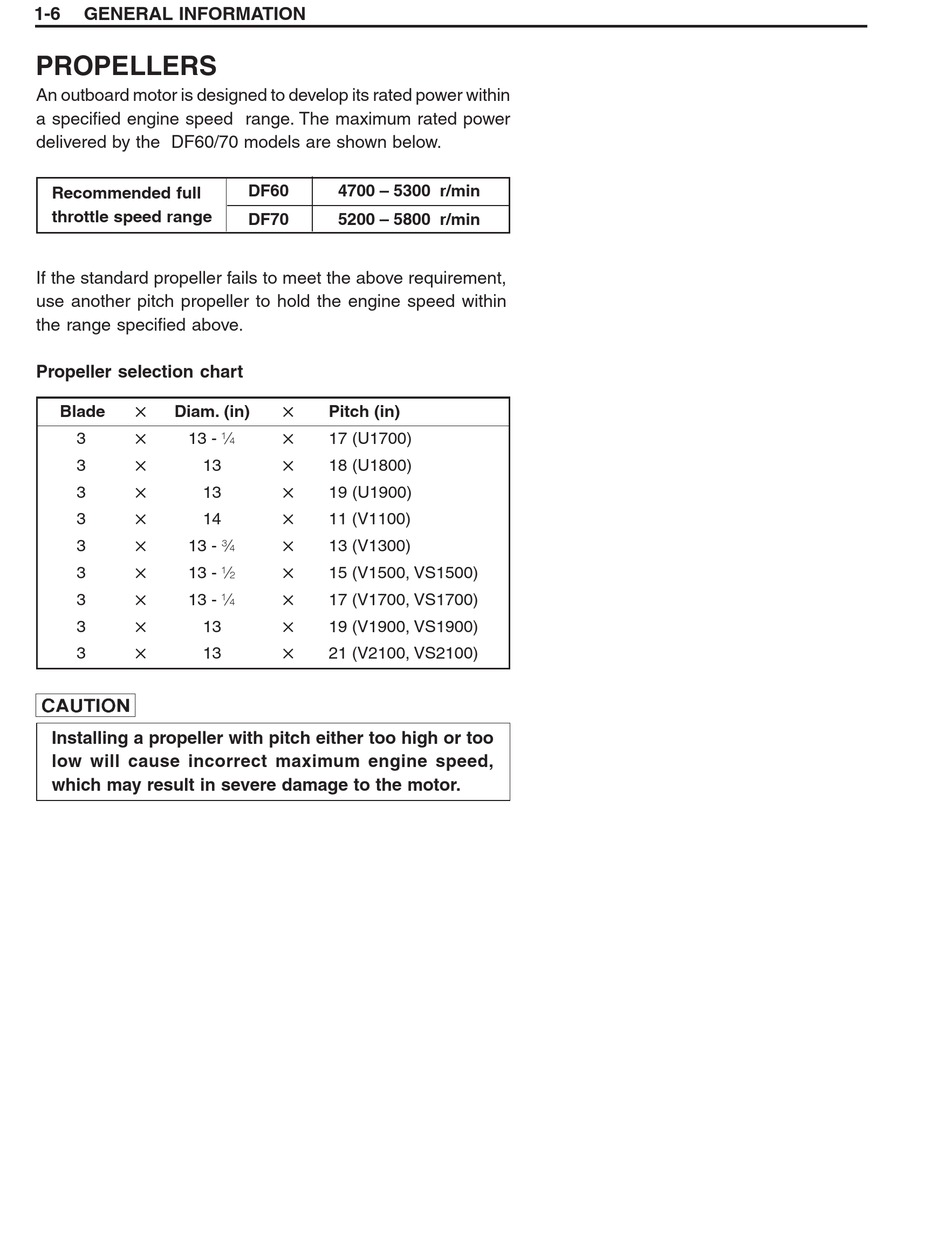

1-6 GENERAL INFORMATION

PROPELLERS

An outboard motor is designed to develop its rated power within
a specified engine speed range. The maximum rated power
delivered by the DF60/70 models are shown below.
Recommended full
throttle speed range
If the standard propeller fails to meet the above requirement,
use another pitch propeller to hold the engine speed within
the range specified above.
Propeller selection chart
×
Blade Diam. (in)
13 - #
×
3
×
3 13
×
3 13
×
3 14
13 - $
×
3
13 - %
×
3
13 - #
×
3
×
3 13
×
3 13
"
Installing a propeller with pitch either too high or too
low will cause incorrect maximum engine speed,
which may result in severe damage to the motor.
DF60 4700 – 5300 r/min
DF70 5200 – 5800 r/min
×
Pitch (in)
×
17 (U1700)
×
18 (U1800)
×
19 (U1900)
×
11 (V1100)
×
13 (V1300)
×
15 (V1500, VS1500)
×
17 (V1700, VS1700)
×
19 (V1900, VS1900)
×
21 (V2100, VS2100)
