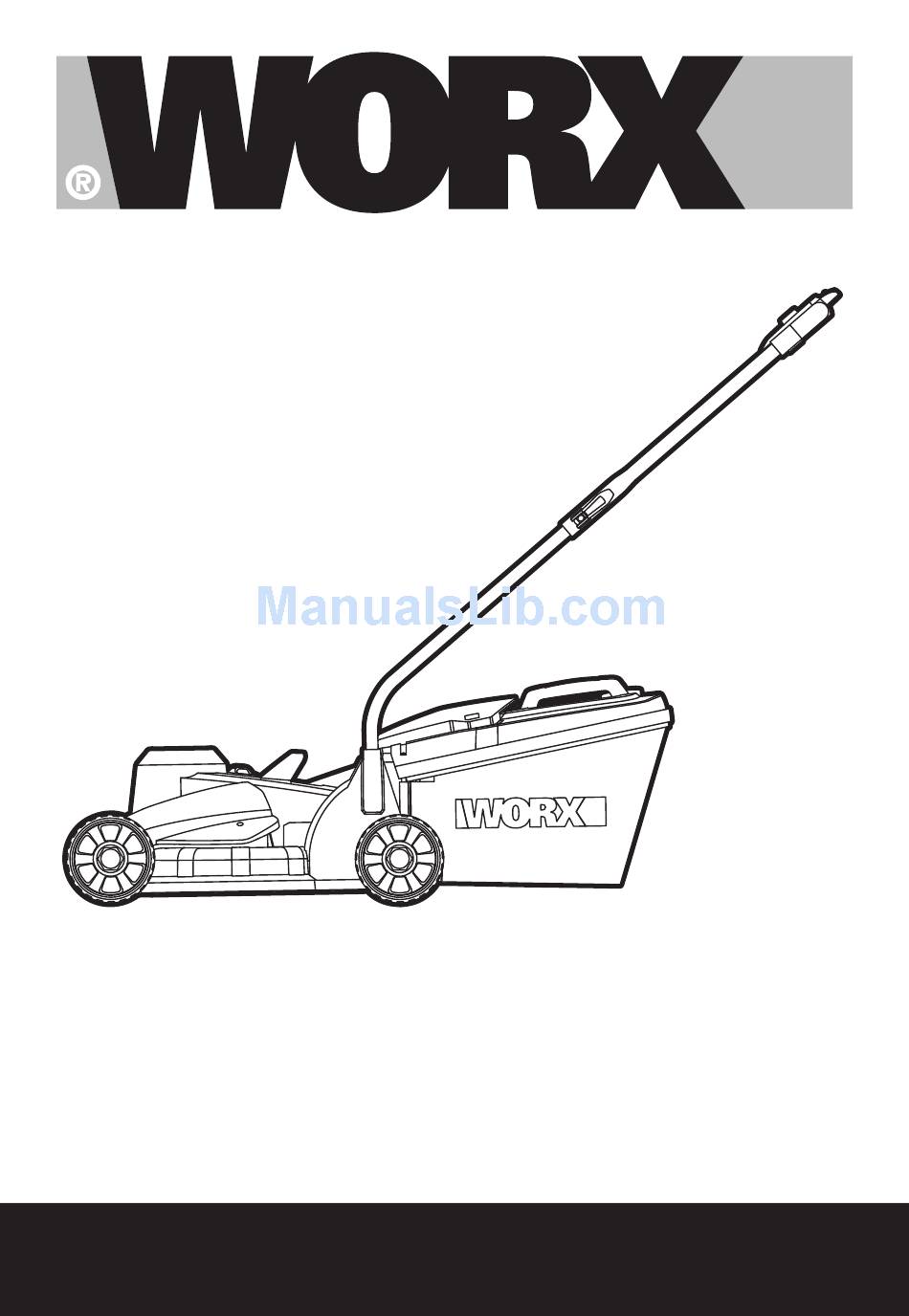

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS Electric Lawn Mower WG717E...
- Page 2 1) While operate the machine, always wear not tilt it more than absolutely necessary substantial footwear and long trousers. Do and lift only the part which is away from not operate the equipment when barefoot the operator. Electric Lawn Mower WG717E...
- Page 3 RECOMMENDATION To connect the machine only to a supply circuit protected by a residual current device (RCD ) with a tripping current of not more than 30 mA. Electric Lawn Mower WG717E...
- Page 4 Electric Lawn Mower WG717E...
-
Page 5: Technical Data
11. MOTOR COVER 12. BLADE BOLT (See Fig. I1) 13. BLADE (See Fig. I1) Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA WG717E(705-719-designation of machinery, representative of Electric Type lawn mower) Rated Voltage 220-240V~50/60Hz... -
Page 6: Vibration Information
We recommend that you purchase your accessories from the same store that sold you the tool. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Electric Lawn Mower WG717E... -
Page 7: Intended Use
NOTE: Ensure the bolts are fully inserted through the handles before fitting the handle knobs. 6) Attach the Cable Clips (2) provided, to the upper and lower handle. Insert the cable into the clips ensuring there is enough cable slack. (See Fig. A5) Electric Lawn Mower WG717E... - Page 8 Push down the back of the handle. (See Fig. Front Part Step 4. Finally, clip the plastic clips over the metal frame. (See Fig. B3) WARNING: Don’t fit the handle in reversed direction. Fit the handle as shown in Fig Electric Lawn Mower WG717E...
- Page 9 Remove the Grass Collection Bag. WARNING! Always check the safety flap can close the discharge outlet tightly before using. Never lift the Safety Flap when the lawn mower is being used without fitted grass bag. Electric Lawn Mower WG717E...
-
Page 10: Operation
Collection Bag is full, the mower provides an indicator on the top of bag to show the collection status. And you can follow as below: Empty status: Flap float (a) Fully status: Flap fall down (b) Electric Lawn Mower WG717E... - Page 11 Clean often in wet, new grass, and always after every use. 4. Certain types of grass or grass conditions may require that an area be mulched a second time to fully disperse the grass throughout the lawn. Electric Lawn Mower WG717E...
-
Page 12: Maintenance
Fig. I1, then firmly tighten the bolt. Do not over tighten. Renew your metal blade after 50hrs mowing or 2 years, whichever is the sooner-regardless of condition. If the blade is cracked or damaged replace it with a new one. Electric Lawn Mower WG717E... - Page 13 To aid storage, release the handle cam lever, and rotate or fold the upper handle. You could carry the mover by Carry Handle (10). Ensure cables are not stuck or entangled when folding or unfolding upper handles. do not drop the handles. Electric Lawn Mower WG717E...
-
Page 14: Troubleshooting
Tighten blade nut/bolt Cutting blade damaged Replace blade ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Electric Lawn Mower WG717E... -
Page 15: Declaration Of Conformity
PO Box 6242, Newbury, RG14 9LT, UK follow the instructions below. Declare that the product IMPORTANT Description WORX Electrical Lawn Mower The wires in the mains lead are colored in Type WG717E(705-719-designation of accordance with the following code: machinery, representative of Electric... - Page 16 Copyright © 2016, Positec. All Rights Reserved. AR01171701...
