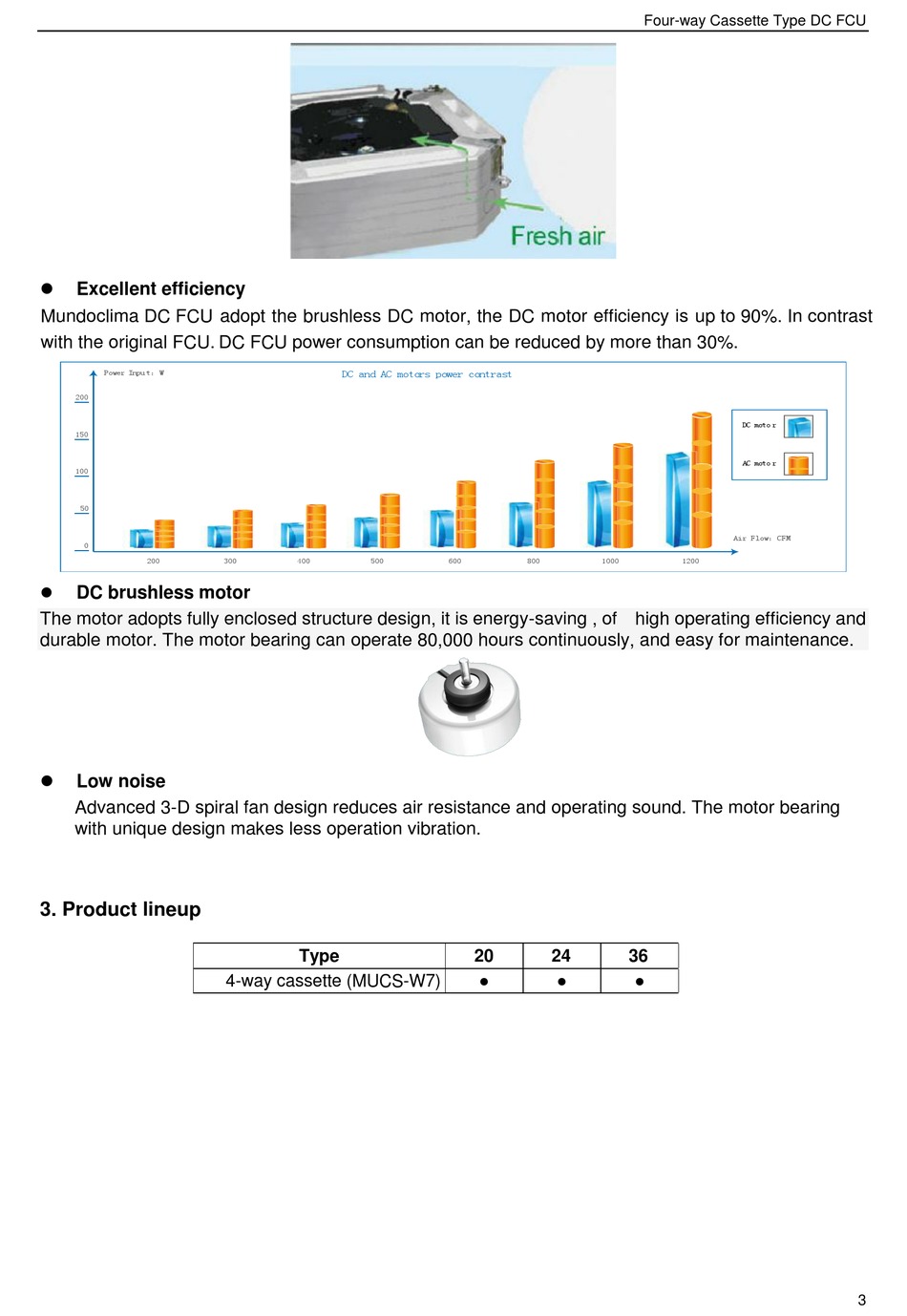

Product Lineup - mundoclima MUCS-W7 Service Manual


Excellent efficiency
Mundoclima DC FCU adopt the brushless DC motor, the DC motor efficiency is up to 90%. In contrast
with the original FCU. DC FCU power consumption can be reduced by more than 30%.
Power Inpu t：W
200
150
100
50
0
200

DC brushless motor
The motor adopts fully enclosed structure design, it is energy-saving , of high operating efficiency and
durable motor. The motor bearing can operate 80,000 hours continuously, and easy for maintenance.

Low noise
Advanced 3-D spiral fan design reduces air resistance and operating sound. The motor bearing
with unique design makes less operation vibration.

3. Product lineup

DC and AC motors power contrast
300 400 500
Type
4-way cassette (MUCS-W7)
600 800 1000
20 24
● ●
Four-way Cassette Type DC FCU
DC moto r
AC moto r
Air Flow：CFM
1200
36
●
