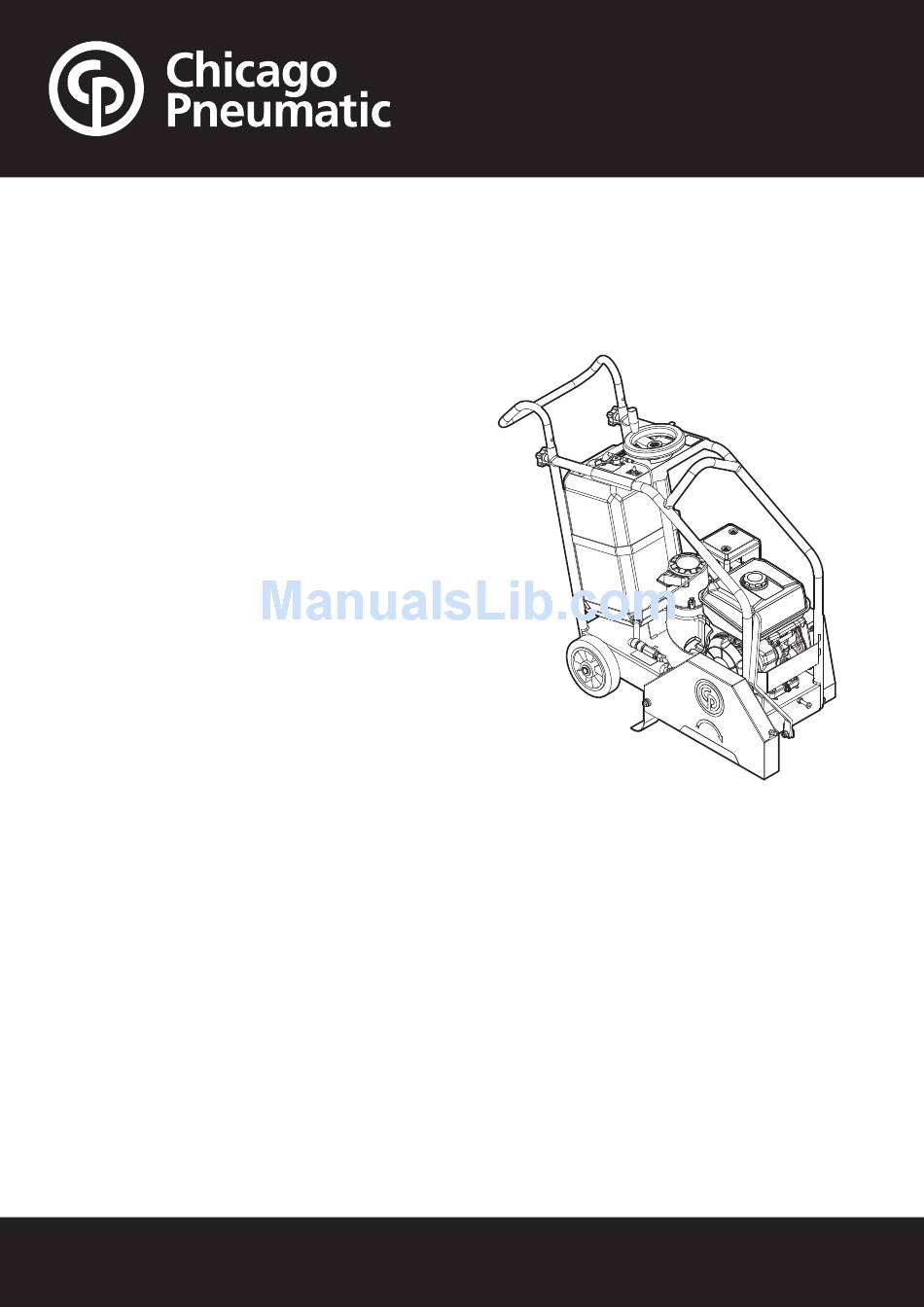

  • Page 1 Safety and operating instructions Floor saw SCG 350, SCD 450 www.cp.com...
  • Page 2 SCG 350, SCD 450 9800 1394 01b | Original instructions...
  • Page 3: Table Of Contents

    SCG 350, SCD 450 Contents Contents Introduction............... 5 About the Safety and operating instructions.
  • Page 4 Safety and operating instructions SCG 350, SCD 450 9800 1394 01b | Original instructions...
  • Page 5: Introduction

    SCG 350, SCD 450 Safety and operating instructions Introduction Thank you for choosing Chicago Pneumatic brand products. For over a century, the Chicago Pneumatic brand has represented performance and innovation in the pneumatic tool industry. Today the brand is found around the world on a range of pneumatic and hydraulic tools that includes breakers, rock drills, chipping hammers, clay-diggers, picks and busters, scabblers, pumps and a whole lot more.
  • Page 6: Safety Instructions

    Safety and operating instructions SCG 350, SCD 450 Drugs, alcohol or medication Safety instructions WARNING Drugs, alcohol or medication To reduce the risk of serious injury or death to Drugs, alcohol or medication may impair your yourself or others, read and understand the Safety judgment and powers of concentration.
  • Page 7 SCG 350, SCD 450 Safety and operating instructions ► Never use a cutting blade for any other purpose DANGER Exhaust gas hazard than it is intended for. The exhaust gas from the machine s combustion engine contains carbon monoxide which is...
  • Page 8 Safety and operating instructions SCG 350, SCD 450 ► Avoid eating, drinking, and using tobacco WARNING Dust and fume hazard products in areas where there is dust or fumes. Dusts and/or fumes generated or dispersed when using the machine may cause serious and permanent Wash your hands and face thoroughly as soon as ►...
  • Page 9 SCG 350, SCD 450 Safety and operating instructions WARNING Vibration hazards WARNING Trapping hazard Normal and proper use of the machine exposes the There is a risk of neck ware, hair, gloves, and clothes operator to vibration. Regular and frequent exposure...
  • Page 10: Transport, Precautions

    Safety and operating instructions SCG 350, SCD 450 WARNING Noise hazard WARNING Broken power switch High noise levels can cause permanent and disabling The power switch does not control the machine. A hearing loss and other problems such as tinnitus...
  • Page 11: Overview

    The labels must be in such condition that they are easy to read. New labels can SCG 350/SCD 450 floor saw is designed for wet be ordered from the spare parts list. sawing of new and old concrete and asphalt with a diamond cutting disk.
  • Page 12: Operation

    Safety and operating instructions SCG 350, SCD 450 Lifting point label Fitting the blade 1. Turn off the engine. 2. Set the machine to the lifted position. 3. Disconnect the water pipe (A) from the blade cover (B). Safety label Instruction manual.
  • Page 13: Operation

    SCG 350, SCD 450 Safety and operating instructions Stops during operating Operation Several things could cause the blade or the machine to stop. Preparations 1. The tension of the belt becomes too loose. NOTICE Make sure that the water supply is abundant during wet cutting.
  • Page 14 Safety and operating instructions SCG 350, SCD 450 4. Turn the engine start switch (E) to ON. Starting the engine, Lombardini 1. Set the engine ON/OFF control (A) to position 2. Set the throttle control (B) to half throttle. 5. Grip the handle of the recoil starter (F) and pull until resistance is felt.
  • Page 15: Maintenance

    SCG 350, SCD 450 Safety and operating instructions 1. Move the throttle control to the stop position. ♦ Before starting maintenance on the machine, clean it in order to avoid exposure to hazardous 2. Slowly pull the starting cable out 5 times.
  • Page 16: Every 20 Hours Of Operation (Weekly)

    Safety and operating instructions SCG 350, SCD 450 1. Unscrew the nut (B) and the screw (A). ♦ Check and adjust valve clearance. See engine manual for more information. Changing the engine oil and air filter, Kohler Only drain engine oil when engine is warm.
  • Page 17: Every 100 Hours Of Operation (Monthly)

    SCG 350, SCD 450 Safety and operating instructions 1. Unscrew the drain plug (A) for the oil and drain ♦ Change the engine oil. See the engine manual for off all the oil. Use a draining hose (B). more information.
  • Page 18: Every 500 Hours Of Operation (Yearly)

    Safety and operating instructions SCG 350, SCD 450 ♦ Clean the engine's exhaust pipe. See the engine Always send used filters, drained oil and fuel manual for more information. remnants to environmentally correct disposal. ♦ Check and tighten screws and nuts.
  • Page 19: Troubleshooting

    SCG 350, SCD 450 Safety and operating instructions Troubleshooting Problem Cause Solution The engine will not start. Not enough petrol or oil. Check the oil and petrol levels. The petrol valve is closed. Open the petrol valve. The engine switch is not in the "ON" position.
  • Page 20: Technical Data

    Safety and operating instructions SCG 350, SCD 450 Technical data Machine data SCG 350 Petrol SCD 450 Diesel Maximum disk size mm (in.) 350 (14.0) 450 (18.0) Maximum cutting depth mm (in.) 100 (3.9) 150 (5.9) Engine brand Kohler Lombardini...
  • Page 21 SCG 350, SCD 450 Safety and operating instructions This machine may cause hand-arm vibration syndrome if its use is not adequately managed. An EU guide to managing hand-arm vibration can be found at http://www.humanvibration.com/humanvibration/EU/VIBGUIDE.html We recommend a programme of health surveillance to detect early symptoms which may relate to vibration exposure, so that management procedures can be modified to help prevent future impairment.
  • Page 22: Ec Declaration Of Conformity

    Safety and operating instructions SCG 350, SCD 450 EC Declaration of Conformity EC Declaration of Conformity We, Construction Tools EOOD, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive), 2000/14/EC (Noise Directive) and the harmonised standards mentioned below.
  • Page 23 SCG 350, SCD 450 9800 1394 01b | Original instructions...
  • Page 24 2015-02 | No. 9800 1394 01b © Copyright Construction Tools EOOD...
