1-1. Installing the Board

1-2. Components

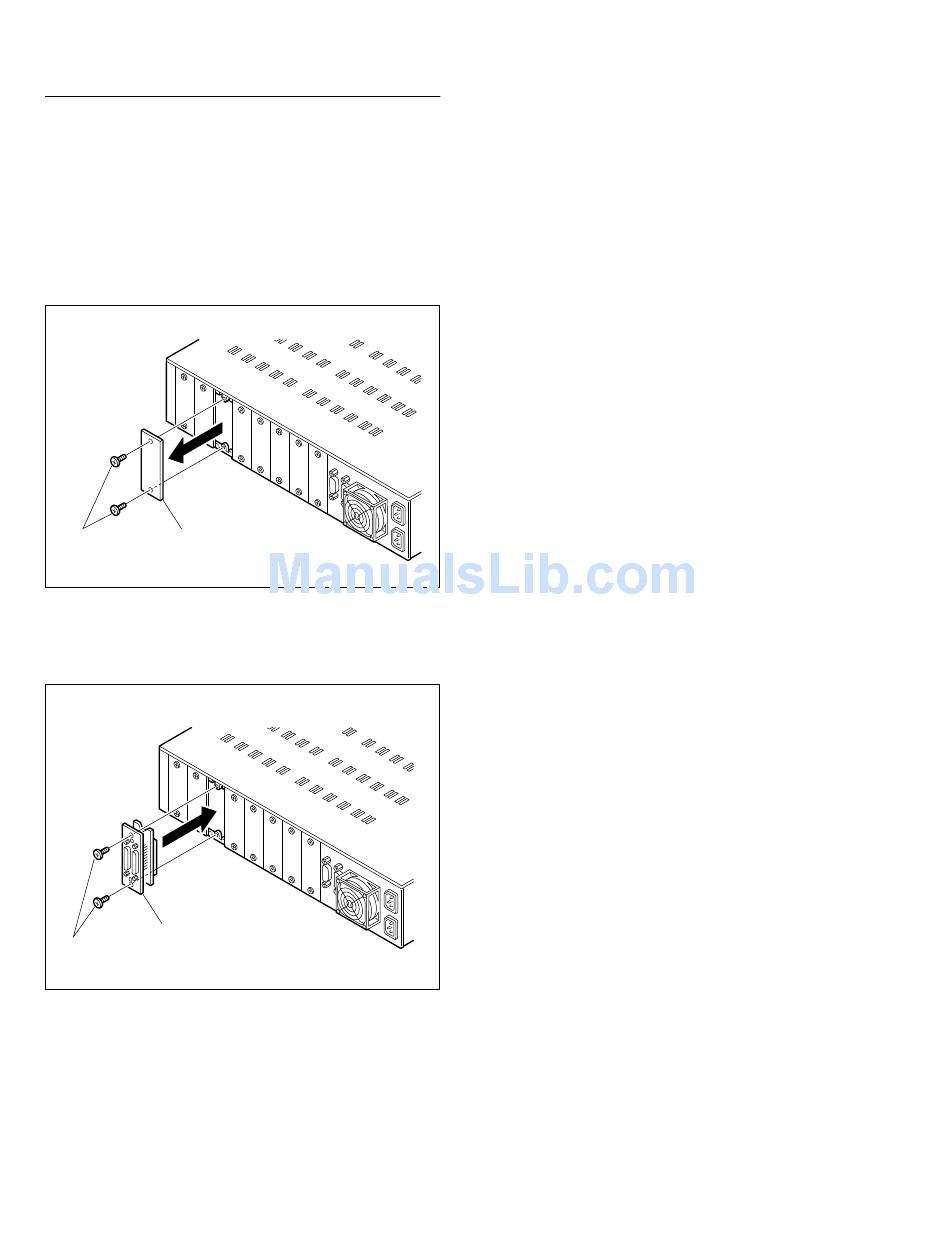

Connector panel installation
Install the connector panel to the slot which contains the
main board.
1. Remove the two screws of the slot which contains the
main board. The blank panel is removed.
n
Keep the removed blank panel.
Blank panel
B 2.6x4
2. Insert the connector panel.
3. Secure the connector panel to the PFV-L1 with the two
screws securing the blank panel.
Connector panel
B 2.6x4
n
Do not open the slot for air-cooled effect of the PFV-L1.
Install the blank panel to a dead slot.
1-2(E)
1-2. Components
The BKPF-L753 is composed of the following items.
. Main board (ADA-55 board)
. Connector panel (CN-1645 board)
. Slot label
. Operation manual
. Installation manual
(1)
(1)
(1)
(1)
(1)
BKPF-L753
