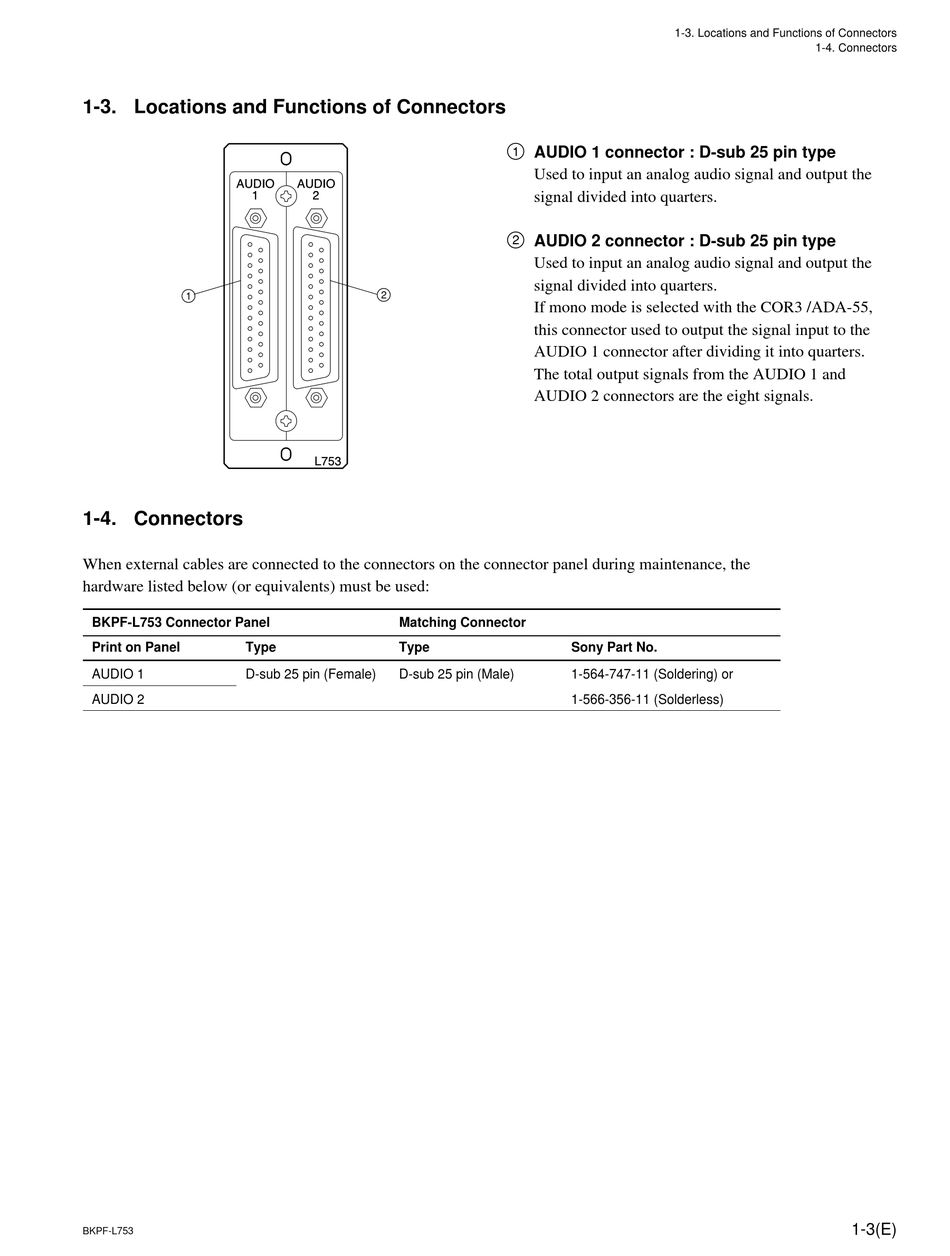

1-3. Locations and Functions of Connectors

1

1-4. Connectors

When external cables are connected to the connectors on the connector panel during maintenance, the
hardware listed below (or equivalents) must be used:
BKPF-L753 Connector Panel
Print on Panel
Type
AUDIO 1
D-sub 25 pin (Female)
AUDIO 2
BKPF-L753
1 AUDIO 1 connector : D-sub 25 pin type
Used to input an analog audio signal and output the
signal divided into quarters.
2 AUDIO 2 connector : D-sub 25 pin type
Used to input an analog audio signal and output the
signal divided into quarters.
2
If mono mode is selected with the COR3 /ADA-55,
this connector used to output the signal input to the
AUDIO 1 connector after dividing it into quarters.
The total output signals from the AUDIO 1 and
AUDIO 2 connectors are the eight signals.
Matching Connector
Type
D-sub 25 pin (Male)
1-3. Locations and Functions of Connectors
Sony Part No.
1-564-747-11 (Soldering) or
1-566-356-11 (Solderless)
1-4. Connectors
1-3(E)
