SC400/SC420 Expansion Enclosure Back-Panel Features
and Indicators
The SC400/SC420 back panel provides controls to power up and reset the expansion enclosure,
indicators to show the expansion enclosure status, and connections for back-end cabling.

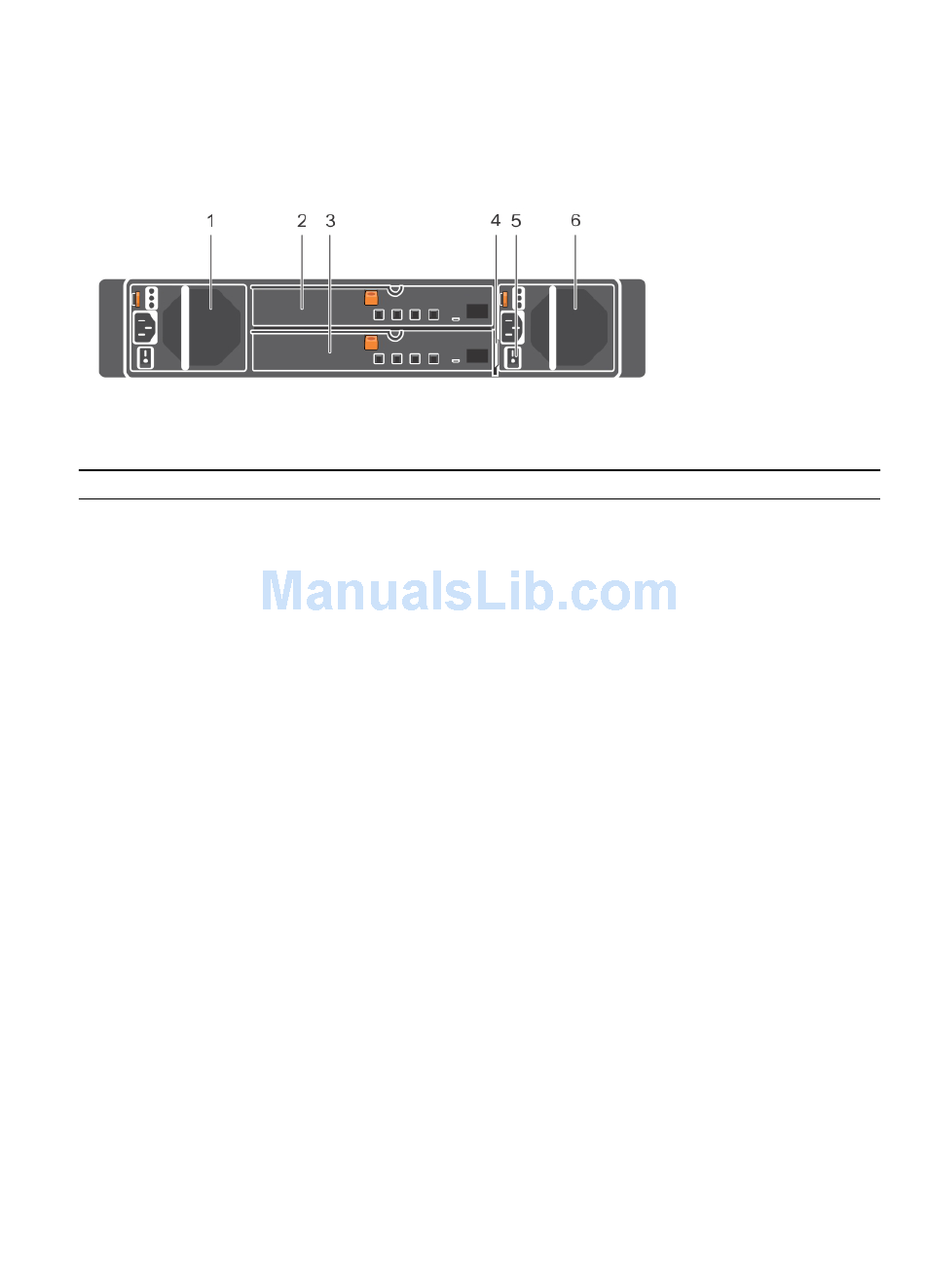

Figure 3. SC400/SC420 Expansion Enclosure Back Panel Features and Indicators
Item Name
1 Power supply unit and
cooling fan module (PS1)
2 Enclosure management
module (EMM 0)
3 Enclosure management
module (EMM 1)
4 Information tag
5 Power switches (2)
6 Power supply unit and
cooling fan module (PS2)
About the SC400/SC420 Expansion Enclosure
Description
600 W power supply
The EMM provides a data path between the expansion
enclosure and the host server and manages expansion
enclosure management functions for your expansion
enclosure.
The EMM provides a data path between the expansion
enclosure and the host server and manages enclosure
management functions for your expansion enclosure.
A slide-out label panel, which allows you to record Service
Tag
Controls power for the expansion enclosure. There is one
switch for each power supply.
600 W power supply
