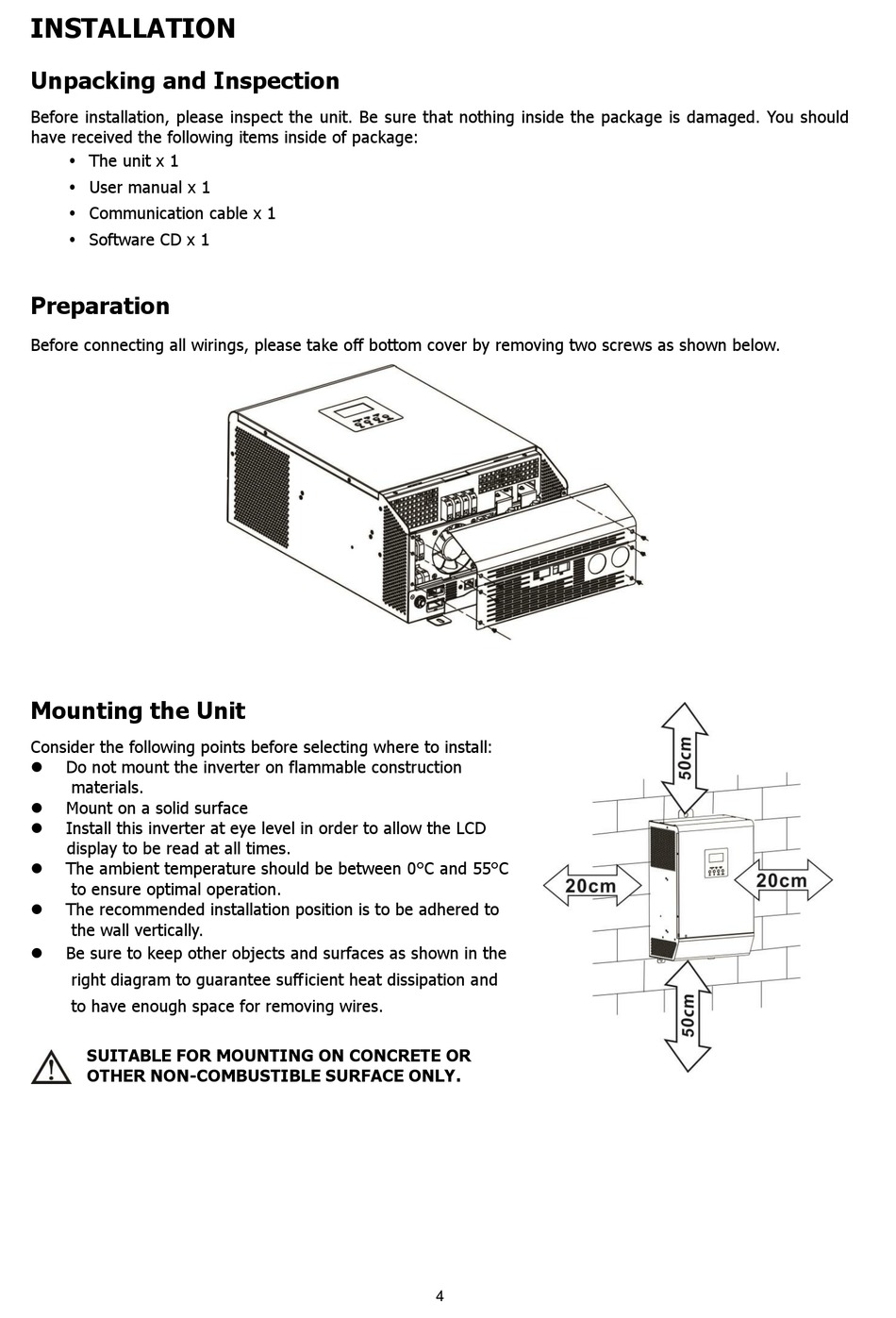

INSTALLATION

Unpacking and Inspection

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside of package:
 The unit x 1
 User manual x 1
 Communication cable x 1
 Software CD x 1

Preparation

Before connecting all wirings, please take off bottom cover by removing two screws as shown below.

Mounting the Unit

Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction

materials.
Mount on a solid surface

Install this inverter at eye level in order to allow the LCD

display to be read at all times.
The ambient temperature should be between 0°C and 55°C

to ensure optimal operation.
The recommended installation position is to be adhered to

the wall vertically.
Be sure to keep other objects and surfaces as shown in the

right diagram to guarantee sufficient heat dissipation and
to have enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR
OTHER NON-COMBUSTIBLE SURFACE ONLY.
