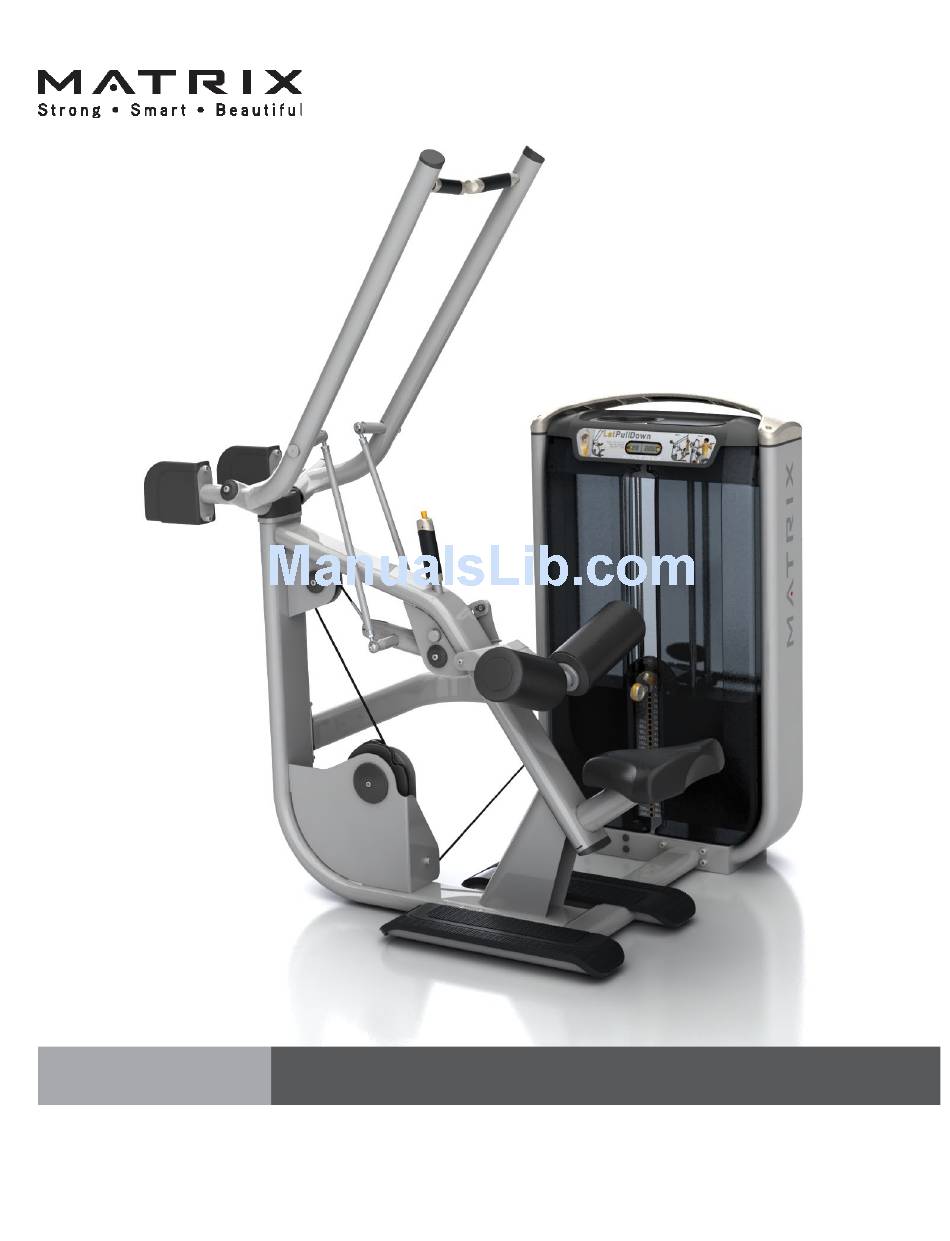

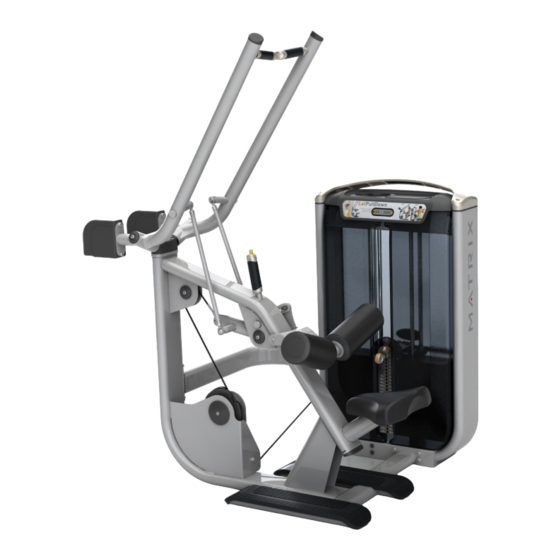

  • Page 1 OWNERS MANUAL ULTRA Single-Station Strength G7-S33 Lat Pulldown...
  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ........................3 Getting Started (Product Specifications) ......................5 Assembly Information .............................6 Markings ..................................7 Parts List ...................................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ..................10 Part 2 CAM/Cable Assembly ........................15 Part 3 Arm Assembly ..........................
  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.
  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Maximum User Weight 136 kg / 300 lbs. Maximum Training Weight 109 kg / 240 lbs. Product Weight 398 kg / 878 lbs. Overall Dimensions (L x W x H) 154.9 x 151.9 x 196.8 cm / 61.0"...
  • Page 6: Assembly Information

    Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.
  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...
  • Page 8: Parts List

    Parts List DESCRIPTION User Frame Right Footpad Frame M10 X 30L Hex Head Bolt M10 Saddle Washer Left Footpad Frame M10 X 30L Socket Head Cap Screw M10 Flat Washer Weight Stack M10 Nylock Nut M10 X 75L Socket Head Cap Screw Connecting Tube M10 X 110L Socket Head Cap Screw Large Pivot Cap...
  • Page 9 Parts List DESCRIPTION Counter Weight M8 Flat Washer M8 X 15L Socket Head Cap Screw Axle M8 X 25L Socket Head Cap Screw Thigh Pad Assembly M10 X 20L Button Head Cap Screw Left Front Shroud Right Front Shroud Rear Shroud M8 X 60L Socket Head Cap Screw Top Cap...
  • Page 10: Part 1 Weight Stack & User Frame Assembly

    ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 1 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY User Frame Right Footpad Frame M10 X 30L Hex Bolt M10 Saddle Washer View A Orient the saddle washer as shown Tip frame as shown to access hardware. DO NOT FULLY TIGHTEN...
  • Page 11 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 2 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 30L Hex Bolt M10 Saddle Washer Left Footpad Frame Tip frame as shown to access hardware. DO NOT FULLY TIGHTEN...
  • Page 12 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 3 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Saddle Washer M10 X 30L SHC Tip frame as shown to access hardware. DO NOT FULLY TIGHTEN...
  • Page 13 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 4 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 30L SHC M10 Flat Washer Weight Stack • Rotate user frame onto foot pads • Ensure that the user frame and weight stack are level with all floor pads contacting the floor equally • Torque all M10 Frame Hardware on pages 10 - 13 to: 77 N-m/57 ft-lbs.
  • Page 14 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 5 | WEIGHT STACK CABLE INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Saddle Washer M10 X 30L SHC M10 Flat Washer M10 Nylock Nut M10 X 75L SHC Connecting Tube Torque all to: 77 N-m/57 ft-lbs.
  • Page 15: Part 2 Cam/Cable Assembly

    ASSEMBLY PART 2: CAM/CABLE ASSEMBLY STEP 1 | CAM & CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer M10 Nylock Nut M10 X 110L SHC Large Pivot Cap Weight Stack Cable Assemble CAM as shown, locat- ing the larger CAM away from the weight stack.
  • Page 16 ASSEMBLY PART 2: CAM/CABLE ASSEMBLY STEP 2 | USER FRAME CABLE INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer M10 Nylock Nut M10 X 50L SHC Pulley User Frame Cable (Preassembled to CAM) Torque to: 77 N-m/57 ft-lbs.
  • Page 17 ASSEMBLY PART 2: CAM/CABLE ASSEMBLY STEP 3 | SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer M10 Nylock Nut Swingarm Small Pivot Cap M10 X 105L SHC M6 Nylock Nut M6 Shoulder Bolt Tighten M10 to 77 N-m/57 ft-lbs. Assemble cable into swingarm and tighten M6 to 16 N-m/142 in-lbs.
  • Page 18: Part 3 Arm Assembly

    ASSEMBLY PART 3: ARM ASSEMBLY STEP 1 | PIVOT BLOCK ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 55L SHC Pivot Block Assembly Hand thread M10 bolts and leave loose ***Note: Pivot Block is symmetrical*** Axles must be red Loctited (Loctite 272) and torqued to: 180 N-m/133 ft-lbs.
  • Page 19 ASSEMBLY PART 3: ARM ASSEMBLY STEP 2 | TIE ROD TO SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M6 X 12L SHC (Right Side Not Shown) M6 Flat Washer (Right Side Not Shown) Tie Rod (Right Side Not Shown) Torque to 16 N-m/142 in-lbs.
  • Page 20 ASSEMBLY PART 3: ARM ASSEMBLY STEP 3 | LEFT AND RIGHT* ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Small Pivot Cap M10 X15L SHC Snap Ring Left Arm Wave (Spring) Washer Right Arm *Only left arm is shown Apply blue Loctite 242 and tighten to 77 N-m/57 ft-lbs.
  • Page 21 ASSEMBLY PART 3: ARM ASSEMBLY STEP 4 | TIE ROD TO ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M6 X 12L SHC (Left Side Not Shown) M6 Flat Washer (Left Side Not Shown) Torque to 16 N-m/142 in-lbs.
  • Page 22 ASSEMBLY PART 3: ARM ASSEMBLY STEP 5 | COUNTER WEIGHT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Counter Weight M8 Flat Washer M8 X 15L SHC 35 36 Torque to: 39 N-m/29 ft-lbs.
  • Page 23 ASSEMBLY PART 3: ARM ASSEMBLY STEP 6 | ARM POSITIONING INSTRUCTIONS & NOTES Before fully tightening the pivot block, ensure that the arms are symmetrical about the centerline of the machine. The left and right hand grips should be cen- tered to the user.
  • Page 24: Part 4 Pad Assembly

    ASSEMBLY PART 4: PAD ASSEMBLY STEP 1 | THIGH PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 Flat Washer Axle M8 X 25L SHC Thigh Pad Assembly 35 38...
  • Page 25 ASSEMBLY PART 4: PAD ASSEMBLY STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 20L BHC Install the pad as shown. 40 41 Tighten to 27 N-m/20 ft-lbs.
  • Page 26: Part 5 Plastics Assembly

    ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Left Front Shroud Right Front Shroud Rear Shroud Install the weight stack shrouds as shown.
  • Page 27 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 X 60L SHC Top Cap I M PO RTA NT NOTI CE Install the top cap and connect rep counter plug as shown. Torque to 17 N-m/147 in-lbs.
  • Page 28 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 ULTRA Lat Pulldown Owners Guide rev.1.2 Copyright© 2014 Matrix Fitness...
