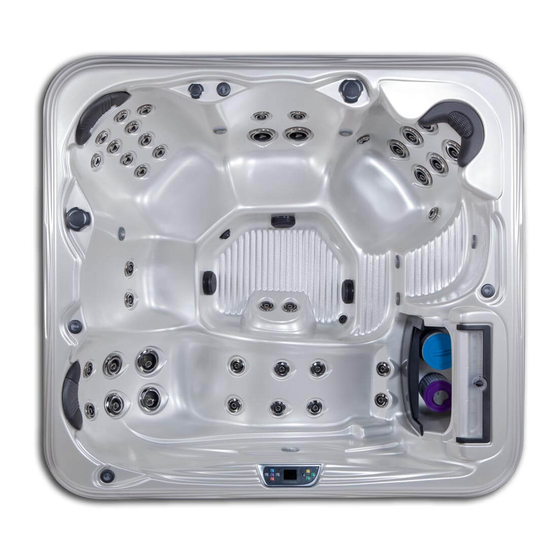

Summary of Contents for Artesian Spas Island Spas Series

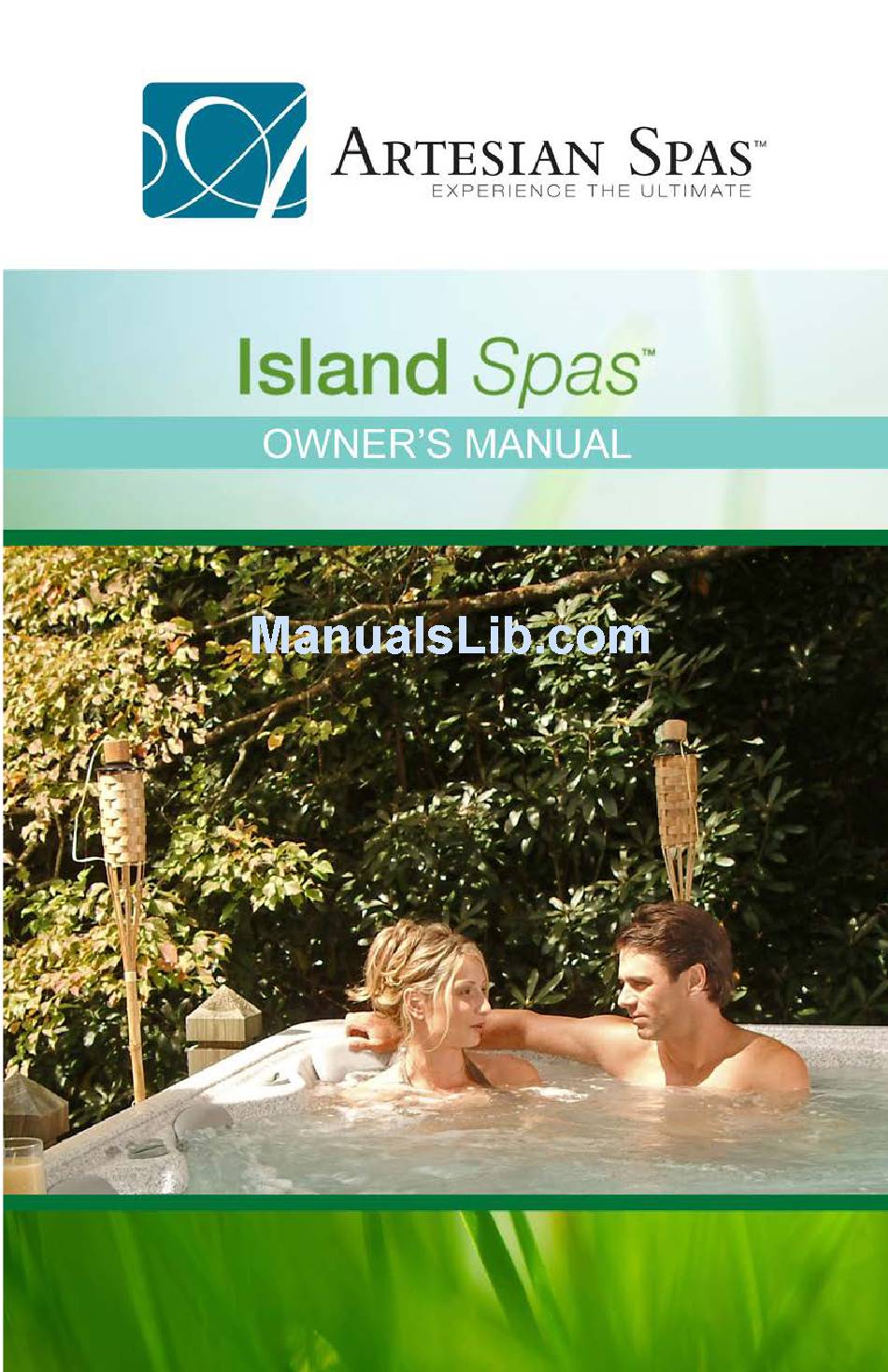

  • Page 3: Certificate Of Authenticity

    Thank you for your purchase. This certificate hereby verifies that the spa you have purchased from an Artesian Spas (May Manufacturing, LLC) authorized dealer is authentic, brand new and original. The spa has been crafted and built in the U.S.A in accordance with industry quality standards.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS Certificate of Authenticity.......... Important Safety Instructions........Electrical Requirements and Installation....Codes and Compliance........Electrical Wiring..........60 Hz GFCI Wiring Schematic......50 Hz Residential Wiring Schematic....50 Hz Island Spas Single/Dual/Three Phase Spa Start Up..............Selecting a Location.......... Inspection............
  • Page 6 Maintaining Your Spa............. Draining Your Spa..........Pillow Care............Jet Care..............Removing, Installing, and Cleaning Filters.... Winterizing Your Spa..........Spa Cabinet Care..........Cleaning Your Spa Interior........Cover Care............. Chemical Treatment of Water......... Artesian Spas Island Warranty........Artesian Spas Island Parts List & Diagram....
  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE TAKE THE TIME TO READ ALL OF THESE WARNINGS AND CAUTIONS PRIOR TO USING YOUR SPA. PLEASE, be a responsible spa owner. When installing and using this spa, always adhere to basic safety precautions. Be sure to list emergency telephone numbers at the telephone nearest the spa, including physician, hospital, ambulance, police, and the fire department.
  • Page 8: Save These Instructions

    IMPORTANT SAFETY INSTRUCTIONS 7. DANGER - Risk of Electric Shock - Do not permit any electrical appliance such as a light, telephone, radio, or television, within 5 feet (1.5m) of a spa. 8. WARNING - To reduce the risk of injury: a) The water in a spa should never exceed 40ºC (104ºF).
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS 4. DANGER- Risk of Electric Shock. Do not permit any electric appliance, such as a light, telephone, radio, or television, within 5 feet (1.5m) of a spa or hot tub. 5. WARNING - Risk of Electric Shock. Install at least 5 feet (1.5m) from inside wall of hot tub or spa using non metallic plumbing.
  • Page 10 IMPORTANT SAFETY INSTRUCTIONS Marking for equipment assemblies WARNING REDUCE THE RISK OF ELECTROCUTION Install at least 5 feet from water using nonmetallic plumbing. Do not install under spa skirt or within an enclosure that would restrict ventilation. If blower is included, install at least 1 foot above maximum water level. REDUCE THE RISK OF CHILD DROWNING 1.
  • Page 11 IMPORTANT SAFETY INSTRUCTIONS 7. When the power supply connections or power supply cord(s) are dam- aged: if water is entering the audio/video compartment or any electrical equipment compartment area; if the protective shields or barriers are showing signs of deterioration; or if there are signs of other potential dam- age to the unit, turn off the unit and refer serviceing to qualified service personnel.
  • Page 12: Codes And Compliance

    ELECTRICAL REQUIREMENTS AND INSTALLATION The following information is provided for hooking up electrical supply to your new spa. A qualified, licensed, electrician must perform this work. Failure to follow these instructions will terminate all warranty coverage and can cause serious injury or death. Codes and Compliance North American 60 Hz 3X JETS, 2 PUMP 4X/5X/6X JETS 2/3 PUMPS Voltage...
  • Page 13 6) Connect the power to the spa Connect each color to its respective terminal block location. The Ground (green) wire must be connected to the grounding terminal which is outside of the System box. The Grounding wire must first enter the system box and then access the grounding terminal via a hole on the side of the box adjacent to the grounding terminal as shown in the picture above.
  • Page 14: 60 Hz Gfci Wiring Schematic

    60 Hz GFCI WIRING SCHEMATIC 240 Volt Residential Wiring Schematic with G.F.C.I. House Breaker Box G.F.C.I. Breaker Box Red (Hot) White Spa System Box Green Green White Red Hot Red Hot White Green Black Outside Ground Rod Red Hot Green Green Ground Wire to Ground Bar Black White...
  • Page 15: 50 Hz Residential Wiring Schematic

    50 Hz RESIDENTIAL WIRING SCHEMATIC 230 Volt/50 Hz Residential Wiring Schematic with 2 Pole RCD Breaker Box 230 VAC House Breaker Box RCD Breaker Box Blue (Neutral) Blue (Neutral) Brown (Hot) Green Green Spa System Box Yellow Yellow (Ground) (Ground) Brown Green Outside Ground Rod...
  • Page 16: 50 Hz Island Spas Single/Dual/Three Phase

    50 Hz ISLAND SPAS SINGLE/DUAL/THREE PHASE Single Service, TN and TT Electrical Systems (1 X 16 Amp or 1 X 32 Amp) 3 Wires (1 Line + 1 Neutral + 1 Protective Earth) Protective Earth wire (Green / Yellow) must be connected to system ground terminal as marked.
  • Page 17 50 Hz ISLAND SPAS SINGLE/DUAL/THREE PHASE 3-Phase Service, TN and TT Electrical Systems (3 x 16 Amp) 5 Wires (3 Lines + 1 Neutral + 1 Protective Earth) Protective Earth wire (Green / Yellow) must be connected to system ground terminal as marked. IMPORTANT - Service MUST include a neutral wire, with a line neutral voltage of 230 VAC.
  • Page 18: Selecting A Location

    SPA START-UP Please read each step of the Start-up section prior to doing the step. SELECTING A LOCATION In preparation for installing your new Island spa, you should ensure that your chosen location meets some minimum guidelines: 1) Place your spa on a surface that is large enough for the entire spa to fit.
  • Page 19: Inspection

    square. A solid foundation is recommended as soon as possible. INSPECTION You will want to inspect your spa, prior to filling it up with water. Look for and remove any debris in the spa tub and in the filter. Verify that pump plugs are installed on the pumps and the pump unions are tight.
  • Page 21: Danger Risk Of Electrical Shock

    DANGER RISK OF ELECTRICAL SHOCK f the GFCI breaker fails to operate as described, there is a possibility of an electric shock if the spa is used. Shut off the power at the main electrical service panel until the source of the problem has been identified and corrected by a licensed electrician or qualified spa...
  • Page 22: The Main Screen

    TOPSIDE CONTROLLER INSTRUCTIONS Spa Operation Main Screen Navigation Buttons Island Spas 3 Pump Topside Spa Operation Main Screen Navigation Buttons Island Spas 2 Pump Topside THE MAIN SCREEN Water Temperature Temperature Range Important information about spa Desired Temperature Pump and Heat operation can be seen quickly from Status the Main Screen.
  • Page 23: Spa Operation

    SPA OPERATION There are three ways to operate the spa functions from the topside. You can turn the spa pumps and lights from the topside though the buttons on the left hand side of the control panel, or you can use the spa menu using the navigation buttons or you can use the short cut setting.
  • Page 24 SPA OPERATION Press the select button when the SPA option is highlighted. The main screen will change to spa operation screen. The main screen will change to spa operation screen.
  • Page 25 SPA OPERATION Use the navigation buttons to highlight the operation you would like to perform. Once the operation is highlighted press the Select button, to en- gage the highlighted item. Back button: Will return you to the main menu. Back Jets 1: First press of the Select button will activate pump 1 (if pump is not currently on).
  • Page 26 SPA OPERATION Invert: Inverts the display to be viewed from outside the spa or Invert inside the spa. Using the Shortcut Menu and navigation buttons: Use the Right button and highlight SPA in the menu. Use the Down button and highlight Shortcuts in the menu. Press the select button when the SHORTCUT option is highlighted.
  • Page 27 SPA OPERATION Up Button: The UP button will operate pump 1. First press of the UP button will activate pump 1. A second press of the UP button will deactivate pump1. If pump1 is not manually turned off by pressing the UP button it will automatically timeout after 15 minutes.
  • Page 28: Temperature Operation

    TEMPERATURE OPERATION Up Button: Use the Up Button to raise the set temperature. Down Button: Use the Down Button to lower the set temperature. Select Button: Press the Select Button to save the Set Temperature Range: The Temperature Range is displayed in the upper Right Hand corner of the display.
  • Page 29: The Settings Screen

    THE SETTINGS SCREEN The Settings Screen is where all programming and other spa behaviors are controlled. This screen is where all programming and other spa be- haviors are controlled. Right Button: Press the Right button to go to the Menu section. Down Button: Press the Down Button until Settings is highlighted, you will need to press it twice.
  • Page 30: Heat Mode

    THE SETTINGS SCREEN Left Button: Press the left button to high light the Back Icon. Select Button: Press the select button to return to the main Menu Down Button: Press the down button to go to Heat Mode. HEAT MODE Heat Mode indicates if the spa is Ready mode or Rest Mode.
  • Page 31: Time Of Day

    THE SETTINGS SCREEN Select Button: Press the select button to return to the main Menu. OR Down Button: Press the down button to go to Time of Day. TIME OF DAY When the time of day is highlighted. Right Button: Press the Right button to go to the Time of Day Menu.
  • Page 32 THE SETTINGS SCREEN Up Button: To increase the minutes. Down Button: To decrease the minutes. Right Button: Press the Right button to Highlight the time format. 12HR: 12 hour format will be displayed. 24HR 24 hour format will be displayed. Up Button: To change the time format.
  • Page 33: Setting Filter Cycle

    THE SETTINGS SCREEN Down Button: Press the down button to go to Filter Cycle. SETTING FILTER CYCLE When the Filter Cycle is highlighted. Right Button: Press the Right button to go to the Filter Cycle Menu. The Screen will change to Filter Cycle menu. Filter Cycles Filter Cycle 1 Starts at 12:00 AM...
  • Page 34 THE SETTINGS SCREEN Up Button:To increase the Filter Cycle 1 Start time Minutes. Down Button: To decrease the Filter Cycle 1 Start time Minutes. Right Button: To highlight the Run Time Hours. Up Button: To increase the Run Time Hours. Down Button: To decrease the Run Time Hours.
  • Page 35 THE SETTINGS SCREEN THE SETTINGS SCREEN Up Button: To Increase the Filter Cycle 2 Start time hours. (NOTE: to change AM and PM you will need to cycle the hours past 12). Down Button: To decrease the Filter Cycle 2 Start time hours (NOTE: to change AM and PM you will need to cycle the hours past 12).
  • Page 36: Invert Display

    THE SETTINGS SCREEN Down Button:To decrease the Run Time Minutes. The panel calculates the end time and displays it automatically. In order to maintain sanitary conditions, as well as protect against freez- ing, the system will purge water from their respective plumbing by briefly running the pumps at the beginning of each filter cycle.
  • Page 37: Restricting Operations (Lock)

    THE SETTINGS SCREEN When the display is inverted, the navigation buttons will also be inverted to work with the display. Down Button: Press the down button until Lock is highlighted. RESTRICTING OPERATIONS (LOCK) The controller can be restricted to prevent unwanted use or changes. There are two lock options.
  • Page 38: Hold

    THE SETTINGS SCREEN The screen will change and go back to the main display. High Range Unlock Set: 104 8:32 PM Ozone Filter 1 Ready in Rest Mode Heating To unlock the system: Right Button: Press the Right button to highlight Settings OFF/ON.
  • Page 39: Utilities

    THE SETTINGS SCREEN Select Button: Press the select button to activate the hold mode Left Button: Press the left button to highlight Back Icon Back Select Button: Press the select button to activate the hold mode. Down Button:Press the Down Button until Utilities is high lighted.
  • Page 40: Preference

    THE SETTINGS SCREEN PREFERENCE The screen will change to the Preferences Menu. Preferences Temp Display Time Display 12HR Reminders Cleanup 0.5 HR Dolphin Color Blue Language English TEMP DISPLAY Right button: Press the right button to highlight temp Display. Select button: Press the select button to change from F° (Fahrenheit) to C°...
  • Page 41: Dolphin (Not Used)

    THE SETTINGS SCREEN DOLPHIN (NOT USED) Down Button: Press the Down Button until Dolphin is highlighted. This option is not available. COLOR Down Button: Press the Down Button until Color is highlighted. Select Button: Press the select button to change background color on the display.
  • Page 42: General Messages

    GENERAL MESSAGES Most messages and alerts will appear at the bottom of the normally used screens. Several alerts and messages may be displayed in sequence. Some messages can be reset from the panel. Message that can be re- set will appear with a “right arrow” at the end of the message. This mes- sage can be selected by navigating to it and pressing the select button.
  • Page 43: Heater-Related Messages

    HEATER-RELATED MESSAGES During the warmer month it is recommended to change the filter cycle duration to keep the spa overheating with the high ambient temperature. The water flow is low – M016 There may not be enough water flow through the heater to carry the heat away from the heating elements.
  • Page 44: Sensor Related Messages

    SENSOR-RELATED/MISC. MESSAGES Flow-Related Checks Check for low water level, suction flow restriction (filters) closed valved, or trapped air. The heater is too hot* – M030 One of the water temperature has detected 118°F (47.8°C) in the heater and the spa is shut down. You must clear the message when water is below 108°F (42.2°C).
  • Page 45: System Related Messages

    SYSTEM RELATED/ MESSAGES Program memory failure – M022 Call you dealer for service. The settings have been reset– M021 Call you dealer for service if this message appears on more than one power-up. The clock has failed –M020 Call you dealer for service. Configuration error (Spa will not Start Up) Call you dealer for service.
  • Page 46: Reminder Messages

    REMINDER MESSAGES Not all messages may display. Check the pH May appear on a regular schedule, i.e. every 7 days. Check pH with a test kit and adjust pH with the appropriate chemicals. Check the sanitizer May appear on a regular schedule, i.e. every 7 days. Check sanitizer level and other water chemistry with a test kit and adjust with the appropriate chemicals.
  • Page 47: Maintaining Your Spa

    MAINTAINING YOUR SPA DRAINING YOUR SPA Your spa needs to be drained, cleaned, waxed, and refilled about every six months. More frequent water changes may be necessary if bather load is heavy. A hose bib has been provided to assist you in draining your spa.
  • Page 48: Jet Care

    MAINTAINING YOUR SPA JET CARE We recommend that you clean your jets when you drain your spa. 1) Spray jet inserts with a mixture of 1 part vinegar to two parts warm water and let soak for 10 - 15 minutes. Periodically rotate the spinner nozzle to break up residue in the jets.
  • Page 49: Removing, Installing And Cleaning Filters

    6) We recommend the use of a quality filter soak product. Please con- tact your dealer to purchase all your spa care products. NOTE: Only use Artesian Spas approved filters. Using a Non Ar- tesian Spa approved filter can cause issues with circulation and heater, using a non Artesian Spa filter can void warranty cover- age.
  • Page 50: Winterizing Your Spa

    MAINTAINING YOUR SPA WINTERIZING YOUR SPA It is not recommended that you drain your spa completely during freez- ing conditions. We recommend that you leave your spa full of water with the power on to keep the tub from freezing. If you decide to drain your spa during freezing conditions, contact your dealer for help.
  • Page 51: Cover Care

    MAINTAINING YOUR SPA COVER CARE Cleaning of your spa cover is an important part of routine maintenance. Dirt acts as an abrasive to the vinyl topcoat, and can also cause wear to folds, seams and stitching. Mildew growing on damp, dirty vinyl will begin to actually rot in the fabric, accelerating failure.
  • Page 52 MAINTAINING YOUR SPA CHEMICAL TREATMENT OF WATER As the levels of the residues combine with other types of residue, such as body oil and detergents, your water becomes increasingly difficult to maintain. Because of this residual effect, at some point it becomes easier and more cost-effective to drain, clean and refill your spa with new water.
  • Page 53 ARTESIAN SPAS ISLAND WARRANTY This section is a description of your warranty. Here you will find de- scriptions of what is covered under your Island Class Spa warranty and what can void your warranty. PLEASE READ THE WARRANTY THOR- OUGHLY. Please take a moment to register your warranty. You can register on line at http://www.artesianspas.com, click on owner login or...
  • Page 54 ARTESIAN SPAS ISLAND WARRANTY FIVE YEAR SURFACE WARRANTY The spa surface is described as the exposed acrylic material finish. The manufacturer warrants the spa surface to be free from defects in the material and workmanship, such as blistering, cracking, or delaminat- ing, this does not cover micro-crazing, under normal use and mainte- nance for a period of five years from the original date of the warranty.
  • Page 55 ARTESIAN SPAS ISLAND WARRANTY THREE-YEAR ELECTRICAL WARRANTY i.e., pumps, equipment packs, heaters, topside, etc.) The MANUFACTURER warrants all electrical equipment to be free from defect in material and workmanship for three-years from the original start date of the warranty. The warranty period starts either the day of delivery to the customer or eighteen (18) month from the date of man- ufacturing, whichever date comes first.
  • Page 56 ARTESIAN SPAS ISLAND WARRANTY COMMERCIAL APPLICATIONS ARE EXCLUDED FROM THIS AND ALL WARRANTIES. This warranty does not cover normal darkening, staining, or aging. The spa cabinet requires care and maintenance by the consumer. Damage caused by acts of nature, poor water chemistry, and/ or improper maintenance will not be covered under this warranty.
  • Page 57 ARTESIAN SPAS ISLAND WARRANTY Do not return the spa cover to the manufacturer. This will delay the replacement or repair of the cover. The spa manufacturer is not respon- sible for lost covers. LIGHTING The lighting is guaranteed to work upon delivery. There is no warranty covering the lighting.
  • Page 58 Light Bulbs of Any Kind Removing a Spa from a Structure Pillows Filters Chemical Misuse/ Damage Filter Lids Any Part not Purchased from Artesian Spas Jet Inserts Valve Handles Pump Seals Draining and filling the Spa Acts of Nature Travel Charges...
  • Page 59: Artesian Spas Island Parts List & Diagram

    (5) FILTER (8) DIVERTER VALVE (11) SPA S/N (6) OZONE (2) HEATER (8) DIVERTER VALVE (1) SPA PACK (7) PILLOWS (4) PUMP (9) AIR CONTROL © 2016 Artesian Spas (May Manufacturing, LLC) | Last Revised 06/30/2016| Subject to change without notice.
