  • Page 1

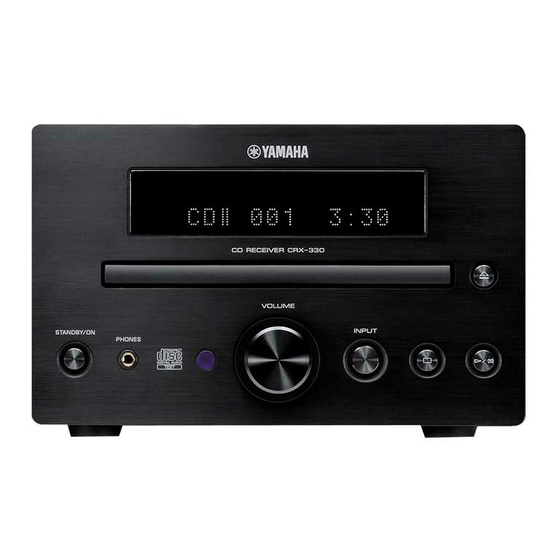

    CD RECEIVER OWNER'S MANUAL...

  • Page 3

    ■ For U.K. customers CAUTION If the socket outlets in the home are not suitable for the Use of controls or adjustments or performance of procedures plug supplied with this appliance, it should be cut off and other than those specified herein may result in hazardous an appropriate 3 pin plug fitted.

  • Page 4

    Class 1. fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

  • Page 5: Table Of Contents

    CONTENTS INTRODUCTION OTHER OPERATIONS FEATURES............. 2 CONTROLLING iPod™........27 SUPPLIED ACCESSORIES ......... 2 Using iPod™ ............27 CONTROLS AND FUNCTIONS ......3 Front panel ..............3 Front panel display ............ 4 ADDITIONAL INFORMATION Remote control............5 TROUBLESHOOTING ........29 General..............29 DAB reception ............29 PREPARATION FM reception............

  • Page 6: Features

    FEATURES FEATURES • Maximum RMS output power per channel • Plays Audio CDs, MP3/WMA discs 20W + 20W (10% THD, 1 kHz, 6Ω) • CD Text data display • 30-station DAB preset tuning • MP3/WMA file playability stored on USB •...

  • Page 7: Controls And Functions

    CONTROLS AND FUNCTIONS Front panel IPod Top view VOLUME INPUT STANDBY ON PHONES Front view 1 STANDBY/ON 7 VOLUME Turns this unit on or sets it to the standby mode. Adjusts the volume level. 2 Disc Tray 8 INPUT Loads a disc to be played back. Selects an input source.

  • Page 8: Front Panel Display

    CONTROLS AND FUNCTIONS Front panel display SLEEP PRESET STEREO AUTO SHUFFLE REPEAT PS PTY RT CT MUTE TUNED MEMORY PLAYLISTS ARTISTS ALBUMS SONGS GENRES 1 SLEEP indicator 9 Multi information display Lights up when the sleep timer is on (see page 14). Shows the various information such as the tuning frequency.

  • Page 9: Remote Control

    CONTROLS AND FUNCTIONS Remote control This remote control can operate the system components and an iPod stationed in a terminal on the top panel of this unit. To operate the CD, USB device, tuner functions, or an STANDBY ON iPod using the remote control, you need to set this unit to SLEEP the corresponding input mode.

  • Page 10

    CONTROLS AND FUNCTIONS ■ CD/USB mode Operations available in CD/USB mode The following operations are available for this unit when the CD or USB mode is selected. STANDBY ON SLEEP Skips to the beginning of the current track or next track. iPod DAB/FM Press and hold to fast reverse or fast forward (see...

  • Page 11

    CONTROLS AND FUNCTIONS ■ iPod mode Operations available in iPod mode The following operations are available for the iPod STANDBY ON stationed in the terminal. For details on iPod operations, SLEEP see “Using iPod™” on page 27. iPod DAB/FM 1 FUNCTION DAB/FM PRESET Switches between the simple remote mode and menu...

  • Page 12: Preparing The Remote Control

    CONTROLS AND FUNCTIONS ■ Preparing the remote control ■ Using the remote control The remote control comes with the battery already Use the remote control within 6 m (20 feet) of the installed. Before using the remote control for the very first component you want to control and point it toward its time, pull out the insulation sheet, as shown.

  • Page 13: Connecting Speakers

    CONNECTING SPEAKERS CONNECTING SPEAKERS Follow the procedure below to connect speakers to this unit. For information on your speakers, refer to the owner’s manual supplied for the speakers. CAUTION Do not connect the power cable of this unit until all cable connections are completed. Notes •...

  • Page 14: Connecting A Subwoofer

    CONNECTING SPEAKERS Connecting a subwoofer Remove approximately 10 mm (3/8 in) of insulation from the end of each speaker The low frequency range of the left channel and the right cable and then twist the exposed wires of the channel are mixed to output at the SUBWOOFER OUT cable together to prevent short circuits.

  • Page 15: Connecting The Power Cables

    CONNECTING THE POWER CABLES CONNECTING THE POWER CABLES After you made all connections, connect the power cables of this unit and subwoofer (optional). MAINS TUNER DAB / FM ANT SPEAKERS 75 UNBAL To an AC wall outlet SUBWOOFER CONNECTING HEADPHONES You can connect your headphones to the PHONES jack on the front panel of this unit.

  • Page 16: Connecting External Components

    “TROUBLESHOOTING” on page 30. • Yamaha and suppliers accept no liability for the loss of data • Your iPod is automatically charged when your iPod is stationed saved on the USB devices connected to this unit.

  • Page 17: Basic Operations

    BASIC RECEIVER OPERATIONS BASIC RECEIVER OPERATIONS Follow the procedure below to select an input source and adjust the sound settings on this unit. Press (down) / (up) to adjust the volume to the desired output level. ■ To adjust the audio quality Press FUNCTION to display the function VOLUME menu.

  • Page 18: Setting The Sleep Timer

    SETTING THE SLEEP TIMER SETTING THE SLEEP TIMER The sleep timer sets this unit to the standby mode after the specified time elapses. STANDBY ON SLEEP SLEEP iPod DAB/FM PRESET DAB/FM TUNING MEMORY FUNCTION MENU DISPLAY FOLDER SHUFFLE REPEAT MUTE VOLUME Press SLEEP repeatedly to select the desired duration.

  • Page 19: Basic Playback Operations For Discs And Usb Devices

    BASIC PLAYBACK OPERATIONS FOR DISCS AND USB DEVICES BASIC PLAYBACK OPERATIONS FOR DISCS AND USB DEVICES You can enjoy playback your audio CDs, USB devices, and MP3 or WMA files recorded on a disc/USB device. Some operations may be different or restricted depending on the disc/USB device. Before playing back, check the compatibility of your disc/USB device with this unit (see page 32).

  • Page 20: Switching The Playback Information Display

    BASIC PLAYBACK OPERATIONS FOR DISCS AND USB DEVICES Switching the playback information display You can switch the disc playback information shown in the front panel display of this unit. Available information differs depending on the type of the disc/USB device. Press DISPLAY repeatedly while playing back a DAB/FM PRESET...

  • Page 21: Repeating Playback (repeat Play)

    BASIC PLAYBACK OPERATIONS FOR DISCS AND USB DEVICES Repeating playback Playing back randomly (Repeat Play) (Shuffle Play) You can repeat the playback of the selected item in your You can play back tracks in your disc/USB device in disc/USB device. random order.

  • Page 22: Dab (digital Audio Broadcasting) Tuning

    DAB (DIGITAL AUDIO BROADCASTING) TUNING DAB (DIGITAL AUDIO BROADCASTING) TUNING DAB (Digital Audio Broadcasting) uses digital signals for Setting the antenna clearer sound and more stable reception compared to analog signals. To enjoy DAB and FM on this unit, set the antenna. DAB is broadcasted in blocks of data called 'ensembles' containing up to several radio stations that are CAUTION...

  • Page 23: Preparing The Dab Tuning

    DAB (DIGITAL AUDIO BROADCASTING) TUNING Preparing the DAB tuning Tuning DAB stations Before tuning into DAB stations, an initial scan must be performed. The initial scan starts automatically when you STANDBY ON select DAB as the input source for the first time. SLEEP DAB/FM iPod...

  • Page 24: Dab Station Information

    DAB (DIGITAL AUDIO BROADCASTING) TUNING ■ Description of information type DAB station information STATION LABEL Displays the name of the current DAB station and preset ■ Switching the information of DAB number. Use this feature to display various information about the DLS (Dynamic Label Segment) DAB service currently being received.

  • Page 25: Presetting Dab Stations

    DAB (DIGITAL AUDIO BROADCASTING) TUNING Presetting DAB stations Selecting preset DAB stations (Preset tuning) You can store your favorite DAB stations with the preset function. STANDBY ON SLEEP STANDBY ON SLEEP DAB/FM iPod DAB/FM DAB/FM iPod DAB/FM PRESET DAB/FM PRESET TUNING DAB/FM PRESET...

  • Page 26: Using Dab Function

    DAB (DIGITAL AUDIO BROADCASTING) TUNING Using DAB function STANDBY ON SLEEP You can set the following functions in DAB function DAB/FM iPod DAB/FM menu. DAB/FM PRESET TUNING MEMORY Function Description FUNCTION FUNCTION MENU PRESET DELETE Deletes unnecessary preset DAB stations DISPLAY Center FOLDER...

  • Page 27: Dab Frequency Information

    DAB (DIGITAL AUDIO BROADCASTING) TUNING ■ TUNE AID DAB frequency information Press DAB/FM repeatedly to set the unit to This unit can receive Band III only. the DAB mode. Frequency Channel label Press FUNCTION to display the function 174.928 MHz menu.

  • Page 28: Fm Tuning

    FM TUNING FM TUNING There are 2 tuning methods: automatic and manual. Automatic tuning is effective when station signals are strong and there is no interference. If the signal from the station you want to select is weak, tune into it manually. You can also use the automatic and manual preset tuning features to store up to 30 stations.

  • Page 29: Manual Preset Tuning

    FM TUNING Manual preset tuning Selecting preset stations You can also store up to 30 stations manually. You can tune into any desired station simply by selecting the preset station under which it was stored (see page 24). STANDBY ON SLEEP STANDBY ON SLEEP...

  • Page 30: Displaying The Radio Data System Information

    FM TUNING Displaying the Radio Data System Notes information • You can select one of the Radio Data System modes only when the corresponding Radio Data System indicator lights up in the Radio Data System is a data transmission system used by front panel display.

  • Page 31: Controlling Ipod

    CONTROLLING iPod™ In addition to controlling this unit, you can operate your iPod stationed in a terminal using the supplied remote control. Using iPod™ Once you have stationed your iPod in a terminal on the top panel of this unit (see page 12), you can enjoy playback of your iPod using the supplied remote control.

  • Page 32

    CONTROLLING iPod™ ■ Menu browse mode Repeat step 2 until you select the desired In the menu browse mode, you can operate the iPod menu using the front panel display. item, and then press Center to start playback of the desired item (group or song). Note There are some characters that cannot be displayed in the front While playing back a track (or group) with the menu browse...

  • Page 33: Troubleshooting

    Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off this unit, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center. General...

  • Page 34: Fm Reception

    TROUBLESHOOTING DAB reception (continuous from previous page) Problem Cause Remedy page There is noise The indoor DAB/FM antenna needs to be Readjust the position of the indoor DAB/FM interference (e.g. repositioned. antenna. hiss, crackle or The DAB signals are too weak. Use the TUNE AID feature to locate the best jitter) positioning of the indoor DAB/FM antenna.

  • Page 35: Usb

    TROUBLESHOOTING Note In case of a transmission error without a status message appearing in the front panel of this unit, check the connection to the USB device (see page 12). Status message Cause Remedy page Not Connected The USB device is not connected firmly. Connect the USB device again.

  • Page 36: Notes About Discs/mp3, Wma Files

    NOTES ABOUT DISCS/MP3, WMA FILES NOTES ABOUT DISCS/MP3, WMA FILES ■ Discs (audio CDs) playable with this unit This player is designed for playing back compact discs MP3 is a standard technology and format for compressing bearing the marks shown below. Never attempt to load an audio sequence into a small-sized file.

  • Page 37

    NOTES ABOUT DISCS/MP3, WMA FILES ■ Notes about handling compact discs To play back an 8-cm (3-inch) CD • Always handle a disc with care so that its surface is not Place it in the inner recessed area of the disc tray. Do not scratched.

  • Page 38: Glossary

    GLOSSARY GLOSSARY ■ Track Audio information A CD can be divided into a number of segments (tracks). Each division is called a track number. ■ MP3 (MPEG Audio Layer-3) ■ WMA (Windows Media Audio) One of the audio compression methods used by MPEG. It An audio compression method developed by Microsoft employs the irreversible compression method, which Corporation.

  • Page 39

    (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident). The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha’s discretion, without any charge for parts or labour.

  • Page 40

    Printed in Malaysia WQ57170 © 2008 Yamaha Corporation All rights reserved.
