CyberView X5-MS User Manual page 7

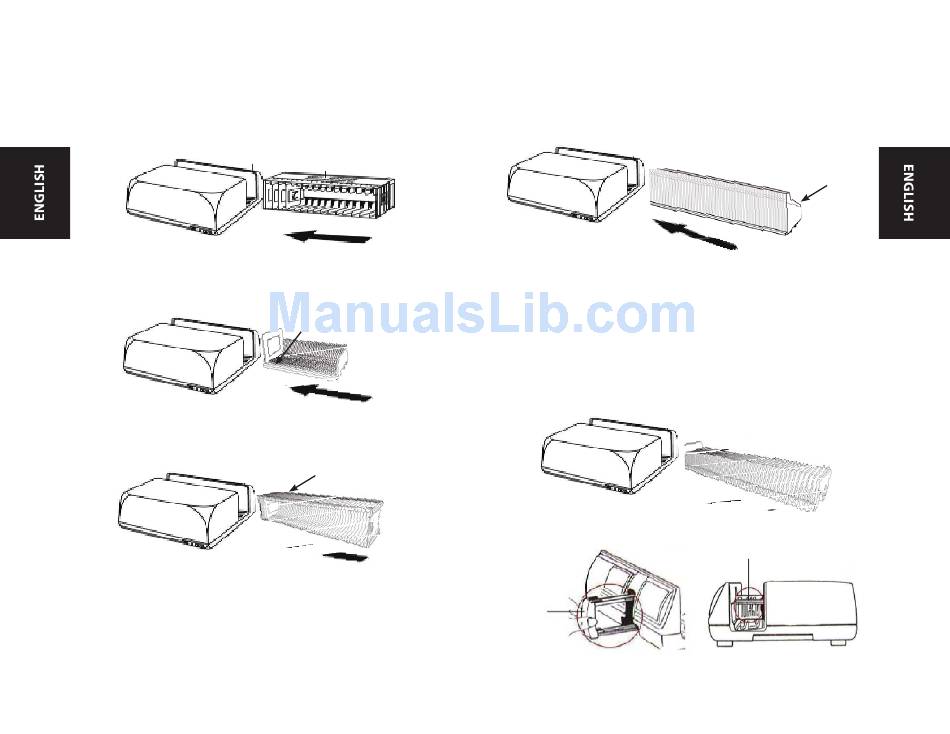

Load the magazine into the scanner
12 12
(Continued)
Compact Magazine
(embossed letters facing up and the white
stripe near the front panel of the scanner).
CS Magazine
Slide order numbers printed on magazine facing
towards the back of the scanner.
Numbering
PaximatS Magazine
Slide order numbers printed on top of magazine on the
right hand side towards the front of the scanner.
Numbering
LKM Magazine
Turn the slide tray around so the numbers face the front of the device, before inserting
Universal Magazine
NOTE:
Use only Universal Magazines with the DIN 108 label. Other magazines may
• •
result in problems and VOIDing the warranty.
Pull out the slide transport arm fully.
• •
• • Gently press the orange adapter on the slide transport arm. Move the
adapter on the slide transport arm to the front until it snaps in.
Push the slide transport arm back into the scanner.
• •
Load the magazine from the back in the respective guiding rails of the maga-
• •
zine tunnel until it hits the slide transport arm.
Universal Magazine
Slide order numbers printed on top of magazine on the
right hand side of magazine towards the front of the
scanner when loading.
c. Place the slide magazine into the scanner from the left side until it touches
the slide transport arm and the magazine "clicks" into place.
Slide
Transport
Arm
Numbering
Numbering
Slide Holder
13 13
