Loading slide(s) into the magazine
General Recommendations:
Braun Paximat S (White tray) especially for cardboard frames and framed
• •
slides up to 2-3.2mm inch thickness.
Paximat Magazine (Black tray) for framed slides up to 2mm thickness.
• •
CS Magazine for CS/CS2-framed slides.
• •
Universal Magazine DIN 108
• •
Glass slides that are attached to glass frames may cause complications
• •
due to the hard edges.
LKM Magazine for slides up to 2mm thickness
• •
NOTE: The Shiny side of the slide must face the #1 slot in ALL trays, images
will scan inverted and need to be corrected with Imaging software or by
prescanning the entire tray and fl ipping the images in the scanning interface.
Warning
: Load slides into the magazine properly and make sure the slide mounts are in good
condition. Improperly inserted slides or slides with distorted/damaged slide mounts may cause
the scanner to jam and potentially damage both the slide and the scanner.
• •
Compact Magazine
a. As illustrated below, turn the magazine with the embossed lettering "COM-
PACT MAGAZINE 50" and the white strip on the right facing towards the top.
b. Hold the slide right side up, facing backward so the image is reversed. Rotate
the slide as illustrated and Insert each slide, one at a time, into the magazine.
c. The Shiny side of the slide must face the #1 slot in the tray, images will scan
inverted and need to be corrected with Imaging software or by prescanning
and fl ipping the images in the scanning interface.
Compact Magazine
8 8

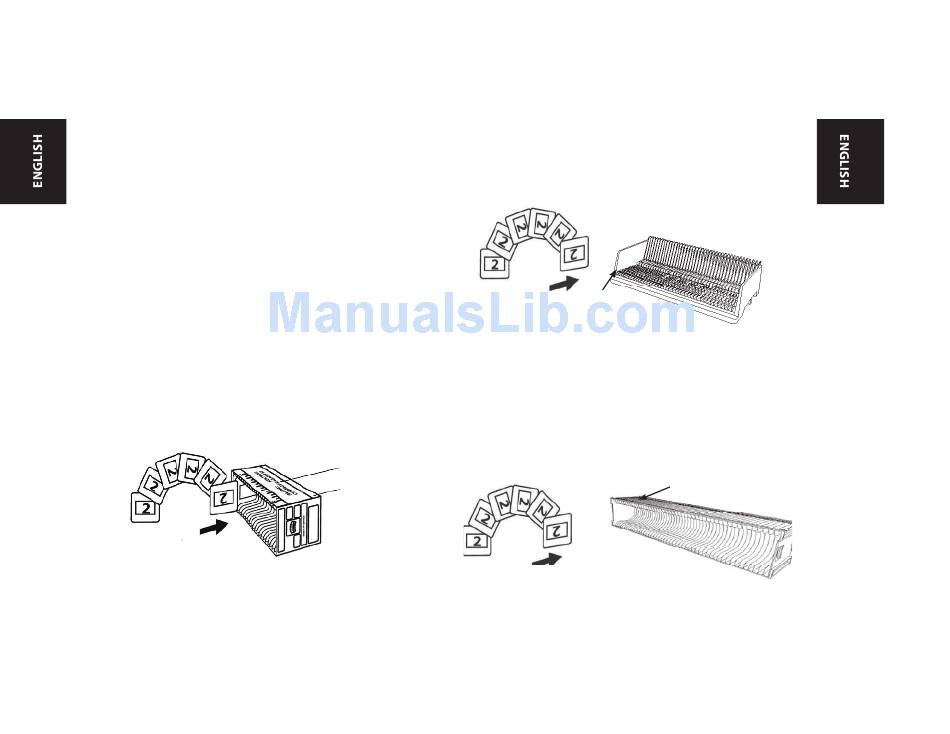

Loading slide(s) into the magazine
CS Magazine
a. Locate the numbering sequence text on the CS slide magazine indicating the
slide order. The numbers should be facing up and starting from the left.
b. Hold the slide right side up, facing backward so the image is reversed. Rotate
the slide as illustrated and Insert each slide, one at a time, into the magazine.
Loading slide(s) into the magazine
PaximatS Magazine
a. Locate the numbering sequence text on the top of the Paximat slide maga-
zine indicating the slide order. The numbers should be facing up and starting
from the left.
b. Hold the slide right side up, facing backward so the image is reversed. Rotate
the slide as illustrated and Insert each slide, one at a time, into the magazine.
Lettering
White Strip
CS Magazine
Numbering
Paximat Magazine
Numbering
