Loading slide(s) into the magazine
General Recommendations:
Braun Paximat S (White tray) especially for cardboard frames and framed
•
slides up to 2-3.2mm inch thickness.
Paximat Magazine (Black tray) for framed slides up to 2mm thickness.
•
CS Magazine for CS/CS2-framed slides.
•
Universal Magazine DIN 108
•
Glass slides that are attached to glass frames may cause complications
•
due to the hard edges.
LKM Magazine for slides up to 2mm thickness
•
Compact Magazine

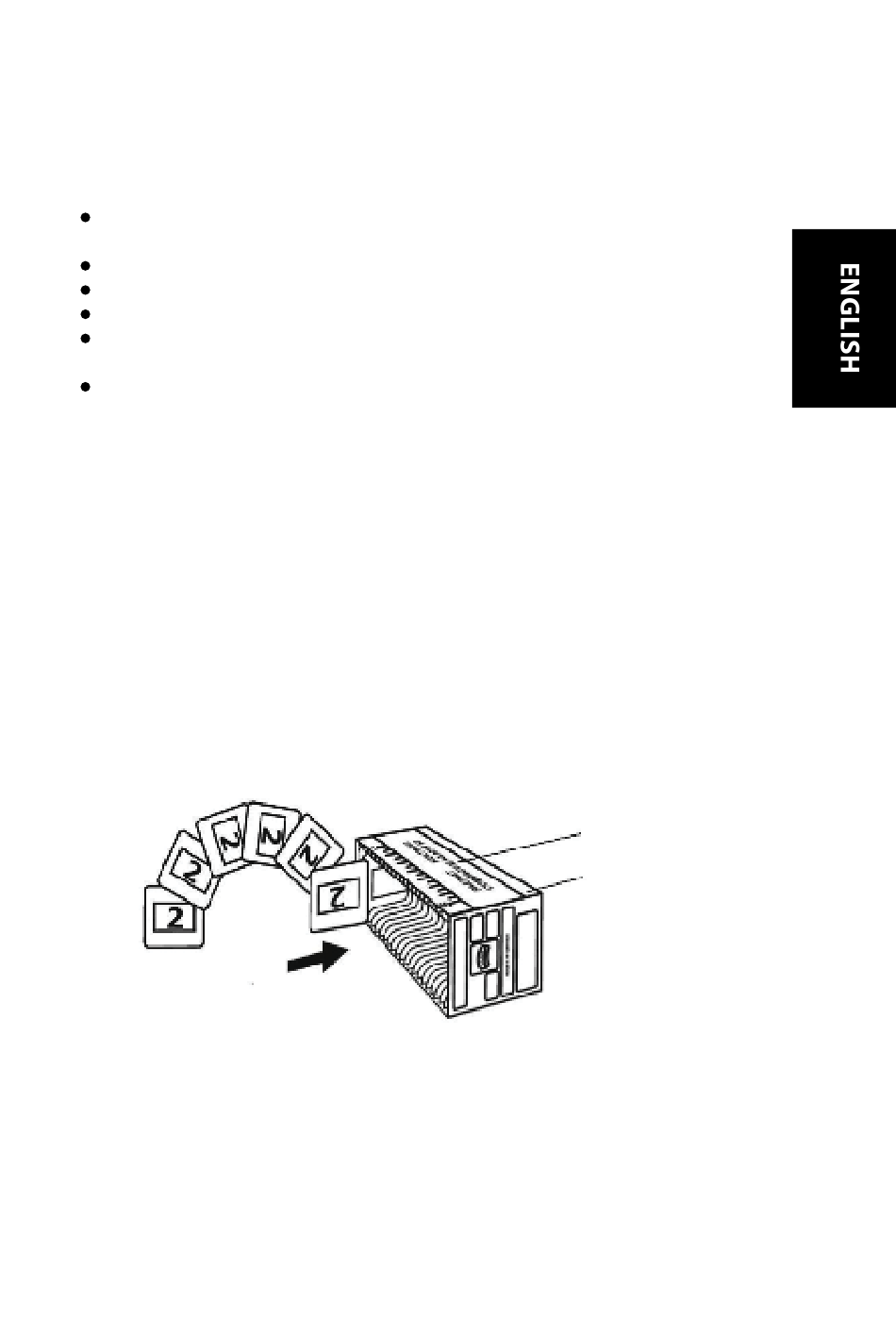

a. As illustrated below, turn the magazine with the embossed lettering "COM-
PACT MAGAZINE 50" and the white strip on the right facing towards the top.
b. Hold the slide right side up, facing forward so the image is NOT reversed.
Rotate the slide as illustrated and Insert each slide, one at a time, into the
magazine.
Warning
: Load slides into the magazine properly and make sure the slide mounts are in good
condition. Improperly inserted slides or slides with distorted/damaged slide mounts may cause
the scanner to jam and potentially damage both the slide and the scanner.
Compact Magazine
Lettering
White Strip
