Installing the Media Reader 13.3-cm (5.25-inch) Adapter
Kit
The Media Card Reader can be installed in a 8.9-cm (3.5-inch) or 13.3-cm (5.25-inch) computer drive
bay. If installing the 8.9-cm (3.5-inch) media card reader into a 13.3-cm (5.25-inch) drive bay, you
must first install the 13.3-cm (5.25-inch) accessory kit to the reader.
1.

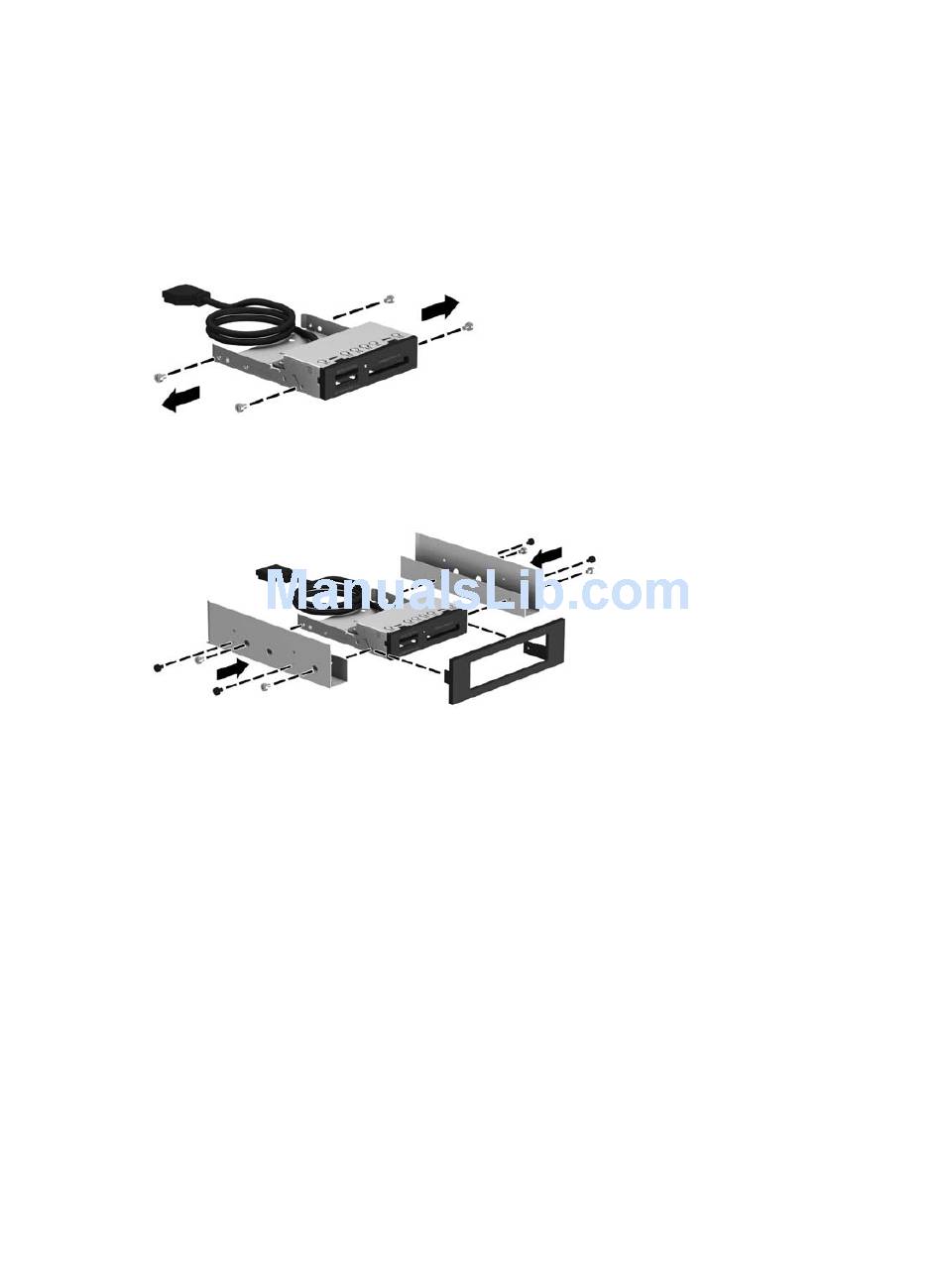

Remove the four screws (two on each side) from the media card reader.
Figure 1-1
2.
Assemble the rails and bezel and attach to the media card reader with the four screws removed
in step 1.
Figure 1-2
2
Chapter 1 Product Features
Removing screws from Media Card Reader
Attaching Rails and Bezel
