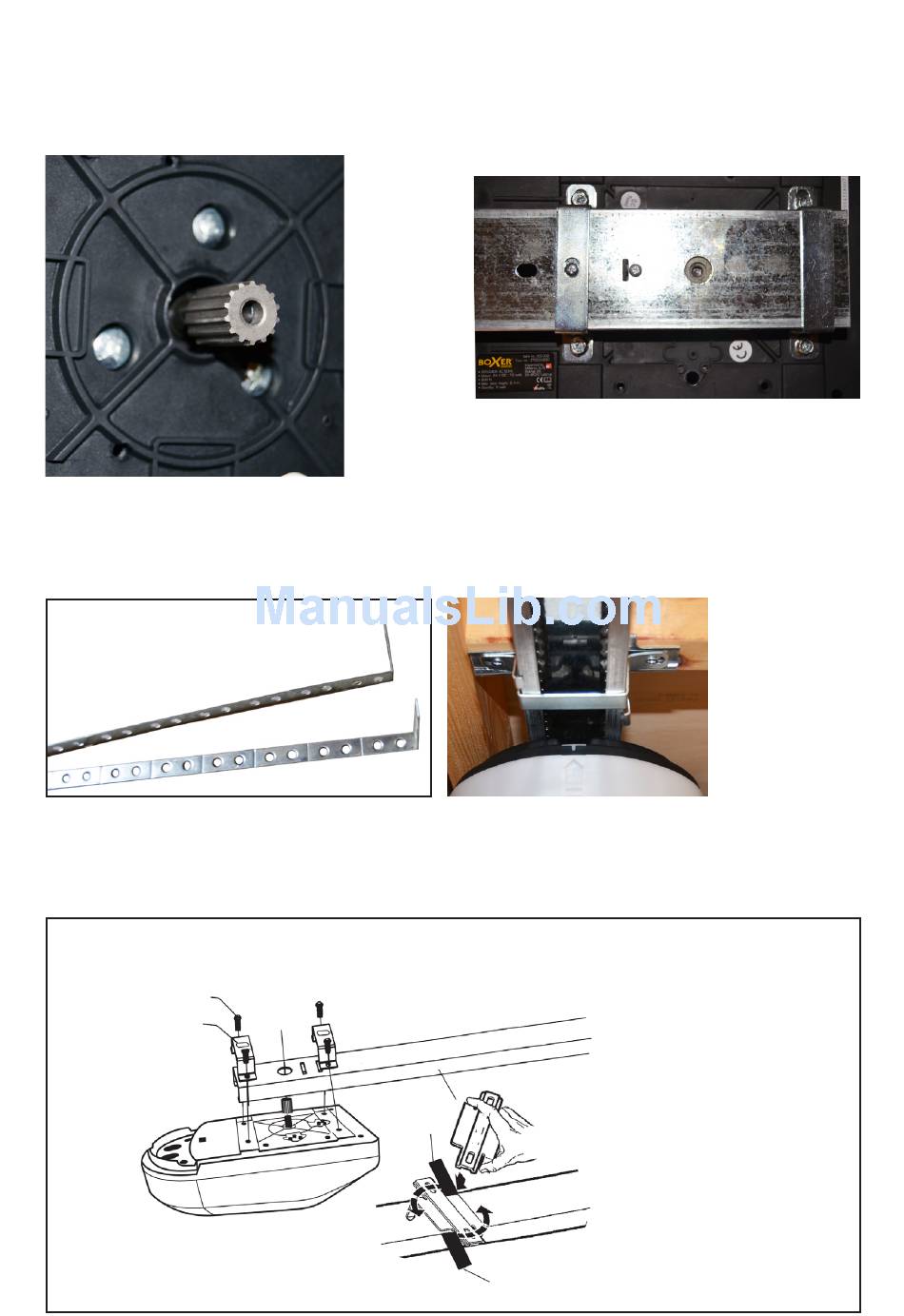

Fitting the motor

Place the axle bushing on the motor.
Form the hangers. If there is a suitable beam, the rail can be fastened to it
with the bracket supplied. Click the fitting around the rail and place the bracket
around the rail. Then bolt everything together with the bolts and nuts supplied.

Hanger attachment

Only use the hangers for attachment if the distance to the ceiling is
greater than 14 cm.
M6 *12 flange screw
Connector "u"
Attach the motor unit to the door rail
with the 2 brackets supplied.
Lock tab
Bend lock tabs down to secure
