Summary of Contents for T&D RTR-71

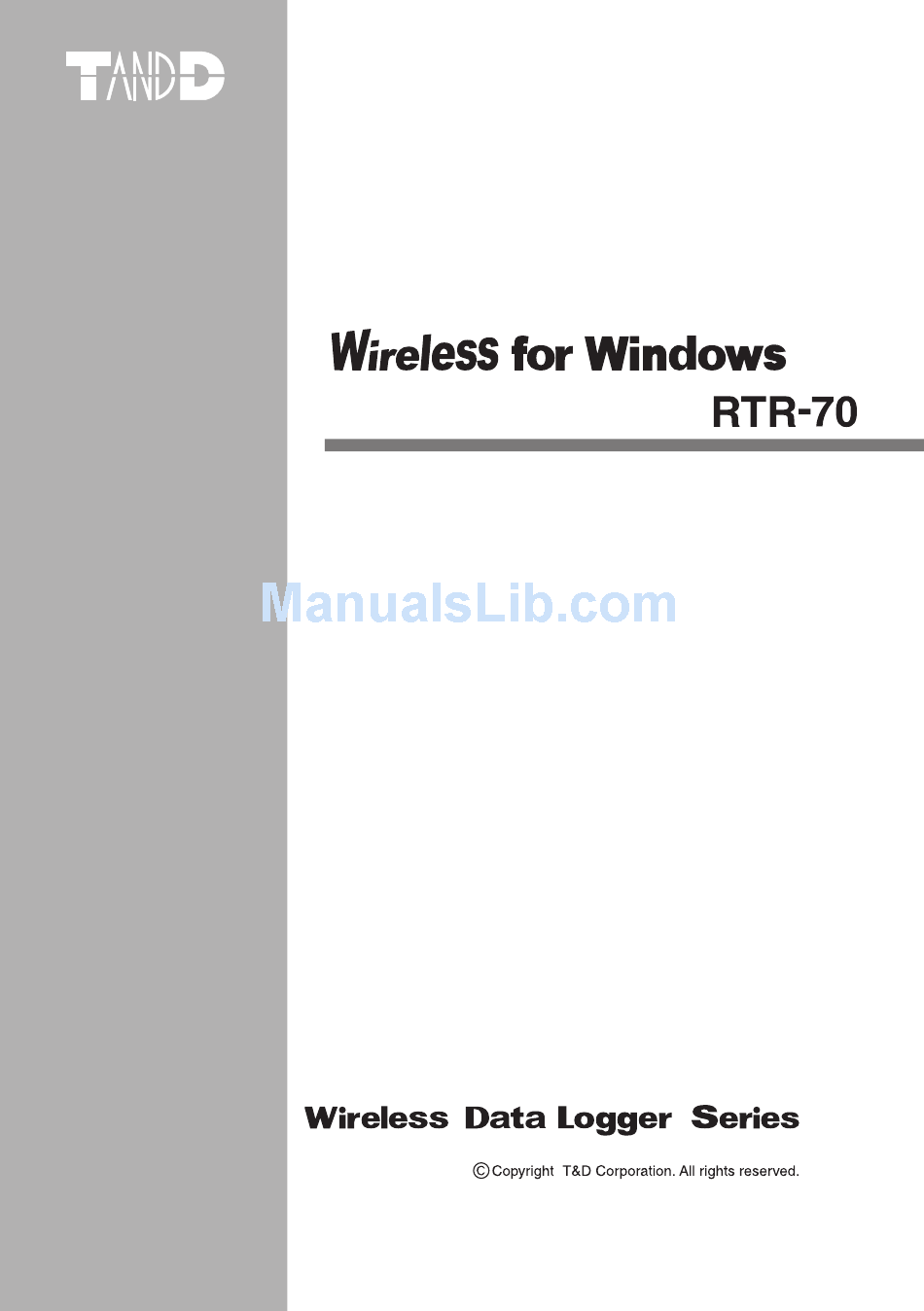

- Page 1 User's Manual Thank you for purchasing this product. Carefully read and fully understand these instructions before using this unit. 2009.04 16004094190 4th Edition...
-
Page 2: Notices About This User's Manual
Notices about this User's Manual ・Please read this manual carefully before using the product. ・This manual cannot be reprinted, so please keep it in a safe place. ・We cannot guarantee nor are we responsible for safety if this product is used in any manner other than was intended. -
Page 3: Safety Precautions
Safety Precautions To ensure safe operation, please be sure to read, understand and follow the contents of all such warnings. DANGER ・This product has been designed for private or industrial use only. ・It is not for use in situations where strict safety precautions are necessary such as in connection with medical equipment whether directly or indirectly. - Page 4 ・T&D accepts no responsibility for any damages or trouble in any form that are directly or indirectly the results of using measurement taken with this wireless data logger. About TR-5320, the standard temperature sensors for RTR-71 ・Use the sensors only within the measurable temperature range (-60 to 155℃ ).
- Page 5 5 to 25℃ and 30%RH or less. ・Please make sure that the external sensor jack is securely inserted into the main unit. ・This sensor cannot be used with RTR-71. Notices About Placement and Location ・A sudden change in widely different temperature environments may cause condensation to occur.
-
Page 6: Software User Agreement
Software User Agreement Escape Clauses 1. T&D Corporation shall not guarantee the operation of Wireless for Windows. 2. T&D Corporation shall not accept any responsibility nor shall T&D become involved in any claim reparation proceedings or compensate any claimant for any damage whether direct or indirect that result from the usage of Wireless for Windows. -
Page 7: Table Of Contents
Software User Agreement ---------------------------------------------------------- 5 Accessories Included ---------------------------------------------------------------- 8 Outline of Part Names---------------------------------------------------------------- 9 ■ RTR-71 / RTR-72 Main Unit (Sold Separately)------------------------- 9 ■ Sensors ----------------------------------------------------------------------------- 9 ■ Main Unit LCD Display--------------------------------------------------------10 Outline of Wireless Thermo Recorder RTR-71, RTR-72 ------------------11 ■... - Page 8 Changing Registrations and Settings -----------------------------------------35 1. Changing a Remote Unit Registration ----------------------------------35 2. Clearing a Registration -------------------------------------------------------36 Graph Tools Program----------------------------------------------------------------38 1. Explanation of Display --------------------------------------------------------38 2. Opening a File--------------------------------------------------------------------39 3. Saving as Text File--------------------------------------------------------------41 4. Printing -----------------------------------------------------------------------------41 Data Maintenance Functions -----------------------------------------------------42 1.
-
Page 9: Accessories Included
Battery Change Plug × 1 *The battery change plug is necessary when you replace the battery, so please make sure to keep it in a safe place. Do not use the battery change plug with any Thermo Recorders other than RTR-71 and RTR-72. -
Page 10: Outline Of Part Names
Outline of Part Names ■ RTR-71 / RTR-72 Main Unit (Sold Separately) *Can be used as a Base Unit, Relay Unit, or a Remote Unit. ① Antenna ④ LCD Display ② Sensor Connection ⑤ Serial Communication Connection ③ Battery Compartment ⑥... -
Page 11: Main Unit Lcd Display
■ Main Unit LCD Display Recording Indicator ① Displayed when recording is in progress. Antenna Indicator ② Displayed when wireless communication is possible. ③ Displays strength of radio wave. ④ Displayed when communication is in progress. ⑤ Displayed when either temperature or humidity exceeds upper or lower limit. -
Page 12: Outline Of Wireless Thermo Recorder Rtr-71, Rtr-72
Communication can take place within up to 400 meters if unobstructed and clear. ( Note: This differs with conditions. ) Possible to mix RTR-71 and RTR-72 in same group The Base Unit is set up to communicate with Groups of Remote Units. One Group can contain up to 126 Remote Units and up to 32 Groups can be registered to 1 Base Unit. - Page 13 Measuring and Recording One Unit / Two Temperature Channels (RTR-71) Up to 1440 readings can be recorded in each channel and recording interval can be selected from 8 choices (1 minute-60 minutes) One Channel for Humidity / One Channel for Temperature (RTR-72) Channel 1 measures temperature and Channel 2 measures humidity.
-
Page 14: Software [Wireless For Windows]
Using the Software Gathering Data via Wireless Communication You can set up the program schedule to gather recorded data either at a set time interval or at a set time of day. Also, when necessary you can gather present data. Monitoring Temperature and Humidity With the software you can set upper and lower limits for each channel and the monitoring function will periodically check to see if a limit has been... -
Page 15: First Steps
First Steps 1. Installing Software ① Open Windows ② Close all other applications before installing this program ③ Place Software CD Rom in CD Rom Drive of your computer. ④ Open [SETUP. EXE] and follow the directions as they are displayed. ⑤... -
Page 16: Connecting Main Unit To Computer
3. Connecting Main Unit to Computer Connect the Thermo Recorder main unit to the computer with the communication cable provided. Each unit's registration or deletion of registration should be done one at a time by connecting it to the computer with the communication cable. -
Page 17: Set Up Program: From Registration To Positioning
Menu Group Name Remote Unit Mark Remote Unit Settings Info The Group Name(s) will RTR-71 is blue and By clicking on a Group, the names be displayed. Up to 32 RTR-72 is pink. and details for all Remote Units in Groups can be created. -
Page 18: Communication Port Set Up
Print ● This will print out the Group settings you have made. If you select [Print Preview] in the [File] Menu you will be able to check the contents on a screen like the one shown here. 2. Communication Port Set up ①... -
Page 19: Base Unit Registration
*If Auto Find does not detect a communication port, please see [Help] in the [Communication Port Settings] window. 3. Base Unit Registration Any unit, RTR-71 or RTR-72, can be registered as a Base Unit ① Connect the Thermo Recorder unit to your computer that is to be registered as the Base Unit. -
Page 20: Creating A Group
Please use only if communication conditions between the Base and Remote Units are poor. A Relay Unit can be created from either an RTR-71 or an RTR-72. ① Connect the Thermo Recorder unit to your computer that is to be registered... - Page 21 ② In the [Registration] Menu, select [Relay Unit Registration] ③ ③ Click [Start Registration] and the registration process will begin. When completed the following window will appear, click [OK]. HELPFUL HINTS It is possible to add or delete a Relay Unit from a group at any time. After adding or deleting a Relay Unit, please carry out a communication test .
-
Page 22: Remote Unit Registration
6. Remote Unit Registration ① Connect the Thermo Recorder unit to your computer that is to be registered as the Remote Unit. ② In the Main Window, select the group into which you wish to register the Remote Unit. In the [Registration] Menu select [Remote Unit Registration]. ⑦... - Page 23 <Figure 2> ⑧ [Sensor Extension Cable for RTR-71] If the model you have selected is RTR-71, an extension cable can be used. (see figure 3) If you are going to use an extension cable click on ▼ and select the type of cable from the choices provided.
-
Page 24: Communication Test
⑨ After all settings have been completed click [Start Registration] ⑩ Upon completion the following box will appear. Click [OK] ⑪ The Remote Unit Registration screen will remain in the window to continue registration of other units. Connect the next unit with the communication cable and follow the same procedure. - Page 25 ③ Click [Start] to begin testing. ② ③ ④ After testing is completed, the results will be displayed. If communication has occurred properly [OK] will be displayed. If [NG] is displayed please check batteries of problem unit(s) and the connection of the Base Unit to computer, then run the test again.
-
Page 26: Positioning The Units
④ ⑤ ⑤ By clicking [Close] you can close the Communication Test Window. 8. Positioning the Units If desired you can make [Monitor Warnings] (p28) and [Auto Download] (p30) settings. Upon finishing settings, place all units in their desired position. ①... - Page 27 Remember to connect the AC adapter, place Relay Unit in desired position. AC Adapter ③ Remote Unit Positioning Connect the sensor and position in the place that you wish to measure. <RTR-71> <RTR-72> Temperature Sensor Temp/Humidity Sensor ④ After positioning is completed, run the communication test again in the same manner as before (8.
-
Page 28: Wireless For Windows Functions
Wireless for Windows Functions This section will explain about the following software functions: Monitoring Current Temperature / Humidity (p27) Monitoring Warnings and about the Warning Log (p28) Auto-Downloading and about the Auto-Download Log (p30) Wireless Downloading (p32) ... -
Page 29: Monitoring Warnings
③ The monitoring results will be displayed as below. New data will be added at the top of screen as it comes in. ④ ④ By clicking [Stop] you can end the monitoring function. If you want to stop monitoring during communication, you must first click [Cancel] in the Communication Dialog Box and then [Stop], or wait until communication is finished. - Page 30 ② ③ ⑦ ② Set the Warning Monitoring Interval. Monitoring will set up for all Remote Units for which limits have been set and the monitoring function has been checked ON. ③ Click [Start Monitoring]. The following dialog box will appear, if OK click [Yes]. ④...
-
Page 31: Auto-Downloading
⑥ By going to the [Log] Menu and clicking on [Warning Log] you can view a history of the warnings. ⑦ To stop the monitoring function click on desired Group in the Main Window, then, in the [Communication] Menu open [Monitor Warnings Start / Stop] and click on [Stop Monitoring]. - Page 32 ② [Auto Download Method and Time Settings] Download Daily at Set Time…Will download at selected time once a day. Enter using 24-hour clock. (4:00pm=16:00). Download at Set Interval…Will automatically download at selected time interval. Enter an interval of more than 1 hour and less than 24 hours. NOTE: The method and time settings must be the same for all units in the same group.
-
Page 33: Manual Downloading
HELPFUL HINTS When making Auto Download Interval settings it is important to remember that downloading ● data from one unit may take up to 5 minutes. Therefore, for example, if you have 20 units each at 5 minutes the downloading process itself will take 100 minutes or 1 hr and 40 min. So you must make the interval setting for at least that amount of time. - Page 34 ③ [Select Data File Name] By clicking on [Push Button to Select File Name] the following box will appear. ④ ⑤ ⑥ ④ Select the [Place to be Saved] ⑤ Enter [File Name]. The default name, which is made up of the Remote Unit's serial number -date-time, will be displayed.
- Page 35 ⑩ By clicking [No] you can continue to download other data from units in that group. Follow the same steps from ② as outlined above. If you want to download data from a different group, please close the Download Dialog Box and go back to the Main Window where you can select the next group and follow the same steps from step ①...
-
Page 36: Changing Registrations And Settings
*If making name changes to Remote Unit or channels, you can only select one unit at a time. Other changes can be made to multiple units at the same time. However, you cannot select both RTR-71 and RTR-72 at the same time. ③... -
Page 37: Clearing A Registration
③ Communicate changes by wireless or via cable communication. By clicking [Wireless Setup] the changes will be communicated via radio waves. By clicking [Setup via Cable Communication] you must connect the unit to the computer with the cable and changes will be communicated. Notice If you make changes to the Recording Interval all data that has been recorded but not yet downloaded will be reset. - Page 38 ③ Click [OK] ④ If you wish to complete the clearing of the unit displayed in box; click [Yes] and the registration will be cleared. Upon completion the following box will appear; click [OK] How to use Forced Delete. ⑤ Click [Forced Delete] in the [Clear Registration] dialog box ⑥...
-
Page 39: Graph Tools Program
Graph Tools Program This part of the software allows you to read the downloaded data to create graphs and tables for display or for printing. It also enables you to create text type files for use with spreadsheet applications. Channel Name Display Area 1. -
Page 40: Opening A File
2. Opening a File By calling up and opening a downloaded data file you can create graphs, tables or print out data. 2. 1 Opening a Data File Follow these steps to open an already saved file either by the name it was saved under or our Thermo Recorder common file type (*. - Page 41 2. 2 Opening File from Remote Unit Follow these steps to open Wireless for Windows type data files (*. rt7) ① In the [File] Menu, click [Open File from Remote Unit] ② ② ② From the left side, first select a Group, then a Remote Unit and the data files will appear on the right side.
-
Page 42: Saving As Text File
3. Saving as Text File In order to use data with most spreadsheet applications the data can be saved in a Text Type File (*. txt). ① In the [File] Menu, select [Save as Text File]. ② Select [Save Text Format] and [Range to be Saved], then click [OK]. Comma, tab, space, and semi-colon are codes used to separate cells for most common ●... -
Page 43: Data Maintenance Functions
Data Maintenance Functions This section will explain the following: Calculation Range Settings ● Edit Recording Conditions ● Merging Channel Data ● 1. Calculation Range Settings It is possible to make settings for the calculation ranges for the highest value, the lowest value and measurement for any channel listed. When the data is first read the calculation range is set for all data. -
Page 44: Edit Recording Conditions
2. Edit Recording Conditions Here you can change the channel name(s), as well as, the data recording start date and time. The changing of recording start date and time is for the purpose of merging data and cannot be used to change data. ①... - Page 45 ② Select the appropriate channels in the left box. ③ ② ③ ③ By clicking on the right side ▼ , all channels containing data that can be merged will be displayed. Select desired data and click [Merge] to begin the merging process.
-
Page 46: Troubleshooting
Troubleshooting ■ Re-installing the software ① Close Wireless for Windows; making sure to close the Control Program in the task tray as well. ② Open [Add / Delete Applications] in the Control Panel. After selecting [Wireless for Windows] click on the [Add / Delete] Button. ③... -
Page 47: About Temp / Humidity Sensor (Tr-3220)
Helpful Hint If the ( ) Indicator appears communication will no longer be possible between ● the Remote Unit and the Relay Unit or the Base Unit, but measuring and recording will continue. If battery power is lost completely all registration settings will remain so there is no ●... -
Page 48: Error Messages
■ Error Messages If wireless communication is not working, run a radio wave strength check on the Remote Unit(s) and / or the Relay Unit in question and re-position the unit(s) according to the percentages displayed on their LCD display(s). ①... - Page 49 ⑤ If you are running the check on a Relay Unit, click on [Display Strength on Relay Unit], the radio wave strength will appear on the LCD Display of the Relay Unit as follows: *COM will flash. <Remote Unit LCD Display> ⑥...
-
Page 50: Other Faq
■ Other FAQ's Q1: I can't get the communication cable connected to the computer. What should I do? Please connect the communication cable provided with the Thermo Recorder into the serial port of your computer (D-SUB 9 pin male connector). If for some reason you can not connect directly, please use an appropriate adapter (gender changer plug) as explained below. - Page 51 ・If you have a computer with energy saving function settings, make sure that the serial port has not been turned off. Especially on NEC brand PC98 notebook computers the default setting may be such. ・If your computer is a DOS/V type check to make sure that the serial port has not been rendered unusable by the BIOS setting.
- Page 52 ・To find out more details about the port in question you can double click on [ ！ ] to open [Properties] and a window giving details about that port will appear. Q3: I want to change the Group Name or delete it. What should I do? ・Please follow these steps to change a group name or delete a group.
- Page 53 Q4: The Warning Dialog Box does not appear when it should. Why? ・Make sure that the screen saver function is turned OFF. Also, make sure that all screen energy saving settings are OFF.
-
Page 54: Product Specifications
RTR-71, RTR-72 Number of Channels 16 Channels Simultaneous Display and Processing (RTR-71, RTR-72 total of up to 8 units of mixed data possible) Communication Base/ Remote / Relay Unit Settings /Interval Settings Warning Settings/Downloading (Manual/Auto) / Display Settings / Current... -
Page 55: Optional Sensor Guide
Optional Sensor Guide ■ Sensor for RTR-71 TR-5106 Teflon-Shielded Sensor Possible Measurement Range: -60 to 155℃ Sensor Temperature Durability: -70 to 180℃ Cable Length: 0. 6m Thermal-Constant Time: In Air: Approx. 15 Sec. In agitated water: Approx. 2 Sec. Water Resistant Ability: Splash Proof (Sensor and Cable）... - Page 56 Use only one extension cable per temperature sensor. When using an extension cable, carry out the appropriate setting changes. See [Sensor Extension Cable for RTR-71] on p22. When using the extension cable there will be a +0. 3℃ at normal temperature and at...
-
Page 57: Radio, Emc And Safety Regulations
■ Sensor for RTR-72 TR-3220 Temperature and Humidity Sensor Humidity Measurement Range: 10 to 95%RH Humidity Measurement Accuracy: 5%RH (at 25℃ and 50%RH) Temperature Measurement Range:0 to 50℃ Sensor Durability Range:-10 to 55℃ Cable Length: 2m ① Temperature / Humidity Sensor Service Life: 1year under normal conditions ②... -
Page 58: Warranty
Warranty Provisions for Free Repair 1 If the unit does not work properly despite the fact that the customer used it properly and in line with the User's Manual, the unit shall be repaired free of charge through the agent which sold the unit. 2 If the customer requests free repair because of trouble within the warranty period, bring or send the unit along with the warranty to the dealer.
