Summary of Contents for T&D RTR-71
- Page 1 User's Manual Carefully read and fully understand these instructions before using this unit. 2003.2 16004094080...
- Page 2 Carefully read and fully understand these instructions before using this unit. T&D Corporation accepts no responsibility for any malfunction of and / or trouble with this product or with your computer that is caused by the improper handling of this product and will deem such trouble or malfunction as falling outside the conditions for free repair of the attached warranty.
-
Page 3: Safety Precautions And Instructions
Safety Precautions and Instructions Please carefully observe the following safety measures when using our product. To prevent any loss or damage to our customers, other people and / or property, and to ensure the proper use of our products we ask that before using our product you carefully read, understand and follow the safety rules and precautions for our products as outlined below. - Page 4 Continued use may cause fire or electrocution. The RTR-71 / RTR-72 are devices to measure temperature and humidity. Do not use these units for any purpose other than temperature and humidity measurement.
- Page 5 Make sure to set up this unit as a Base Unit, Remote Unit, or Relay Unit using the software [Wireless for Windows] (Sold Separately) It will not operate without doing this. Neither the Base Unit nor a Relay Unit can measure, record, or display data.
- Page 6 It may cause damage or a change in shape. lAreas exposed to excessive splashing water. It may cause damage or electrocution. About the TR-5320, the standard temperature sensor for RTR-71 ◆ Use the sensor only within the measurable temperature range (-60 to 155℃...
- Page 7 When the sensor is not used, put it in the attached plastic bag with a drying agent and keep it in a cool, dark place at 5 to 25℃ and 30%RH or less. This sensor is not waterproof. This sensor cannot be used with RTR-71.
- Page 8 Handling Instruction for TR-3220 Temp. and Humidity Sensor The replacement period for the standard sensor is 1 year. Replace it when 1 year has passed after opening the bag. When using the Temperature and Humidity Sensor, the surface can become dirty and may decrease its sensitivity and accuracy.
-
Page 9: Table Of Contents
Table of Contents Safety Precautions and Instructions------------------------ ii Outline of Wireless Thermo Recorder RTR-71/72 ------ 1 Contents of Package ------------------------------------------- 4 Outline of Part Names and Functions---------------------- 5 Installing the Battery-------------------------------------------- 8 How to Connect Sensors------------------------------------ 10 Product Specifications --------------------------------------- 11... -
Page 10: Outline Of Wireless Thermo Recorder Rtr-71/72

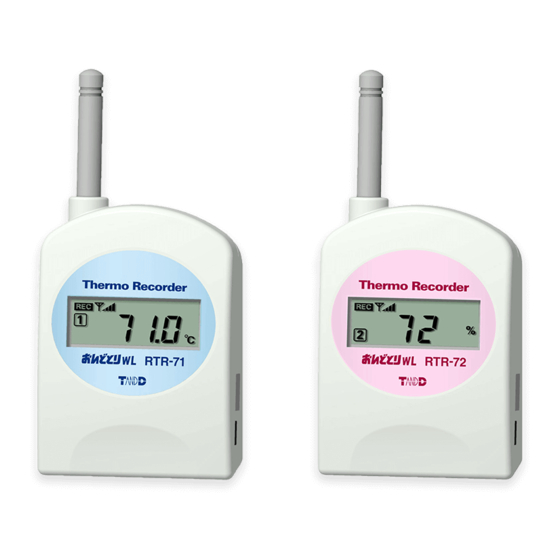

Communication can take place within up to 400 meters if unobstructed and clear. (Note: This may differ with specific conditions.) Possible to mix RTR-71 and RTR-72 in same group The Base Unit is set up to communicate with Groups of Remote Units. One Group can contain up to 126 Remote Units and up to 32 Groups can be registered to 1 Base Unit. -
Page 11: Using The Software
AC adapter. A Relay Unit cannot measure, record or display temperature or humidity. Measuring and Recording One Unit / Two Temperature Channnels (RTR-71) Up to 1440 readings can be recorded in each channel and the recording interval can be selected from 8 choices (1 minute-60 minutes) One Channel for Humidity / One Channel for Temperature (RTR-72) Channel 1 measures temperature and Channel 2 measures humidity. - Page 12 ® Software [Wireless for Windows The Software is made up of the following three software programs Wireless for Windows This is the main program and controls registration and (Set up Program) settings for all units as well as manages the downloading of data via cable.
-
Page 13: Contents Of Package
Contents of Package The following items are included in the product package. RTR-71 Wireless Thermo Recorder RTR-71 Temperature Sensors TR-5320 × 2 Lithium Battery CR123A × 1 User's Manual and Warranty × 1 RTR-72 Wireless Thermo Recorder RTR-72 Temperature and Humidity Sensor TR-3220 × 1 Lithium Battery CR123A ×... -
Page 14: Outline Of Part Names And Functions
Outline of Part Names and Functions Outline of Part Names <Main Unit RTR-71/RTR-72> ① Antenna ④ LCD Display ② Sensor Connection ⑤ Serial Communication Connection ③ Battery Compartment ⑥ AC Adapter Connection [Temperature Sensor TR-5320] ① Thermistor ② Stainless Pipe (SUS316) ③... - Page 15 ■ Main Unit LCD Display Recording Indicator ① Displayed when recording is in progress. Antenna Indicator ② Displayed when wireless communication is possible. ③ Displays strength of radio wave. ④ Displayed when communication in progress. ⑤ Displayed when either temperature or humidity exceeds upper or lower limit. Battery Life Warning ⑥...
- Page 16 LCD Display-Other displays ◆ Units registered as a Base Unit ◆ Units registered as a Remote Unit ◆ Units registered as a Relay Unit ◆ Unregistered Units The display will alternate from GO – PC – ch.1- ch.2 ���� ����...
-
Page 17: Installing The Battery
● Please use the Battery Change Plug included in the software set RTR-70 when changing the battery. ● Do not use the battery change plug with any other Thermo Reorders other than RTR-71 and RTR-72. [How to Replace Batteries] If the Battery Life Warning appears, change the battery as soon as possible. When... - Page 18 ④ Remove the Battery Change Plug. Make sure that the ( ) indicator goes off and that the Antenna Indicator ( ) comes on in the LCD display. ＜ Figure 1 ＞ ＜ Figure 2 ＞ Improper disposal may cause damage to our environment. Please be careful to properly dispose of all used batteries according to your local environmental rules and regulations.
-
Page 19: How To Connect Sensors
How to Connect Sensors ◆ Connecting the included sensor (Remote Unit Only) [RTR-71] ● Insert the sensor plugs securely into the unit. [RTR-72] ● Insert the sensor plug securely into the unit. -
Page 20: Product Specifications
Product Specifications [RTR-71] Measurement Channels 2 Channels (Temperature) Measurement -60 to 155℃ Measurement Accuracy ± 0.3℃ (-20 to 80℃ ) ± 0.5℃ (-40 to -20/80 to 110℃ ) ± 1.0℃ (-60 to -40/110 to 155℃ ) Standard Sensors TR-5320 x 2... - Page 21 Data Back-up Low Battery Power Wireless Method Special Short Wave Transmission Range Approximately 400m (May vary with conditions) Dimensions H92mm x W66mm x D35mm (Excludes antenna) Weight Approximately 120g (including one lithium battery) Unit Temperature Resistance Temperature: 0 to 50℃ Humidity: Less than 90%RH (Without dew condensation)
-
Page 22: Optional Sensor Guide
Optional Sensor Guide ■ Sensor for RTR-71 TR-5106 Teflon-Shielded Sensor Possible Measurement Range: -60 to 155℃ Sensor Temperature Durability: -70 to 180℃ Cable Length: 0. 6m Thermal-Constant Time In Air: Approx. 15 Sec. In agitated water: Approx. 2 Sec. Water Resistant Ability: Splash Proof (Sensor and Cable）... - Page 23 TR-5420 Stainless Protection Sensor Possible Measurement Range: -60 to 155℃ Sensor Temperature Durability: -70 to 180℃ Cable Length: 2m Thermal-Constant Time In Air: Approx. 12 Sec In agitated water: Approx. 2 Sec. Water Resistant Ability: Splash Proof (Sensor and Cable） Materials ①...
-
Page 24: Radio, Emc And Safety Regulations
■ Sensor for RTR-72 TR-3220 Temperature and Humidity Sensor Humidity Measurement Range: 10 to 95%RH Humidity Measurement Accuracy: 5%RH (at 25℃ and 50%RH) ① Temperature / Humidity Sensor Temperature Measurement Range:0 to 50℃ ② Polypropylene resin Sensor Durability Range:-10 to 55℃ ③... -
Page 25: Warranty
Warranty Provisions for Free Repair 1 If the unit does not work properly despite the fact that the customer used it properly and in line with the User's Manual, the unit shall be repaired free of charge through the agent which sold the unit. 2 If the customer requests free repair because of trouble within the warranty period, bring or send the unit along with the warranty to the dealer.
