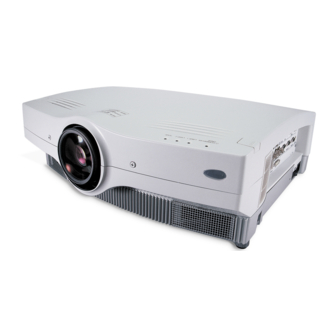

Panasonic PT-L6510U Operating Instructions Manual

Commercial use.
Hide thumbs


Operating Instructions
Read these instructions completely before operating this unit.
LCD Projector Commercial Use
1 2 3 4 5
1 2 3 4
1 2 3 4 5
1 2 3 4
Model No.
TQBJ 0118-1


   Related Manuals for Panasonic PT-L6510U

   Summary of Contents for Panasonic PT-L6510U

  • Page 1: Operating Instructions

    LCD Projector Commercial Use Operating Instructions Read these instructions completely before operating this unit. PT-L6510U 1 2 3 4 5 1 2 3 4 1 2 3 4 5 1 2 3 4 Model No. PT-L6600U TQBJ 0118-1...

  • Page 2: Important Safety Notice

    We hope it will help you to get the most performance out of your new product, and that you will be pleased with your Panasonic LCD projector. The serial number of your product may be found on its back. You should note it in the space provided below and retain this booklet in case service is required.

  • Page 3

    CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician.

  • Page 4: Table Of Contents

    Loading batteries ... 14 Effective control range ... 14 Using laser pointer ... 15 Setting projector IDs for remote control ... 15 Using the remote control as a PC mouse ... 16 Using the remote control in wired mode ... 17 Setting-up ...

  • Page 5: Precautions With Regard To Safety

    Do not place the projector on top of surfaces which are unstable. • If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.

  • Page 6: Caution

    • If any water gets inside the projector, contact an Authorized Service Center. Do not insert any foreign objects into the projector. • Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

  • Page 7: Accessories

    Ask an Authorized Service Center to clean inside the projector at least once a year. • If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation. • It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorized Service Center to clean the projector when required.

  • Page 8: Precautions On Handling

    6 hours every day, you may have to replace optical parts, such as LCD panels or polarizers within less than one year. When you use the projector in such a case, ask your dealer or an Authorized Service Center for details.

  • Page 9: Example Of System Up

    Example of System up The projector features a wealth of interface ports and optional parts that can be used to set up the projection system in diverse ways. The following presents some of those setup examples: System 1 Picture brightness can be doubled by stacking two projectors with the stacking brackets.

  • Page 10: Location And Function Of Each Part

    Use to select from the functions listed on the “OPTION2” screen that can be chosen from the MAIN MENU. ID SET button (page 15) Use to set the projector ID when multiple PT-L6510U/ L6600U projectors are used in the system. Mode switch (Computer/Projector) (page 16) When controlling the projector, set this switch to the Projector (right) side.

  • Page 11: Projector

    Cap the lens whenever the projector is left unused. Power status light (page 23) Lit in red when the projector is in standby mode with MAIN POWER switch set to “ I ”. Lit in green when the unit is turned ON.

  • Page 12: Projector

    Location and function of each part Projector < Top · Rear and Side > How to open panel lid Press the mark on the upper right corner of the panel lid until it clicks open. Stack Lid When two projectors are to be stacked, use this lid for positioning.

  • Page 13: Projector

    The signal applied to the DVI-D input port appears at this port (24-pin DVI connector). WIRED IN/OUT ports (page 17) Use to connect multiple PT-L6510U/L6600U projectors in a daisy chain to simultaneously control them from a single wired remote control. (M3 jack)

  • Page 14: Using The Remote Control Unit

    The remote control should normally be aimed at either the front or rear remote control receiver window on the projector (fig. 1). Otherwise it may also be aimed at the screen, which will reflect commands back to the projector's front receiver window as illustrated in figure 2.

  • Page 15: Using Laser Pointer

    3. Select the ID number you wish and then press the “ENTER” button. Note • The projector ID number in the remote control is set to “ALL” by default. It is therefore not necessary to set a projector ID number when only one projector is used.

  • Page 16: Using The Remote Control As A Pc Mouse

    RGB 2 IN • When your PC is attached to the projector for the first time, the “new hardware wizard” will launch automatically. When USB cable connects for the first time between projector and PC, the following massage appear from PC. The reason that the driver not installed, therfore press “NEXT”...

  • Page 17: Using The Remote Control In Wired Mode

    Wired Remote Control Cable. The wired remote control is particularly useful if the projector is sited in a place where it is exposed to intense ambient light or if an object blocks the path of IR light from the Remote Control.

  • Page 18: Setting-up

    Setting-up Projection Schemes Any of the following four projection schemes can be used with the PT-L6510U/L6600U projector depending on user's needs or viewing conditions. Use “OPTION 1” menu (chosen from the MAIN MENU) to choose the appropriate projection scheme (see page 34).

  • Page 19: Setup Precautions

    • The projector contains built-in speakers. When greater sound output is required, use an audio amplifier connected to the projector's AUDIO OUT jack. Once the cable is plugged into the AUDIO OUT jack, the audio signal lines to the internal speakers are automatically cut off.

  • Page 20: Example Of Connecting With Av Products

    RGB audio input is available for the RGB1, RGB2 and DVI-D. You will need to change audio input connections depending on your signal selection. • If your audio equipment is connected to the projector's AUDIO OUT jack, the remote control supplied with the projector can be used to control volume, balance, and mute on the audio output line.

  • Page 21: Example Of Connecting With Pcs

    • When the projector's main power is turned OFF, also turn OFF all the PCs connected to it. • *1 An asterisk denotes that the second projector requires positioning if the RGB outputs are connected in a daisy chain. However, the signals should be divided at the signal source if possible.

  • Page 22: Example Of Connecting With System Switcher

    RGB 1 IN DVI-D Caution • *1 An asterisk denotes that the second projector requires positioning if the RGB outputs are connected in a daisy chain. However, the signals should be divided at the signal source if possible. Note • Read the operating instructions for the system switcher carefully.

  • Page 23: Starting To Use

    Adjust volume level with the “VOLUME (+/-)” buttons. --- [Remote control] For volume level control on the projector, see page 27. If your audio equipment is connected to the AUDIO OUT jack, the VOLUME control adjusts the line output level.

  • Page 24: Leveling The Projector

    • If the picture has keystone distortion, do keystone adjustment from the menu. (page 32) <Retracting the Leveling Feet> While lifting the front side of the projector, raise the Leveling lever, and then slowly lower the unit. LEVELING feet the Picture...

  • Page 25: Advice On The Installation Of Exhaust Guides

    Using the Shutter function The shutter function can be used to momentarily turn off the picture and sound from the projector when the projector is not being used for short periods of time, such as during breaks in meetings or when carring out preparation. The projector uses less power in shutter mode than it does in normal projection mode.

  • Page 26: Using The Digital Zoom Function

    1999 T O T A L Caution • If the input video signal format is changed while in Zoom mode, the projector will exit Zoom mode. • PT-L6600U does not have a highlight indication. < For PT-L6510U > 1. Press the remote control Digital Zoom (D.ZOOM +/-) buttons.

  • Page 27: On-screen Menus

    On-screen menus Menu screens Menus are extensively used for configuring, adjusting, or reconfiguring the projector. The menu structure is as follows: MAIN MENU (PT-L6510U) MENU INDEX WINDOW PICTURE POSITION AUDIO ZOOM/FOCUS LANGUAGE OPTION 1 OPTION 2 SELECT ENTER Note • PT-L6600U does not have "INDEX WINDOW"...

  • Page 28: Basic Menu Operations

    On-screen menus Basic Menu Operations 1. Press the “MENU” button. The MAIN MENU appears on the screen. (e.g. : MAIN MENU for the PT-L6510U) MENU INDEX WINDOW PICTURE POSITION AUDIO ZOOM/FOCUS LANGUAGE OPTION 1 OPTION 2 SELECT ENTER ENTER 2. Select (highlight) the desired item with the buttons.

  • Page 29: Using The Index Window Function

    • When you execute steps 2 and 3 above, the memory is temporarily cleared and the index window image is saved to memory. • If the input signal format is changed while an index window is on the screen, the projector will exit the index window mode.

  • Page 30: Adjusting The Picture

    Adjusting the picture 1. Obtain the MENU window and select (highlight) the desired option item with buttons. 2. Adjust the parameter value with the buttons. For items requiring a separate bar graph, first display the bar graph with the “ENTER” or adjust the parameter value with the buttons.

  • Page 31: Tv-system

    Note • If you choose a user address registered for a signal that does not match the input signal, it is regarded as no signal, and the projector will display the specified background color. STANDARD Pressing the “ENTER” button resets all the adjustment parameter values to the factory default values, with a “STANDARD”...

  • Page 32: Adjusting The Position

    To obtain the best picture quality, set up the projector and screen in such a way that the amount of keystone correction required is as minimal as possible.

  • Page 33: Aspect

    • The S1 video is the wide-aspect-ready S-video format containing an aspect sense signal for squeezed videos fed from video equipment. • If “AUTO” is chosen, the projector automatically compresses the squeezed input video into the 16:9 aspect ratio if it detects the aspect sense signal.

  • Page 34: Option 1 Settings

    PROJECTION SCHEME 2 PROJECTION SCHEME 2 is used to choose the appropriate projection scheme from Floor and Ceiling: FLOOR: Choose this option if the projector is installed CEILING: Choose if the projector is installed on the button under the ceiling...

  • Page 35: Option 2 Settings

    “Dual”, “SINGLE”, “SINGLE1”, or “SINGLE2” mode, the projector will enter Standby mode after 10 minutes. • If only one lamp is installed in the projector, set lamp mode to either “SINGLE1” or “SINGLE2”. “SINGLE1” or “SINGLE2” is selected. If the corresponding lamp is not installed, the other lamp will turn on.

  • Page 36: Setting Unit Id

    OPTION 2 settings SETTING UNIT ID UNIT ID is used to set projector IDs when the user wishes to control two or more projectors either simultaneously or separately. SET ID “ALL”: The projectors can be simultaneously controlled from any remote control regardless of their ID settings.

  • Page 37: Using The Serial

    • Projector ID supported on the RS-232C interface is 0 (ALL) to 99. • The remote control ID is set from 0 to 3. If a command is sent with a projector ID specified, the projector will return answer back only if the ID contained in the command matches the projector ID or the projector ID is set to ALL.

  • Page 38: Control Command

    Using the SERIAL Control command When controlling the projector using a computer, commands are as follows: Command Control contents Power ON Power OFF Volume Mute (audio mute) Switch input modes Switch RGB 1 · 2 input signals Check lamp lighting condition...

  • Page 39: Using The Remote Terminal

    1 and 9 are shorted. RS-232C commands will also be ignored. • Do not short pins. 1, 2, 3, 5 or 6 when pin 9 is open. If this is done, the projector will ignore signals from the remote control.

  • Page 40: Indication Of Lamp Monitor

    Indication of lamp monitor This projector is equipped with 3 indicators to show when a lamp needs replacement or there is an abnormal internal temperature. These lamps flash or light up to indicate a problem. Turn the power off and follow the steps below.

  • Page 41: Cleaning And Replacing The Air Filter

    • Place the air filter aligning the notch toward the upper right direction. • Do not operate the projector without the air filter. If the projector is operated without the air filter, dust will enter the unit and may cause a malfunction. Note •...

  • Page 42: Replacing The Lamp Unit

    PT-L6510U ET-LAL6510 (1 lamp) • ET-LAL6510W (2 lamps) PT-L6600U • Lamps other than those indicated above must not be used with this projector. Be sure to use the specified lamp. Lamp replacement period The light source lamp of this projector has a life cycle of 2000 hours (Lamp power---hi, Lamp selection---dual setting).

  • Page 43: Lamp Unit Replacement Steps

    2. Using a Philips screwdriver, remove the 4 screws on the lamp unit cover located on the rear of the projector. 3. Remove the lamp unit cover by pulling it forward.

  • Page 44

    “ L A M P RUNTIME”. 12. Press and hold the “ENTER” button on the projector or the remote control for approximately 3 seconds. The “LAMP RUNTIME” will change to “L1 RESET [POWER OFF]”...

  • Page 45: Before Asking For Service

    Abnormal image • Are their any malfunctions on the source side, such as bad video tapes? • Are you inputting a signal that is not compatible with this projector? (See page 48) • Is the cable too long? Does not display •...

  • Page 46: Specifications

    Powered zoom powered focus control Projection lamp Optical output Composite/S-Video H = 24 to 97 kHz, V = 50 to 120 Hz, PIAS (Panasonic Intelligent Auto Scanning) format RGB signal Dot clock frequency: under 132 MHz DVI-D signal [480i] signal...

  • Page 47

    High-density D-sub 15-pin connector (female) input: Y = 1.0 V [p-p] including sync. signal P RGB input: RGB2 input G-Sync.: HD/SYNC: TTL-compatible, high-impedance w/ auto active Hi/Lo switching VD: TTL-compatible, high-impedance w/ auto active Hi/Lo switching 1 set stereo minijack, Audio input 0.5 V [rms] for RGB 1/2...

  • Page 48: Appendix

    • The PT-L6600U has a pixel resolution of 1 366 x 1 024. Pixel data exceeding this resolution is converted into 1 366 x 1 024 pixels. • The PT-L6510U has a pixel resolution of 1 024 x 768. Pixel data exceeding this resolution is converted into 1 024 x 768 pixels.

  • Page 49: Dimensions

    Dimensions 476 (18 495 (19 unit : mm ( ) : inch S-VIDEO IN VIDEO AUDIO IN AUDIO AUDIO SERIAL R/R-Y/P B/B-Y/P SYNC/HD RGB 1 IN RGB 2 IN RGB OUT REMOTE WIRED DVI-D > PC < TBMU152...

  • Page 50: Trademark Acknowledgments

    Trademark acknowledgments Trademark • PS/2, VGA, and XGA are trademarks of U.S. IBM Corporation. • Macintosh is a registered trademark of U.S. Apple Computers, Inc. • PC-98 is a trademark of NEC Corporation. • S-VGA is a trademark or registered trademark of the Video Electronics Standards Association. •...

  • Page 51: Français Information

    NOTES IMPORTANTES CONCERNANT LA SÉCURITÉ AVERTISSEMENT: POUR RÉDUIRE LES RISQUES DE FEU OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CE PRODUIT À L’EAU OU À L’HUMIDITÉ Le symbole de la flèche en forme d’éclair, dans un triangle, avertit l’usager de la présence de “tensions dangereuses” à l’intérieur du produit qui peuvent être de force suffisante pour constituer un risque de choc éIectrique aux personnes.

  • Page 52

    Précautions concernant la sécurité AVERTISSEMENT En cas de problème (pas d’image ou de son), ou si le projecteur dégage de la fumée ou une odeur étrange, éteindre l’appareil et débrancher immédiatement la fiche d’alimentation de la prise de courant. • Ne pas continuer d’utiliser le projecteur dans ces cas, autrement cela peut entraîner un incendie ou des chocs éIectriques.

  • Page 53

    Brancher la fiche du cordon d’alimentation fermement dans la prise de courant. • Si la fiche n’est pas complètement insérée, cela peut entraîner des chocs électriques ou la faire surchauffer. • Si la fiche est endommagée ou la plaque de la prise est desserrée, elles ne devraient pas être utilisées. Ne pas placer le projecteur sur des surfaces instables.

  • Page 54

    Précautions concernant la sécurité Ne pas court-circuiter, chauffer ou démonter la pile et ne pas la placer dans I’eau ou le feu. • Cela peut faire que la pile fuit, surchauffe, éclate ou prenne feu et causer des brûlures ou autres blessures. Lors de l’insertion de la pile, s’assurer que les polarités (+ et -) sont correctes.

  • Page 55

    Précautions concernant la manipulation Av e r t i s s e m e n t s c o n c e r n a n t l a manipulation S’assurer d’attacher le capuchon d’objectif avant de transporter le projecteur. La lentille de projection est extrêmement sensible à...

  • Page 56: Remplacement Du Bloc De Lampe

    REMARQUE: • Le projecteur n'est pas fourni avec un bloc de lampe de rechange. Demander les détails au revendeur. Modéls No. Numéro de produit du bloc de lampe PT-L6510U ET-LAL6510 (1 lampe) • ET-LAL6510W (2 lampes) PT-L6600U ATTENTlON : • Ne pas utiliser un bloc de lampe avec un numéro de pièce autre que celui indiqué ci-dessus.

  • Page 57: Remplacement De La Lampe

    Précautions concernant la sécurité ATTENTION Le remplacement de la lampe doit être réalisé exclusivement par un technicien habilité. De plus, le cache de la lampe est chaud après utilisation du projecteur. • Vous risquez de vous brûler si vous touchez le cache de la lampe quand il est chaud. REMARQUES SUR LE REMPLACEMENT DE LA LAMPE •...

  • Page 58

    Retirez la porte en la tirant vers l’avant. Attention • Faites attention de ne pas casser le cliquet situé au centre de la partie inférieure de la porte d’accès la lampe. À l’aide d’un tournevis Phillips, desserrez les deux vis de fixation de la lampe jusqu’à ce qu’elles puissent tourner facilement.

  • Page 59

    Appuyez sur la touche “MENU” pour afficher l’écran du menu principal, puis utilisez les touches le curseur sur “OPTION 2” et sélectionner cette option. Appuyez sur la touche Entrée pour passer dans l’écran “OPTION 2”, puis utilisez les touches sélectionner “DURÉE LAMPE”. Maintenez presse la touche “ENTER”...

  • Page 60

    Professional/Industrial Video Panasonic Broadcast & Television Systems Company Division of Matsushita Electric Corporation of America One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 392-4443 3330 Cahuenga Blvd West Los Angels, CA 90068 (323) 436-3500 Technical Support: (800) 524-1448 (800) 526-6610 FAX: (201) 392-6514 E-Mail:
