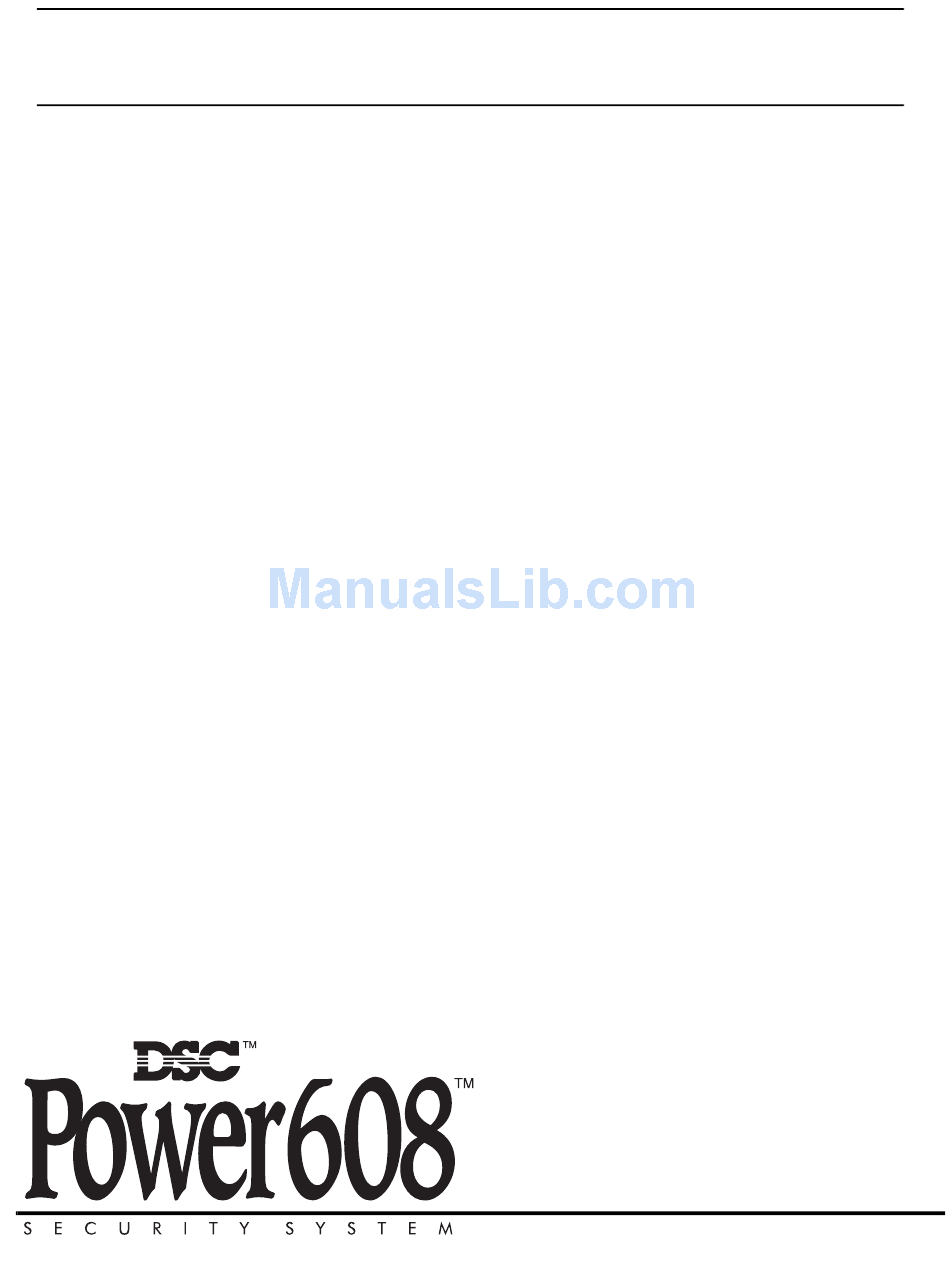

WARNING
This manual contains information on limitations regarding product use and function and information on the
limitations as to liability of the manufacturer. The entire manual should be carefully read.
Installation
Manual
PC5008 v2.1DJRU
DLS-1 v6.6P and higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the power608 and is the answer not in the manual?

Questions and answers

Related Manuals for DSC power608

Summary of Contents for DSC power608

  • Page 1: Installation Manual

    WARNING This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read. Installation Manual PC5008 v2.1DJRU DLS-1 v6.6P and higher...

  • Page 2: Warning Please Read Carefully

    They have multiple beams of detection and motion can only be detected Any products returned to DSC which have the Installer’s Lockout option enabled and exhibit no other prob- in unobstructed areas covered by these beams. They cannot detect motion which occurs behind walls, ceil- ings, floor, closed doors, glass partitions, glass doors or windows.

  • Page 3: Table Of Contents

    Tab le o f C o nt e nt s Section 1: System Introduction 5.4 Assigning Keypad Zones ..........16 1.1 Specifications ................1 5.5 Communicator – Dialing ..........16 1.2 Additional Devices ..............2 5.6 Communicator – Account Numbers ......17 1.3 Out of the Box ...............2 5.7 Communicator –...
  • Page 4 PC500 8 Wiri ng D i ag ra m...

  • Page 5: Section 1: System Introduction

    Se c t ion 1: Sy st e m In tro du c ti on Specifications Digital Communicator Specifications • Supports major communication formats including SIA Downloading Software Support and Contact ID • PC5008 v2.1DJRU uses DLS-1 v6.6P and up. •...

  • Page 6: Additional Devices

    22 gauge, 4 conductor wire. All stations can be used to sound an alarm follower. In addition to the information below, see the back cover for a DSC module compatibility table. LINKS2X50 Either the LINKS2150 or LINKS2450 may be used to transmit PC5132 Wireless Receiver alarm information over a long range radio network.

  • Page 7: Section 2: Getting Started

    [701], option [7]) allows you to choose between a high current DSC logo sticker on the front of the cabinet. battery charge and the standard battery charge rate. NOTE: You must complete all wiring before connecting the bat- Enable the Automatic Battery Check option to have the tery, or applying AC to the panel.

  • Page 8: Keybus Operation And Wiring

    Keybus Terminals – AUX+, AUX-, YEL, GRN municator to telephone lines intended for use with a fax The Keybus is used by the panel to communicate with mod- machine. These lines may incorporate a voice filter which dis- ules and vice versa. Each module has four Keybus terminals connects the line if anything other than fax signals are that must be connected to the four Keybus terminals on the detected, resulting in incomplete transmissions.

  • Page 9: Keypad Assignment

    G e t t i n g S t a r t e d : 2 . 5 K e y p a d A s s i g n m e n t • PC59X1EXT/R Door Box Audio Station: 35mA •...

  • Page 10: Fire Zone Wiring

    NOTE: This option should be selected if either Normally 2.10 24-Hr Auxiliary Input Wiring (PGM2) Closed (NC) or Normally Open (NO) detection devices or con- If PGM2 has been programmed for 24-hour operation, the tacts are being used. zone must be wired according to the following diagram: Double End of Line (DEOL) Resistors Double End of Line resistors allow the panel to determine if the zone is in alarm, tampered or faulted.

  • Page 11: Section 3: Keypad Commands

    Se c tion 3: Ke y p a d C o mma nd s Use any system keypad to enter commands and/or program rect Time of Day. For programming the clock and auto-arm the PC5008 security system. The LED keypad uses function times, see “[*][6] User Functions”...
  • Page 12 [*][2] Trouble Display Troubles are Latching ....Section [018]: [1] The panel constantly monitors itself for several different trou- ble conditions. If a trouble condition is present, the Trouble To view trouble conditions from an LED keypad: light will be on and the keypad will beep twice every 10 sec- 1.
  • Page 13 K e y p a d C o m m a n d s : 3 . 4 [ * ] C o m m a n d s [*][3] Alarm Memory Attribute [1] ..User enabled for arming, disarming, alarm The Memory light will be on if any alarm occurred during the reset, [*][7][1-4] options, auto arm cancella- last armed period or –...

  • Page 14: Function Keys

    When you have finished viewing the event buffer, press [#] to If a second Delay zone is tripped, or if the zone is not restored exit. after two minutes, the panel will begin the entry delay. NOTE: If the Exit Delay is in progress, performing a Quick Exit Brightness Control will not extend the Exit Delay.

  • Page 15: Features Available For The Lcd5500Z

    K e y p a d C o m m a n d s : 3 . 6 F e a t u r e s A v a i l a b l e f o r t h e L C D 5 5 0 0 Z [12] [*][6] User Functions: A valid master code must also...

  • Page 16: Section 4: How To Program

    S e c tion 4: How t o P ro g ra m The following section of the manual describes the Installer’s Programming Decimal Data Programming function and how to program the various sec- A set number of programming boxes are allotted for each sec- tions.

  • Page 17: Programming Toggle Option Sections

    Programming Toggle Option Sections The keypad displays the information using a binary format, according to the following chart: See Hex data Some programming sections contain several toggle options. entry instructions The panel will use zone lights 1 through 8 to indicate if the dif- ferent options are enabled or disabled.

  • Page 18: Section 5: Program Descriptions

    S e ction 5: Pro g ra m D es c ri pt i o ns The following section explains the operation of all programma- should be disarmed. If the panel is disarmed before the entry ble features and options and provides a summary of all corre- time expires, no alarm will be generated.

  • Page 19: Zone Attributes

    the Bell Cutoff time expires (Section [005] “System Times”), or [23] Maintained Keyswitch Arm Zone until a code is entered (see Section 5.13 “Bell” on page 22). When this zone is violated, the system will arm. When this zone is secured, the system will disarm. Tampers and faults NOTE: If a second Fire type zone is violated or if the Fire keys will not arm/disarm the system, but only activate the appropri- are pressed during the delay period, the panel will latch the...

  • Page 20: Assigning Keypad Zones

    • Force Arm Enable – This attribute determines whether the panel will pick up the telephone line again and search or not the system can be armed while a zone is violated. for a dial tone for 5 seconds At the end of the exit delay, if this type of zone is violated, the panel will then dial regardless of the presence of dial it will be ignored by the panel.

  • Page 21: Communicator - Account Numbers

    P r o g r a m D e s c r i p t i o n s : 5 . 6 C o m m u n i c a t o r – A c c o u n t N u m b e r s Communicator –...

  • Page 22: Communicator - Reporting Formats

    Openings/Closings by Wireless Key Pulse Formats If you are using a PC5132 v3.0 or higher, wireless keys with Depending on which pulse format is selected, the panel will access codes may be identified when they are used to arm or communicate using the following specifications: disarm the system: the panel will log and transmit opening or •...
  • Page 23 P r o g r a m D e s c r i p t i o n s : 5 . 9 C o m m u n i c a t o r – R e p o r t i n g F o r m a t s 2.

  • Page 24: Downloading

    will send the number 5 for each of the other channels, so that The Download Access Code and Panel Identifier Code are the event code will look like: for security and proper identification. Both the panel and the computer file should contain the same information pro- 5 5 1 5 5 5 5 5 grammed before attempting to download.
  • Page 25 P r o g r a m D e s c r i p t i o n s : 5 . 1 1 P G M O u t p u t O p t i o n s [04] For future use Program which events will activate the output by selecting some or all of the following attributes:...

  • Page 26: Telephone Line Monitor (Tlm)

    [22] [*][7][2] Command Output Option #4 PGM attributes return to their default settings when you These outputs are user-initiated by entering [*][7][1-4] at any change PGM output options. Please see the programming keypad. When any output is activated, three acknowledgment worksheets for a list of the default settings for each PGM out- beeps are sounded.

  • Page 27: Test Transmission

    P r o g r a m D e s c r i p t i o n s : 5 . 1 4 T e s t T r a n s m i s s i o n the owner of the problem.

  • Page 28: Entry/Exit Delay Options

    If the AC/DC Inhibit Arming option is disabled, the panel will If the Bell Squawk During Auto Arm option is enabled, the not do an automatic battery test when arming is attempted bell will squawk once every 10 seconds for one minute during and the user will not be prevented from arming the system the Auto-arm pre-alert.

  • Page 29: Keypad Blanking

    P r o g r a m D e s c r i p t i o n s : 5 . 2 2 K e y p a d B l a n k i n g To disable the keypad lockout option, program the Number of System Tampers Req.

  • Page 30: Resetting Factory Defaults

    If the 50 or 60Hz AC power input is very stable it can be used 5.32 Walk Test (Installer) as the timebase, by enabling the Timebase is AC line option. The Installer Walk Test can be used to test the alarm state of each zone of the panel.

  • Page 31: Section 6: Programming Worksheets

    Se c tion 6: Pro g rammi n g Work s he e t s For the Record Customer: _______________________________________________________________________________________________________ Address: ________________________________________________________________________________________________________ Telephone: ___________________________________________ Installation Date: ___________________________________________ Installer’s Code: __________________________________________________________________________________________________ Module Name Description Location PC5008 Main Panel I________________________________________________________________________________________________________________I PC5132 Wireless Receiver I________________________________________________________________________________________________________________I PC5400 Serial Printer Module...
  • Page 32 Keypad Programming [000] Keypad Enrollment (Section 2.5 “Keypad Assignment” on page 5) NOTE: This must be done at each keypad requiring programming. [0] Address [Valid entries are 11-18; ie. enter [11] for address 1, [12] for address 2, etc.] [1] Function Key 1 Assignment (Valid entries are 00-21) [2] Function Key 2 Assignment (Valid entries are 00-21) [3] Function Key 3 Assignment (Valid entries are 00-21) [4] Function Key 4 Assignment (Valid entries are 00-21)
  • Page 33 P r o g r a m m i n g W o r k s h e e t s [005] System Times Default Valid entries: [001-255] Entry Delay 1 (in seconds) and 5.18 “Entry/Exit Delay Options” on page 24) I_______I_______I_______I Entry Delay 2 (in seconds) and 5.18 “Entry/Exit Delay Options”...
  • Page 34 [012] Keypad Lockout Options (Section 5.21 “Keypad Lockout Options” on page 24) NOTE:If Keypad Lockout is active, the panel cannot be disarmed with a keyswitch. Default Number of Invalid Codes Before Lockout (001-255 codes) I_______I_______I_______I Lockout Duration (001-255 minutes) I_______I_______I_______I [013] First System Option Code Default Option...
  • Page 35 P r o g r a m m i n g W o r k s h e e t s [016] Fourth System Option Code Default Option Section Page # AC Trouble Displayed AC Trouble Not Displayed I________I Trouble Light Flashes if AC Fails Trouble Light Does Not Follow AC Status I________I Blank Keypad When Not Used...
  • Page 36 Advanced System Programming Zone Attributes (Section 5.3 “Zone Attributes” on page 15) Zone Attribute Defaults (Y = Option ON; N = Option OFF): Attribute: Audible Steady Chime Bypass Force Swing Tx. Delay Wireless Zn. Silent Pulsed Zone Type: 00 Null Zone 01 Delay 1 02 Delay 2 03 Instant...
  • Page 37 P r o g r a m m i n g W o r k s h e e t s PGM Output Attributes (Section 5.11 “PGM Output Options” on page 20) Program only the following attributes for the PGM Options listed. All others will be ignored. PGM Options are programmed in [009], [010] and [011].
  • Page 38 [160] Maximum Dialing Attempts to Each Telephone Number (Section 5.5 “Communicator – Dialing” on page 16) Default: 008 Valid entries are 001-015 attempts (do not enter 000). I_______I_______I_______I [161] Post Dial Wait for Handshake (All Formats) (Section 5.5 “Communicator – Dialing” on page 16) Default: 040 Valid entries are 001-255 seconds I_______I_______I_______I...
  • Page 39 P r o g r a m m i n g W o r k s h e e t s [329] Priority Alarm and Restoral (Section 5.8 “Communicator – Reporting Codes” on pg. 17, & Appendix A) Keypad Fire Alarm Keypad Fire Restoral I_______I_______I I_______I_______I...
  • Page 40 [349] Maintenance Alarm Reporting Codes (Section 5.8 “Communicator – Reporting Codes” on pg. 17, & Appendix A) Battery Trouble Alarm Auxiliary Power Supply Trouble Alarm I_______I_______I I_______I_______I AC Failure Trouble Alarm TLM Trouble Code (via LINKS) I_______I_______I I_______I_______I Bell Circuit Trouble Alarm General System Trouble I_______I_______I I_______I_______I...
  • Page 41 P r o g r a m m i n g W o r k s h e e t s [365] Opening/Closing Communicator Call Directions (Section 5.5 “Communicator – Dialing” on page 16) Default Option 1st Telephone Number Disabled I________I 2nd Telephone Number Disabled...
  • Page 42 [381] Second Communicator Option Code Default Option Section Page # Open After Alarm Kypd Ringback Enabled Open After Alrm Kypd Ringback Disabled 5.17 I_______I Open After Alarm Bell Ringback Enabled Open After Alrm Bell Ringback Disabled 5.17 I_______I SIA Sends Programmed Rep. Codes SIA Sends Automatic Rep.
  • Page 43 P r o g r a m m i n g W o r k s h e e t s [701] First International Options Code Default Option Section Page # 50 Hz AC 60 Hz AC I_______I Time Base is Internal Crystal Time Base is AC Line 5.29 I_______I...
  • Page 44 Special Installer Functions [901] Installer Walk Test Mode Enable / Disable (Section 5.32 “Walk Test (Installer)” on page 26) [902] Module Supervision Reset (Section 2.7 “Removing Modules” on page 5) [903] Module Supervision Field (Section 2.6 “Supervision” on page 5) [904] Wireless Module Placement Test For more information, please refer to your PC5132 Installation Manual •...

  • Page 45: Appendix A: Reporting Codes

    Ap p en dix A: R e p o rt i ng C o d es The following tables contain Contact ID and Automatic SIA for- SIA Format - Level 2 (Hardcoded) mat reporting codes. For more information on reporting code The SIA communication format used in this product follows the formats and notes about individual reporting codes, see sec- level 2 specifications of the SIA Digital Communication Stan-...
  • Page 46 Dialer Contact SIA Auto Rep Section # Reporting Code Code Sent When... Direction* ID Codes Codes** [349-350] AC Line Trouble/Rest. AC power to control panel is disconnected or inter- MA/R (3) A1 AT-00/AR-00 rupted/AC power restored (Both codes follow AC Fail- ure Comm.

  • Page 47: Appendix B: Programming Lcd Keypads

    Appendix B: Programming LCD Keypads If you have an LCD5500Z Keypad, additional programming is required for proper operation. The following is a description of the available programming options and their accompanying programming sections: How to Enter LCD Programming Follow the programming procedure as outlined in Section 4 by pressing [*][8][Installer’s Code]. Press the [*] key. Enter the two digit Section number to be programmed.
  • Page 48 [61] Second User Display Mask Default Option Installer Programming prompt ON Installer Programming prompt OFF I_______I Stay Arm prompt ON Stay Arm prompt OFF I_______I Quick Arm prompt ON Quick Arm prompt OFF I_______I Interior Arm prompt ON Interior Arm prompt OFF I_______I Quick Exit prompt ON Quick Exit prompt OFF...
  • Page 49 P r o g r a m m i n g L C D K e y p a d s [68] Sixth User Display Mask Default Option Occupancy Mode Auxiliary Prompt ON Occupancy Mode Auxiliary Prompt OFF I_______I Occupancy Mode Day Prompt ON Occupancy Mode Day Prompt OFF I_______I Occupancy Mode Away Prompt ON...
  • Page 50 NOTES:...
  • Page 51 Important Information Rleating to the Connection of this Equipment to the Telephone Network 1 This equipment is approved for connection to the Public Switched The connection to this equipment consist of: Telephone Network (PSTN) via direct exchange lines offering LD Mains (AC) power Excessive voltage circuit (pulse) or MF (tone) dialling facilities.
  • Page 52 S/5054/3/Y/504425 DSC PC5008-BABT ©1998 Digital Security Controls Ltd. London office: DSC Security Products 1645 Flint Road, Downsview, Ontario, Canada M3J 2J6 3 Mandeville Courtyard, 142 Battersea Park Road (416) 665-8460 • Fax (416) 665-7498 • 1-800-387-3630...
