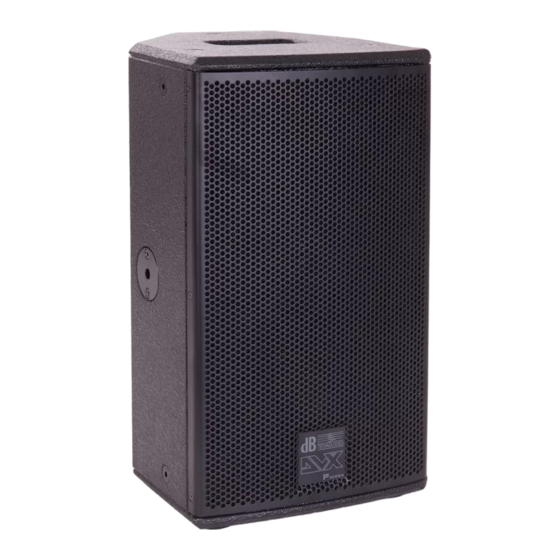

dB Technologies DVX P8 User Manual

Professional passive speaker
Hide thumbs Also See for DVX P8:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
p
series
PROFESSIONAL PASSIVE SPEAKER
MANUALE D'USO - Sezione 1
USER MANUAL - Section 1
BEDIENUNGSANLEITUNG - Abschnitt 1
CARACTERISTIQUES TECHNIQUES - Section 1
Le avvertenze nel presente manuale devono essere osservate congiuntamente al "Manuale d'uso - Sezione2".
The warnings in this manual must be observed together with the "User Manual - Section 2".
Die Warnungen in diesem Handbuch müssen in Verbindung mit der "- Bedienungsanleitung - Abschnitt 2" beobachtet werden.
Les avertissements dans ce manuel doivent être respectées en collaboration avec le "Manuel - Section 2".

Advertisement

loading
Need help?

Need help?

Do you have a question about the DVX P8 and is the answer not in the manual?

Questions and answers

Related Manuals for dB Technologies DVX P8

Summary of Contents for dB Technologies DVX P8

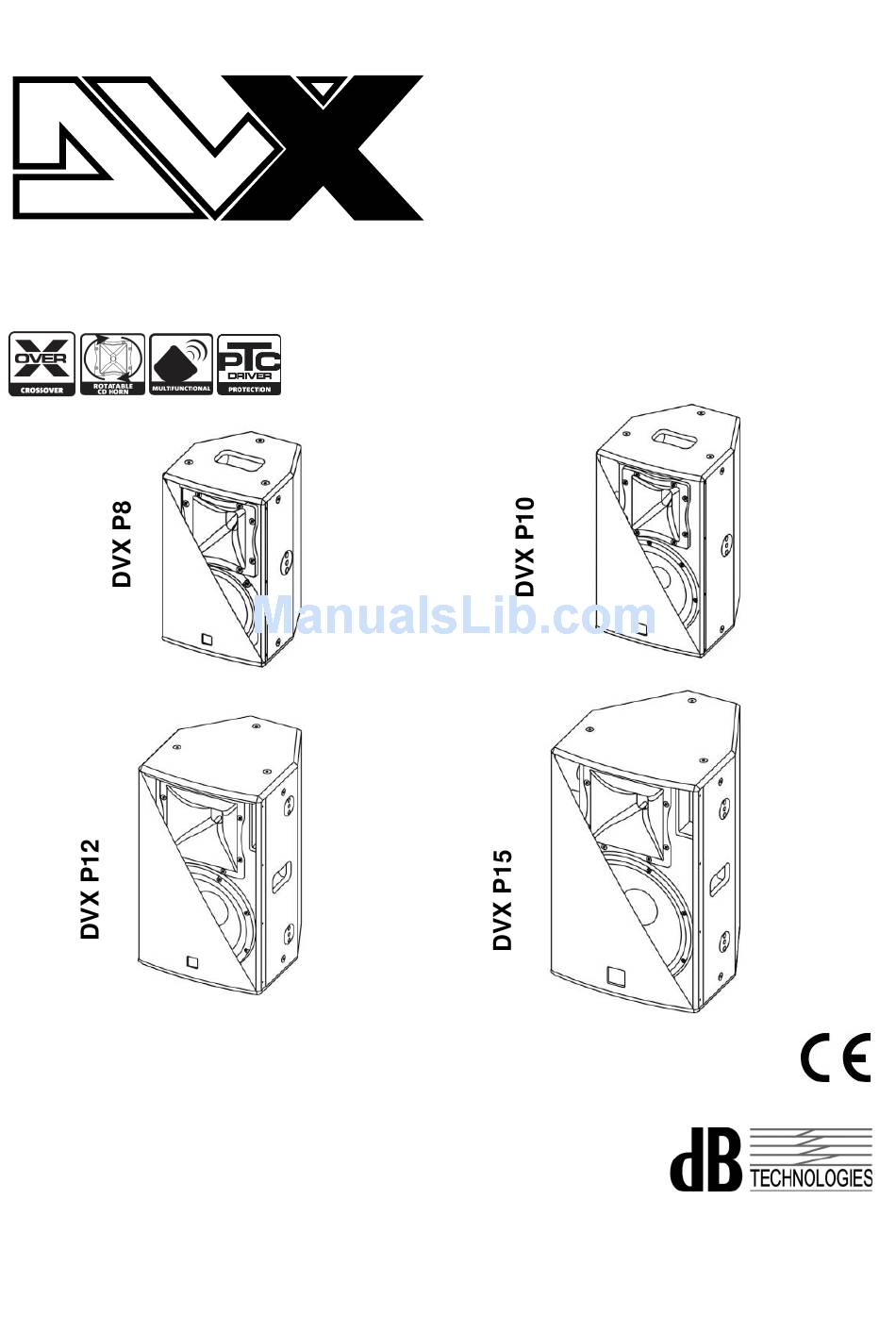

  • Page 1 series PROFESSIONAL PASSIVE SPEAKER MANUALE D’USO - Sezione 1 USER MANUAL - Section 1 BEDIENUNGSANLEITUNG - Abschnitt 1 CARACTERISTIQUES TECHNIQUES - Section 1 Le avvertenze nel presente manuale devono essere osservate congiuntamente al “Manuale d’uso - Sezione2”. The warnings in this manual must be observed together with the "User Manual - Section 2". Die Warnungen in diesem Handbuch müssen in Verbindung mit der "- Bedienungsanleitung - Abschnitt 2"...
  • Page 2 18dB/oct per la sezione alti e una protezione termica autoripristinante sul driver per evitare sovraccarichi prolungati. DVX P8 Il diffusore passivo DVX P8 è equipaggiato con un woofer 8” (voice coil 2”) e un compression driver al neodimio da 1” (voice coil 1.5”) montato su una tromba ruotabile in plastica con dispersione 90°x70°.
  • Page 3 ITALIANO DVX P12 Il diffusore passivo DVX P12 è equipaggiato con un woofer 12” (voice coil 3”) e un compression driver al neodimio da 1,4” (voice coil 2.5”) montato su una tromba di alluminio con dispersione 90°x40°. Esso viene fornito con la tromba orientata a 90° in senso orizzontale.

  • Page 4: Rotazione Tromba

    ITALIANO DVX P series – passive speaker COLLEGAMENTI ATTENZIONE Per evitare il rischio di shock elettrici, non collegare il diffusore con l’amplificatore acceso. Prima di far funzionare il diffusore verificare attentamente la correttezza dei collegamenti per evitare cortocircuiti o errate connessioni Nel pannello connessioni situato sul lato posteriore del diffusore sono presenti due connettori Speakon a 4 poli: una presa consente l’ingresso del segnale audio, mentre la seconda presa può...
  • Page 5 Per appendere il diffusore utilizzare solo una vite per ogni punto di appendibilità I punti di appendibilità sono di M8 per i diffusori DVX P8 e DVX P10 e sono di M10 per i diffusori DVX P12 e DVX P15.

  • Page 6: Dati Tecnici

    ITALIANO DVX P series – passive speaker DATI TECNICI DVX P8 DVX P10 Sistema Passivo – 2 vie Passivo – 2 vie Potenza RMS 300W 300W Potenza Peak 600W 600W Risposta in Frequenza (-10dB) 75Hz-20KHz 70Hz-20KHz (-6dB) 100Hz-20KHz 90Hz-20KHz Crossover...
  • Page 7 ITALIANO DATI TECNICI DVX P12 DVX P15 Sistema Passivo – 2 vie Passivo – 2 vie Potenza RMS 500W 500W Potenza Peak 1000W 1000W Risposta in Frequenza (-10dB) 90Hz-20KHz 60Hz-20KHz (-6dB) 60Hz-20KHz 70Hz-20KHz Crossover 1400Hz 1400Hz Sensibilità 1W@1m 100dB 100dB Pressione sonora (SPL) 133dBmax 133dBmax...
  • Page 8 18dB/oct for the high-pass and a self-resetting thermal protection circuit on the driver to prevent protracted overloading. DVX P8 The passive speaker DVX P8 is equipped with a woofer 8” (voice coil 2”) and a compression driver 1” (voice coil 1.5”) on a 90°x70° rotatable plastic CD- horn.
  • Page 9 ENGLISH DVX P12 The passive speaker DVX P12 is equipped with a woofer 12” (voice coil 3”) and a compression driver 1.4” (voice coil 2.5”) installed on a 90°x40° rotatable aluminium CD- horn. The speaker’s horizontal directivity is 90° by default factory setting.

  • Page 10: Rotating Horn

    ENGLISH DVX P series – passive speaker CONNECTIONS WARNING To avoid electric shocks, ensure that your amplifier is switched off when you plug in the loudspeaker. Before turning on the loudspeaker, be sure that the connections are correct to avoid short circuits or wrong connections. The connection panel at the back of the loudspeaker features two 4 pole Speakon connectors: the first socket is the sound signal input socket and the second socket may function as an output terminal for the connection with another loudspeaker.
  • Page 11 Use the handles only to move the single speaker! WARNING To hang the loudspeaker use only one screw for each hanging point The hanging points are M8 for DVX P8 and DVX P10, or M10 for DVX P12 and DVX P15 YES!

  • Page 12: Technical Specification

    ENGLISH DVX P series – passive speaker TECHNICAL SPECIFICATION DVX P8 DVX P10 System Passive – 2 ways Passive – 2 ways RMS Power 300W 300W Peak Power 600W 600W Frequency Responce (-10dB) 75Hz-20KHz 70Hz-20KHz (-6dB) 100Hz-20KHz 90Hz-20KHz Crossover 1800Hz...
  • Page 13 ENGLISH TECHNICAL SPECIFICATION DVX P12 DVX P15 System Passive – 2 ways Passivo – 2 ways RMS Power 500W 500W Peak Power 1000W 1000W Frequency Responce (-10dB) 90Hz-20KHz 60Hz-20KHz (-6dB) 60Hz-20KHz 70Hz-20KHz Crossover 1400Hz 1400Hz Sensitivity 1W@1m 100dB 100dB Sound pressure (SPL) 133dBmax 133dBmax Components...
  • Page 14 12dB/oct für Bass, von 18dB/oct für Höhen und mit einem selbstrücksetzenden Wärmeschutz auf dem Driver ausgestattet, um den Langzeitüberlast zu vermeiden. DVX P8 Der DVX P8 ist Zweiwegepassivlautsprechern mit einem 8“ Woofer (Voice coil 2”) und einem 1“ kompressions- Treiber (voice coil 1,5”), der auf einem CD Horn mit eine Abstrahlwinkel von 90°x70°...
  • Page 15 DEUTSCH DVX P12 Der DVX P12 ist ein Zweiwegepassivlautsprechern mit einem 12“ Woofer (Voice coil 3”) und einem 1,4“ kompressions- Treiber (voice coil 2.5”), der auf einem Aluminium CD Horn mit eine Abstrahlwinkel von 90°x40° montiert ist. Der Lautsprecher wird mit horizontal auf 90° ausgerichtetem CD Horn ausgeliefert.
  • Page 16 DEUTSCH DVX P series – passive speaker ANCHLÜSSE ACHTUNG Um das Risiko von Stromschlägen zu vermeiden, soll man den Lautsprecher nie an den angeschalteten Verstärker anschließen. Vor der Inbetriebnahme des Lautsprechers sich vergewissern, dass alle Anschlüsse korrekt sind, um Kurzschlüsse oder fehlerhafte Schaltungen zu vermeiden.
  • Page 17 Mit den Griffen ausschließlich für die Handhabung der einzelnen Lautsprecher. ACTHUNG Um den Lautsprecher zu hängen, nur eine Schraube für jede Hängestelle verwenden. Die Hängestellen sind M8 für DVX P8 und DVX P10 oder M10 für DVX P12 und DVX P15. NEIN!

  • Page 18: Technische Daten

    DEUTSCH DVX P series – passive speaker TECHNISCHE DATEN DVX P8 DVX P10 System Passive – 2 way Passive – 2 way RMS Power 300W 300W Peak Power 600W 600W Frequenzgang (-10dB) 75Hz-20KHz 70Hz-20KHz (-6dB) 100Hz-20KHz 90Hz-20KHz Crossover 1800Hz 1800Hz Sensibilität...
  • Page 19 DEUTSCH TECHNISCHE DATEN DVX P12 DVX P15 System Passive – 2 way Passive – 2 way RMS Power 500W 500W Peak Power 1000W 1000W Frequenzgang (-10dB) 90Hz-20KHz 60Hz-20KHz (-6dB) 60Hz-20KHz 70Hz-20KHz Crossover 1400Hz 1400Hz Sensibilität 1W@1m 100dB 100dB Schalldruck (SPL) 133dBmax 133dBmax Lautsprecher...
  • Page 20 18dB/oct pour la section aigus ainsi que d'une protection thermique auto-rétablissante sur le driver afin d'éviter des surcharges prolongées. DVX P8 Le diffuseur passifs DVX P8 est équipé avec un haut-parleur de graves 8” (bobine acoustique 2”) et un driver de compression de 1” (bobine acoustique 1,5”) monté sur un cornet avec dispersion 90°x70°.
  • Page 21 FRANÇAIS DVX P12 Le diffuseur passifs DVX P12 est équipé avec un haut-parleur de graves 12” (bobine acoustique 3”) et un driver de compression de 1,4” (bobine acoustique 2.5”) monté sur un cornet en aluminium avec dispersion 90°x40°. Le diffuseur est fourni avec le cornet orienté à 90° dans le sens horizontal.
  • Page 22 FRANÇAIS DVX P series – passive speaker CONNEXIONS ATTENTION A fin d'éviter les risques de chocs électriques, ne pas relier le diffuseur avec l'amplificateur allumé. Avant de faire fonctionner le diffuseur, vérifier attentivement que les connexions soient bien faites afin d'éviter des courts-circuits ou des connexions erronées. Deux connecteurs Speakon à...
  • Page 23 ATTENTION Utiliser une seule vis pour chaque point de suspension pour accrocher le diffuseur Les points de suspension sont de M8 pour DVX P8 et DVX P10 ou bien de M10 pour DVX P12 et DVX P15. OUI! OUI!
  • Page 24 FRANÇAIS DVX P series – passive speaker DONNES TECHINIQUES DVX P8 DVX P10 Système Passifs – 2 vie Passifs – 2 vie Puissance RMS 300W 300W Puissance Peak 600W 600W Réponse en fréquence (-10dB) 75Hz-20KHz 70Hz-20KHz (-6dB) 100Hz-20KHz 90Hz-20KHz Crossover...
  • Page 25 FRANÇAIS DONNES TECHINIQUES DVX P12 DVX P15 Système Passivo – 2 vie Passivo – 2 vie Puissance RMS 500W 500W Puissance Peak 1000W 1000W Réponse en fréquence (-10dB) 90Hz-20KHz 60Hz-20KHz (-6dB) 60Hz-20KHz 70Hz-20KHz Crossover 1400Hz 1400Hz Sensibilité 1W@1m 100dB 100dB Pression sonore ( (SPL) 133dBmax 133dBmax...
  • Page 26 DVX P series – passive speaker DIMENSIONI - DIMENSIONS ABMESSUNGEN - DIMENSIONS DVX P8 DVX P10...
  • Page 27 DIMENSIONI - DIMENSIONS ABMESSUNGEN - DIMENSIONS DVX P12 DVX P15...
  • Page 28 DVX P series – passive speaker SCHEMA A BLOCCHI - BLOCK DIAGRAM BLOCKSCHALTBILD - SCHEMAS FONCTIONNELS...
  • Page 29 ANGOLO DI COPERTURA TROMBA / HORN ANGLE COVERAGE HOCHTONHORN ABSTRAHLWINKEL / ANGLE DE COUVERTURE COTE DVX P8 DVX P10 Utilizzo a pavimento (monitor) con tromba ruotata Floor use (monitor) with rotated horn. Verwendung auf dem Boden (monitor) mit gedrehtem Horn.
  • Page 30 DVX P series – passive speaker ANGOLO DI COPERTURA TROMBA / HORN ANGLE COVERAGE HOCHTONHORN ABSTRAHLWINKEL / ANGLE DE COUVERTURE COTE DVX P12 DVX P15 Utilizzo a pavimento (monitor) con tromba ruotata Floor use (monitor) with rotated horn. Verwendung auf dem Boden (monitor) mit gedrehtem Horn.
  • Page 31 INSTALLAZIONE / INSTALLATION INSTALLATIONEN / INSTALLATIONS UTILIZZO IN APPOGGIO SUPPORTED USE ANWENDUNG UTILISATION EN APPUI SUPPORTO PIANTANA STANDARD (D36M) STANDARD STAND (D36MM) STANDARD-HOCHSTÄNDERFLANSCH (D36MM) SUPPORT STANDARD (D36MM)
  • Page 32 SAFETY INSTRUCTIONS FOR ACCESSORIES ZUBEHÖR SICHERHEITSHINWEISE INSTRUCTIONS DE SÉCURITÉ POUR LES ACCESSOIRES Contattare dB Technologies per gli accessori da utilizzare a corredo. Si declina ogni responsabilità da un utilizzo inappropriato degli accessori o di dispositivi aggiuntivi non idonei allo scopo.
  • Page 33 ACCESSORI - ACCESSORIES ZUBEHÖR - ACCESSOIRES KIT COMPLETO SUPPPORTO PIANTANA STAND SUPPORT COMPLETE KIT opzione DTF 8 --> DVX P8 option DTF 8 --> DVX P8 Staffa supporto piantana opzione DTF 10 --> DVX P10 Stand adaptor option DTF 10 --> DVX P10 KIT COMPLETO APPENDIBILITA’...
  • Page 34 DVX P series – passive speaker KIT COMPLETO APPENDIBILITA’ Gli accessori per il fissaggio della staffa HANG SYSTEM COMPLETE KIT non sono forniti in dotazione The fixing accessory for wall bracket are not suppling with the kit opzione DTF 12 --> DXV P12 Staffa supporto piantana option DTF 12 -->...
  • Page 35 APPENDIBILITA’ TRAMITE GOLFARI SUSPENDABLE WITH EYEBOLTS opzione TE M8 --> DXV P8 / DXV P10 option TE M8 --> DXV P8 / DXV P10 L’opzione include solo i golfari. The option including eyebolts only. APPENDIBILITA’ TRAMITE GOLFARI SUSPENDABLE WITH EYEBOLTS opzione TE M10 -->...
  • Page 36 DVX P series – passive speaker KIT COMPLETO APPENDIBILITA’ A MURO WALL HANG SYSTEM COMPLETE KIT opzione WB 09 --> DXV P8 / DXV P10 DXV P12 / DXV P15 option WB 09 --> DXV P8 / DXV P10 DXV P12 / DXV P15...
  • Page 38 DVX P series – passive speaker...
  • Page 40 DVX P series – passive speaker A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA) Tel +39 051 969870 Fax +39 051 969725 www.dbtechnologies.com info@dbtechnologies-aeb.com Codice 420120213 Rev 1.0...
