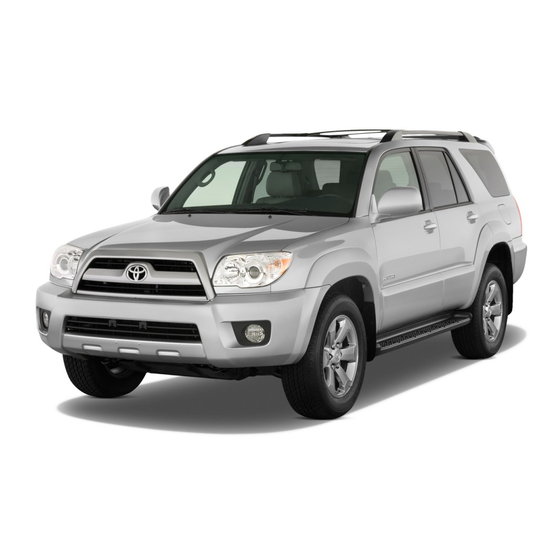

Toyota 2009 4runner Owner's Manual

Toyota 2009 4runner Owner's Manual

Hide thumbs Also See for 2009 4runner:

Owner's manual (512 pages)

,

User manual (512 pages)

,

Quick manual (270 pages)

page of 538

/ 538
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Reference Manual

TABLE OF CONTENTS

1

1-1. Key information

Keys ..................................... 28

1-2. Opening, closing and locking

Wireless remote control ....... 29

Side doors ............................ 33

Back door ............................. 38

1-3. Adjustable components

(seats, mirrors, steering

Front seats ........................... 41

Rear seats............................ 44

Driving position memory

system................................ 58

Head restraints ..................... 60

Seat belts ............................. 63

Steering wheel ..................... 69

Anti-glare inside rear view

mirror.................................. 70

Outside rear view mirrors ..... 73

1-4. Opening and closing the

windows and moon roof

Power windows .................... 76

Power back window ............. 79

Moon roof ............................. 82

Opening the fuel tank cap .... 85

2

Index

1-6. Theft deterrent system

Engine immobilizer system ... 88

Alarm .................................... 90

Theft prevention labels

(U.S.A.)............................... 92

1-7. Safety information

Correct driving posture ......... 93

SRS airbags ......................... 95

Front passenger occupant

classification system ............ 108

Child restraint systems ....... 113

Installing child restraints ..... 117

When driving

2

2-1. Driving procedures

Driving the vehicle .............. 132

Engine (ignition) switch....... 140

Automatic Transmission ...... 143

Turn signal lever ................. 145

Parking brake ..................... 146

Horn.................................... 147

2-2. Instrument cluster

Gauges and meters ............ 148

Indicators and warning

lights ................................. 151

Accessory meter................. 155

2-3. Operating the lights and

Headlight switch ................. 158

Fog light switch................... 162

Windshield wipers and

washer .............................. 163

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the 2009 4runner and is the answer not in the manual?

Questions and answers

Summary of Contents for Toyota 2009 4runner

Page 1: Table Of Contents
TABLE OF CONTENTS Index 1-6. Theft deterrent system Before driving Engine immobilizer system ... 88 Alarm ........90 Theft prevention labels 1-1. Key information (U.S.A.)....... 92 Keys ........28 1-7. Safety information 1-2. Opening, closing and locking Correct driving posture ..93 the doors SRS airbags ......
Page 2 Rear window wiper and 3-2. Using the audio system washer ......165 Audio system (without navigation system)..... 241 2-4. Using other driving systems Using the radio ....244 Cruise control...... 166 Using the CD player ... 250 Electronically modulated Playing back MP3 and air suspension....
Page 3 TABLE OF CONTENTS Index • Console box ..... 312 Maintenance and care • Tissue pocket ....313 • Trash holder ..... 314 • Overhead console .... 316 4-1. Maintenance and care • Cup holders...... 316 • Bottle holders ....321 Cleaning and protecting the •...
Page 4 6-2. Customization When trouble arises Customizable features..495 Items to initialize....498 5-1. Essential information Emergency flashers .... 426 For owners If your vehicle needs to be towed ........ 427 Reporting safety defects for If you think something is U.S. owners...... 500 wrong ........
Page 5 MN 00505-QRG09-4RUN Printed in the USA 7/08...
Page 6 Jack Your dealership and the entire staff of Toyota Motor Sales, Removing the spare tire U.S.A., Inc. wish you many years of satisfied driving in your new 4Runner.
Page 7 EMERGENCY FEATURES Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Monitoring (warning) System Visit your Toyota dealer for information on customizing this feature. Programmable by customer. Refer to the Owner’s Manual for instructions and more information. ® HomeLink...
Page 8 OVERVIEW Instrument panel Steering wheel controls Rear console box Instrument panel light control Driving position memory switches “RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch VSC OFF switch Center differential lock switch 115V AC Power outlet ON/OFF switch Headlight, turn signal and front fog light control Wiper and washer controls...
Page 9 Back window and outside rearview mirror defogger switch Air Conditioning controls Auxiliary boxes Hood release Fuel tank door opener Steering wheel audio controls Telephone switches Cruise control Navigation voice command button AUX adapter 115V AC Power outlet A/V input adapter Downhill Assist Control switch Power back window switch 12V DC Power outlet/Cigarette lighter...
Page 10 OVERVIEW Instrument cluster Limited model only Tachometer Speedometer Service indicator and reminder Fuel gauge Low fuel level warning Engine coolant temperature Trip meter reset knob Odometer and two trip meters Height control indicator Indicator symbols Brake system warning Driver/Front passenger seat belt reminder Charging system warning Low engine oil pressure warning Malfunction/Check Engine indicator...
Page 11 Roll Sensing of Curtain shield Airbag OFF indicator AIR BAG ON indicator AIR BAG OFF indicator Headlight high beam indicator Turn signal indicator Front fog light indicator Automatic Transmission indicator Low speed four-wheel drive indicator Center differential lock indicator Vehicle Stability Control “OFF” indicator Four-wheel drive indicator Slip indicator AUTO Limited Slip Differential indicator...
Page 12 OVERVIEW Fuel tank door release and cap Turn Pull up Store NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate. Keyless entry (if equipped) Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more details.
Page 13 Hood release Pull up latch and Pull raise hood Engine maintenance 6 cylinder (1GR-FE) engine 8 cylinder (2UZ-FE) engine Windshield and back window washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Page 14 FEATURES/OPERATIONS Auto lock functions Automatic door locks can be programmed to operate in four different modes, or turned OFF. -Doors lock when shifting from Park. -Doors lock when the vehicle speed goes above approximately 12 mph. -Doors unlock when shifting into Park. -Doors unlock when the engine switch is set from “ON”...
Page 15 Four-wheel drive (if equipped) Part-time four-wheel drive models High speed (2WD) High speed (4WD) Turn to “H4” with speed below 62 mph. Low speed (4WD) Shift to “N” position, then push and turn to “L4.” Full-time four-wheel drive models High speed Turn to “H4”...
Page 16 FEATURES/OPERATIONS Tilt and telescopic (if equipped) steering wheel (1) Angle (2) Column length To change the angle Hold the steering wheel, pull the lock release lever, tilt to the desired angle, and release the lever. To change the column length Push the lock release lever down, set the desired length, and return the lever to its locked position.
Page 17 Seat adjustments-Rear (vehicles with third row seats) Second row seats Seatback angle Seatback angle Third row seats Seatback angle Seatback angle Seat adjustments-Rear (vehicles without third row seats) (2) Lower (3) Pull up (1) Push (4) Push down (5) Fold down...
Page 18 FEATURES/OPERATIONS Parking brake Set: Depress Release: Depress again Seats-Head restraints Front Lock release button Second row With third seat Without third seat Lock release button Lock release button Third row Lock release button...
Page 19 Windshield wipers & washers Front Adjust interval* Interval wipe Slow Fast Pull to wash and wipe * Intermittent windshield wiper interval adjustment Rotate to increase/decrease wipe frequency. Rear Wash and wipe Wipe Interval wipe Wash and wipe NOTE: Rear wiper and washer operate only when rear window is fully closed.
Page 20 FEATURES/OPERATIONS Lights & turn signals Headlights AUTO* Headlights Parking lights Low beam High beam flasher High beam * If equipped -Daytime Running Light system (if equipped) Automatically turns on the headlights at a reduced intensity. -Automatic light cut off system Will automatically turn lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.
Page 21 Windows Driver side Window lock switch Down Automatic operation (driver side only) Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows.
Page 22 FEATURES/OPERATIONS Cruise control Turning system ON/OFF System ON/OFF Functions Resume /Increase speed Cancel Set/Decrease speed The set speed may also be cancelled by depressing the brake pedal. The set speed may be resumed once vehicle speed exceeds 25 mph. Refer to the Owner’s Manual for more details. Seat heaters (if equipped) Left front seat Right front seat...
Page 23 Air Conditioning/Heating With “DUAL” button Without “DUAL” button Fan speed Temperature selector Automatic climate control ON/OFF “DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Airflow vent In “ ”...
Page 24 FEATURES/OPERATIONS Audio Type 1 Preset buttons - functions in other modes indicated above number. Eject CD Push to turn Push to adjust ON/OFF tone & balance Seek station/ Push to skip CD track select up/down folder View radio/CD Station/CD Mode information track scan Type 2 additional functions...
Page 25 RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.
Page 26 FEATURES/OPERATIONS Door locks Lock Unlock Rear seat entertainment system (if equipped) Front audio system DVD player DVD screen Remote control A/V input adapter 115V AC Power outlet 115V AC Power outlet ON/OFF switch...
Page 27 Refer to the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com. * HomeLink ® is a registered trademark of Johnson Controls, Inc.
Page 28 FEATURES/OPERATIONS Moonroof (if equipped) Sliding operation Tilting operation Open Close Close Tilt Push once to open/close completely. To stop partway, press switch lightly. NOTE: If battery is disconnected, the moonroof will need to be reinitialized. Refer to the Owner’s Manual for more details. Cup holders Center console Rear (without third seats)
Page 29 Bottle holders Rear doors Front doors Power outlets-12V DC Auxiliary box Luggage compartment NOTE: Designed for car accessories. Engine switch must be in the “ACC” or “ON” position to be used. Power outlets-115V AC (if equipped) Inside center console ON/OFF switch Push NOTE: Engine switch must be in the “ON”...
Page 30: Emergency Features
Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details.
Page 31 Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING Two Wheel Drive Four Wheel Drive Anti-Lock Brake System Accessory Automatic Locking Retractor A-TRAC Active Traction Control AUTO LSD Automatic Limited Slip Differential Child Restraint System Downhill assist control Electronic Control Unit Event Data Recorder Emergency Locking Retractor GAWR Gross Axle Weight Rating...
Page 32 ABBREVIATIONS MEANING Supplemental Restraint System Tire Identification Number TPMS Tire Pressure Warning System TRAC Traction Control Treadwear indicators Vehicle Identification Number Vehicle Stability Control...
Page 33: For Your Information
Accessories, spare parts and modification of your Toyota A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.
Page 34 Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Page 35 CAUTION General precaution regarding children’s safety Never leave children unattended in the vehicle, and never allow children to have or use the key. Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, or other features of the vehicle.
Page 36 This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Page 38: Before Driving
TABLE OF CONTENTS Adjusting and operating features such as door locks, Before driving mirrors, and steering column. When driving Driving, stopping and safe-driving information. Interior Air conditioning and audio systems, as well as other in- features terior features for a comfortable driving experience. Maintenance Cleaning and protecting your vehicle, performing do-it- and care...
Page 39 Pictorial index Exterior Headlights (low beam) Front turn signal lights P. 158 P. 145 ∗ Windshield wipers P. 163 Moon roof P. 82 Hood P. 372 Outside rear view mirrors P. 73 Running board ∗ lights P. 305 Headlights Front side marker lights P.
Page 40 ∗ Roof luggage carrier P. 203 Rear turn signal lights P. 145 Rear window defogger P. 240 Fuel filler door P. 85 Back window P. 79 Side doors Rear window wiper P. 33 P. 165 Tires License plate lights P. 158 Rotation P.
Page 41 Pictorial index Interior Console box P. 312 Seat belts P. 63 Horn P. 147 SRS driver Head restraints P. 60 airbag P. 95 Bottle holders P. 321 SRS front passenger airbag P. 95 Glove box P. 310 ∗ Rear seats P.
Page 42 Personal lights P. 306 ∗ Garage door opener switches P. 345 ∗ Moon roof switch P. 82 ∗ Interior lights ∗ Personal/interior lights P. 307 Overhead console Rear seat entertainment ∗ P. 316 system P. 274 SRS curtain shield airbags P.
Page 43 Pictorial index Interior Outside rear view mirror switches P. 73 Door lock switch P. 33 Inside door lock button P. 34 Window lock switch P. 77 Power window switches P. 76...
Page 44 ∗ Height control switch P. 169 HEIGHT CONTROL OFF ∗ ∗ A-TRAC switch switch P. 182 P. 169 ∗ RR DIFF LOCK switch P. 184 Shift lever P. 143 Shift lock override Coin holder P. 311 button P. 457 Cup holders P.
Page 45 Pictorial index Interior Trash holder P. 314...
Page 46 Armrest P. 336 ∗ Rear cup holders P. 316 ∗ Rear cup holders and tray P. 316 ∗ : If equipped...
Page 47 Pictorial index Instrument panel Headlight switch P. 158 Turn signal lever P. 145 ∗ Fog light switch P. 162 Gauges and meters P. 148 Windshield wipers and washer switch P. 163 Rear window wiper and washer switch P. 165 Auxiliary box P.
Page 48 Accessory meter P. 155 Clock P. 325 Emergency flasher switch P. 426 Audio system P. 241 Navigation system Security indicator P. 88 Back window defogger/ Back window and outside rear ∗ view mirror defoggers P. 240 Air conditioning system P. 230 ∗...
Page 49 Pictorial index Instrument panel Engine (ignition) switch P. 140 ∗ Four-wheel drive control switch P. 177...
Page 50 ∗ Audio remote control switches P. 271 Telephone switches Talk switch Cruise control switch P. 166 ∗ : If equipped : Refer to “Navigation System Owner’s Manual”...
Page 51 Pictorial index Instrument panel ∗ Driving position memory switches P. 58 Instrument panel light Tilt steering lock release lever P. 69 control dial P. 149 Power outlet main Telescopic steering lock ∗ ∗ switch P. 329 release lever P. 69 Center differential ∗...
Page 52 Pictorial index Luggage compartment Child restraint anchor brackets P. 117 ∗ Back door strap P. 39 Double deck P. 342 Tie-down hooks Tie-down hooks P. 338 P. 338 Cargo net hooks P. 339 ∗ : If equipped...
Page 53 Pictorial index Luggage compartment Cargo net hooks P. 339 ∗ Luggage cover P. 341 ∗ Auxiliary box P. 322 ∗ Shopping bag hooks P. 340 Jack P. 445 Tools P. 445...
Page 54 Cargo net hooks P. 339 ∗ Auxiliary box P. 343 ∗ Auxiliary box P. 322 ∗ Shopping bag hooks P. 340 Power outlet P. 329 ∗ : If equipped...
Page 55: Key Information
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 458)
Page 56: Opening, Closing And Locking The Doors
1-2. Opening, closing and locking the doors Wireless remote control The wireless remote control can be used to lock and unlock the vehi- cle from outside the vehicle. Locks all doors Unlocks all doors Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.
Page 57 1-2. Opening, closing and locking the doors Door lock buzzer If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the door is made. Fully close the door to stop the buzzer, and lock the vehicle once more.
Page 58 1-2. Opening, closing and locking the doors Customization that can be configured at Toyota dealer Settings (e.g. wireless remote control) can be changed. (Customizable features →P. 495) Certification for wireless remote control For vehicles sold in U.S.A. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to...
Page 59 1-2. Opening, closing and locking the doors FCC WARNING: Changes or modifications not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Page 60: Side Doors
1-2. Opening, closing and locking the doors Side doors The vehicle can be locked and unlocked using the wireless remote control, key or door lock switch. Wireless remote control →P. 29 Locks all doors Unlocks all doors Turning the key a single time in the driver’s door unlocks the driver’s door and turning the key again unlocks the other...
Page 61 1-2. Opening, closing and locking the doors Passenger’s door lock switch Locks all doors Unlocks all doors Inside lock button Locks the door Unlocks the door Pulling the inside handle can open the front door even if the inside door lock button is in the lock position.
Page 62 1-2. Opening, closing and locking the doors Rear door child-protector lock The door cannot be opened from inside the vehicle when the lock is set. These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.
Page 63 1-2. Opening, closing and locking the doors Setting and canceling the functions To switch between setting and canceling, follow the procedure below: Close all the doors and turn the engine switch to the ON posi- tion. (Perform step 2 within 10 seconds.) Set the parking brake.
Page 64 A buzzer sounds if the driver’s door is opened, while the engine switch is in the ACC or LOCK position to remind you to remove the key. Customization that can be configured at Toyota dealer Settings (e.g. unlocking function using a key) can be changed.
Page 65: Back Door
1-2. Opening, closing and locking the doors Back door The back door can be opened using the back door opener. The back door can be locked/unlocked using a key, wireless remote control or door lock switch. Back door opener Push up Raise Wireless remote control →P.
Page 66 1-2. Opening, closing and locking the doors Rear step bumper For rear end protection and eas- ier step-up loading. To get on the rear step bumper, use the shaded area in the illus- tration. Back door strap Use the strap when closing. Back door easy closer In the event that the back door is left slightly open, the back door easy closer will automatically close it to the fully closed position.
Page 67 1-2. Opening, closing and locking the doors CAUTION Observe the following precautions. Failing to do so may result in death or serious injury. Caution while driving Keep the back door and back window closed. If the back door and back window are open, the luggage will be thrown out and exhaust gases will enter the vehicle.
Page 68: Adjustable Components (Seats, Mirrors, Steering Wheel)
1-3. Adjustable components (seats, mirrors, steering wheel) Front seats Manual seat Seat position adjustment lever Seat cushion angle adjust- ment knob (driver’s side only) Seat height adjustment lever (driver’s side only) Seatback angle adjustment lever Seat lumbar support adjust- ment switch (driver’s side only) Power seat Seat position adjustment...
Page 69 1-3. Adjustable components (seats, mirrors, steering wheel) Flattening seatback When flattening the seatbacks (vehicles with manual seat) Remove the head restraint. (→P. 61) Move the seat to the front- most lock position. Pull the seatback angle adjust- ment lever to unlock the seat- back and then push down the seatback.
Page 70 1-3. Adjustable components (seats, mirrors, steering wheel) Move the seatback angle adjust- ment switch backward to flatten the seatback. Waterproof and water-repellent seats (vehicles with off-road package) Waterproof and water-repellent seats are installed in your vehicle; however, the water-repellent effect does not last forever. When returning the seatback upright (vehicles with manual seat) Be careful not to make yourself hit by the seatback which will bound with considerable spring force.
Page 71: Rear Seats
1-3. Adjustable components (seats, mirrors, steering wheel) Rear seats Second seats (vehicles without third seats) The second seats do not have a seat adjustment function. Second seats (vehicles with third seats) Seatback angle adjustment lever...
Page 72 1-3. Adjustable components (seats, mirrors, steering wheel) Third seats (if equipped) Seatback angle adjustment lever Folding down the second seats (vehicles without third seats) Before folding down the second seats Adjust the head restraint to the downmost position.
Page 73 1-3. Adjustable components (seats, mirrors, steering wheel) Stow second seat belt buckle. Lower the trash holder. Folding down the second seats Swing the bottom cushion up by pulling the lock release strap.
Page 74 1-3. Adjustable components (seats, mirrors, steering wheel) Push the lock release button and fold down the seatback. Tumbling the second seats (vehicles with third seats) Before tumbling second seats Adjust the head restraint to the downmost position. Stow the second seat belt buck- les.
Page 75 1-3. Adjustable components (seats, mirrors, steering wheel) Tumbling the second seats Pull the lever to unlock the seat- back and then fold the seatback down. Swing the whole seat up and for- ward until they are locked. When returning the second seats Push the knob to unlock the seat and swing the whole seat down.
Page 76 1-3. Adjustable components (seats, mirrors, steering wheel) Swing the seatback up. Folding up the third seats (vehicles with third seats) Before folding up the third seats Adjust the head restraint to the downmost position. Stow the third seat belt buckles.
Page 77 1-3. Adjustable components (seats, mirrors, steering wheel) Pass the seat belts through the seat belt hangers. This prevents the shoulder belt from being damaged. Make sure that the seat belts are removed from the hangers before using them. Folding up the third seats Fold down third seat by pushing the lock release lever forward.
Page 78 1-3. Adjustable components (seats, mirrors, steering wheel) Retract the seat leg. Take the holding strap out and attach the strap to the assist grip. Pull the free end of the strap then fix it with the hook-and-loop fastener. Remove the seat anchor cov- ers from the back of the seat cushion.
Page 79 1-3. Adjustable components (seats, mirrors, steering wheel) Removing the third seats (vehicles with third seats) Before removing the third seats Adjust the head restraint to the downmost position. Stow the third seat belt buckles. Pass the seat belts through the seat belt hangers.
Page 80 1-3. Adjustable components (seats, mirrors, steering wheel) Removing the third seats Fold down the third seat by pushing the lock release lever forward. Unlock the seat leg by pulling the handle. Lift the whole seat up. Retract the seat leg, then place the seat on the floor.
Page 81 1-3. Adjustable components (seats, mirrors, steering wheel) Reinstalling the third seat (vehicles with third seat) Remove the seat anchor cov- ers. Install the seat anchor covers in the back of the seat cush- ion. Hold the seat and engage the seat striker to the seat lock, then place the seat on the floor.
Page 82 1-3. Adjustable components (seats, mirrors, steering wheel) If you cannot raise the seatback (second seats) Vehicles without third seats Release the seat belt lock by: Pushing on the lower front edge of the seatback to slacken the seat belt. Let the seat belt retract a little. Vehicles with third seats Release the seat belt lock by: Pushing on the lower front edge of the...
Page 83 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION When the seatback is folded Do not sit on or place anything on the seatback while driving. When folding down, tumbling, folding up or removing the seats Do not fold down, tumble, fold up or remove the seat while the vehicle is moving.
Page 84 1-3. Adjustable components (seats, mirrors, steering wheel) NOTICE Before tumbling, folding up or removing the seats The seat belts and buckles must be stowed. Removed third seats (vehicles with third seats) Avoid putting heavy loads on the seat. The metallic tips of the seat leg may be damaged, and you may be unable to correctly reinstall the seat.
Page 85: Driving Position Memory System
1-3. Adjustable components (seats, mirrors, steering wheel) Driving position memory system (if equipped) Your preferred driving position (the position of the driver’s seat) can be entered into the computer’s memory and recalled with the touch of a button. Two different driving positions can be entered into memory. Entering a position into memory Check that the shift lever is set in P.
Page 86 1-3. Adjustable components (seats, mirrors, steering wheel) Retained accessory power Each memorized position can be activated within 30 seconds after the driver’s door is opened, even if the key is not in the engine switch. If any position memory button is pushed while the adjustments are being made The operation will stop.
Page 87: Head Restraints
1-3. Adjustable components (seats, mirrors, steering wheel) Head restraints Adjusting the head restraints Front seats Vertical adjustment Down Push and hold the lock release button when lowering the head restraint. Lock release button Angle adjustment Second seats (vehicles without third seats) Vertical adjustment Down Push and hold the lock release...
Page 88 1-3. Adjustable components (seats, mirrors, steering wheel) Second seats (vehicles with third seats) Vertical adjustment Down Push and hold the lock release button when lowering the head restraint. Lock release button Third seats Vertical adjustment Down Push and hold the lock release button when lowering the head restraint.
Page 89 1-3. Adjustable components (seats, mirrors, steering wheel) Adjusting the height of the head restraints Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears. Adjusting the rear seat head restraints (vehicles without third seats) or center second seat head restraint and third seat head restraints (vehi- cles with third seats) Always raise the head restraint one level from the stowed position when...
Page 90: Seat Belts
1-3. Adjustable components (seats, mirrors, steering wheel) Seat belts Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. Correct use of the seat belts l Extend the shoulder belt so that it comes fully over the shoulder, does come into contact with the...
Page 91 1-3. Adjustable components (seats, mirrors, steering wheel) Releasing the belt Press the release button. Adjusting the height of the belt Down Push the lock release knob and slide the height adjuster down. Move the height adjuster up as needed until you hear a click. Seat belt pretensioners (front seats) The pretensioner helps the seat belt to quickly restrain the occu-...
Page 92 1-3. Adjustable components (seats, mirrors, steering wheel) Emergency locking retractor (ELR) The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.
Page 93 Each seat belt should be used by one person only. Do not use a seat belt for more than one person at once, including children. Toyota recommends that children be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system.
Page 94 If the pretensioner has activated, the seat belt becomes locked: it cannot be further extended, nor will it return to the stowed position. The seat belt cannot be used again and must be replaced at your Toyota dealer. Child restraint lock function belt precaution Do not allow children to play with the child restraint lock function belt.
Page 95 Seat belt damage and wear Ensure that the belt and tab are locked and the belt is not twisted. If the seat belt does not function correctly, immediately contact your Toyota dealer. Replace the seat assembly, including the belts, if your vehicle has been involved in a serious accident, even if there is no obvious damage.
Page 96: Steering Wheel
1-3. Adjustable components (seats, mirrors, steering wheel) Steering wheel The steering wheel can be adjusted to a comfortable position. Tilt steering wheel Hold steering wheel and pull the lever. Adjust to the ideal position by moving the steering wheel verti- cally.
Page 97: Anti-Glare Inside Rear View Mirror
1-3. Adjustable components (seats, mirrors, steering wheel) Anti-glare inside rear view mirror Glare from the headlights of vehicles behind can be reduced by using the following functions. Manual anti-glare inside rear view mirror Normal position Anti-glare position...
Page 98 1-3. Adjustable components (seats, mirrors, steering wheel) Auto anti-glare inside rear view mirror In automatic mode, sensors are used to detect the headlights of vehicles behind and automatically reduces the reflected light. Press the button for longer than 3 seconds to turn auto mode ON/OFF.
Page 99 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION Caution while driving Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and an accident, resulting in death or serious injury.
Page 100: Outside Rear View Mirrors
1-3. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors Mirror angle can be adjusted. Select a mirror to adjust. (L: left or R: right) Adjust the mirror up, down, in or out using the switch. Folding back the mirrors Push backward to fold the mir- rors.
Page 101 1-3. Adjustable components (seats, mirrors, steering wheel) Mirror operating conditions The engine switch is in the ACC or ON position. When the mirrors are fogged up (vehicles with outside rear view mirror defoggers) Turn on the mirror defoggers to defog the mirrors. (→P. 240) Rain clearing mirrors The rain clearing mirrors have been coated to spread the raindrops evenly into a thin film (hydrophilic effect) when they adhere to the mirror surface,...
Page 102 1-3. Adjustable components (seats, mirrors, steering wheel) CAUTION When the mirror defoggers are operating (vehicles with outside rear view mirror defoggers) Do not touch the rear view mirror surfaces, as they can become very hot and burn you. NOTICE If ice should jam the mirror Do not operate the control or scrape the mirror face.
Page 103: Opening And Closing The Windows And Moon Roof
1-4. Opening and closing the windows and moon roof Power windows The power windows can be opened and closed using the following switches. One-touch closing (driver’s window only) Closing One-touch opening (driver’s window only) Opening : Pressing the switch in the opposite direction will stop win- dow travel partway.
Page 104 1-4. Opening and closing the windows and moon roof Lock switch Press the switch down to lock passenger window switches and back window switch. Use this switch to prevent chil- dren from accidentally opening or closing a passenger window and back window.
Page 105 1-4. Opening and closing the windows and moon roof When the battery is disconnected The power windows must be initialized in order to ensure proper operation. (driver’s window only) Open the window halfway. Fully close the window by pulling the switch up and continue hold- ing the switch for 1 second.
Page 106: Power Back Window
1-4. Opening and closing the windows and moon roof Power back window The power back window can be opened and closed using the switch and key. From inside One-touch closing Closing Opening One-touch opening Pressing the switch in the opposite direction will stop win- dow travel partway.
Page 107 Fully close the window by pulling the switch up and continue hold- ing the switch for 1 second. Customization that can be configured at Toyota dealer Settings (e.g. wireless remote control linked operation) can be changed. (Customizable features →P. 495)
Page 108 1-4. Opening and closing the windows and moon roof CAUTION Caution while driving Keep the back door and back window closed. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle. Closing the power back window Observe the following precautions.
Page 109: Moon Roof
1-4. Opening and closing the windows and moon roof Moon roof (if equipped) Use the overhead switches to open, close, and tilt the moon roof up and down. Opening and closing Open Close To stop partway, press the switch lightly. Tilt up and down Tilt up Tilt down...
Page 110 1-4. Opening and closing the windows and moon roof The moon roof can be operated when The engine switch is in the ON position. Operating the moon roof after turning the engine switch off The moon roof can be operated for approximately 43 seconds even after the engine switch is turned off.
Page 111 1-4. Opening and closing the windows and moon roof CAUTION Opening the moon roof Observe the following precautions. Failing to do so may cause death or serious injury. Do not allow any passengers to put their hands or heads outside the vehi- cle while it is moving.
Page 112: Refueling Opening The Fuel Tank Cap
1-5. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap. Before refueling the vehicle Turn the engine switch off and ensure that all the doors and win- dows are closed. Opening the fuel tank cap Pull the fuel filler door lever.
Page 113 1-5. Refueling Closing the fuel tank cap When replacing the fuel tank cap, turn it until a clicking sound is heard. Fuel types Use unleaded gasoline. (Octane rating 87 [Research Octane Number 91] or higher) Fuel tank capacity Approximately 23.0 gal. (87.0 L, 19.1 Imp. gal.) CAUTION Refueling the vehicle Observe the following precautions while refueling the vehicle.
Page 114 This may cause static electricity to build up, resulting in a possible ignition hazard. When replacing the fuel cap Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 115: Theft Deterrent System
1-6. Theft deterrent system Engine immobilizer system The vehicle’s keys have built-in transponder chips that prevent the engine from starting if the key has not been previously registered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. The indicator flashes after the key has been removed from the engine switch to indicate...
Page 116 1-6. Theft deterrent system For vehicles sold in Canada This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.
Page 117: Alarm
1-6. Theft deterrent system Alarm (if equipped) The system sounds the alarm and flashes lights when forcible entry is detected. Triggering of the alarm The alarm is triggered in the following situations. l A locked door is unlocked or opened in any way other than using the wireless remote control door lock function or key.
Page 118 1-6. Theft deterrent system Items to check before locking the vehicle To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following. Nobody is in the vehicle. The windows and moon roof are closed before the alarm is set. No valuables or other personal items are left in the vehicle.
Page 119: Theft Prevention Labels (U.s.a.)
1-6. Theft deterrent system Theft prevention labels (U.S.A.) These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from sto- len vehicles. Do not remove under penalty of law.
Page 120: Safety Information
1-7. Safety information Correct driving posture Drive in a good posture as follows: Sit upright and well back in the seat. (→P. 41) Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 121 1-7. Safety information CAUTION While driving Do not adjust the position of the driver’s seat while driving. Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint, increasing the risk of death or serious injury to the driver or passenger.
Page 122: Srs Airbags
1-7. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. Front airbags Driver airbag/front passenger airbag Can help protect the head and chest of the driver and front pas-...
Page 123 1-7. Safety information Airbag system components Side airbags Occupant detection system (ECU and sensors) AIR BAG ON and AIR BAG OFF indicator lights Curtain shield airbag sen- sors Curtain shield airbags warning light Front passenger airbag RSCA OFF indicator light Side and curtain shield air- RSCA OFF switch bag sensors...
Page 124 1-7. Safety information The main SRS airbag system components are shown above. The SRS airbag system is controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sensor and an airbag sensor. In certain types of severe frontal or side impacts, the SRS airbag sys- tem triggers the airbag inflators.
Page 125 1-7. Safety information Operating conditions (front airbags) The SRS front airbags will deploy if the severity of the frontal impact is above the designed threshold level, comparable to an approximate 15 mph (25 km/h) collision when the vehicle impacts straight into a fixed bar- rier that does not move or deform.
Page 126 1-7. Safety information Conditions under which the SRS airbags may deploy (inflate), other than a collision The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration. Hitting a curb, edge of pavement or hard surface Falling into or jumping over a deep hole...
Page 127 1-7. Safety information Types of collisions that may not deploy the SRS airbag (side airbags and curtain shield airbags) The SRS side airbag and curtain shield airbag system may not activate if the vehicle is subjected to a collision from the side at certain angles, or a colli- sion to the side of the vehicle body other than the passenger compartment.
Page 128 1-7. Safety information When to contact your Toyota dealer In the following cases, contact your Toyota dealer as soon as possible. Do not disconnect the battery cables before contacting your Toyota dealer. Any of the SRS airbags have been inflated.
Page 129 1-7. Safety information CAUTION SRS airbag precautions Observe the following precautions regarding the airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts properly. The SRS airbags are supplemental devices to be used with the seat belts. The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag.
Page 130 An infant or child who is too small to use a seat belt should be properly secured using a child restraint sys- tem. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are...
Page 131 1-7. Safety information CAUTION SRS airbag precautions Do not sit on the edge of the seat or lean against the dashboard. Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger. Do not drive the vehicle while the driver or passenger has items resting on their knees.
Page 132 Wash off any residue as soon as possible to prevent skin irritation. If the areas where the SRS airbags are stored, such as the steering wheel pad, front, center and rear pillars and roof side rail garnishes, are damaged or cracked, have them replaced by your Toyota dealer.
Page 133 Modification and disposal of SRS airbag system components Do not dispose of your vehicle or perform any of the following modifications without consulting your Toyota dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.
Page 134 1-7. Safety information Deactivating the curtain shield airbags in a vehicle rollover ON/OFF (hold for a few sec- onds) The RSCA OFF indicator turns on. (only when the engine switch is in the ON position.) The roll sensing function for the curtain shield airbags and seat belt pretensioners will turn back on automatically each time the...
Page 135: Front Passenger Occupant Classification System
1-7. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classifica- tion system. This system detects the conditions of the front passen- ger seat and activates or deactivates the devices for the front passenger.
Page 136 1-7. Safety information Conditions and operation of the front passenger occupant classification system Adult* AIR BAG ON and AIR BAG OFF indica- AIR BAG ON tor lights Indicator/ SRS warning light warning light Front passenger’s seat belt reminder Flashing* light Front passenger airbag Side airbag on the front passenger seat Devices...
Page 137 1-7. Safety information Unoccupied AIR BAG ON and AIR BAG OFF indica- Not illumi- tor lights nated Indicator/ SRS warning light warning light Front passenger’s seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Devices Curtain shield airbag in the front passen- Activated...
Page 138 1-7. Safety information :Never install a rear-facing child restraint system on the front pas- senger seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable. (→P. 113) :In case the indicator is not illuminated, consult this manual for installing the child restraint system properly.
Page 139 Do not kick the front passenger seat or subject it to severe impact. Other- wise, the SRS warning light may come on to indicate a malfunction of the detection system. In this case, contact your Toyota dealer immediately. Child restraint systems installed on the rear seat should not contact the...
Page 140: Child Restraint Systems
1-7. Safety information Child restraint systems A child restraint system for a small child or baby must itself be prop- erly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 141 1-7. Safety information Forward facing — Convertible seat Booster seat Selecting an appropriate child restraint system Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belts. If a child is too large for a child restraint system, sit the child on a rear seat and use the vehicle’s seat belt.
Page 142 In an accident, the child can be crushed against the windshield, or between you and the vehicle’s interior. Toyota strongly urges the use of a proper child restraint system that con- forms to the size of the child, installed on the rear seat. According to acci- dent statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 143 1-7. Safety information CAUTION Child restraint precautions Make sure you have complied with all installation instructions provided by the child restraint manufacturer and that the system is properly secured. If it is not secured properly, it may cause death or serious injury to the child in the event of a sudden stop or an accident.
Page 144: Installing Child Restraints
1-7. Safety information Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the rear seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Chil- dren) system.
Page 145 1-7. Safety information Seat belts equipped with a child restraint locking mecha- nism (ALR/ELR belts except driver’s seat belt) (→P. 63) Vehicles without third seats Anchor brackets (for top tether strap) Anchor brackets are provided for all rear seats. Vehicles with third seats Anchor brackets (for top tether strap) Anchor brackets are provided...
Page 146 1-7. Safety information Installation with LATCH system (rear/second seat only) Installing on the rear seats (vehicles without third seats) Type A Widen the gap between the seat cushion and seatback slightly. Latch the buckles onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched...
Page 147 1-7. Safety information Type B Widen the gap between the seat cushion and seatback slightly. Latch the hooks of the lower straps onto the LATCH anchors tighten the lower straps. If the child restraint has a top tether strap, the top tether strap should be latched onto...
Page 148 1-7. Safety information Take off the cover on the seat cushion. Type A Widen the slits of the seat cushion slightly. Latch the buckles onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto tether strap anchor.
Page 149 1-7. Safety information Type B Widen the slits of the seat cushion slightly. Latch the hooks of the lower straps onto the LATCH anchors tighten the lower straps. If the child restraint has a top tether strap, the top tether strap should be latched onto tether strap anchor.
Page 150 1-7. Safety information Run the seat belt through the child seat and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt and then allow it to retract slightly in order to activate the ALR lock mode.
Page 151 1-7. Safety information Run the seat belt through the child seat and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt and then allow it to retract slightly in order to activate the ALR lock mode.
Page 152 1-7. Safety information Booster seat Place the booster seat on the seat facing the front of the vehi- cle. Sit the child in the booster seat. Fit the seat belt to the booster seat according to the manufac- turer’s instructions and insert the plate into the buckle.
Page 153 1-7. Safety information Child restraint systems with a top tether strap Secure the child restraint using the LATCH anchors or seat belt, and remove the head restraint. Vehicles without third seats Raise the anchor bracket, latch the hook onto the anchor bracket and tighten the top tether strap.
Page 154 1-7. Safety information Vehicles with third seats Open the anchor bracket cover, latch the hook onto the anchor bracket and tighten the top tether strap. Make sure the top tether strap is securely latched. Hook Top tether strap Anchor bracket Reinstall the head restraint.
Page 155 1-7. Safety information Laws and regulations pertaining to anchorages The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifica- tions can be used. This vehicle is designed to conform to the SAE J1819. When the anchor bracket is not in use (vehicles without third seats) Lower the anchor bracket.
Page 156 1-7. Safety information CAUTION When installing a booster seat Do not fully extend the shoulder belt to prevent the belt from going to ALR lock mode. (→P. 65) ALR mode causes the belt to tighten only which could cause injury or dis- comfort to the child.
Page 157 1-7. Safety information CAUTION When installing a child restraint system When a booster seat is installed, always ensure that the shoulder belt is positioned across the center of the child’s shoulder. The belt should be kept away from the child’s neck, but not so that it could fall off the child’s shoulder.
Page 158: Driving Procedures
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driv- ing. Starting the engine (→P. 140) Driving With the brake pedal depressed, shift the shift lever to D. (→P. 143) Release the parking brake. (→P.
Page 159 Your vehicle has a drum-in-disc type parking brake system. This type of brake system needs bedding-down of the brake shoes periodically or when- ever the parking brake shoes and/or drum are replaced. Have your Toyota dealer perform the bedding down.
Page 160 Have the vehicle inspected by your Toyota dealer immediately. Do not under any circumstances shift the shift lever to P, R or N while the vehicle is moving.
Page 161 2-1. Driving procedures CAUTION When driving the vehicle Do not shift the shift lever to N while the vehicle is moving. Doing so may cause the engine brake to not operate properly and lead to an accident. Do not turn the engine off while driving. The power steering and brake booster systems will not operate properly if the engine is not running.
Page 162 2-1. Driving procedures CAUTION When driving on slippery road surfaces After driving through a puddle, lightly depress the brake pedal to make sure that the brakes are functioning properly. Wet brake pads may prevent the brakes from functioning properly. If the brakes on only one side are wet and not functioning properly, steering control may be affected, resulting in an accident.
Page 163 The exhaust should be checked occasionally. If there is a hole or crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Toyota dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
Page 164 2-1. Driving procedures CAUTION When braking the vehicle If the power brake assist function does not operate, do not follow other vehicles closely and avoid downhills or sharp turns that require braking. In this case, braking is still possible, but it will require more force on the pedal than usual.
Page 165 If you hear a squealing or scraping noise while driving (brake pad wear limit indicators) Have the brake pads checked and replaced by your Toyota dealer as soon as possible. The rotor damage can result if the pads are not replaced when needed.
Page 166: Engine (Ignition) Switch
2-1. Driving procedures Engine (ignition) switch Engine switch LOCK The steering wheel is locked and the key can be removed. (The key can be removed only when the shift lever is in P.) Some electrical components such as the audio system can be used.
Page 167 2-1. Driving procedures Turning the key from ACC to LOCK Shift the shift lever to P. (→P. 143) Push in the key and turn to the LOCK position. Steering lock release When starting the engine, the engine switch may seem stuck in the LOCK posi- tion.
Page 168 2-1. Driving procedures CAUTION Caution while driving Do not turn the engine switch to the LOCK position. If in an emergency, you must turn the engine off while the vehicle is moving, turn the engine switch only to the ACC position. NOTICE To prevent battery discharge Do not leave the engine switch in the ACC or ON position for long periods if...
Page 169: Automatic Transmission
2-1. Driving procedures Automatic Transmission Select a shift position appropriate for the driving conditions. Shifting the shift lever While the engine switch is on, depress the brake pedal and move the shift lever. Shift position uses Shift position Function Parking the vehicle or starting the engine Reversing Neutral Normal driving...
Page 170 2-1. Driving procedures Downshifting restrictions The shift lever cannot be downshifted if the following speeds are exceeded. 2WD models mph (km/h) Maximum speed Downshifting 4.0 L V6 (1GR-FE) engine 4.7 L V8 (2UZ-FE) engine 4 → 3 82 (133) 86 (139) 3 →...
Page 171: Turn Signal Lever
2-1. Driving procedures Turn signal lever Right turn Left turn Move and hold the lever partway to signal a lane change. The right hand signal will flash until you release the lever. Move and hold the lever partway to signal a lane change.
Page 172: Parking Brake
2-1. Driving procedures Parking brake Set the parking brake*. (Depressing the pedal again releases the parking brake.) At this time, the indicator will come on. *: Fully depress the parking brake pedal with your left foot while depressing the brake pedal with your right foot.
Page 173: Horn
2-1. Driving procedures Horn To sound the horn, press on or close to the mark. After adjusting the steering wheel Make sure that the steering wheel is securely locked. The horn may not sound if the steering wheel is not securely locked. (→P.
Page 174: Instrument Cluster Gauges And Meters
2-2. Instrument cluster Gauges and meters The following gauges, meters and displays illuminate when the engine switch is in the ON position. Tachometer Displays the engine speed in revolutions per minute. Speedometer Displays the vehicle speed. Fuel gauge Displays the quantity of fuel remaining in the tank. Engine coolant temperature gauge Displays the engine coolant temperature.
Page 175 2-2. Instrument cluster Odometer/trip meter Odometer: Displays the total distance the vehicle has been driven. Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display differ- ent distances independently.
Page 176 2-2. Instrument cluster NOTICE To prevent damage to the engine and its components Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed. The engine may be overheating if the temperature gauge is in the red zone (H).
Page 177: Indicators And Warning Lights
2-2. Instrument cluster Indicators and warning lights The indicator and warning lights on the instrument cluster and cen- ter panel inform the driver of the status of the vehicle’s various sys- tems. Instrument cluster (type A) Instrument cluster (type B)
Page 178 2-2. Instrument cluster Instrument cluster (type C) Center panel...
Page 179 2-2. Instrument cluster Indicators The indicators inform the driver of the operating state of the vehicle’s various systems. Turn signal indicator Slip indicator (→P. 145) (→P. 175, 183, 189) Headlight high beam VSC OFF indicator indicator (→P. 159) (→P. 179, 191) Headlight indicator Active traction control (→P.
Page 180 There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
Page 181: Accessory Meter
2-2. Instrument cluster Accessory meter RESET button MODE button Trip information display (air conditioning system without DUAL button) Displays the trip information. (→P. 156) Outside temperature and trip information display (air condition- ing system with DUAL button) Displays the outside temperature and trip information. (→P. 156, 326) Clock (→P.
Page 182 2-2. Instrument cluster Outside temperature and trip information display (if equipped) Every time the MODE button is pushed, the display toggles through these information. l OUTSIDE (outside temperature display) Displays the outside air temperature. The temperature range that can be displayed is from -22°F (-30°C) to 122 °F (50°C).
Page 183 2-2. Instrument cluster l Display off CAUTION Caution while driving Do not adjust the display. Doing so may cause the driver to mishandle the vehicle and cause an acci- dent, resulting in death or serious injury.
Page 184: Operating The Lights And Wipers
2-3. Operating the lights and wipers Headlight switch The headlights can be operated manually or automatically. Vehicles without automatic light control system The side marker, park- ing, tail, license plate and instrument panel lights turn on. The headlights and all lights listed above turn U.S.A.
Page 185 2-3. Operating the lights and wipers Vehicles with automatic light control system The side marker, park- ing, tail, license plate and instrument panel lights turn on. The headlights and all lights listed above turn The headlights and all lights listed above turn U.S.A.
Page 186 To turn the lights on again, turn the engine switch to the ON position, or turn the headlight switch off once and then back to the position. Customization that can be configured at Toyota dealer Settings (e.g. light sensor sensitivity) can be changed. (Customizable features →P. 495)
Page 187 2-3. Operating the lights and wipers NOTICE To prevent battery discharge Do not leave the lights on longer than necessary when the engine is not run- ning.
Page 188: Fog Light Switch
2-3. Operating the lights and wipers Fog light switch (if equipped) The fog lights improve visibility in difficult driving conditions, such as in rain or fog. They can be turned on only when the headlights are on low beam. Front fog lights ON...
Page 189: Windshield Wipers And Washer
2-3. Operating the lights and wipers Windshield wipers and washer Wiper intervals can be adjusted for intermittent operation (when INT is selected.) Intermittent windshield wiper operation Low speed windshield wiper operation High speed windshield wiper operation Decreases the intermittent windshield wiper frequency Increases the intermittent windshield wiper frequency...
Page 190 2-3. Operating the lights and wipers Washer/wiper dual opera- tion Wipers will automatically oper- ate a couple of times after the washer squirts. The windshield wiper and washer can be operated when The engine switch must be in the ON position. If no windshield washer fluid sprays Check that the washer nozzles are not blocked and if there is washer fluid in the windshield washer fluid reservoir.
Page 191: Rear Window Wiper And Washer
2-3. Operating the lights and wipers Rear window wiper and washer Intermittent window wiper operation. Normal window wiper oper- ation Washer/wiper dual opera- tion Washer/wiper dual opera- tion The rear window wiper oper- ates while the washer squirts. The rear window wiper and washer can be operated when The engine switch must be in the ON position.
Page 192: Using Other Driving Systems
2-4. Using other driving systems Cruise control Use cruise control to maintain a set speed without using the acceler- ator. Indicator Cruise control switch Set the vehicle speed Press the ON-OFF button to turn the cruise control on. At this time, the cruise control indicator will come on.
Page 193 2-4. Using other driving systems Adjusting the speed setting Increase speed Decrease speed Hold the lever until the desired speed setting is obtained. Fine adjustment of the set speed (approximately 1.0 mph [1.6 km/h]) can be made by lightly pushing the lever up or down and releasing it.
Page 194 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer. CAUTION To avoid operating the cruise control by mistake Keep the ON-OFF button off when not in use.
Page 195: Electronically Modulated Air Suspension
2-4. Using other driving systems Electronically modulated air suspension (if equipped) The electronically modulated air suspension allows the driver to control the vehicle’s height in order to adjust for driving conditions. Select the desired height with the height control switch. Height control switch HEIGHT CONTROL OFF switch...
Page 196 2-4. Using other driving systems Selecting vehicle height Higher Lower Vehicle height can be adjusted only when the engine is running. height control indicator stops blinking, and comes on continuously to indicate that the mode shift is completed. Height modes l N mode (normal mode): For ordinary driving Normal height l HI mode (high mode): For driving on bumpy roads and through...
Page 197 2-4. Using other driving systems l LO mode (low mode): For the ease of egress/ingress and load- ing luggage 0.8 in. (20 mm) lower than the normal height The LO mode is unavailable when the vehicle’s speed exceeds 8 mph (12 km/h). When the vehicles speed exceeds 8 mph (12 km/h), the height will be adjusted to the normal height automatically.
Page 198 2-4. Using other driving systems Automatic leveling function Regardless of the number of occupants or the luggage load, vehicle height in any mode is always adjusted to a fixed height by the automatic leveling function. When HI mode is selected The vehicle height will change to N mode when driving at the speeds of 18 mph (30 km/h).
Page 199 2-4. Using other driving systems CAUTION The electronically modulated air suspension must be turned off in the following circumstances: Otherwise, the automatic leveling function may cause the vehicle’s height to change, resulting in an unexpected accident. When driving through water such as shallow streams (Put the vehicle height in HI mode and turn off the electronically modulated air suspension.
Page 200 2-4. Using other driving systems NOTICE Be careful in any place where overhead space is limited. When changing to a higher mode or after unloading, the vehicle height will rise. This may cause damage to the vehicle. Do not select LO mode when driving on bumpy roads. If the underbody of the vehicle touches a rugged road surface, the vehicle may be damaged.
Page 201: Auto Lsd System (2Wd Models And Multi-Mode 4Wd Models)
2-4. Using other driving systems AUTO LSD system (2WD models and Multi-mode 4WD models) The AUTO LSD system aids traction by using the traction control system to control engine performance and braking when one of the rear wheels begins to spin. The system should be used only when one of the rear wheels spin- ning occurs in a ditch or rough surface.
Page 202 2-4. Using other driving systems When the AUTO LSD system is operating If the rear wheels spin, the slip indicator flashes to indicate that the AUTO LSD system have been controlled the spinning of the rear wheels. If the brake system overheats The system will cease operation and a buzzer will sound to alert the driver.
Page 203: Four-Wheel Drive System (4Wd Models)
2-4. Using other driving systems Four-wheel drive system (4WD models) Use the four-wheel drive control switch and center differential lock switch to select the following transfer and center differential modes. Four-wheel drive control switch Multi-mode 4WD models H2 (high speed position, two-wheel drive) Normal driving H4 (high speed position,...
Page 204 2-4. Using other driving systems Full-time 4WD models H4 (high speed position) Normal driving on all types of roads. L4 (low speed position) Driving requiring maximum power and traction such as climbing descending steep hills, off-road driving, and hard pulling in sand or mud, etc.
Page 205 2-4. Using other driving systems Center differential lock switch Use the center differential lock system when the wheels get stuck in a ditch, or when driv- ing on a slippery or bumpy surface. Unlock the center differen- tial after the wheels have been freed, or after moving to a flat, non-slippery sur- face.
Page 206 N and operate the switch again. If the indicators continue to blink even if doing so, contact your Toyota dealer as soon as possible. There may be a trouble in the four-wheel drive system.
Page 207 2-4. Using other driving systems Limited slip center differential If one wheel begins to spin, the limited slip center differential (transfer) is designed to aid traction by automatically transmitting driving force to the wheels on the other drive axle. It transmits driving force to the front wheels if a rear wheel spins, and to the rear wheels if a front wheel spins.
Page 208: Active Traction Control System (L4 Mode On 4Wd Models)
2-4. Using other driving systems Active traction control system (L4 mode on 4WD models) The active traction control system automatically helps prevent the spinning of 4 wheels when the vehicle is started or accelerated on slippery road surfaces. System operation Vehicles without the A-TRAC switch Stop the vehicle, shift the shift lever to N and turn the four-wheel drive control switch to the L4 position.
Page 209 2-4. Using other driving systems When the active traction control system is operating If all wheels spin, the slip indica- tor flashes to indicate that the active traction control system have been engaged. When the rear differential is locked (vehicles with the rear differential lock system) The active traction control system is activated only when the vehicle speed is less than 4 mph (6 km/h).
Page 210: Rear Differential Lock System
2-4. Using other driving systems Rear differential lock system (if equipped) The rear differential lock system is provided for use only when wheel spinning occurs in a ditch or on a slippery or rugged surface. The rear differential lock system is effective in case one of the rear wheels is spinning.
Page 211 2-4. Using other driving systems Gently depress the accelerator pedal. Unlock the rear differential as soon as the vehicle moves out. To unlock the rear differential, push the switch again. Locking the rear differential When the rear differential is locked, VSC is automatically turned off. (The rear differential lock and VSC OFF indicators come on.) The following systems do not operate when the rear differential is locked.
Page 212: Downhill Assist Control
2-4. Using other driving systems Downhill Assist Control (if equipped) The downhill assist control system helps to prevent excessive speed on steep downhill descents. System operation The system will operate when the vehicle is traveling under 15 mph (25 km/h) and the four-wheel drive control switch is in the L4 position.
Page 213 ON position. The downhill assist control indicator does not come on when the DAC switch is pressed. In the above cases have your vehicle checked by your Toyota dealer. CAUTION Do not rely excessively on the downhill assist control system It may not be able to maintain a low speed over road surfaces on which slid- ing can easily occur, such as extremely steep slopes or icy or muddy roads.
Page 214: Driving Assist Systems
2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following sys- tems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ABS (Anti-lock Brake System) Helps to prevent wheel lock when the brakes are applied suddenly, or if the brakes are applied while driving on a slippery road surface.
Page 215 2-4. Using other driving systems When the VSC/TRAC/A-TRAC/hill-start assist control system are operating If the vehicle is in danger of slip- ping, the rear wheels (2WD mod- els) four wheels (4WD models) spin, the vehicle starts to roll backwards when starting on an incline, the slip indicator flashes to indicate that the VSC/ TRAC/A-TRAC/hill-start...
Page 216 2-4. Using other driving systems To disable TRAC, AUTO LSD and/or VSC (2WD models and H2 mode on Multi-mode 4WD models) If the vehicle gets stuck in fresh snow or mud, TRAC or VSC may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it.
Page 217 2-4. Using other driving systems VSC OFF mode Stop the vehicle completely, and press the VSC OFF switch for more than 3 seconds. The slip and VSC OFF indicators will come on. The system is in TRAC off, AUTO LSD off and VSC off mode.
Page 218 2-4. Using other driving systems To disable TRAC and/or VSC (H4 mode on 4WD models) If the vehicle gets stuck in fresh snow or mud, TRAC or VSC may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it.
Page 219 2-4. Using other driving systems VSC OFF mode Stop the vehicle completely, and press the VSC OFF switch for more than 3 seconds. The slip and VSC OFF indicators will come on. The system is in TRAC off and VSC off mode.
Page 220 2-4. Using other driving systems To disable TRAC (four-wheel drive control switch is in H4 mode and center differential lock is locked on 4WD models) If the vehicle gets stuck in fresh snow or mud, TRAC may reduce power from the engine to the wheels. You may need to turn the sys- tem off to enable you to rock the vehicle in order to free it.
Page 221 2-4. Using other driving systems To disable A-TRAC and VSC (L4 mode on 4WD models) If the vehicle gets stuck in fresh snow or mud, A-TRAC or VSC may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it.
Page 222 2-4. Using other driving systems Sounds and vibrations caused by the ABS, TRAC, A-TRAC, VSC and brake assist system A sound may be heard from the engine compartment when the engine is started or just after the vehicle begins to move. This sound does not indi- cate that a malfunction has occurred in any of these systems.
Page 223 The ABS and VSC will not function correctly if different tires are fitted on the vehicle. Contact your Toyota dealer for further information when replacing tires or wheels. Handling of tires and suspension Using tires with any kind of problem or modifying the suspension will affect...
Page 224: Driving Information
2-5. Driving information Off-road precautions This vehicle belongs to the utility vehicle class, which has higher ground clearance and narrower tread in relation to the height of its center of gravity to make it capable of performing in a wide variety of off-road applications.
Page 225 2-5. Driving information CAUTION Off-road vehicle precautions Always observe the following precautions to minimize the risk of serious per- sonal injury or damage to your vehicle: In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. Therefore, the driver and all passengers should fasten their seat belts whenever the vehicle is moving.
Page 226 2-5. Driving information Off-road driving When driving your vehicle off-road, please observe the following pre- cautions to ensure your driving enjoyment and to help prevent the closure of areas to off-road vehicles. l Drive your vehicle only in areas where off-road vehicles are permit- ted to travel.
Page 227 2-5. Driving information CAUTION Off-road driving precautions Always observe the following precautions to minimize the risk of serious per- sonal injury or damage to your vehicle: Drive carefully when off the road. Do not take unnecessary risks by driving in dangerous places. Do not grip the steering wheel spokes when driving off-road.
Page 228 2-5. Driving information NOTICE To prevent the water damage Take all necessary safety measures to ensure that water damage to the engine or other components does not occur. Water entering the engine air intake will cause severe engine damage. Water entering the automatic transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ulti- mately damage.
Page 229: Cargo And Luggage
2-5. Driving information Cargo and luggage Take notice of the following information about storage precau- tions, cargo capacity and load. l Stow cargo and luggage in the luggage compartment whenever possible. l Be sure all items are secured in place. l Be careful to keep the vehicle level.
Page 230 2-5. Driving information Adjustment the position of cross rails Turn the knobs counterclockwise to loosen the cross rails. Slide the cross rails to the appro- priate position for loading lug- gage. After adjusting, be sure to tighten the cross rails by turning knobs clockwise.
Page 231 2-5. Driving information Capacity and distribution Cargo capacity depends on the total weight of the occupants. (Cargo capacity) = (Total load capacity) − (Total weight of occupants) Steps for Determining Correct Load Limit— (1)Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.”...
Page 232 2-5. Driving information Example on your vehicle Cargo capacity Total load capacity When 2 people with the combined weight of 366 lb. (166 kg) are riding in your vehicle, the available amount of cargo and luggage load capacity will be as follows: Without third seats —...
Page 233 2-5. Driving information Seating configuration variation Cargo capacity Weight of removed third seat If removing the third seat, it is possible to load extra cargo equal to the weight of the removed seats. (Cargo capacity) = (Total load capacity) − (Total weight of occupants) + (Weight of the removed third seats) Third seat weight: Each seat 24 lb.
Page 234 2-5. Driving information CAUTION Things that must not be carried in the luggage compartment The following things may cause a fire if loaded in the luggage compart- ment. Receptacles containing gasoline Aerosol cans Storage precautions Do not stack anything in the luggage compartment higher than the seatbacks.
Page 235 Roof luggage carrier precautions To use the roof rails as a roof luggage carrier, you must fit the roof rails with two or more genuine Toyota cross rails or their equivalent. When you load cargo on the roof luggage carrier, observe the following:...
Page 236 2-5. Driving information NOTICE Cross rail adjustment Do not remove the cross rail stoppers, or the moon roof may be damaged when it is tilted. When loading the luggage Be careful not to scratch the surface of the moon roof.
Page 237: Vehicle Load Limits
2-5. Driving information Vehicle load limits Vehicle load limits include total load capacity, seating capacity, towing capacity and cargo capacity. Total load capacity: Without third seats — 950 lb. (431 kg) With third seats — 1050 lb. (477 kg) Total load capacity means the combined weight of occupants, cargo and luggage.
Page 238 2-5. Driving information Total load capacity and seating capacity These details are also described on the tire and loading information label.(→P. 395) CAUTION Overloading the vehicle Do not overload the vehicle. It may not only cause damage to the tires, but also degrade steering and braking ability, resulting in an accident.
Page 239: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropri- ate to the prevailing weather conditions. Pre-winter preparations l Use fluids that are appropriate to the prevailing outside tem- peratures.
Page 240 2-5. Driving information When driving the vehicle Accelerate the vehicle slowly and drive at a reduced speed suit- able to road conditions. When parking the vehicle Park the vehicle and move the shift lever to P without setting the parking brake. The parking brake may freeze up, preventing it from being released.
Page 241 NOTICE Repairing or replacing snow tires Request repairs of and obtain replacement snow tires from Toyota dealers or legitimate tire retailers. This is because the removal and attachment of snow tires affects the opera- tion of the tire pressure warning valves and transmitters.
Page 242: Trailer Towing
The vehicle stability and braking performance are affected by trailer stability, brake setting and performance, and the hitch. Toyota warranties do not apply to damage or malfunction caused by towing a trailer for commercial purposes. Contact your Toyota dealer for further information about additional requirements such as a towing kits, etc.
Page 243 2-5. Driving information GCWR For weight carrying hitch 4.0 L V6 (1GR-FE) engine — 9600 lb. (4354 kg) 4.7 L V8 (2UZ-FE) engine — 9750 lb. (4422 kg) For weight distributing hitch (4.7 L V8 [2UZ-FE] engine only) 12000 lb. (5443 kg) l The gross combination weight must never exceed the GCWR above.
Page 244 2-5. Driving information Towing related term Towing related term Meaning The maximum allowable gross vehicle weight. The gross vehicle weight is the total weight of the GVWR (Gross Vehicle vehicle. When towing a trailer, it is the sum of the Weight Rating) vehicle weight (including the occupants, cargo and any optional equipment installed on the vehicle) and...
Page 245 2-5. Driving information Trailer tongue load l A recommended tongue load varies in accordance with the types of trailers or towing as described below. l In order to ensure the recommended values shown below, the trailer must be loaded by referring to the following instructions. The trailer cargo load should be distributed so that the tongue load is 10% of the gross trailer weight, not exceeding the following.
Page 246 2-5. Driving information Selecting trailer ball Use the correct trailer ball for your application. Trailer ball load rating Matches or exceeds the gross trailer weight rating of the trailer. Ball diameter Matches the size of the trailer coupler. Most couplers stamped with the required trailer ball size.
Page 247 2-5. Driving information Connecting trailer lights Use the wire harness stored in the rear end under body. Trailer towing tips Your vehicle will handle differently when towing a trailer. The three main causes of vehicle-trailer accidents are driver error, excessive speed and improper trailer loading.
Page 248 2-5. Driving information l Avoid sudden braking as you may skid, resulting in jackknifing and loss of control. This is especially true on wet or slippery surfaces. l Avoid jerky starts or sudden acceleration. l Avoid jerky steering and sharp turns, and slow down before mak- ing a turn.
Page 249 2-5. Driving information l Always place wheel blocks under both the vehicle and the trailer wheels when parking. Apply the parking brake firmly, and put the transmission in P. Avoid parking on a slope, but if unavoidable, do so only after performing the following: Apply the brakes and keep them applied.
Page 250 2-5. Driving information Matching trailer ball height to trailer coupler height No matter which class of tow hitch applies, for a safe trailer hookup, the trailer ball setup on must be the proper height for the coupler on the trailer. Coupler Trailer ball Before towing...
Page 251 Break-in schedule If your vehicle is new or equipped with any new power train components (such as an engine, transmission, differential and wheel bearing), Toyota recommends that you do not tow a trailer until it has been driven for over 500 miles (800 km).
Page 252 This could cause the brakes to overheat and result in reduced braking efficiency. Hitches If you wish to install a trailer hitch, contact your Toyota dealer. Use only a hitch that conforms to the gross trailer weight requirement. Follow the directions supplied by the hitch manufacturer.
Page 253 NOTICE When installing a trailer hitch Use only the position recommended by your Toyota dealer. Do not install the trailer hitch on the bumper; this may cause body damage. Do not use axle-mounted hitches, as they can cause damage to the axle housing, wheel bearing, wheels or tires.
Page 254: Dinghy Towing
2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle Do not tow your vehicle with four wheels on the ground.
Page 255: Using The Air Conditioning System And Defogger
3-1. Using the air conditioning system and defogger Air conditioning system Airflow and outlets are automatically adjusted according to the tem- perature setting. Control panel (vehicles without DUAL button) Temperature control switch Air conditioning ON/OFF switch Automatic mode Windshield defogger Fan speed selector switches Fan OFF switch Air flow selector switches...
Page 256 3-1. Using the air conditioning system and defogger Control panel (vehicles with DUAL button) Automatic mode Individual mode Driver’s side temperature Passenger’s side temperature control switch control switch Fan speed selector switches Windshield defogger Air flow selector switches Fan OFF switch Air intake mode switch Air conditioning ON/OFF switch...
Page 257 3-1. Using the air conditioning system and defogger Display Driver’s side temperature setting display Airflow display Passenger’s side temperature Fan speed display setting display (vehicles with DUAL button) Using the automatic mode Press The air conditioning system will begin to operate. Air outlets and fan speed are automatically adjusted according to the temperature set- ting.
Page 258 3-1. Using the air conditioning system and defogger Adjusting the settings Adjusting the temperature setting Vehicles without DUAL button Press to increase the temperature and to decrease the temperature. Vehicles with DUAL button Driver’s side: Press to increase the temperature and to decrease the temperature.
Page 259 3-1. Using the air conditioning system and defogger Adjusting the fan speed Touch any switch of (decrease ↔ increase). The fan speed is shown on the display. (4 levels) Press to turn the fan off. Changing the air outlets Push the air flow selector switch. The air outlets switch each time any of the air flow selector switch is pushed.
Page 260 3-1. Using the air conditioning system and defogger When is pushed, air flows to the feet. When is pushed, air flows to the feet and the windshield defogger operates. Recirculated air mode will auto- matically switch to outside air mode. To return the recirculated air mode, press When...
Page 261 3-1. Using the air conditioning system and defogger Switching between outside air and recirculated air modes Press The mode switches between (outside air mode) and (recirculated air mode) each time the switch is pressed. Adjusting the position and opening and closing the air outlets Front center outlets Direct air flow to the left or right, up or down.
Page 262 3-1. Using the air conditioning system and defogger Front side outlets Direct air flow to the left or right, up or down. Turn the knob to open or close the vent. Rear center outlets Direct air flow to the left or right, up or down.
Page 263 There may be a problem in the air conditioning system if the indicator continues to flash. Turn the air conditioning system off and have it inspected by your Toyota dealer.
Page 264 3-1. Using the air conditioning system and defogger CAUTION To prevent the windshield from fogging up Do not use during cool air operation in extremely humid weather. The difference between the temperature of the outside air and that of the wind- shield can cause the outer surface of the windshield to fog up, blocking your vision.
Page 265: Rear Window And Outside Rear View Mirror Defoggers
3-1. Using the air conditioning system and defogger Rear window and outside rear view mirror defoggers (if equipped) Clear the rear window using the defogger. On/off Press the button to turn on the rear window defogger. The indicator will come on. The defoggers will automatically turn off after approximately 15 minutes.
Page 266: Using The Audio System
3-2. Using the audio system Audio system (without navigation system) Owners of models equipped with a navigation system should refer to the “Navigation System Owner’s Manual”. Type A: CD player with external CD changer controller and AM/FM radio Type B and C: CD player with changer and AM/FM radio Type A Type B...
Page 267 3-2. Using the audio system Type C Title Page Using the radio P. 244 Using the CD player P. 250 Playing back MP3 and WMA discs P. 257 Optimal use of the audio system P. 266 Using the AUX adapter P.
Page 268 3-2. Using the audio system CAUTION For vehicles sold in U.S.A. and Canada Part 15 of the FCC Rules FCC Warning: Any unauthorized changes or modifications to this equipment will void the user’s authority to operate this device. Laser products •...
Page 269: Using The Radio
3-2. Using the audio system Using the radio Type A and B Power Volume Frequency adjust (AM, FM mode) or channel (SAT mode only for Type B) Station selector Frequency seek Station scan Text message display AM·SAT/FM mode buttons (SAT mode only for Type B) (SAT mode only for Type B) Type C Power...
Page 270 3-2. Using the audio system ® Setting station presets (excluding XM Satellite Radio) Search for desired stations by turning , or pressing “∧” or “∨” on Press and hold the button (from ) that the station is to be set to until you hear a beep. ®...
Page 271 3-2. Using the audio system Turn to select the desired channel in all cat- ∧ egories or press “ ” or “∨” on to select the desired channel in the current category. ® Setting XM Satellite Radio channel presets Select the desired channel. Press and hold the button (from ) that the channel is to be set to until you hear a beep.
Page 272 3-2. Using the audio system l NAME (ARTIST NAME/FEATURE) l CH NUMBER When the battery is disconnected Stations presets are erased. Reception sensitivity Cargo loaded on the roof luggage carrier, especially metal objects, may ® adversely affect the reception of XM Satellite Radio.
Page 273 XM antenna cable is attached securely. ANTENNA There is a short-circuit in the antenna or the sur- rounding antenna cable. See a Toyota certified dealer. ® You have not subscribed to the XM Satellite Radio. The radio is being updated with the latest ®...
Page 274 3-2. Using the audio system The unit is acquiring audio or program information. LOADING Wait until the unit has received the information. The channel you selected is not broadcasting any OFF AIR programming. Select another channel. There is no song/program title or artist name/fea- ----- ture associated with the channel at that time.
Page 275: Using The Cd Player
3-2. Using the audio system Using the CD player Type A and B CD selection (with external CD changer only for Type A) Volume Power Fast-forward Reverse CD eject CD insert (Type B) Track selection Search playback Display text message Repeat play Playback Random playback...
Page 276 3-2. Using the audio system Loading CDs Loading a CD (type A) Insert a CD. Loading a CD (type B and C) Press WAIT is shown on the display. Insert a CD when the indicator on the slot turns from amber to green.
Page 277 3-2. Using the audio system Ejecting a CD (type B and C) To select the CD to be ejected. Press The number of the CD selected is shown on the display. Press and remove the CD. Ejecting all the CDs (type B and C) Press and hold until you hear a beep, and then remove the CDs.
Page 278 3-2. Using the audio system Fast-forwarding and reversing tracks To fast-forward or reverse. Press and hold Repeat play Repeating a track Press Repeating all of the tracks on a CD (with CD changer only) Press and hold until you hear a beep. Random playback Current CD Press...
Page 279 Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Toyota dealer if the CD still cannot be played back. Discs that can be used Discs with the marks shown below can be used.
Page 280 3-2. Using the audio system Lens cleaners Do not use lens cleaners. Doing so may damage the CD player. When inserting the CDs This player can store up to six discs. NOTICE CDs and adapters that cannot be used Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Disc.
Page 281 3-2. Using the audio system NOTICE CDs that have had tape, stickers or CD- R labels attached to them, or that have had the label peeled off CD player precautions Failure to follow the precautions below may result in serious damage to the CDs or the player itself.
Page 282: Playing Back Mp3 And Wma Discs
3-2. Using the audio system Playing back MP3 and WMA discs Type A and B Disc selection (Type B) Volume Power Fast-forward Disc insert Disc eject Reverse (Type B) File selection File selection Folder selection Search playback Display text message Repeat play Random playback Playback...
Page 283 3-2. Using the audio system Loading MP3 and WMA discs Loading a disc (type A) Insert a disc. Loading a disc (type B and C) Press WAIT is shown on the display. Insert a disc when the indicator on the slot turns from amber to green.
Page 284 3-2. Using the audio system Ejecting a disc (type B and C) To select the disc to be ejected. Press The number of the disc selected is shown on the display. Press and remove the disc. Ejecting all the discs (type B and C) Press and hold until you hear a beep, and then remove the discs.
Page 285 3-2. Using the audio system Selecting and scanning files Selecting one file at a time To select the desired file, turn the , or press “∧” or “∨” on Scanning the desired file by cueing the files in the folder Press The first 10 seconds of all files in the folder will be played.
Page 286 Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Con- tact your Toyota dealer if the CD still cannot be played. NO MUSIC:This indicates that the MP3/WMA file is not included in the CD.
Page 287 3-2. Using the audio system Discs that can be used Discs with the marks shown below can be used. Playback may not be possible depending on recording format or disc fea- tures, or due to scratches, dirt or deterioration. MP3 and WMA player protection feature To protect the internal components, playback is automatically stopped when a problem is detected while the MP3 and WMA player is being used.
Page 288 3-2. Using the audio system MP3 file compatibility • Compatible standards MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3) • Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz) MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz) • Compatible bit rates (compatible with VBR) MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps) MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps) •...
Page 289 3-2. Using the audio system Items related to standards and limitations are as follows. • Maximum directory hierarchy: 8 levels • Maximum length of folder names/file names: 32 characters • Maximum number of folders: 192 (including the root) • Maximum number of files per disc: 255 File names The only files that can be recognized as MP3/WMA and played are those with the extension .mp3 or .wma.
Page 290 3-2. Using the audio system Playback • To play MP3 files with steady sound quality, we recommend a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz. • CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
Page 291: Optimal Use Of The Audio System
3-2. Using the audio system Optimal use of the audio system Type A and B Displays the current mode Changes the following set- tings l Sound quality and vol- ume balance The sound quality and bal- ance settings changed to produce the Type C best sound.
Page 292 3-2. Using the audio system Mode Sound qual- Turn to the Turn to the Level displayed ity mode left right Bass* -5 to 5 Mid-range* -5 to 5 High (type C only) Treble* -5 to 5 Front/rear Shifts to volume R7 to F7 Shifts to rear front...
Page 293 3-2. Using the audio system Setting the rear seat entertainment system lock (if equipped) When RSE is selected, turn until ON/OFF is displayed. The rear seat entertainment sys- tem lock remains on, even when the engine switch is turned off. Trademark owned by SRS Labs, Inc.
Page 294: Using The Aux Adapter
3-2. Using the audio system Using the AUX adapter This adapter can be used to connect a portable audio device and lis- ten to it through the vehicle’s speakers. Pull up the console box lid while pushing the lock release button.
Page 295 3-2. Using the audio system Type A and B Press Type C Press Operating portable audio devices connected to the audio system The volume can be adjusted using the vehicle’s audio controls. All other adjustments must be made on the portable audio device itself. When using a portable audio device connected to the power outlet Noise may occur during playback.
Page 296: Using The Steering Wheel Audio Switches
3-2. Using the audio system Using the steering wheel audio switches (if equipped) Some audio features can be controlled using the switches on the steering wheel. Volume Radio: Select radio stations Select tracks, files (MP3 and WMA) and discs DVD: Select tracks and chapters Power on, select audio...
Page 297: System
3-2. Using the audio system Adjusting the volume Press “+” on to increase the volume and “–” to decrease the volume. Press and hold “+” or “–” on to continue increasing or decreasing the volume. Selecting a radio station Press to select the radio mode.
Page 298 3-2. Using the audio system CAUTION To reduce the risk of an accident Exercise care when operating the audio switches on the steering wheel.
Page 299: Using The Rear Audio/Video
3-3. Using the rear audio/video system Rear seat entertainment system (if equipped) The rear seat entertainment system is designed for the rear passen- gers to enjoy audio and DVD video separately from the front audio system. Front audio system DVD player Display Rear seat entertainment system remote controller A/V input adapter (→P.
Page 300 3-3. Using the rear audio/video system Opening and closing the display Press the lock release button to open the display. Pull the display down to an easily viewable angle (between 90° and 125°). To close the display, push the display up until a click is heard. The illumination of the screen is automatically turned off when the display is closed.
Page 301 3-3. Using the rear audio/video system Ejecting a disc Press and remove the disc. The rear seat entertainment system can be used when The engine switch is in the ACC or ON position. Discs that can be used Discs with the marks shown below can be used. Playback may not be possible depending on recording format or disc fea- tures, or due to scratches, dirt or deterioration.
Page 302 Indicates that there is a problem inside the player. Eject the disc. Set the disc again. If the malfunction still exists, take the vehicle to your Toyota dealer. Before using the remote controller (for new vehicle owners) Remove the cover.
Page 303 The rear seat entertainment system control will not function properly. The operational range is reduced. When replacing the AA batteries Batteries can be purchased at your Toyota dealer, electric appliance shop, or camera stores. Replace only with the same or equivalent type recommended by a Toyota dealer.
Page 304 3-3. Using the rear audio/video system CAUTION While driving Do not use headphones. Doing so may cause an accident, resulting in death or serious injury. When the rear seat entertainment system is not used Keep the display closed. In the event of an accident or sudden braking, the opened display may hit an occupant’s body, resulting in injury.
Page 305: Using The Dvd Player (Dvd Video)
3-3. Using the rear audio/video system Using the DVD player (DVD video) Remote controller Turning on the DVD mode Turning on/off the control icon screen Selecting a chapter Reversing a disc Turning on the menu screen Turning on the title selection screen Searching the title Changing the screen angle...
Page 306 3-3. Using the rear audio/video system Control icon screen (Page1) Turning off the control icon screen on the screen Displaying control icon screen page 2 Turning on/off title selection screen for the disc Turning on/off the menu screen for the disc Reversing a disc Stopping a disc Playing/pausing a disc...
Page 307 3-3. Using the rear audio/video system NOTICE Cleaning the screen Wipe the screen with a dry soft cloth. If the screen is wiped with a rough cloth, the surface of the screen may be scratched. To prevent damage to the remote controller Keep the remote controller away from direct sunlight, heat and high humidity.
Page 308 3-3. Using the rear audio/video system Returning to the previous screen Select to return to the previous screen. For the operation of the menu screen, see the separate manual for the DVD disc. Searching for a title Press or select display the screen to search for a title.
Page 309 3-3. Using the rear audio/video system Changing the audio language Press or select display audio language screen. Each time is pressed or is selected, another lan- guage stored on the disc is selected. Select to return to the pre- vious screen. Changing the angle Press or select...
Page 310 3-3. Using the rear audio/video system DVD player and DVD video discs This DVD player is compatible with NTSC color TV formats. DVD video discs conforming to other formats such as PAL or SECAM cannot be used. Region codes Some DVD video discs have a region code indicating where you can use them.
Page 311 3-3. Using the rear audio/video system DVD video disc glossary DVD video discs: Digital Versatile Discs that hold world’s standard video. DVD video discs have adopted “MPEG2”, one of the world standards of digital compression technologies. The picture data is compressed by 1/ 40 on average and stored.
Page 312 3-3. Using the rear audio/video system Audio Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved. This product incorporates copyright protection technology that is protected by method claims of certain U.S.
Page 313: Using The Dvd Player (Video Cd)
3-3. Using the rear audio/video system Using the DVD player (video CD) Remote controller Turning on the DVD mode Turning on/off the control icon screen Selecting a chapter Reversing a disc Display operation switches Inputting the selected con- trol icon Turning off the screen Selecting a control icon Playing/pausing a disc...
Page 314 3-3. Using the rear audio/video system Control icon screen (Page1) Selecting a disc menu num- Turning off the menu screen Displaying control icon screen page 2 Turning on the disc menu Returning to the previous page screen (with the disc menu displayed) Proceeding to the next page screen (with the disc menu...
Page 315 3-3. Using the rear audio/video system Selecting a disc menu number Press or select to display the disc menu number search screen. Select the disc menu number, and press to input it. Select to return to the previous screen.
Page 316: Using The Dvd Player (Audio Cd/Cd Text)
3-3. Using the rear audio/video system Using the DVD player (audio CD/CD text) Control screen Press to display the control screen. Repeat play Random playback Search playback Repeat play Repeating a track Select Random playback Playing all of the tracks on a CD in random order Select Search playback Scanning tracks...
Page 317: Using The Dvd Player (Mp3 Discs)
3-3. Using the rear audio/video system Using the DVD player (MP3 discs) Control screen Press to display the control screen. Repeat play Random playback Search playback Displaying file information Selecting a folder Repeat play Repeating a file Select Repeating all of the files in the folder Select , and press and hold Random playback...
Page 318 3-3. Using the rear audio/video system Selecting and scanning folders Selecting folders one at a time To select the desired folder, select Scanning the desired folder by cueing the first file of each folder Select , and press and hold The first 10 seconds of the first file in the each folder will be played.
Page 319: Using The Video Mode
3-3. Using the rear audio/video system Using the video mode Press to select the video mode. Before switching to the video mode, connect audio source input adapter. Using the A/V input adapter Pull up the console box lid while pushing the lock release button.
Page 320 3-3. Using the rear audio/video system Open the cover. The A/V input adapter is com- posed of 3 input adapters. Yellow: Image input adapter White: Left channel audio input adapter Red: Right channel audio input adapter After plugging the cord into the adapter Let it go through the gap between the console box and the tray.
Page 321 3-3. Using the rear audio/video system NOTICE When the A/V input adapter is not in use Keep the A/V input adapter cover closed. Inserting anything other than an appropriate plug may cause electrical fail- ure or a short circuit.
Page 322: Changing The Setup Menu Settings
3-3. Using the rear audio/video system Changing the Setup Menu settings Press or select display initial setting screen. The following settings can be customized here. l Audio language l Subtitle language l DVD language l Angle mark l Parental lock Changing the audio language Select Select the language you want to...
Page 323 3-3. Using the rear audio/video system Select if you cannot find the language you would like to hear. Enter the appropriate 4-digit lan- guage code. (→P. 302) Select a number, and press to input it. If a code that is not in the list is entered, “Incorrect Code”...
Page 324 3-3. Using the rear audio/video system Changing the DVD language Select Select the language you would like to hear and press input it. Select if you cannot find the language you would like to hear. Enter the appropriate 4-digit lan- guage code.
Page 325 3-3. Using the rear audio/video system Setting viewer restriction levels Setting a personal code allows the viewer restriction to be used. Select Enter a personal code and press The setting cannot be changed unless personal code entered. When you forget a personal code, initialize a personal code.
Page 326 3-3. Using the rear audio/video system Setting the display mode Pressing changes the dis- play mode sequentially as fol- lows: Normal → Wide 1 → Wide 2 Returning to the previous screen Select to return to the previous screen.
Page 327 3-3. Using the rear audio/video system To initialize the password Press on the remote controller or unit ten times when the Enter Personal Code screen is displayed. Language code list Code Language Code Language 0514 English 0208 Bihari 0618 French 0209 Bislama 0405...
Page 328 3-3. Using the rear audio/video system Code Language Code Language 0721 Gujarati 1311 Macedonian 0801 Hausa 1312 Malayalam 0809 Hindi 1314 Mongolian 0818 Croatian 1315 Moldavian 0821 Hungarian 1318 Marathi 0825 Armenian 1319 Malay 0901 Interlingua 1320 Maltese 0905 Interlingue 1325 Burmese 0911...
Page 329 3-3. Using the rear audio/video system Code Language Code Language 1914 Shona 2014 Setswana 1915 Somali 2015 Tonga 1917 Albanian 2018 Turkish 1918 Serbian 2019 Tsonga 1919 Siswati 2020 Tatar 1920 Sesotho 2023 1921 Sundanese 2111 Ukrainian 1923 Swahili 2118 Urdu 2001 Tamil...
Page 330: Using The Interior Lights
3-4. Using the interior lights Interior lights list Your Toyota is equipped with an illuminated entry system to assist in entering the vehicle. Due to the function of the system, the lights shown in the following illustration automatically turn on/off accord- ing to whether the doors are locked/unlocked, whether the doors are opened/closed, the engine switch position and the vehicle’s speed.
Page 331: Personal Lights
All of the lights will automatically turn off when the key is removed and the door is left open for more than 30 minutes. Customization that can be configured at Toyota dealer Settings (e.g. The time elapsed before lights turn off) can be changed.
Page 332: Personal/Interior Lights
3-4. Using the interior lights Personal/interior lights and interior light Personal/interior lights Center (vehicles with rear seat entertainment system) On/off DOOR position Interior light Center (vehicles without rear seat entertainment system) DOOR position...
Page 333 3-4. Using the interior lights Interior light Rear DOOR position...
Page 334: Using The Storage Features
3-5. Using the storage features List of storage features Overhead console Glove box Bottle holders Cup holders Auxiliary boxes Trash holder Console box Coin holder Tissue pocket...
Page 335: Glove Box
3-5. Using the storage features Glove box Glove box Unlock with the master key Lock with the master key Pull the lever up. Auxiliary box in the glove box (if equipped) Open the lid. CAUTION Caution while driving Keep the glove box closed. Injuries may result in the event of an accident or sudden braking.
Page 336: Coin Holder
3-5. Using the storage features Coin holder Coin holder Pull up the console box lid while pushing the lock release button. The coin holder can be removed Pull the coin holder up.
Page 337: Console Box
3-5. Using the storage features Console box Console box Pull up the console box lid while pushing the lock release button. When using the console box as a table Lift the lid.
Page 338: Tissue Pocket
3-5. Using the storage features Console box and tissue pocket CAUTION Caution while driving Keep the console box closed. Injuries may result in the event of an accident or sudden braking. NOTICE Console box table weight capacity Do not place any object heavier than 2.2 lb. (1 kg) on console box table. Tissue pocket Pull up the console box lid while pushing the lock release button.
Page 339: Trash Holder
3-5. Using the storage features Tissue pocket and trash holder CAUTION Caution while driving Keep the console box closed. Injuries may result in the event of an accident or sudden braking. Trash holder Raise the trash holder. Fit the grocery bag onto the holder by hanging its handles on the two hooks indicated at the left and right.
Page 340 3-5. Using the storage features Trash holder If the trash holder is pulled strongly or stepped on Trash holder will detach from the console box. Reinstall it in a horizontal direction as indicated in the illustration. It cannot be installed in any other direction. NOTICE To prevent damage to the trash holder Do not deliberately pull or step on the trash holder, as it may be damaged or...
Page 341: Overhead Console
3-5. Using the storage features Overhead console and cup holders Overhead console The overhead console is useful for temporarily storing sunglasses and similar small items. Push the knob forward. CAUTION Items that should not be left in the overhead console Do not leave glasses or lighters in the console.
Page 342 3-5. Using the storage features Cup holders Center (vehicles without third seats) Pull the armrest down. To open, press in and release the cup holder on the armrest.
Page 343 3-5. Using the storage features Cup holders Center (vehicles with third seats) Pull the armrest down. To open, press in and release the cup holder on the armrest. Rear (vehicles with third seats)
Page 344 3-5. Using the storage features Cup holders Removing the holder (front) Pull the holder up. The position of the holder can be changed (front) Holder Change the position of the holder. The holder can be adjusted (front) Holder Adjust the holder.
Page 345 3-5. Using the storage features Cup holders Tray in the cup holder (vehicles without third seats) Pull the lid. CAUTION Items unsuitable for the cup holder Do not place anything other than cups or aluminum cans in the cup holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.
Page 346: Bottle Holders
3-5. Using the storage features Bottle holders Bottle holders Front Rear NOTICE Items that should not be stowed in the bottle holders Put the cap on before stowing a bottle. Do not place open bottles in the bot- tle holders, or glasses and paper cups containing liquid. The contents may spill and glasses may break.
Page 347: Auxiliary Boxes
3-5. Using the storage features Auxiliary boxes Auxiliary boxes Instrument panel Push on the lid. Rear Push the knob to release the lock. Lift the lid. CAUTION Caution while driving Keep the auxiliary boxes closed. Injuries may result in the event of an accident or sudden braking.
Page 348: Other Interior Features
3-6. Other interior features Sun visors Main visor Forward position: Flip down. Side position: Flip down, unhook, and swing to the side. Side extender: Place in side position then slide backwards. Sub visor Flip down.
Page 349: Vanity Mirrors
3-6. Other interior features Vanity mirrors Slide the cover. The light turns on when the cover is opened.
Page 350: Clock
3-6. Other interior features Clock Adjusts the hours. Adjusts the minutes. Rounds nearest hour. : e.g. 1:00 to 1:29 → 1:00 1:30 to 1:59 → 2:00 For quicker adjustment of the clock Push the :00 button. The clock is displayed when The engine switch is in the ACC or ON position.
Page 351: Outside Temperature Display
3-6. Other interior features Outside temperature display Air conditioning system with DUAL button Displays the outside air tem- perature. The temperature range that can be displayed is from -22°F (-30°C) to 122°F (50°C). Air conditioning system without DUAL button Displays the outside air tem- perature.
Page 352 3-6. Other interior features When – –°C or – –°F is displayed The system may be malfunctioning. Take your vehicle to your Toyota dealer. The outside air temperature is displayed when The engine switch is in the ON position. Display In the following situations, the correct outside temperature may not be dis- played, or the display may take longer than normal to change.
Page 353: Rear Side-View Mirrors
3-6. Other interior features Rear side-view mirrors (if equipped) Rear side-view mirrors are useful as a secondary means of checking the area to the rear of the vehicle. Carefully check the area to the rear of the vehicle by either looking directly or using both outside and inside rear view mirrors.
Page 354: Power Outlets
3-6. Other interior features Power outlets The power outlet can be used for a following component. 12 V: Accessories that run on less than 10 A. 115V AC: Accessories that use less than 100 W. Instrument panel (12 V)
Page 355 3-6. Other interior features Inside the console box (115 V AC) Power outlet socket Open the console box. (→P. 312) Main switch To use the power outlet, turn on the main switch. The indicator comes on. Luggage compartment (12V) : If equipped...
Page 356 Do not modify, disassemble or repair the power outlet or its inverter, in any way. Doing so may result in unexpected malfunctions or accidents, which could cause serious damage or injuries. Contact a Toyota dealer for any necessary repairs. To prevent injuries and accidents, securely fix all electric appliances...
Page 357 3-6. Other interior features CAUTION To prevent unexpected accidents, such as electric shocks, do not per- form any of the following. Using the power outlet for electric heaters while sleeping. Contaminating the power outlet with liquid substances or mud. Handling electrical appliance plugs at the power outlet with wet hands or feet.
Page 358 If the power outlet is loose when an electrical appliance plug is con- nected Replace the outlet. Contact a Toyota dealer for any necessary replacements. If the power outlet gets dirty Turn the main switch off and use a soft, clean cloth to wipe it gently.
Page 359: Seat Heaters
3-6. Other interior features Seat heaters (if equipped) The indicator comes on. Adjusts the seat tempera- ture. The further you turn the dial upward, the warmer the seat becomes. The seat heaters can be used when The engine switch is in the ON position. When not in use Turn the dial fully downward.
Page 360 3-6. Other interior features CAUTION Burns Use caution when seating the following persons in a seat with the seat heater on to avoid the possibility of burns: • Babies, small children, the elderly, the sick and the disabled • Persons with sensitive skin •...
Page 361: Armrest
3-6. Other interior features Armrest Vehicles without third seats Pull the armrest down for use. Vehicles with third seats Pull the armrest down for use. NOTICE To prevent damage to the armrest Do not place too much strain on the armrest. Do not sit on the armrest.
Page 362: Floor Mat
3-6. Other interior features Floor mat Securely place a mat that matches the size of the space on the car- pet. Secure the driver’s floor mat using the hooks provided. CAUTION When inserting the floor mat Observe the following precautions. Failure to do so may result in the floor mat slipping and interfering with the movement of the pedals during driving, resulting in an accident.
Page 363: Luggage Compartment Features
3-6. Other interior features Luggage compartment features Tie-down hooks Tie-down hooks are provided for securing loose items.
Page 364 3-6. Other interior features Cargo net hooks To hang the cargo net, use the cargo net hooks. The cargo net itself is not included as original equipment.
Page 365 3-6. Other interior features Shopping bag hooks (if equipped) To hang shopping bags, use the shopping bag hooks.
Page 366 3-6. Other interior features Luggage cover (if equipped) Attach the front hooks of the luggage cover to the head restraint. Pull out the rear luggage cover and hook it on the anchors.
Page 367 3-6. Other interior features Double deck (if equipped) Turn knobs UNLOCK position. Lift the deck. Turn the knobs to the LOCK position.
Page 368 3-6. Other interior features Auxiliary box Open the cover. When using the holding belts (auxiliary box) To loosen: Pull the buckle forward. To tighten: Pull on the belt.
Page 369 3-6. Other interior features CAUTION When the tie-down hooks are not in use To avoid injury, always return the tie-down hooks to their retracted positions when they are not in use. Caution while driving Keep the double deck locked. Injuries may result in the event of an accident or sudden braking.
Page 370: Garage Door Opener
3-6. Other interior features Garage door opener (if equipped) The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, secu- rity systems, and other devices. ® The garage door opener (HomeLink Universal Transceiver) is manufac- ®...
Page 371 3-6. Other interior features Press and hold down one of the ® buttons on the HomeLink the button on the transmitter. When indicator ® HomeLink changes from a slow to a rapid flash after 20 seconds, you can release both buttons. Test operation ®...
Page 372 3-6. Other interior features Programming a Rolling Code system (for U.S.A. owners) If your device is Rolling Code equipped, follow the steps under the ® heading “Programming the HomeLink ” before proceeding with the steps listed below. Locate the training button on the ceiling mounted garage door opener motor.
Page 373 ® the remaining HomeLink buttons. Programming other devices To program other devices such as home security systems, home door locks or lighting, contact your authorized Toyota dealer for assistance. Reprogramming a button ® The individual HomeLink buttons cannot be erased but can be reprogrammed.
Page 374 3-6. Other interior features Before programming Install a new battery in the remote control transmitter. The battery side of the remote control transmitter must be pointed away ® from the HomeLink Certification for the garage door opener This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC Rules.
Page 375: Compass
3-6. Other interior features Compass (if equipped) The compass on the inside rear view mirror indicates the direction in which the vehicle is heading. Operation To turn the compass on or off, press the switch. Displays and directions Display Direction North Northeast East...
Page 376 3-6. Other interior features Calibrating the compass Samoa: 5 Guam: 8 Saipan: 8 The direction display deviates from the true direction determined by the earth’s magnetic field. The amount of deviation varies according to the geographic position of the vehicle. If you cross over a map boundary shown in illustration, the compass will deviate.
Page 377 3-6. Other interior features Circling calibration When “C” appears on the dis- play, drive the vehicle at 5 mph (8 km/h) or less in a circle until a direction is displayed. If there is not enough space to drive in a circle, drive around the block until the direction is dis- played.
Page 378 3-6. Other interior features NOTICE To avoid the compass malfunctions Do not place magnets or any metal objects near the inside rear view mirror. Doing this may cause a malfunction of the compass sensor. To ensure normal operation of the compass Do not perform circling calibration of the compass in a place where the earth’s magnetic field is subject to interference by artificial magnetic fields.
Page 379 3-6. Other interior features...
Page 380: Maintenance And Care
4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condition. l Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 381 4-1. Maintenance and care Rear height control air suspension (if equipped) Do not spray a jet of high-pressure water at the air suspension unit, espe- cially the air spring, at an extremely close range. This may damage the air suspension. Coating of rain clearing mirrors To maintain the rain clearing ability, observe the following instructions.
Page 382 4-1. Maintenance and care NOTICE To protect your vehicle’s painted surfaces Do not use organic cleaners such as benzene or gasoline. Cleaning the exterior lights Wash carefully. Do not use organic substances or scrub with a hard brush. This may damage the surfaces of the lights. Do not apply wax on the surfaces of the lights.
Page 383: Cleaning And Protecting The Vehicle Interior
4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty sur- faces with a cloth dampened with lukewarm water.
Page 384 Wipe the window in strokes running parallel to the heater wires. Caring for leather areas Toyota recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle’s interior. Shampooing the carpets There are several commercial foaming-type cleaners available.
Page 385 4-1. Maintenance and care NOTICE Cleaning detergents Do not use organic substances such as benzene or gasoline, acidic or alka- line solutions, dye, bleach or other detergent. Doing so may discolor the vehicle interior or cause streaks or damage to painted surfaces. Preventing damage to leather surfaces Observe the following precautions to avoid damage to and deterioration of leather surfaces.
Page 386: Maintenance
Warranty Information Booklet”, “Owner’s Manual Supplement”. Repair and replacement It is recommended that genuine Toyota parts be used for repair to ensure performance of each system. If non-Toyota parts are used in replacement or if a repair shop other than Toyota dealer performs repairs, confirm the war-...
Page 387 4-2. Maintenance Allow inspection and repairs to be performed by a Toyota dealer Toyota technicians are well-trained specialists and are kept up to date with the latest service information. They are well informed about the operations of all systems on your vehicle.
Page 388: General Maintenance
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice. Engine compartment Items...
Page 389 4-2. Maintenance Vehicle interior Items Check points • Moves smoothly (without uneven Accelerator pedal pedal effort or catching)? • Can the vehicle be hold securely Automatic transmission “Park” on an incline with the shift lever in mechanism • Moves smoothly? •...
Page 390 4-2. Maintenance Vehicle exterior Items Check points Door • Operate smoothly? Engine hood • The lock system works properly? • Is there any leakage after park- Fluid leaks ing? • Inflation pressure is correct? • Tire surfaces not worn or dam- aged? Tire •...
Page 391: Emission Inspection And Maintenance (I/M) Programs
The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/ M test and may need to be repaired. Contact your Toyota dealer to service the vehicle. Your vehicle may not pass the I/M test:...
Page 392: Do-It-Yourself Maintenance
• FMVSS No.116 DOT 3 or SAE Brake fluid level (→P. 381) J1703 brake fluid • Rag or paper towel • “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non- amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology.
Page 393 4-3. Do-it-yourself maintenance Items Parts and tools • Bulb with same number and watt- age rating as original Light bulbs (→P. 415) • Phillips-head screwdriver • Flathead screwdriver • Automatic transmission fluid ® DEXRON II or III Power steering fluid level •...
Page 394 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury observe the following precautions. When working on the engine compartment Keep hands, clothing, and tools away from the moving fan and engine drive belt.
Page 395 4-3. Do-it-yourself maintenance NOTICE If you remove the air cleaner Driving with the air cleaner removed may cause excessive engine wear due to dirt in the air. Also a backfire could cause a fire in the engine compart- ment. If the fluid level is low or high It is normal for the brake fluid level to go down slightly as the brake pads wear or when the fluid level in the accumulator is high.
Page 396: Hood
4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood release lever. The hood will pop up slightly. Pull up the hood catch lever and lift the hood. CAUTION Pre-driving check Check that the hood is fully closed and locked.
Page 397: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment 4.0 L V6 (1GR-FE) engine Washer fluid tank (→P. 387) Brake fluid reservoir (→P. 381) Power steering fluid reservoir (→P. 383) Fuse box (→P. 404) Engine oil level dipstick Battery (→P. 384) (→P. 375) Condenser (→P.
Page 398 4-3. Do-it-yourself maintenance 4.7 L V8 (2UZ-FE) engine Washer fluid tank (→P. 387) Brake fluid reservoir (→P. 381) Power steering fluid reservoir (→P. 383) Fuse box (→P. 404) Engine coolant reservoir Battery (→P. 384) (→P. 380) Condenser (→P. 381) Engine oil level dipstick Radiator (→P.
Page 399 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil Park the vehicle on level ground. After turning off the engine, wait more than 5 minutes for the oil to drain back into the bot- tom of the engine.
Page 400 4-3. Do-it-yourself maintenance Wipe the dipstick and reinsert it fully. 4.0 L V6 (1GR-FE) engine Full 4.7 L V8 (2UZ-FE) engine Full Adding engine oil If the oil level is below or near the low level mark, add engine oil of the same type as already in the engine.
Page 401 4-3. Do-it-yourself maintenance Make sure to check the oil type and prepare the items needed before adding oil. Oil grade ILSAC multigrade engine oil Items Clean funnel Remove the oil filler cap, turning it counterclockwise. Add engine oil slowly. Checking the dipstick. Reinstall the filler cap, turning it clockwise.
Page 402 1000 km) If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles (1000 km), contact your Toyota dealer. After changing the engine oil (U.S.A. only) The oil change system should be reset. Perform the following procedures: Turn the engine switch to the ACC or LOCK position with the odom- eter reading shown.(→P.
Page 403 Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of used oil and filters in household trash, in sewers or onto the ground. Call your Toyota dealer, service station or auto parts store for information concerning recycling or disposal.
Page 404 If the coolant level drops within a short time after replenishing Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water pump. If you cannot find a leak, have your Toyota dealer pressure test the cap and check for leaks in the cooling system. Coolant selection Only use “Toyota Super Long Life Coolant”...
Page 405 Check the radiator and condenser and clear any foreign objects. If either of the above parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Toyota dealer. CAUTION When the engine is hot Do not touch the radiator or condenser as they may be hot and may cause burns.
Page 406 4-3. Do-it-yourself maintenance Adding fluid Make sure to check the fluid type and prepare the necessary items. Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Items Rag or paper towel Turn the engine switch off. Depress the brake pedal 20 times or more. Remove the reservoir cap.
Page 407 4-3. Do-it-yourself maintenance Power steering fluid Fluid level The fluid level should be within the appropriate range. Full (when cold) Add fluid (when cold) Full (when hot) Add fluid (when hot) Hot: Vehicle has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in frigid temperatures.
Page 408 4-3. Do-it-yourself maintenance CAUTION Checking the fluid level Take care, as the reservoir may be hot. NOTICE When adding fluid Avoid overfilling, or the power steering may be damaged. After replacing the reservoir cap Check the steering box case, vane pump and hose connections for leaks or damage.
Page 409 Check the battery condition using the indicator color. Type A Blue: Good condition White: Charging is necessary. Have the vehicle inspected by your Toyota dealer. Red: Not working properly, have the battery checked by your Toyota dealer. Type B Green: Good condition Dark: Charging is necessary.
Page 410 4-3. Do-it-yourself maintenance CAUTION Chemicals in the battery A battery contains poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near bat- tery: Do not cause sparks by touching the battery terminals with tools.
Page 411 4-3. Do-it-yourself maintenance NOTICE When recharging the battery Never recharge the battery while the engine is running. Also, be sure all accessories are turned off. Washer fluid Add washer fluid in the following situations. l Any washer does not work. l The low washer fluid warning light comes on.
Page 412 4-3. Do-it-yourself maintenance If the washer fluid level is at LOW, add washer fluid. CAUTION When refilling the washer fluid Do not refill the washer fluid when the engine is hot or running, as the washer fluid contains alcohol and may catch fire if spilled on the engine etc. NOTICE Do not use any fluid other than washer fluid Do not use soapy water or engine antifreeze instead of washer fluid.
Page 413: Tires
The tire pressure warning system Your Toyota is equipped with a tire pressure warning system that uses tire pressure warning valves and transmitters to detect low tire inflation pressure before serious problems arise. (→P. 439)
Page 414 Have tire pressure warning valve and trans- mitter ID codes registered by your Toyota dealer. (→P. 390) Registering ID codes The tire pressure warning valve and transmitter is equipped with a unique ID code.
Page 415 4-3. Do-it-yourself maintenance If the tread wears down below 0.16 in. (4 mm) on snow tires The effectiveness of snow tires is lost. Maximum load of tire Check that the maximum load of the replaced tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is greater.
Page 416 4-3. Do-it-yourself maintenance Routine tire inflation pressure checks The tire pressure warning system does not replace routine tire inflation pressure checks. Make sure to check tire inflation pressure as part of your routine of daily vehicle checks. Tire pressure warning system certification MODEL/FCC IDs: Transmitter: PAXPMV107J Receiver: HYQ13BCG...
Page 417 Do not mix tires of different makes, models, tread patterns or tread- wear. Do not use tire sizes other than those recommended by Toyota. Do not mix radial, bias-belted, or bias-ply tires. Do not mix summer, all season and winter tires.
Page 418 4-3. Do-it-yourself maintenance NOTICE Driving on rough roads Take particular care when driving on roads with loose surfaces or pot- holes. These conditions may cause losses in tire inflation pressure, reducing the cushioning ability of the tires. In addition driving on rough roads may cause damage to the tires themselves, as well as the vehicle’s wheels and body.
Page 419: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure The recommended cold tire inflation pressure and tire size is dis- played on the tire and loading information label. (→P. 479) Inspection and adjustment procedure Tire valve Tire pressure gauge Remove the tire valve cap. Press the tip of the tire pressure gauge onto the tire valve.
Page 420 Reduced driving comfort and tire life Reduced safety Damage to the drive train If a tire needs frequent refilling, have it checked by your Toyota dealer. Instructions for checking tire inflation pressure When checking tire inflation pressure, observe the following: Check only when the tires are cold.
Page 421 4-3. Do-it-yourself maintenance Do not bleed or reduce tire inflation pressure after driving. It is normal for the tire inflation pressure to be higher after driving. Never exceed the vehicle capacity weight. Passengers and luggage weight should be placed so that the vehicle is balanced.
Page 422: Wheels
Used wheels l Bent wheels that have been straightened Aluminum wheel precautions (if equipped) l Use only Toyota wheel nuts and wrench designed for use with your aluminum wheels. l When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 423 Because tire repair or replacement may affect the tire pressure warn- ing valves and transmitters, make sure to have tires serviced by your Toyota dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Toyota dealer.
Page 424: Air Conditioning Filter
4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air conditioning efficiency. Removal method Turn the engine switch off. Open the glove box. Remove the screw with a Phil- lips-head screwdriver slide off the damper. Push in each side of the glove box to disconnect the claws.
Page 425 4-3. Do-it-yourself maintenance Remove the filter case. Replacement method Remove the air conditioning filter and replace it with a new one. The “↑UP” marks shown on the filter should be pointing up. Checking interval Inspect and replace the air conditioning filter according to the maintenance schedule.
Page 426: Wireless Remote Control Battery
4-3. Do-it-yourself maintenance Wireless remote control battery Replace the battery with a new one if it is discharged. You will need the following items: l A coin or equivalent l Lithium battery CR2016 Replacing the battery Remove the cover using a coin protected with tape etc.
Page 427 The wireless remote control will not function properly. The operational range is reduced. Use a CR2016 lithium battery Batteries can be purchased at your Toyota dealer, jewelers, or camera stores. Replace only with the same or equivalent type recommended by your Toyota dealer.
Page 428: Checking And Replacing Fuses
4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the engine switch off. The fuses are located in the following places. To check the fuses, follow the instructions below.
Page 429 4-3. Do-it-yourself maintenance After a system failure, see “Fuse layout and amperage rat- ings” (→P. 407) for details about which fuse to check. Remove the fuse with the pull- out tool. Check if the fuse has blown. Type A Normal fuse Blown fuse Replace it with one of an appropriate amperage rating.
Page 430 4-3. Do-it-yourself maintenance Type B Normal fuse Blown fuse Replace it with one of an appropriate amperage rating. The amperage rating can be found on the fuse box lid. Type C Normal fuse Blown fuse Replace it with one of an appropriate amperage rating.
Page 431 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment Fuse Ampere Circuit SPARE 10 A Spare fuse SPARE 15 A Spare fuse Stop/tail lights, high mounted stop- light, shift lock control system, anti- lock brake system, traction control system (2WD models), active trac- tion control system (4WD models), STOP 10 A...
Page 432 4-3. Do-it-yourself maintenance Fuse Ampere Circuit HEAD (HI RH) 10 A Right-hand headlight (high beam) HEAD (HI LH) 10 A Left-hand headlight (high beam) Multiport fuel injection system/ EFI NO.2 10 A sequential multiport fuel injection system HEATER NO.2 7.5 A Air conditioning system AIRSUS NO.2 10 A...
Page 433 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Turn signal lights, emergency TRN-HAZ 15 A flashers Multiport fuel injection system/ ETCS 10 A sequential multiport fuel injection system Multiport fuel injection system/ 20 A sequential multiport fuel injection system DR/LCK 20 A Power door lock system TOWING 30 A...
Page 434 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Anti-lock brake system, traction control system (2WD models), ABS SOL 30 A active traction control system (4WD models), vehicle stability control system A/PUMP, AIRSUS, AM1, TOWING BRK, J/B, BATT CHG, TOWING, 140 A TAIL, STOP, AC 115V INV, FR FOG, OBD, DEFOG, MIR HEATER fuses HEATER...
Page 435 4-3. Do-it-yourself maintenance Under the instrument panel Fuse Ampere Circuit Multiport fuel injection system/ sequential multiport fuel injection system, anti-lock brake system, traction control system (2WD mod- 10 A els), active traction control system (4WD models), vehicle stability control system, meter and gauge, front passenger occupant classifi- cation system 10 A...
Page 436 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Back window washer, multiplex RR WSH 15 A communication system Shift lock control system, power windows, anti-lock brake system, traction control system (2WD mod- els), active traction control system (4WD models), vehicle stability ECU-IG 10 A control system, electric moon roof, multiplex communication system,...
Page 437 Never use a fuse of a higher amperage rating than indicated, or use any other object in place of a fuse. Always use a genuine Toyota fuse or equivalent. Never replace a fuse with a wire, even as a temporary fix.
Page 438 4-3. Do-it-yourself maintenance NOTICE Before replacing fuses Have the cause of electrical overload determined and repaired by your Toy- ota dealer as soon as possible.
Page 439: Light Bulbs
You may replace the following bulbs yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer. For more information about replacing other light bulbs, contact your Toyota dealer.
Page 440 4-3. Do-it-yourself maintenance Rear bulb locations Rear turn signal light High mounted stoplight (vehicles without rear spoiler) License plate light Back-up light Replacing light bulbs Headlights Turn the bulb base counterclock- wise. High beam (inside) Low beam (outside)
Page 441 4-3. Do-it-yourself maintenance Unplug connector while depressing the lock release. Front fog light (if equipped) Turn the bulb base counterclock- wise. Unplug connector while depressing the lock release.
Page 442 4-3. Do-it-yourself maintenance Parking and front side marker lights Turn the bulb base counterclock- wise. Remove the light bulb.
Page 443 4-3. Do-it-yourself maintenance Front turn signal lights Turn the bulb base counterclock- wise. Remove the light bulb.
Page 444 4-3. Do-it-yourself maintenance Rear turn signal and back-up lights Open the back door and remove the cover. Using a flathead screwdriver or equivalent which is wrapped with a cloth. Turn the bulb bases counter- clockwise. Rear turn signal light Back-up light Remove the light bulb.
Page 445 4-3. Do-it-yourself maintenance License plate lights Remove the screws and cover. Remove the light bulb.
Page 446 4-3. Do-it-yourself maintenance High mounted stoplight (vehicles without rear spoiler) Disconnect the clips by using a flathead screwdriver which is wrapped with a cloth. Clips Turn the bulb base counterclock- wise. Remove the light bulb.
Page 447 LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced. If two or more LEDs in a stop light burn out, your vehicle may not conform to local laws (SAE).
Page 448 4-3. Do-it-yourself maintenance...
Page 449: Essential Information
5-1. Essential information Emergency flashers Use the emergency flashers if the vehicle malfunctions or is involved in an accident. Press the switch to flash all the turn signal lights. To turn them off, press the switch once again. NOTICE To prevent battery discharge Do not leave the emergency flashers on longer than necessary when the engine is not running.
Page 450: If Your Vehicle Needs To Be Towed
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Toyota dealer or a commercial towing service, using a lift-type truck or a flat bed truck. Use a safety chain system for all towing, and abide by all state/pro- vincial and local laws.
Page 451 5-1. Essential information Emergency towing procedure The engine switch must be in the ACC (engine off) or the ON (engine running) position. 4WD models: On multi-mode 4WD models, put the four-wheel drive control switch in H2. On full-time 4WD models, unlock the center differential. Put the shift lever in N.
Page 452 5-1. Essential information Towing with a sling-type truck NOTICE To prevent body damage Do not tow with a sling-type truck, either from the front or rear. Towing with a wheel lift-type truck from the front Use a towing dolly under the rear wheels.
Page 453 5-1. Essential information Towing with a wheel lift-type truck from the rear 2WD models Turn the engine switch to the ACC position. 4WD models Full-time 4WD models: Use a towing dolly under the front wheels. Multi-mode 4WD models: When not using a towing dolly, turn the engine switch to the ACC posi- tion, shift the shift lever to N and put the four-wheel drive control...
Page 454 5-1. Essential information Using a flat bed truck If your Toyota is transported by a Front flat bed truck, it should be tied down at the locations shown in the illustration. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45°.
Page 455: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Toyota dealer as soon as possible. Visible symptoms l Fluid leaks under the vehicle (Water dripping from the air conditioning after use is normal.)
Page 456: Fuel Pump Shut Off System
5-1. Essential information Fuel pump shut off system To minimize the risk of fuel leakage when the engine stalls or an air- bag inflates upon collision, the fuel pump shut off system stops sup- plying fuel to the engine. Follow the procedure below to restart the engine after the system is activated.
Page 457: Event Data Recorder
5-1. Essential information Event data recorder Your vehicle has computers that monitor and control certain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance. Besides storing data useful for troubleshooting, there is an event data recorder (EDR) that records data in a crash or a near car crash event.
Page 458 5-1. Essential information Disclosure of the data Toyota will not disclose the data recorded in an EDR to a third party except when: l An agreement from the vehicle’s owner (or the leasing company for a leased vehicle) is obtained...
Page 459: Steps To Take In An Emergency If A Warning Light Turns On Or A Warning Buzzer Sounds
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake sys- tem. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning light Warning light/Details Brake system warning light (warning buzzer)* •...
Page 460 Have the vehicle inspected immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Warning light Warning light/Details Malfunction indicator lamp Indicates a malfunction in: •...
Page 461 5-2. Steps to take in an emergency Warning light Warning light/Details ABS warning light (U.S.A.) Indicates a malfunction in: • The ABS; or • The brake assist system. (Canada) Automatic transmission fluid temperature warn- ing light Indicates that the automatic transmission fluid tem- perature is too high.
Page 462 (including spare tire) • When the light stays on Have the system after blinking for 1 checked by your minute: Indicates a mal- Toyota dealer. function in the tire pres- sure warning system. Low fuel level warning light Refuel the vehicle.
Page 463 5-2. Steps to take in an emergency Warning light Warning light/Details Correction procedure Engine oil replacement reminder light • Illuminates for about 3 Check the engine oil, seconds and then flashes and change if neces- for about 12 seconds: Indi- sary.
Page 464 If it is, tighten it securely. The light will go off after taking several driving trips. If the light does not go off even after several trips, contact your Toyota dealer as soon as possible. Front passenger detection sensor and passenger seat belt reminder If luggage or other load is placed on the front passenger seat, depending on its weight, the reminder light to flash and buzzer to sound.
Page 465 If there is a lot of snow or ice on the vehicle, in particular around the wheels or wheel housings. If non-genuine Toyota wheels are used. (Even if you use Toyota wheels, the tire pressure warning system may not work properly with some types of tires.)
Page 466 Check the tires. If the tire is flat, change to the spare tire and have the flat tire repaired by the nearest Toyota dealer. Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.
Page 467 5-2. Steps to take in an emergency CAUTION Please note that the TPMS (tire pressure warning system) is not a sub- stitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale (tire pressure warning light).
Page 468: If You Have A Flat Tire
5-2. Steps to take in an emergency If you have a flat tire Remove the flat tire and replace it with the spare provided. Before jacking up the vehicle l Stop the vehicle on a hard, flat surface. l Set the parking brake. l Shift the shift lever to P.
Page 469 5-2. Steps to take in an emergency Taking out the jack and tool bag Remove the cover and loosen the strap. Tighten Loosen Taking out the spare tire Assemble the jack handle exten- sion as shown. Be sure to tighten each bolt securely.
Page 470 5-2. Steps to take in an emergency When connecting the jack han- dle extensions, use the jack han- dle to tighten the square head bolt. Make sure that the bolt fits into the depression on the joint. When connecting the jack han- dle extension with the jack han- dle, tighten the round head bolt by hand.
Page 471 5-2. Steps to take in an emergency Replacing a flat tire Chock the tires. Wheel Flat tire chock positions Behind the Left- rear right- hand hand side side tire Front Behind the Right- rear left- hand hand side side tire In front of Left- the front...
Page 472 5-2. Steps to take in an emergency Remove the wheel ornament using the wheel nut wrench as shown. To protect the wheel and wheel ornament, place a rag between the wrench and the wheel ornament, as shown in the illustration. Steel wheel Aluminum wheel Slightly loosen the wheel nuts...
Page 473 5-2. Steps to take in an emergency Position the jack at the correct jack point as shown. Front Front Rear Make sure the jack is positioned on a level and solid place. Assemble the jack handle exten- sion as shown. Be sure to tighten each bolt securely.
Page 474 5-2. Steps to take in an emergency Remove all the wheel nuts and the tire. When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface. Installing the tire Remove any dirt or foreign mat- ter from the wheel contact sur- face.
Page 475 5-2. Steps to take in an emergency Replacing an aluminum wheel Tighten the nuts until the washer Washer of the nut comes into loose con- tact with the disc wheel. Disc wheel Lower the vehicle. Firmly tighten each nut two or three times in the order shown in the illustration.
Page 476 5-2. Steps to take in an emergency Reinstall the wheel ornament. Steel wheel Aluminum wheel Stowing the flat tire, jack and all tools Lay down the tire with the outer side facing up, and install the holding bracket. Then secure the tire, taking care that the tire goes straight up without catching on any other part, to prevent it from flying for- ward during a collision or sudden braking.
Page 477 5-2. Steps to take in an emergency CAUTION Using the jack Improper use of the jack may lead to death or serious injuries due to the vehicle suddenly falling off the jack. Do not use the jack for any purpose other than replacing tires or install- ing and removing tire chains.
Page 478 When replacing the tires When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Toyota dealer as the tire pressure warning valve and transmitter may be damaged if not handled cor- rectly.
Page 479: If The Engine Will Not Start
One of the following may be the cause of the problem. l One or both of the battery terminals may be disconnected. l The battery may be discharged. (→P. 459) Contact your Toyota dealer if the problem cannot be repaired, or if repair procedures are unknown.
Page 480: If The Shift Lever Cannot Be Shifted From P
(a system to prevent accidental operation of the shift lever). Have the vehicle inspected by your Toyota dealer immediately. The following steps may be used as an emergency measure to ensure that the shift lever can be shifted.
Page 481: If You Lose Your Keys
5-2. Steps to take in an emergency If you lose your keys New genuine Toyota keys can be made by your Toyota dealer using one of the master keys and the key number stamped on your key number plate. (→P. 28) If you lose all your master keys.
Page 482: If The Vehicle Battery Is Discharged
You can call your Toyota dealer or qualified repair shop. If you have a set of jumper (or booster) cables and a second vehi- cle with a 12-volt battery, you can jump start your Toyota following the steps below. Connect the jumper cables.
Page 483 Once the vehicle’s engine has started, remove the jumper cables in the exact reverse order in which they were con- nected. Once the engine starts, have the vehicle checked at your Toyota dealer as soon as possible. Starting the engine when the battery is discharged The engine cannot be started by push-starting.
Page 484 5-2. Steps to take in an emergency CAUTION Avoiding battery fires or explosions Observe the following precautions to prevent accidentally igniting the flam- mable gas that may be emitted from the battery. Make sure the jumper cable is connected to the correct terminal and that it is not unintentionally in contact with any part other than the intended termi- nal.
Page 485 5-2. Steps to take in an emergency NOTICE When handling jumper cables Be careful that the jumper cables do not become tangled in the cooling fan or any of the belts when connecting or disconnecting them.
Page 486: If Your Vehicle Overheats
If the fan is operating: Wait until the temperature of the engine (shown on the instrument cluster) begins to fall and then stop the engine. If the fan is not operating: Stop the engine immediately and call your local Toyota dealer.
Page 487 Note that water draining from the air conditioning is normal if it has been used. Add engine coolant if required. Water can be used in an emer- gency if engine coolant is unavailable. (→P. 475) Have the vehicle checked at your nearest Toyota dealer as soon as possible.
Page 488 5-2. Steps to take in an emergency Overheating If you observe the following, your vehicle may be overheating. The engine coolant temperature gauge enters the red zone or a loss of power is experienced. Steam is coming from under the hood. CAUTION To prevent an accident or injury when inspecting under the hood of your vehicle...
Page 489: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt, or snow. Stop the engine. Set the parking brake and put the shift lever in P.
Page 490 5-2. Steps to take in an emergency NOTICE To avoid damaging the transmission and other components Avoid spinning the wheels and do not rev the engine. If the vehicle remains stuck after trying these procedures, the vehicle may require towing to be freed.
Page 491 5-2. Steps to take in an emergency...
Page 492: Specifications Maintenance Data (Fuel, Oil Level, Etc.)
6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 189.2 in. (4805 mm) Overall width 75.2 in. (1910 mm) ∗ 2 or 3,4 71.7 in. (1820 mm) ∗ 2,3,5 70.9 in. (1800 mm) ∗ ∗ 69.1 in. (1755 mm) ∗...
Page 493 Vehicle identification number The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 494: 6-1. Specifications
6-1. Specifications Engine number 4.0 L V6 (1GR-FE) engine The engine number is stamped on the engine block as shown. 4.7 L V8 (2UZ-FE) engine...
Page 495 6-1. Specifications Engine 4.0 L V6 (1GR-FE) engine Model 1GR-FE Type 6-cylinder V type, 4-cycle, gasoline 3.70 × 3.74 in. (94.0 × 95.0 mm) Bore and stroke Displacement 241.4 cu.in. (3956 cm Drive belt tension Automatic adjustment Valve clearance (engine cold) Intake 0.006—0.010 in.
Page 496 6.5 qt. (6.2 L, 5.5 Imp.qt.) Without filter 6.0 qt. (5.7 L, 5.0 Imp.qt.) Oil grade ILSAC multigrade engine oil Use Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the grade and viscosity shown below. Recommended oil viscosity Outside temperature *: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Page 497 Capacity 4.7 L V8 (2UZ-FE) engine 13.0 qt. (12.3 L, 10.8 Imp. qt.) Use either of the following. • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based Coolant type non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone.
Page 498 Toyota Genuine Differential Gear Oil LT 75W-85 GL-5 or equivalent “Toyota Genuine Differential Gear Oil” is filled in your Toyota vehicle at factory fill. Oil type and viscosity Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification.
Page 499 : The fluid capacity is the quantity of reference. If replacement is necessary, contact your Toyota dealer. NOTICE Automatic transmission fluid type Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of your transmission accompanied vibration,...
Page 500 6-1. Specifications Brakes Pedal clearance 2.1 in. (54 mm) Min. 0.04 ⎯ 0.24 in. (1 ⎯ 6 mm) Pedal free play Brake pad wear limit 0.04 in. (1.0 mm) Parking brake lining wear 0.04 in. (1.0 mm) limit Parking brake pedal travel 5 —...
Page 501 6-1. Specifications Tires and wheels P265/70R16 111S, P265/65R17 110S, Tire size P265/60R18 109H Front tires: 32 psi (220 kPa, 2.2 kgf/cm or bar) Tire inflation pressure Rear tires: (Recommended cold tire 32 psi (220 kPa, 2.2 kgf/cm or bar) inflation pressure) Spare tire: 32 psi (220 kPa, 2.2 kgf/cm or bar)
Page 502 6-1. Specifications Light bulbs Light Bulbs Bulb No. Type Headlights (high beam) 9005 Headlights (low beam) — Front fog lights 9006 Parking and front side 2827 marker lights Exterior Front turn signal lights 1156NA Rear turn signal lights — Back-up lights License plate lights High mounted stoplight Interior light...
Page 503: Fuel Information
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada. Fuel tank opening for unleaded gasoline To help prevent incorrect fueling, your Toyota has a fuel tank opening that only accommodates the special nozzle on unleaded fuel pumps. If your engine knocks Consult your Toyota dealer.
Page 504 Toyota allows the use of oxygenate blended gasoline where the oxygenate content is up to 10% ethanol or 15% MTBE. If you use gasohol in your Toyota, be sure that it has an octane rating no lower than 87. Toyota does not recommend the use of gasoline containing methanol.
Page 505 6-1. Specifications NOTICE Notice on fuel quality Do not use improper fuels. If improper fuels are used the engine will be damaged. Do not use leaded gasoline. Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters causing the emission control system to malfunction. Do not use gasohol other than that stated here.
Page 506: Tire Information
6-1. Specifications Tire information Typical tire symbols Tire size (→P. 486) DOT and Tire Identification Number (TIN) (→P. 485) Location of treadwear indicators (→P. 487) Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
Page 507 6-1. Specifications Radial tires or bias-ply tires A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a bias-ply tire. Summer tire or all season tire (→P. 391) An all season tire has M+S on the sidewall. A tire not marked M+S is a summer tire.
Page 508 6-1. Specifications Tire size Typical tire size information The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 digits or 3 digits) Speed symbol...
Page 509 U.S.A. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your Toyota dealer will help answer any questions you may have as you read this information. DOT quality grades All passenger vehicle tires must conform to Federal Safety Requirements in addition to these grades.
Page 510 6-1. Specifications Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1 - 1/2) times as well on the government course as a tire graded 100.
Page 511 6-1. Specifications Warning: The temperature grades for this tire are established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure. Glossary of tire terminology Tire related term Meaning...
Page 512 6-1. Specifications Tire related term Meaning 150 lb. (68 kg) times the number of occupants Normal occupant specified in the second column of Table 1 that weight follows Distribution of occupants in a vehicle as Occupant distribution specified in the third column of Table 1 below The combined weight of installed regular production options weighing over 5 lb.
Page 513 6-1. Specifications Tire related term Meaning The surface area of the rim not covered by the Weather side inflated tire The part of the tire that is made of steel wires, Bead wrapped or reinforced by ply cords and that is shaped to fit the rim A breakdown of the bond between components Bead separation...
Page 514 6-1. Specifications Tire related term Meaning The parting of the innerliner from cord material Innerliner separation in the carcass (a)The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same molding on Intended outboard the other sidewall of the tire, or sidewall...
Page 515 6-1. Specifications Tire related term Meaning A layer of rubber-coated parallel cords A parting of rubber compound between Ply separation adjacent plies A mechanical device made of rubber, chemicals, fabric and steel or other materials, Pneumatic tire that, when mounted on an automotive wheel, provides the traction and contains the gas or fluid that sustains the load A pneumatic tire in which the ply cords that...
Page 516 6-1. Specifications Tire related term Meaning That portion of a tire that comes into contact Tread with the road A tread section running circumferentially Tread rib around a tire Tread separation Pulling away of the tread from the tire carcass The projections within the principal grooves Treadwear designed to give a visual indication of the...
Page 517: Customization
Programming these preferences requires specialized equipment and may be performed by an autho- rized Toyota dealership. Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details. Customized Item Function...
Page 518 6-2. Customization Customized Item Function Default setting setting Speed-detecting auto- matic door lock function Opening driver’s door unlocks all doors. Shifting gears to “P” unlocks all doors. Shifting gears to posi- Door lock tion other than “P” locks (→P. 33) all doors.
Page 519 6-2. Customization Customized Item Function Default setting setting 7.5 seconds Time elapsed before 15 seconds lights turn off 30 seconds Operation after the Illumination engine switch is turned → P. 305) to the LOCK position Operation when the doors are unlocked Seat Belt Vehicle speed linked Reminder...
Page 520: Items To Initialize
6-2. Customization Items to initialize The following items must be initialized for normal system operation in cases such as after the battery is reconnected, or maintenance is performed on the vehicle. Item When to initialize Reference Power windows P. 76 •...
Page 521: Reporting Safety Defects For U.s. Owners
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 522: Seat Belt Instructions For Canadian Owners (In French)
Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English.
Page 524: Alphabetical Index
Alphabetical index Alphabetical index A/C..........230 DVD player......280 ABS ...........188 MP3/WMA disc ..... 257 Accessory meter ......155 Optimal use......266 Active traction control Portable music player ... 269 system ........182 Radio........244 Air conditioning filter....400 Rear seat entertainment Air conditioning system system ........
Page 525 Alphabetical index Break-in tips ......133 Seat belt extender precautions ......68 Seat belt precautions ....66 Care Seat heater precautions ..335 Exterior ......... 356 Child-protectors ......35 Interior ........359 Cleaning Seat belts ......360 Exterior........356 Cargo capacity ......203 Interior ........359 Cargo net hook......
Page 526: Index
Alphabetical index Downhill Assist Control ..186 Ignition switch ....... 140 Driver’s seat belt reminder Immobilizer system ....88 buzzer ........439 Overheating ......463 Driver's seat belt reminder Engine coolant light .........439 Capacity ........ 475 Driving Checking ....... 380 Break-in tips ......133 Preparing and checking Correct posture .......93 before winter.......
Page 527: Index
Alphabetical index Front side marker lights Height control Replacing light bulbs .... 418 Electronically modulated Switch........158 air suspension.....169 Wattage ........ 480 Hill-start assist control ....188 Front turn signal lights Hood..........372 Replacing light bulbs .... 419 Hooks Switch........145 Cargo net ......339 Wattage ........
Page 528: Index
Alphabetical index Keys ........28 Meter Reminder buzzer....441 Accessory meter ....155 Wireless remote control Instrument panel light key ........28, 29 control......... 149 Meters ........148 Mirrors License plate lights Inside rear view mirror ....70 Replacing light bulbs .....421 Rear side-view mirrors ..328 Switch........158 Side mirrors......73 Wattage.........480...
Page 529 Alphabetical index Radiator......373, 381 Seat belts Radio ........244 Adjustment ......64 Rear seat ALR .........65 Folding down the second Automatic Locking Retractor ...65 seats ........45 Child restraint system Folding up the third installation......117 seats ........49 Cleaning and maintaining..360 Removing the third seats..
Page 530 Alphabetical index Service reminder AUTO LSD switch ....175 indicators ......151 Cruise control switch..... 166 Shift lever Downhill Assist control Automatic transmission ..143 switch........186 If the shift lever cannot be Emergency flasher switch ..426 shifted from P......457 Engine switch......140 Shift lock system .....457 Fog light switch .....
Page 531 Alphabetical index If you have a flat tire ..... 445 Warning buzzers Inflation pressure....479 Brake system ......436 Information ......484 Key reminder......441 Replacing ..... 389, 445 Seat belt reminder....439 Rotating tires ......389 Warning lights Size ........479 ABS ........437 Spare tire......
Page 532 Alphabetical index Windshield wipers ...163, 165 Wireless remote control key Replacing the battery ....402 Wireless remote control ..29 Winter driving tips ....213 WMA disc........257...
Page 533: What To Do If
What to do if... What to do if... A tire punctures If you have a flat tire P. 445 P. 456 If the engine will not start The engine does not start P. 88 Engine immobilizer system P. 459 If the vehicle battery is discharged If the shift lever cannot be shifted The shift lever cannot be P.
Page 534 What to do if... The warning light or indicator If a warning light turns on P. 436 light comes on Instrument cluster Type A Type B Type C...
Page 535 What to do if... Center panel nWarning lights VSC OFF warning light Brake system warning light P. 436 P. 437 Charging system warning Open door warning light light P. 437 P. 439 Driver’s seat belt reminder Low engine oil pressure light warning light P.
Page 536 Memo...
Page 537 Memo...
Page 538: Gas Station Information
4.7 L V8 qt. (L, Imp.qt.) refill) (2UZ-FE) With filter 6.5 (6.2, 5.5) engine Without filter 6.0 (5.7, 5.0) Toyota Genuine Motor Oil or equivalent Oil grade: P. 474 Engine oil type ILSAC multigrade engine oil Recommended oil viscosity: SAE 5W-30...
