Summary of Contents for Toyota 4Runner 2009

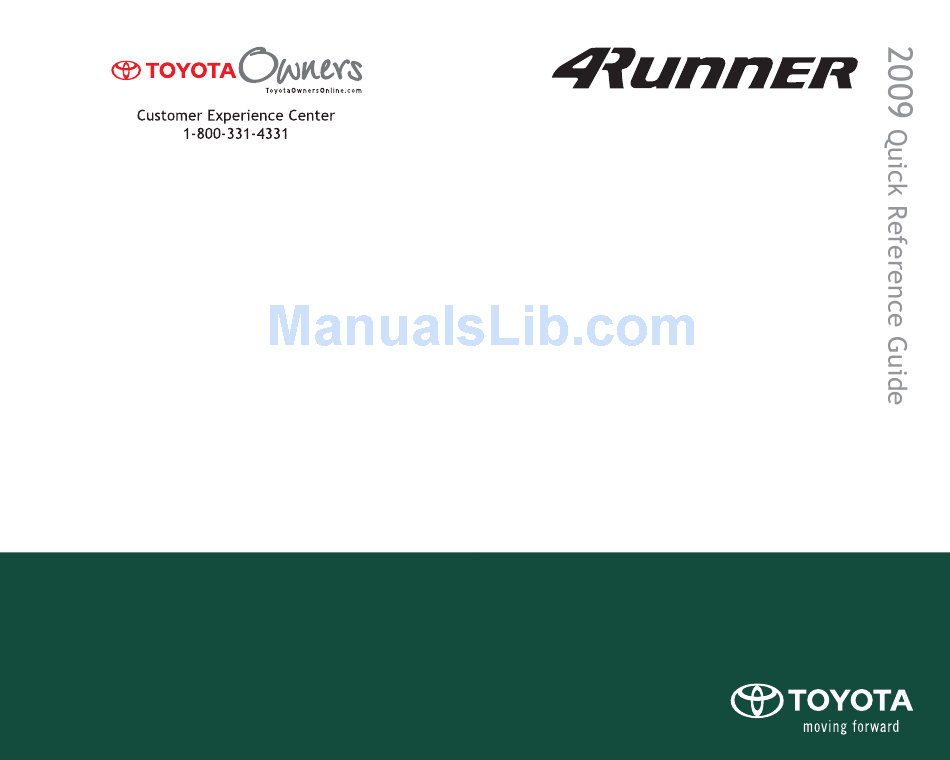

  • Page 1 MN 00505-QRG09-4RUN Printed in the USA 7/08...
  • Page 2 Jack Your dealership and the entire staff of Toyota Motor Sales, Removing the spare tire U.S.A., Inc. wish you many years of satisfied driving in your new 4Runner.

  • Page 3: Table Of Contents

    EMERGENCY FEATURES Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Monitoring (warning) System Visit your Toyota dealer for information on customizing this feature. Programmable by customer. Refer to the Owner’s Manual for instructions and more information. ® HomeLink...
  • Page 4 OVERVIEW Instrument panel Steering wheel controls Rear console box Instrument panel light control Driving position memory switches “RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch VSC OFF switch Center differential lock switch 115V AC Power outlet ON/OFF switch Headlight, turn signal and front fog light control Wiper and washer controls...
  • Page 5 Back window and outside rearview mirror defogger switch Air Conditioning controls Auxiliary boxes Hood release Fuel tank door opener Steering wheel audio controls Telephone switches Cruise control Navigation voice command button AUX adapter 115V AC Power outlet A/V input adapter Downhill Assist Control switch Power back window switch 12V DC Power outlet/Cigarette lighter...

  • Page 6: Instrument Cluster

    OVERVIEW Instrument cluster Limited model only Tachometer Speedometer Service indicator and reminder Fuel gauge Low fuel level warning Engine coolant temperature Trip meter reset knob Odometer and two trip meters Height control indicator Indicator symbols Brake system warning Driver/Front passenger seat belt reminder Charging system warning Low engine oil pressure warning Malfunction/Check Engine indicator...
  • Page 7 Roll Sensing of Curtain shield Airbag OFF indicator AIR BAG ON indicator AIR BAG OFF indicator Headlight high beam indicator Turn signal indicator Front fog light indicator Automatic Transmission indicator Low speed four-wheel drive indicator Center differential lock indicator Vehicle Stability Control “OFF” indicator Four-wheel drive indicator Slip indicator AUTO Limited Slip Differential indicator...

  • Page 8: Fuel Tank Door Release And Cap

    OVERVIEW Fuel tank door release and cap Turn Pull up Store NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate. Keyless entry (if equipped) Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more details.

  • Page 9: Engine Maintenance

    Hood release Pull up latch and Pull raise hood Engine maintenance 6 cylinder (1GR-FE) engine 8 cylinder (2UZ-FE) engine Windshield and back window washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.

  • Page 10: Automatic Transmission

    FEATURES/OPERATIONS Auto lock functions Automatic door locks can be programmed to operate in four different modes, or turned OFF. -Doors lock when shifting from Park. -Doors lock when the vehicle speed goes above approximately 12 mph. -Doors unlock when shifting into Park. -Doors unlock when the engine switch is set from “ON”...

  • Page 11: Four-Wheel Drive

    Four-wheel drive (if equipped) Part-time four-wheel drive models High speed (2WD) High speed (4WD) Turn to “H4” with speed below 62 mph. Low speed (4WD) Shift to “N” position, then push and turn to “L4.” Full-time four-wheel drive models High speed Turn to “H4”...

  • Page 12: Seat Adjustments-Front

    FEATURES/OPERATIONS Tilt and telescopic (if equipped) steering wheel (1) Angle (2) Column length To change the angle Hold the steering wheel, pull the lock release lever, tilt to the desired angle, and release the lever. To change the column length Push the lock release lever down, set the desired length, and return the lever to its locked position.

  • Page 13: Seat Adjustments-Rear

    Seat adjustments-Rear (vehicles with third row seats) Second row seats Seatback angle Seatback angle Third row seats Seatback angle Seatback angle Seat adjustments-Rear (vehicles without third row seats) (2) Lower (3) Pull up (1) Push (4) Push down (5) Fold down...

  • Page 14: Parking Brake

    FEATURES/OPERATIONS Parking brake Set: Depress Release: Depress again Seats-Head restraints Front Lock release button Second row With third seat Without third seat Lock release button Lock release button Third row Lock release button...

  • Page 15: Clock

    Windshield wipers & washers Front Adjust interval* Interval wipe Slow Fast Pull to wash and wipe * Intermittent windshield wiper interval adjustment Rotate to increase/decrease wipe frequency. Rear Wash and wipe Wipe Interval wipe Wash and wipe NOTE: Rear wiper and washer operate only when rear window is fully closed.
  • Page 16 FEATURES/OPERATIONS Lights & turn signals Headlights AUTO* Headlights Parking lights Low beam High beam flasher High beam * If equipped -Daytime Running Light system (if equipped) Automatically turns on the headlights at a reduced intensity. -Automatic light cut off system Will automatically turn lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.

  • Page 17: Windows 1

    Windows Driver side Window lock switch Down Automatic operation (driver side only) Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows.

  • Page 18: Cruise Control

    FEATURES/OPERATIONS Cruise control Turning system ON/OFF System ON/OFF Functions Resume /Increase speed Cancel Set/Decrease speed The set speed may also be cancelled by depressing the brake pedal. The set speed may be resumed once vehicle speed exceeds 25 mph. Refer to the Owner’s Manual for more details. Seat heaters (if equipped) Left front seat Right front seat...

  • Page 19: Air Conditioning/Heating

    Air Conditioning/Heating With “DUAL” button Without “DUAL” button Fan speed Temperature selector Automatic climate control ON/OFF “DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Airflow vent In “ ”...

  • Page 20: Audio

    FEATURES/OPERATIONS Audio Type 1 Preset buttons - functions in other modes indicated above number. Eject CD Push to turn Push to adjust ON/OFF tone & balance Seek station/ Push to skip CD track select up/down folder View radio/CD Station/CD Mode information track scan Type 2 additional functions...

  • Page 21: Audio

    RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.

  • Page 22: Door Locks

    FEATURES/OPERATIONS Door locks Lock Unlock Rear seat entertainment system (if equipped) Front audio system DVD player DVD screen Remote control A/V input adapter 115V AC Power outlet 115V AC Power outlet ON/OFF switch...

  • Page 23: Garage Door Opener (Homelink ® ) 3

    Refer to the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com. * HomeLink ® is a registered trademark of Johnson Controls, Inc.

  • Page 24: Cup Holders

    FEATURES/OPERATIONS Moonroof (if equipped) Sliding operation Tilting operation Open Close Close Tilt Push once to open/close completely. To stop partway, press switch lightly. NOTE: If battery is disconnected, the moonroof will need to be reinitialized. Refer to the Owner’s Manual for more details. Cup holders Center console Rear (without third seats)

  • Page 25: Bottle Holders

    Bottle holders Rear doors Front doors Power outlets-12V DC Auxiliary box Luggage compartment NOTE: Designed for car accessories. Engine switch must be in the “ACC” or “ON” position to be used. Power outlets-115V AC (if equipped) Inside center console ON/OFF switch Push NOTE: Engine switch must be in the “ON”...

  • Page 26: Doors-Child Safety Locks

    Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details.
